Planet POE-171 Single-Port 10/100/1000 Mbps Ultra PoE Injector (60 Watts)

Quick and Easy Gigabit High Power PoE Network Deployment

The POE-171 is a single port ultra Power over Ethernet Injector with maximum up to 60 watts of power output over Ethernet cable. The PoE technology carries both data and power over a single cable, enabling ultimate flexibility in installation without the limitation of AC outlet location. As an IEEE 802.3at High Power over Ethernet Injector with support for Gigabit Ethernet and DC 56V power delivery, the POE-171 is designed specifically to fill the demand of growing power required network equipment, and supports distance from POE-171 to a PoE device up to 100 meters. Its compact metal case is rugged and allows discreet installation. If the POE-171 co-works with PLANET POE-171S (60-watt IEEE 802.3at PoE splitter, sold separately), it can offer more PoE applications, such as:

• PoE PTZ Speed Dome
• Other Network devices that need higher PoE power to work normally
• Thin-client
• AIO(All-in-One) touch PC
• Remote digital signage display

60 watts of Power over 4-Pair UTP

The POE-171 ultra PoE solution uses cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.

Cost-effective and Easy Cabling Installation

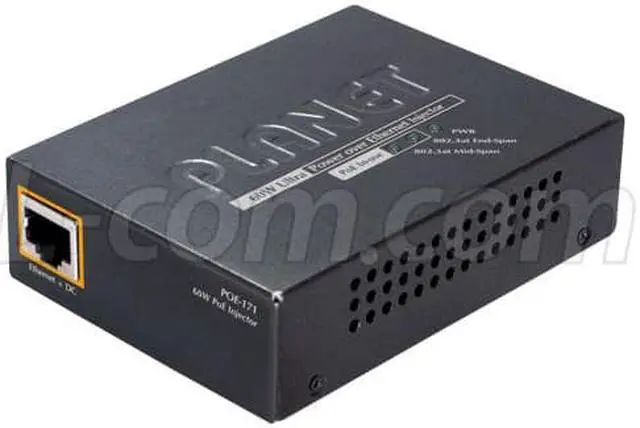

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-171 is in the compact housing, and it provides one 52~56V DC input power jacket on its right side, one power LED and two PoE In-use LEDs (802.3at End-span and 802.3at Mid-span) on the top side. Two RJ-45 ports - Ethernet port and Ethernet+DC port - are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-171 is ready to provide high speed network communication and 60-watt ultra power PoE injector functions simultaneously with no need of software configuration.

The POE-171 Ultra PoE Injector is an ideal solution that enables network device with high power demand to be powered directly via the RJ-45 Port interface without the need to install power outlets and electrical cabling.

Application

UltraPoE / 802.3at PoE Injector Installation

Because of having the capability of IEEE 802.3at Power over Ethernet, the POE-171 can directly connect with any IEEE 802.3at or IEEE 802.3af PoE devices, like PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices which support IEEE 802.3at or IEEE 802.3af Power over Ethernet.

Ultra PoE Injector and Splitter Installation

For a place at which it is hard to find the power inlet, the POE-171 and POE-171S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, and multi- channel wireless LAN access points installed on the top of building or used in enterprise office or home.

IEEE 802.3at Injector and PoE Extended Installation

To achieve the benefits of IP Surveillance and also the long-distance IP Camera distribution, the POE-171 and PLANET PoE Extender, POE-E201, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-171. The POE-171 delivers PoE power over the first 100 meters to the PoE Extender over UTP cable, and then the PoE Extender forwards the Ethernet data and the remaining POE power to the remote PoE IP camera.
