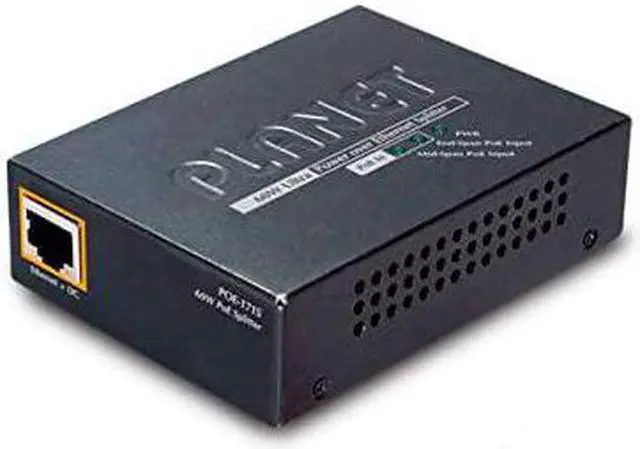

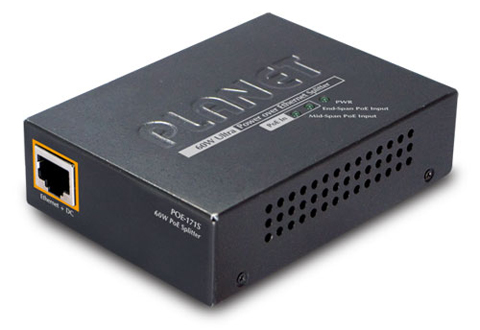

Planet POE-171S Single-Port 10/100/1000 Mbps Ultra PoE Splitter (12V / 19V / 24V)

Quick and Easy Gigabit High Power PoE Network Deployment

Supporting IEEE 802.3at/af standards, the Planet POE-171S Ultra PoE Splitter takes PoE input of the Ethernet digital data with DC 56V power over the twisted pair cables, and split the digital data and the power into separate output for use with non-PoE devices. Three voltages, 12V / 19V /24V DC, can be selected using an integrated DIP switch to meet the needs of various devices. The POE-171S frees the device deployment from restrictions due to power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time. 100-meter effective distance allows easy placement of end-point devices.

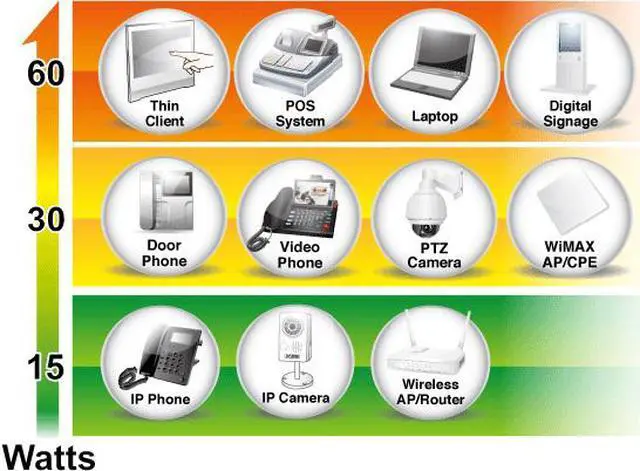

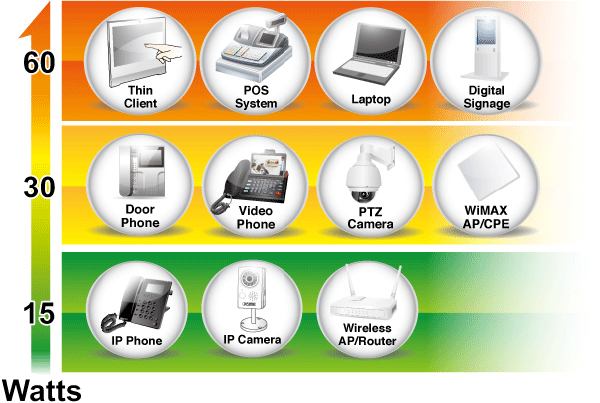

If the POE-171S co-works with PLANET POE-171 (60-watt IEEE 802.3at PoE injector), it can offer more PoE applications, such as:

• PoE PTZ Speed Dome
• Other Network devices that need higher PoE power to work normally
• Thin-client
• AIO(All-in-One) touch PC
• Remote digital signage display



50 watts of Power over 4-Pair UTP

The POE-171S and POE-171 ultra PoE solution use cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 50 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.

Cost-effective and Easy Cabling Installation

In the IEEE 802.3at Gigabit high Power over Ethernet devices installed, the system administrator only has to connect one single RJ-45 Ethernet cable to carry both power and data from an IEEE 802.3at/af PoE injector to POE-171S, and then the POE-171S splits data and DC power to any of IP networking devices. Besides, to connect through IEEE 802.3at Power over Ethernet injector and POE-171S, you can also have the benefits of cost saving, easy networking planning and higher reliability. Upon the completion of the installation of IEEE 802.3at compliant devices, the POE-171S, when functioning with the POE-171, can make the connection while migrating or splitting the power and the Ethernet digital packets, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other Network devices that need 50-watt high power to work normally.

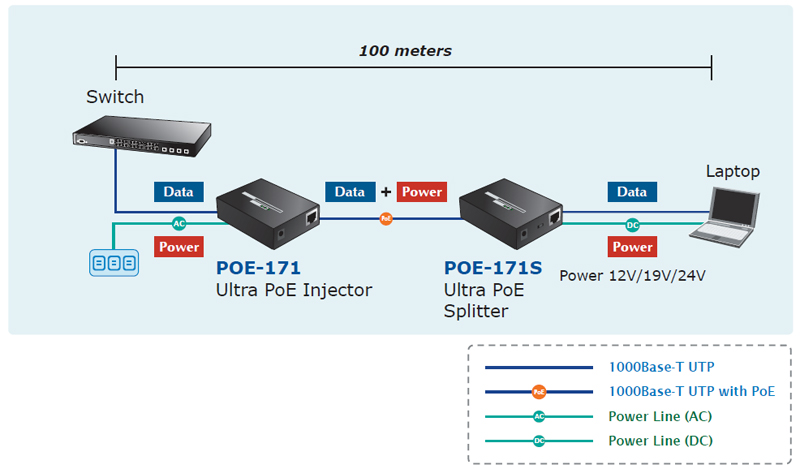

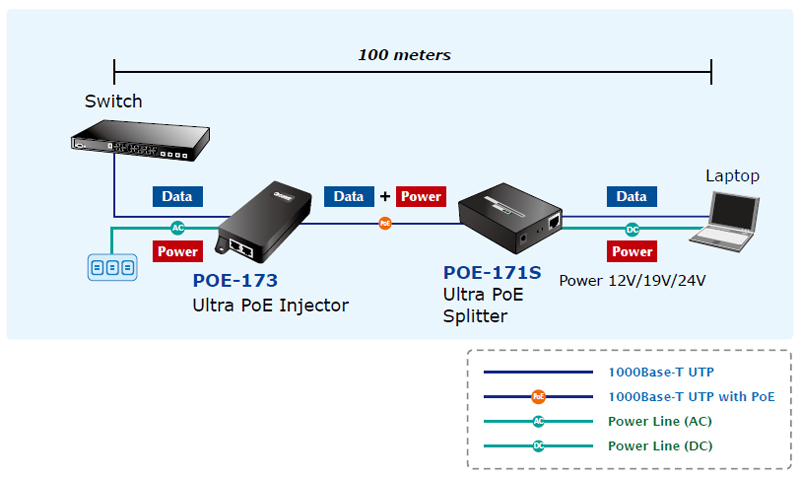

Ultra PoE Splitter and Injector Installation

For a place at which it is hard to find the power inlet, the POE-171S and PLANET Ultra PoE Injector - POE-171 or POE-173, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-171S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

Power over Ethernet

• Ultra Power over Ethernet End-Span / Mid-Span PSE
• IEEE 802.3at/af PoE standard compliant
• Compatible with All IEEE 802.3at/af Powered Devices
• Supports 56VDC, 50pwatt PoE power output
• Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
• Remote power feeding up to 100 meters

Hardware

• Metal case
• All-in-one compact size design
• LED indicators for Power LED and POE input
• Three-mode DC output DIP switch for 12V/19V/24V
