PLANET POE-E202 1-port 802.3at PoE+ to 2-port 802.3af/at Gigabit PoE Extender

Quick Summary

PoE Solution for Breaking RJ45 100m Limitation

The PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE extender, designed especially for point to multipoint PoE application. It not only enables long-range Gigabit Ethernet Data transmission, but also can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports. Use it to simultaneously extend both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices.

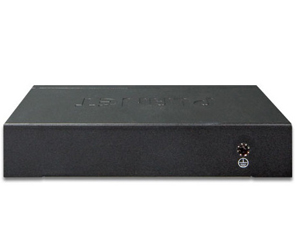

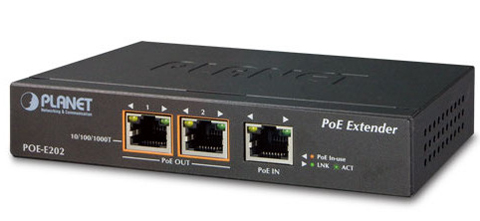

The desktop-sized unit is made of metal for rugged durability. It’s wall-mountable and allows for easy plug-and-play installation; no external power cable installation required. It provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

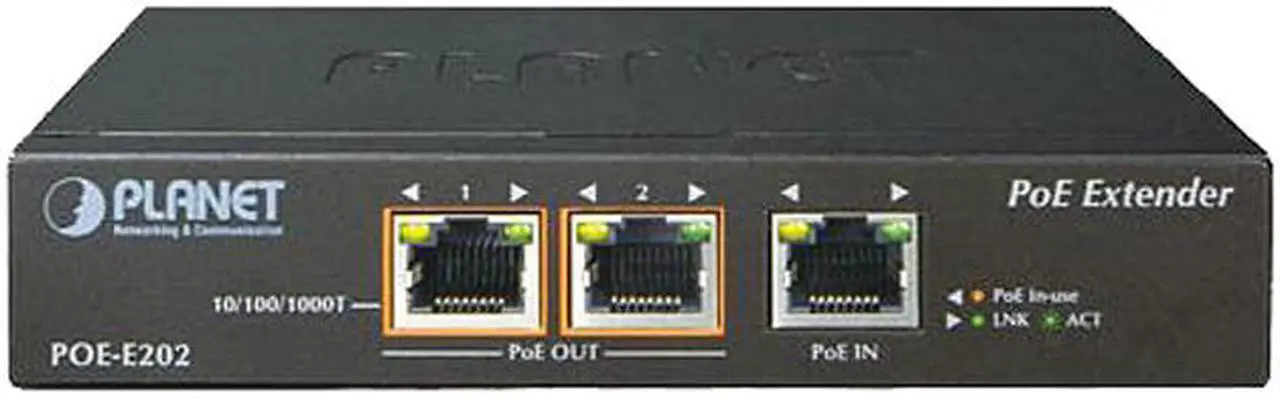

Physical Ports

• 3-port 10/100/1000BASE-T Gigabit RJ45 interface

- 1-port data + power input

- 2-port data + power output

Key Features

Plug-and-Play Installation

The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.

Applications

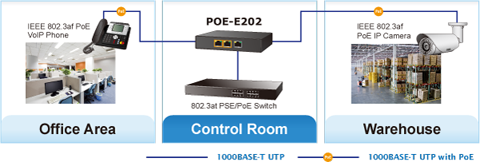

One Power Sourcing for Multi Powered Devices Solution

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and the long-distance IP camera distribution, PLANET POE-E202 is quite a useful Gigabit PoE extender if users have most of their network already set up, and hope to expand network communications and overcome cable distance limitations offering connections to devices in locations where traditional networking does not allow.
