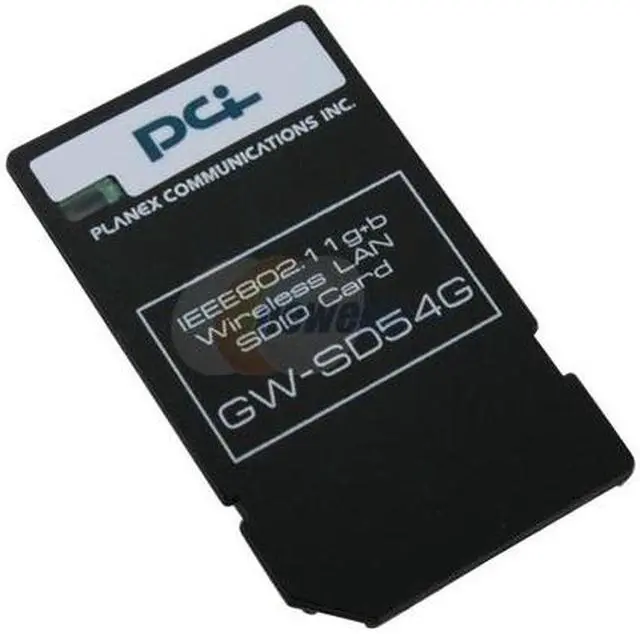

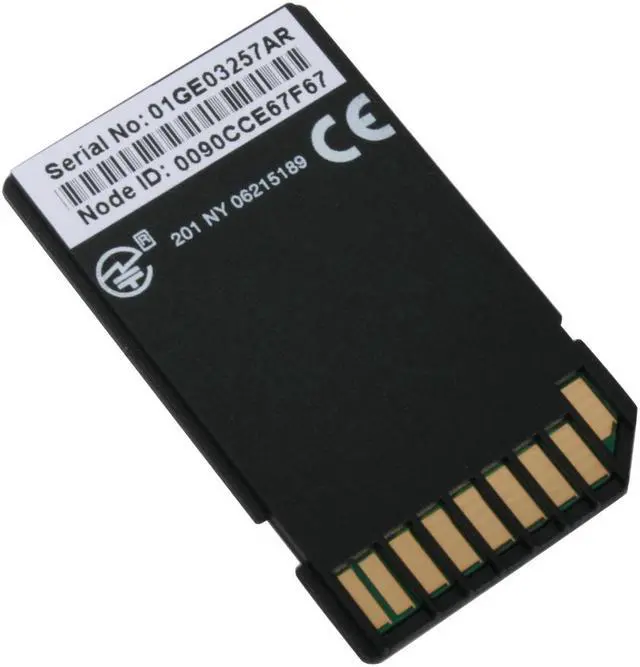

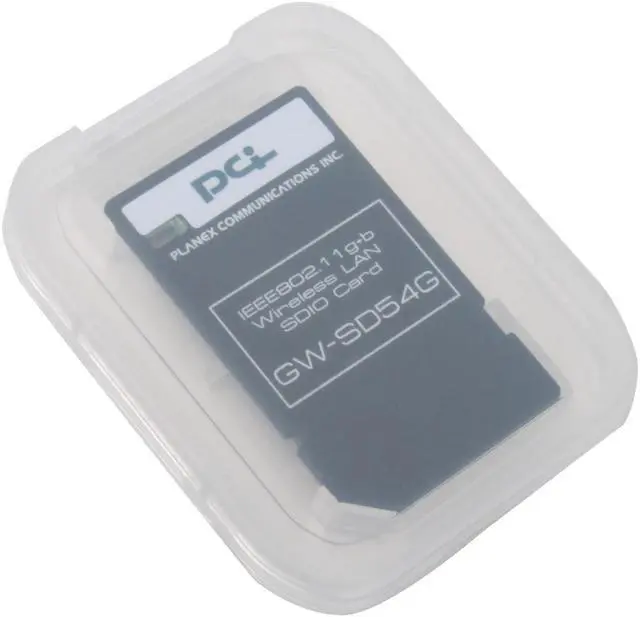

Planex GW-SD54G Wireless SDIO Card Design in Japan by Plannex Communications Inc. (PCI) IEEE 802.11b/g SDIO Up to 54Mbps Wireless Data Rates
- IEEE 802.11b/g
- Up to 54Mbps Wireless Data Rates
- 2.412 GHz - 2.4835 GHz
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Planex Communications GW-SD54G
| Brand | Planex |
|---|---|
| Model | GW-SD54G |
| Standards | IEEE 802.11b/g |
|---|---|
| Wireless Data Rates | Up to 54Mbps |
| Security | Security supported WEP, WPA, WPA-TKIP, WPA2 |
| Interface | SDIO |
| Frequency Band | 2.412 GHz - 2.4835 GHz |
| Channels | 11 Channels (US, Canada) 13 Channels (Europe) |
| Modulation | 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal frequency division multiplexing (OFDM) |
| LEDs | Link/Activity |
| Transmitted Power | 802.11b: 8-10dBm(CCK) 802.11g: 6~8dBm(OFDM) |
| Operating Range | Indoor: Up to 100m, Outdoor: Up to 300m |
| Features | Supports infrastructure and Ad Hoc Peer-to-Peer connectivity Internal antenna reduces the card size LED indicates link and activity status SDIO interface compatible Support Windows CE3.0/CE4.2, PocketPC 2002/2003 Power Consumption: 250 mA (Max) |
|---|
| Dimensions | 1.6" x 0.9" x 0.1" |
|---|---|
| Weight | 0.11 oz |
| Temperature | 0°C - 55°C (32°F - 131°F) |
|---|---|
| Humidity | 35% ~ 85% |

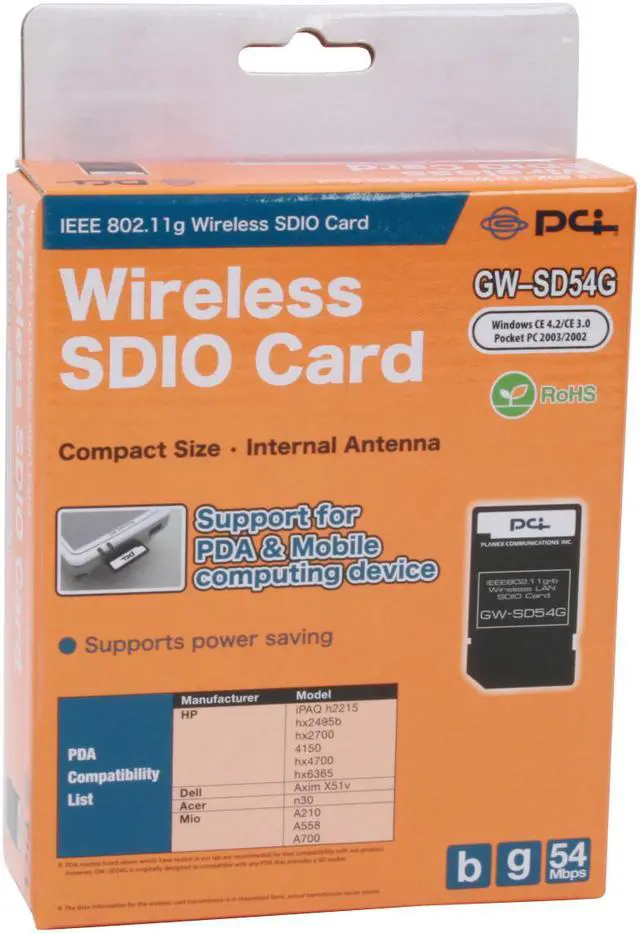

| Package Contents | GW-SD54G Resource Disk Quick Installation Guide |
|---|
| First Listed on Newegg | February 28, 2008 |
|---|
