poinwer wifi 6 intel ax200 up to 2974mbps with bluetooth 5.1 wireles m.2 2.4g/5ghz card for laptop pc with windows 64 bit - intel model ax200ngw

Features and Advantage



This 11ax module adopts Intel AX200 chipset, it supports 2x2 Wi-Fi 6 technology, 2402Mbps at 5GHz and 574Mbps at 2.4GHz, including new features such as UL and DL OFDMA and 1024QAM, 160MHz channels, Target Wake Time and spatial reuse, can deliver nearly 40% higher peak data rates and up to 4X capacity improvement in dense or congested environment. This Module works with all brand's Wi-Fi routers for smooth HD video, voice streaming and high speed download. It also offers a secure connection and is backward compatible with 802.11n and 802.11ac.







Download the Driver & Documents from the Intel website







Specifications



Model: Intel WiFi 6 AX200NGW



Connector interface: M.2 2230 or M.2 1216 (Not for (M2:CNVi))



System Interface Type: PCIe, USB



Antenna connector: IPEX 4 / iPX 4 Connector



Wireless data rate:



5GHz up to 1730Mbps (You router must support 802.11AX)



2.4GHz up to 574Mbps (160MHz)



Max speed: If your router support 802.11AX, the max speed can up to 2.4Gbps



Streams: 2X2



Bluetooth: Bluetooth 5.1



Antenna Diversity: Supported



MU-MIMO: Yes



Frequency: Dual Band 2.4/5GHz



IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w, 802.11r, 802.11k, 802.11v



Wi-Fi CERTIFIED*: 802.11ax



Operating Systems: Windows 10 32/64-bit (NOt support Windows 7/8/8.1)



Dimension (H x W x D): 22 x 30 x 2.4 mm







Package Includes:

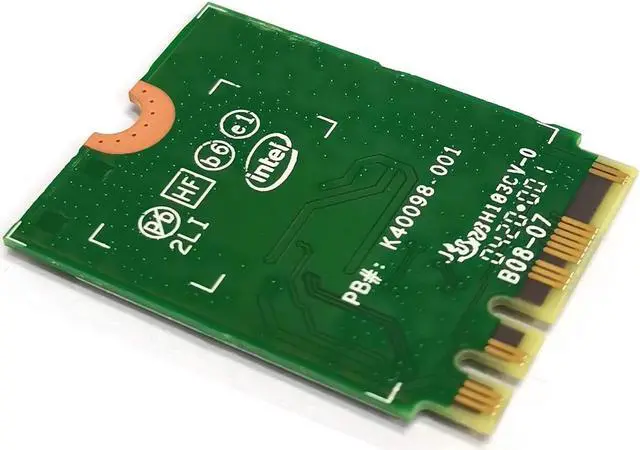

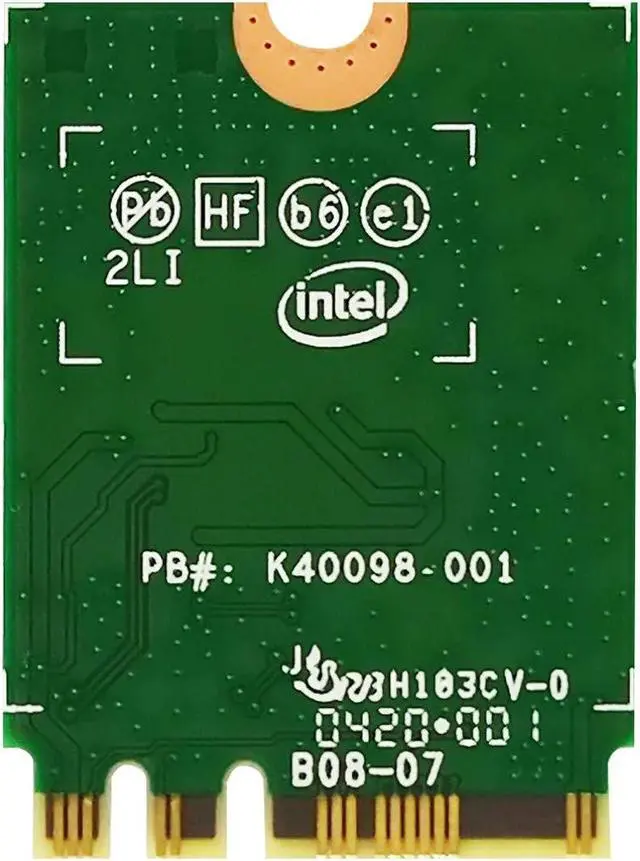

1x AX200NGW M2 NGFF WLAN Card



1x Screws



1x Holder Bracket







TIPs:

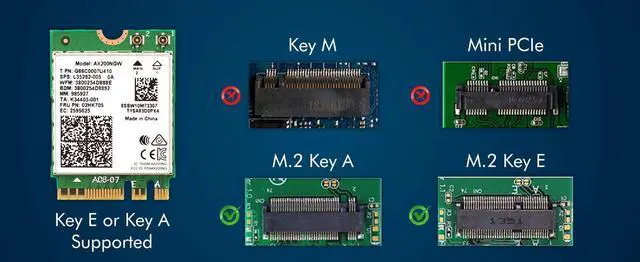

1.The laptop wifi card should be used in Laptops with an M.2 slot ( Key A or E ) or desktop with an M.2 slot printed with ""WiFi""



2.Use only on Intel based systems that are running Win10 64-bit. Do not use on a motherboard contains an Intel 9560 CNVi module, NOT for AMD Platform.



3.This module DOES NOT include Antenna. Laptop users can use its own antenna.
