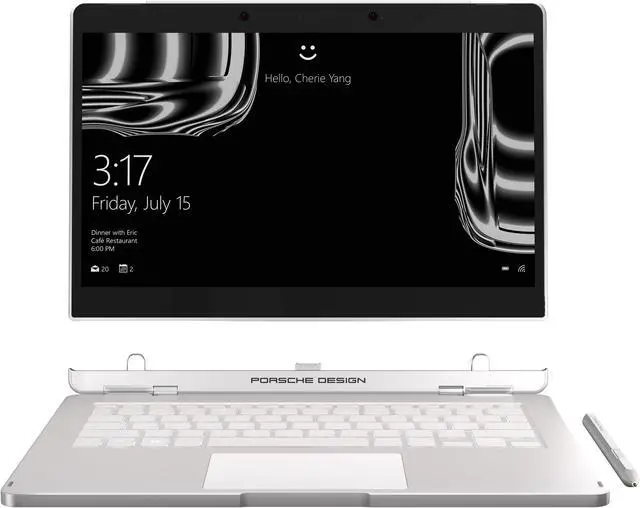

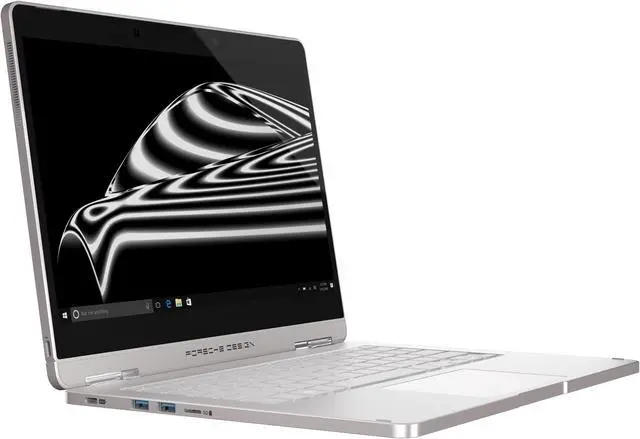

Porsche Design Book One PD132512 Intel Core i7 7th Gen 7500U (2.70 GHz) 16 GB Memory 512 GB PCIe SSD 13.3" Touchscreen 3200 x 1800 Detachable 2-in-1 Laptop Windows 10 Pro 64-Bit
- Intel Core i7 7th Gen 7500U (2.70 GHz)
- 16 GB Memory 512 GB PCIe SSD
- Intel HD Graphics 620
- 13.3" Touchscreen 3200 x 1800
- Detachable
- Windows 10 Pro 64-Bit
Overview
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
PORSCHE DESIGN BOOK ONE 2-in-1 Tablet PC
BRAND PORSCHE DESIGN
MODEL BOOK ONE
MODEL NUMBER PD132512
FORM FACTOR 2-in-1
HARDWARE PLATFORM PC
OPERATING SYSTEM Windows 10 Pro
PROCESSOR BRAND Intel®
PROCESSOR TYPE 7th Gen Intel® Core™ i7-7500U processor
PROCESSOR SPEED 2.70 GHz | up to 3.50 GHz
NUMBER OF PROCESSORS 2 Cores / 4 Threads
MEMORY CAPACITY (RAM) 16 GB
MEMORY TYPE LPDDR3 1866 MHz
MAX. SIZE SUPPORTED (RAM) 16 GB
STORAGE CAPACITY 512 GB
HARD DRIVE TECHNOLOGY SSD
HARD DRIVE INTERFACE PCIe
GRAPHIC CARD Intel® HD Graphics 620
SCREEN TYPE 10-point multi-touch QHD+ IPS display | LED backlight
SCREEN SIZE 13.3-inch (33.8 cm)
SCREEN RESOLUTION 3200 x 1800 pixel
CONTRAST RATIO 1000:1
IMAGE FORMAT 16:9
CHARACTERISTICS Borderless Design
CAMERA 5 MP Front camera | in addition with an infrared camera for Windows Hello
SPEAKERS 2 x 2 W
MICROPHONE 2 microphones (i. a. for Cortana)
AUDIO OUTPUT 1 (tablet unit)
NUMBER OF USB TYPE-C™ 3.1 1 (keyboard dock)
NUMBER OF USB TYPE-C™ 3.1 THUNDERBOLT 1 (tablet unit)
NUMBER OF USB TYPE A 3.0 2 (keyboard dock)
MEMORY CARD READER microSD card reader (keyboard dock)
NETWORK Dual band WiFi | Bluetooth® 4.1
WIFI FREQUENCIES IEEE 802.11 abgn+ac 2.4 | 5 GHz
PRODUCT DIMENSIONS (2-IN-1) approx. 311.4 x 226.5 x 15.9 mm
PRODUCT DIMENSIONS (TABLET UNIT) approx. 311.4 x 209.5 x 7.7 mm
TOTAL WEIGHT 1580 g
WEIGHT TABLET 758 g
HOUSING MATERIAL anodized aluminium
COLOUR Pure Silver
TYPE OF BATTERY Lithium polymer battery
AVERAGE BATTERY RUNTIME up to 14 hwww.porsche-design-computing.com
BATTERY CAPACITY 25 Wh (tablet unit) | 45 Wh (keyboard dock) | total 70 Wh
WEIGHT BATTERY approx. 112 g (tablet unit) | approx. 195 g (keyboard dock)
CHARGING BY USB Type-C™
CHARGING TIME less than 2 h

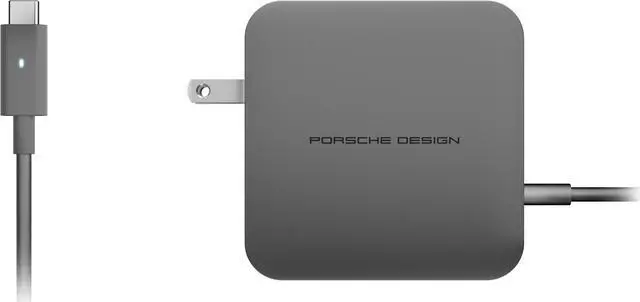

POWER SUPPLY USB Type-C™ power adapter | 100 – 240 V | 60 W
KEYBOARD full-size keyboard | dimmable backlight | country-specifi c keyboard layouts
DIMENSIONS KEYBOARD 265 x 102 mm
TOUCHPAD Microsoft-certifi ed Precision Touchpad (PTP) for Windows 10
DIMENSIONS TOUCHPAD 105 x 70 mm
CHARACTERISTICS VarioHinge (hinge), developed by Porsche Design |
combination of a 360° rotation function and possible separation of the tablet unit

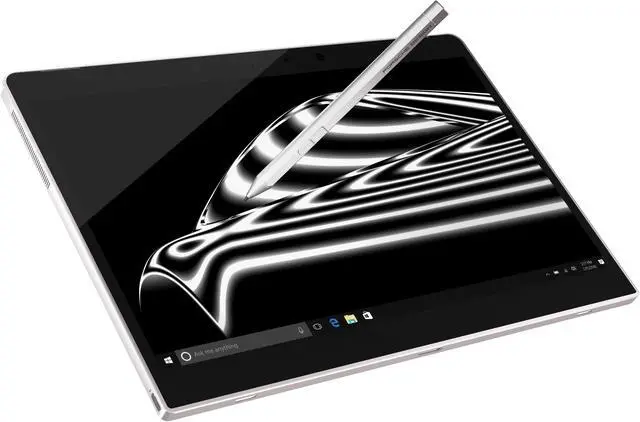

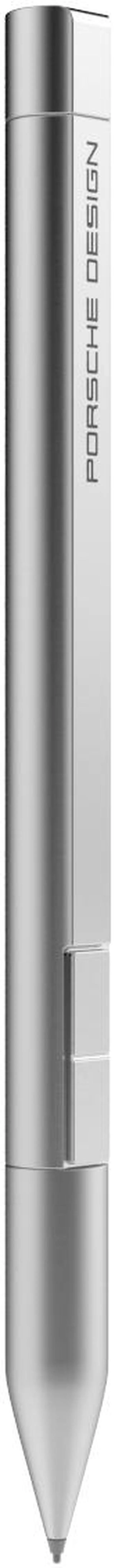

TECHNICAL DETAILS PEN
MANUFACTURER Wacom
BRAND Porsche Design
NAME BOOK ONE PEN
COMPATIBILITY PORSCHE DESIGN BOOK ONE

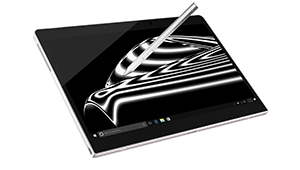

PRESSURE SENSITIVITY 4096 pressure points
KEYS function key | delete key
DIMENSIONS approx. 9 x 140 mm
WEIGHT approx. 12 g (without battery) | approx. 19 g (with battery)
HOUSING MATERIAL anodized aluminium
COLOUR Pure Silver
BATTERY AAAA battery
AVERAGE BATTERY LIFE TIME = 7,5 months (when 3 h used and 21 h on standby per day)
CHARACTERISTICS adaptive dynamism | magnetic attachment to PORSCHE DESIGN BOOK ONE
PACKAGE CONTENTS
PORSCHE DESIGN BOOK ONE

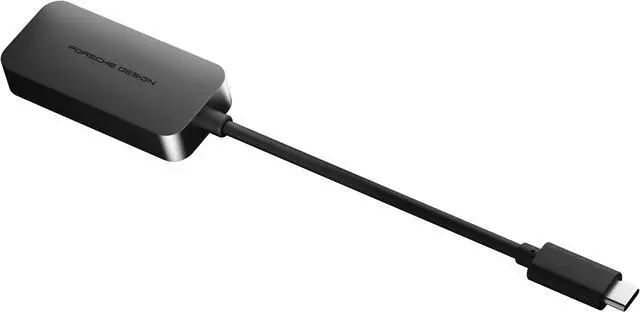

USB TYPE-C™ TO HDMI® ADAPTER (UP TO ULTRA HD VIDEO QUALITY)
USB TYPE-C™ POWER ADAPTER (100 V – 240 V) | 60 W
BOOK ONE PEN
AAAA BATTERY
CLEANING CLOTH
QUICK START GUIDE
"IMPORTANT SAFETY AND LEGAL INFORMATION" BROCHURE.
BRAND PORSCHE DESIGN
MODEL BOOK ONE
MODEL NUMBER PD132512
FORM FACTOR 2-in-1
HARDWARE PLATFORM PC
OPERATING SYSTEM Windows 10 Pro
PROCESSOR BRAND Intel®
PROCESSOR TYPE 7th Gen Intel® Core™ i7-7500U processor
PROCESSOR SPEED 2.70 GHz | up to 3.50 GHz
NUMBER OF PROCESSORS 2 Cores / 4 Threads
MEMORY CAPACITY (RAM) 16 GB
MEMORY TYPE LPDDR3 1866 MHz
MAX. SIZE SUPPORTED (RAM) 16 GB
STORAGE CAPACITY 512 GB
HARD DRIVE TECHNOLOGY SSD
HARD DRIVE INTERFACE PCIe
GRAPHIC CARD Intel® HD Graphics 620
SCREEN TYPE 10-point multi-touch QHD+ IPS display | LED backlight
SCREEN SIZE 13.3-inch (33.8 cm)
SCREEN RESOLUTION 3200 x 1800 pixel
CONTRAST RATIO 1000:1
IMAGE FORMAT 16:9
CHARACTERISTICS Borderless Design
CAMERA 5 MP Front camera | in addition with an infrared camera for Windows Hello
SPEAKERS 2 x 2 W
MICROPHONE 2 microphones (i. a. for Cortana)
AUDIO OUTPUT 1 (tablet unit)
NUMBER OF USB TYPE-C™ 3.1 1 (keyboard dock)
NUMBER OF USB TYPE-C™ 3.1 THUNDERBOLT 1 (tablet unit)
NUMBER OF USB TYPE A 3.0 2 (keyboard dock)
MEMORY CARD READER microSD card reader (keyboard dock)
NETWORK Dual band WiFi | Bluetooth® 4.1
WIFI FREQUENCIES IEEE 802.11 abgn+ac 2.4 | 5 GHz
PRODUCT DIMENSIONS (2-IN-1) approx. 311.4 x 226.5 x 15.9 mm
PRODUCT DIMENSIONS (TABLET UNIT) approx. 311.4 x 209.5 x 7.7 mm
TOTAL WEIGHT 1580 g
WEIGHT TABLET 758 g
HOUSING MATERIAL anodized aluminium
COLOUR Pure Silver
TYPE OF BATTERY Lithium polymer battery
AVERAGE BATTERY RUNTIME up to 14 hwww.porsche-design-computing.com
BATTERY CAPACITY 25 Wh (tablet unit) | 45 Wh (keyboard dock) | total 70 Wh
WEIGHT BATTERY approx. 112 g (tablet unit) | approx. 195 g (keyboard dock)
CHARGING BY USB Type-C™
CHARGING TIME less than 2 h
POWER SUPPLY USB Type-C™ power adapter | 100 – 240 V | 60 W
KEYBOARD full-size keyboard | dimmable backlight | country-specifi c keyboard layouts
DIMENSIONS KEYBOARD 265 x 102 mm
TOUCHPAD Microsoft-certifi ed Precision Touchpad (PTP) for Windows 10
DIMENSIONS TOUCHPAD 105 x 70 mm
CHARACTERISTICS VarioHinge (hinge), developed by Porsche Design |
combination of a 360° rotation function and possible separation of the tablet unit
TECHNICAL DETAILS PEN
MANUFACTURER Wacom
BRAND Porsche Design
NAME BOOK ONE PEN
COMPATIBILITY PORSCHE DESIGN BOOK ONE
PRESSURE SENSITIVITY 4096 pressure points
KEYS function key | delete key
DIMENSIONS approx. 9 x 140 mm
WEIGHT approx. 12 g (without battery) | approx. 19 g (with battery)
HOUSING MATERIAL anodized aluminium
COLOUR Pure Silver
BATTERY AAAA battery
AVERAGE BATTERY LIFE TIME = 7,5 months (when 3 h used and 21 h on standby per day)
CHARACTERISTICS adaptive dynamism | magnetic attachment to PORSCHE DESIGN BOOK ONE
PACKAGE CONTENTS
PORSCHE DESIGN BOOK ONE
USB TYPE-C™ TO HDMI® ADAPTER (UP TO ULTRA HD VIDEO QUALITY)
USB TYPE-C™ POWER ADAPTER (100 V – 240 V) | 60 W
BOOK ONE PEN
AAAA BATTERY
CLEANING CLOTH
QUICK START GUIDE
"IMPORTANT SAFETY AND LEGAL INFORMATION" BROCHURE.
DESIGNED TO PERFORM
The Porsche Design BOOK ONE is an uncompromising reinterpretation of the 2-in-1 concept. In one of the world's thinnest convertible / detachable, maximum performance meets a breathtaking design. An optimized 360° functionality meets the latest generation of technology. And German engineering skill meets the iconic aesthetics of the unmistakable lines of Porsche Design.
HIGH-END PERFORMANCE
The 7th Gen Core i7 processor and 512 GB SSD from Intel® master every private and professional application with ease. An ultra-fast PCIe interface and the 16 GB memory capacity meet even the most demanding requirements. The two lithium-polymer batteries with a combined capacity of 70Wh give the Porsche Design BOOK ONE up to 14 hours of endurance. And then fully recharge in less than 2 hours.

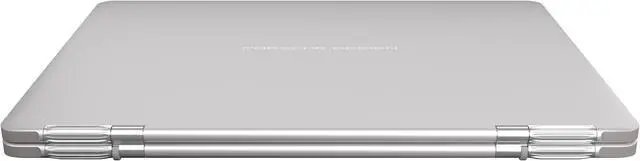

ENGINEERED FLEXIBILITY
The construction of the newly developed VarioHinge is inspired by the gearbox of a sports car. The unique, high-quality stainless steel hinge gives the Porsche Design BOOK ONE its unparalleled flexibility. In seconds, the lightweight 2-in-1 notebook can be transformed from a high-end tablet into an ultramobile high-performance laptop. The innovative VarioGrip ensures excellent stability and supreme comfort at all times.
GROUNDBREAKING TECHNOLOGY
The PTP glass touchpad provides 5-finger multi-touch for maximum precision. The keyboard is equipped with dimmable backlight. And the display offers across 13.3 inches uncompromising 3K QHD+ IPS quality. The BOOK ONE PEN was specially developed by Wacom for the Porsche Design BOOK ONE with 2.048 pressure points and adaptive dynamics to master almost every application scenario. Equipped with one USB Type-C™ 3.1 and one Intel Thunderbolt®, as well as two full-size USB-A™ 3.0 ports, the Porsche Design BOOK ONE also leaves nothing to be desired in terms of connectivity.
PURISTIC DESIGN

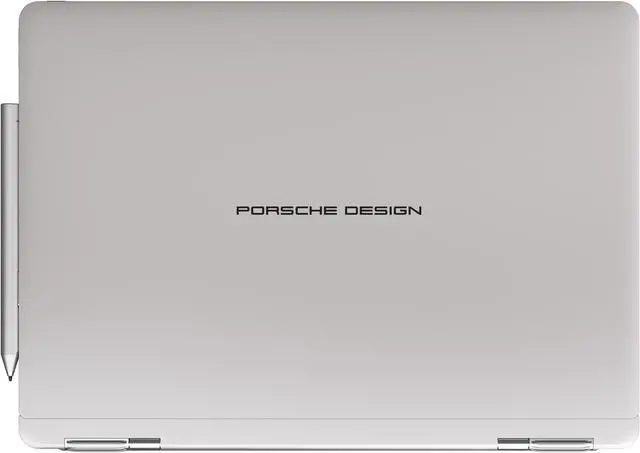

Two matte aluminum panels in perfect symmetry. Each only 7.7 mm thick. A sandblasted surface in pure silver. Polished edges. Straightforward, clear and to the point. The Porsche Design BOOK ONE is the consequent implementation of Porsche Design DNA. Shape and function in perfect harmony. Or as the design legend and founder Professor Ferdinand Alexander Porsche put it: "If you analyze the function of an object, its form often becomes obvious."
| BRAND | PORSCHE DESIGN |
|---|---|
| MODEL | BOOK ONE |
| MODEL NUMBER | PD132512 |
| FORM FACTOR | 2-in-1 |
| HARDWARE PLATFORM | PC |
| OPERATING SYSTEM | Windows 10 Pro |
| PROCESSOR BRAND | Intel® |
| PROCESSOR TYPE | 7th Gen Intel® Core™ i7-7500U processor |
| PROCESSOR SPEED | 2.70 GHz | up to 3.50 GHz |
| NUMBER OF PROCESSORS | 2 Cores / 4 Threads |
| MEMORY CAPACITY (RAM) | 16 GB |
| MEMORY TYPE | LPDDR3 1866 MHz |
| MAX. SIZE SUPPORTED (RAM) | 16 GB |
| STORAGE CAPACITY | 512 GB |
| HARD DRIVE TECHNOLOGY | SSD |
| HARD DRIVE INTERFACE | PCIe |
| GRAPHIC CARD | Intel® HD Graphics 620 |
| SCREEN TYPE | 10-point multi-touch QHD+ IPS display | LED backlight | 276 PPI |
| SCREEN SIZE | 13.3-inch (33.8 cm) |
| SCREEN RESOLUTION | 3200 x 1800 pixel |
| CONTRAST RATIO | 1000:1 |
| IMAGE FORMAT | 16:9 |
| CHARACTERISTICS | Borderless Design | Gorilla Glass 4 | Anti-fingerprint coating | Anti-reflection coating |
| CAMERA | 5 MP Front camera | in addition with an infrared camera for Windows Hello |
| SPEAKERS | 2 x 2 W |
| MICROPHONE | 2 microphones (i. a. for Cortana) |
| AUDIO OUTPUT | 1 (tablet unit) |
| NUMBER OF USB TYPE-C™ 3.1 | 1 (keyboard dock) |
| NUMBER OF USB TYPE-C™ 3.1 THUNDERBOLT | 1 (tablet unit) |
| NUMBER OF USB TYPE A 3.0 | 2 (keyboard dock) |
| MEMORY CARD READER | microSD card reader (keyboard dock) |
| NETWORK | Dual band WiFi | Bluetooth® 4.1 |
| WIFI FREQUENCIES | IEEE 802.11 abgn+ac 2.4 | 5 GHz |
| PRODUCT DIMENSIONS (2-IN-1) | approx. 311.4 x 226.5 x 15.9 mm |
| PRODUCT DIMENSIONS (TABLET UNIT) | approx. 311.4 x 209.5 x 7.7 mm |
| TOTAL WEIGHT | 1580 g |
| WEIGHT TABLET | 758 g |
| HOUSING MATERIAL | anodized aluminium |
| COLOR | Pure Silver |
| TYPE OF BATTERY | Lithium polymer battery |
| AVERAGE BATTERY RUNTIME | up to 14 h |
| BATTERY CAPACITY | 25 Wh (tablet unit) | 45 Wh (keyboard dock) | total 70 Wh |
| WEIGHT BATTERY | approx. 112 g (tablet unit) | approx. 195 g (keyboard dock) |
| CHARGING BY | USB Type-C™ |
| CHARGING TIME | less than 2 h |
| POWER SUPPLY | USB Type-C™ power adapter | 100 – 240 V | 60 W |
| KEYBOARD | full-size keyboard | dimmable backlight | country-specific keyboard layouts |
| DIMENSIONS KEYBOARD | 265 x 102 mm |
| TOUCHPAD | Microsoft-certified Precision Touchpad (PTP) for Windows 10 |
| DIMENSIONS TOUCHPAD | 105 x 70 mm |
| CHARACTERISTICS | VarioGear (hinge), developed by Porsche Design | combination of a 360° rotation function and possible separation of the tablet unit |
TECHNICAL DETAILS PEN
| MANUFACTURER | Wacom |
|---|---|
| BRAND | Porsche Design |
| NAME | BOOK ONE PEN |
| COMPATIBILITY | PORSCHE DESIGN BOOK ONE |
| PRESSURE SENSITIVITY | 4096 pressure points |
| DIMENSIONS | approx. 9 x 140 mm |
| WEIGHT | approx. 12 g (without battery) | approx. 19 g (with battery) |
| HOUSING MATERIAL | anodized aluminium |
| COLOR | Pure Silver |
| BATTERY | AAAA battery |
| AVERAGE BATTERY LIFE TIME | ≤ 7,5 months (when 3 h used and 21 h on standby per day) |
| CHARACTERISTICS | adaptive dynamism | magnetic attachment to PORSCHE DESIGN BOOK ONE |
PACKAGE CONTENTS
- PORSCHE DESIGN BOOK ONE
- USB TYPE-C™ TO HDMI® ADAPTER (UP TO ULTRA HD VIDEO QUALITY)
- USB TYPE-C™ POWER ADAPTER (100 V - 240 V) | 60 W
- BOOK ONE PEN
- AAAA BATTERY
- CLEANING CLOTH
- QUICK START GUIDE
- "IMPORTANT SAFETY AND LEGAL INFORMATION" BROCHURE
