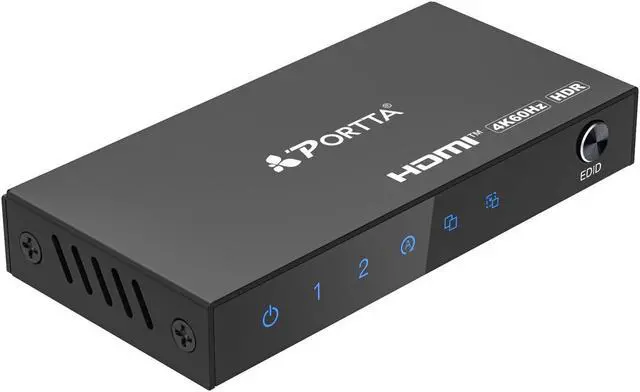

PORTTA 4K HDMI 2-Port Video Splitter 1x2 HDMI Splitter w/ Solid Aluminum Housing

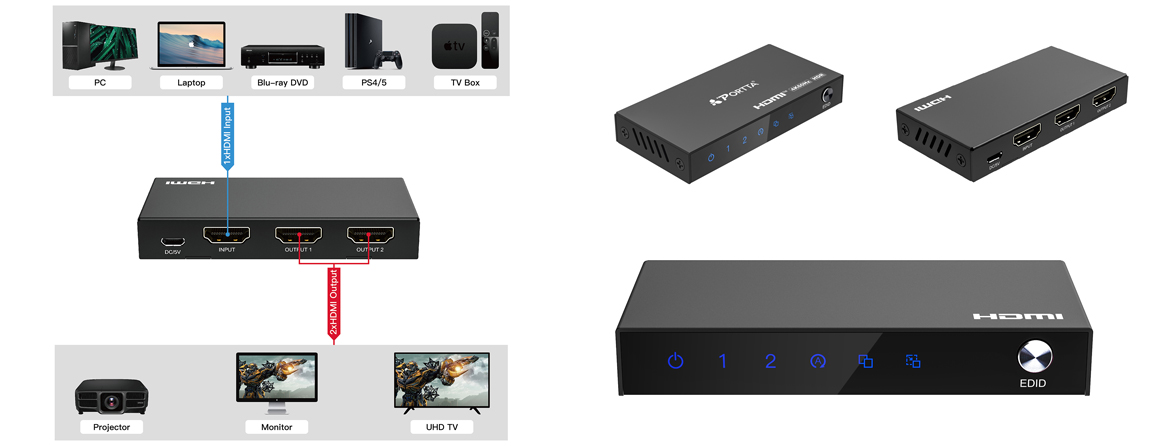

The PORTTA 4K HDMI 2-Port Video Splitter 1x2 HDMI Splitter w/ Solid Aluminum Housing lets you share two HDMI displays or projectors with an HDMI enabled audio / video source device. With support for Ultr HD (4K@60Hz) the HDMI splitter ensures astonishing picture quality, four times the resolution ofr HD 1080p@60Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p and 720p HDMI video resolution devices.
- Support full 3D video format.
- Support three different EDID modes (auto, copy, downscaler)
- Support high resolution up to 4K@60Hz YUV 4:4:4.
- Support HDCP 2.2 and HDCP 1.4.
- Support High Dynamic Range (HDR) video.
- Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth.
- Support 12bit per channel (36bit all channels) deep color.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD).
| Input Ports |
HDMI x 1 |
| Output Ports |
HDMI x 2 |
| Vertical Frequency Range |
50/60Hz |
| Video Amplifier Bandwidth |
6.0Gbps/600MHz per channel(18Gbps all channels) |
| Interlaced(50&60Hz) |
480i, 576i, 1080i |
| Progressive(50&60Hz) |
480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz |
| Power Supply |
USB Power Cable |
| Power Consumption (Max) |
5W |
| Splitter Unit Cert |
FCC, CE, RoHS |
| Power Supply Cert |
FCC, CE, RoHS |
| Material |
Metal |
The PORTTA 4K HDMI 2-Port Video Splitter 1x2 HDMI Splitter w/ Solid Aluminum Housing lets you share two HDMI displays or projectors with an HDMI-enabled audio / video source device. With support for Ultra HD (4K@60Hz) the HDMI splitter ensures astonishing picture quality, four times the resolution of HD 1080p@60 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you dont require 4K video today, the HDMI 4K Splitter 1×2 ensures youll be ready to take advantage of tomorrows display technology.
It features three different EDID modes auto/copy/downscaler for meet needs of different display occasion.
FEATURES

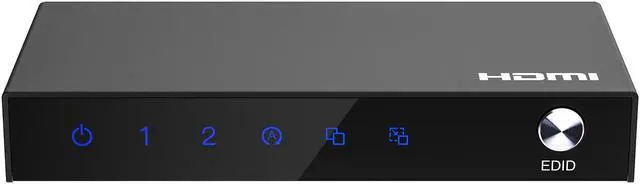

Support three different EDID modes auto/copy/downscaler.
When turn to the auto EDID function, it can get the lower resolution and audio format of the both output for the input device to output the signal to fit both outputs.
When turn to the copy EDID function, it can copy the output1 resolution and audio format for the input device to output the signal, if the other output device supported resolution is lower than the output1 connected device, it will downscaler the resolution and keep the same audio format, HDR format and deep color with the output1, or it will output same signal to both outputs.
When turn to the downscaler function, it can downscale the input 4K resolution to 1080p by the FHD (1080p) displays and 4K resolution to the 4K displays simultaneously.
Support full 3D video format.
Support high resolution up to 4K@60Hz YUV 4:4: 4.
Support HDCP 2.2 and HDCP 1.4.
Support High Dynamic Range (HDR) video.
Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth.
Support 12bit per channel (36bit all channels) deep color.
Support uncompressed audio such as LPCM.
Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD).
SPECIFICATIONS

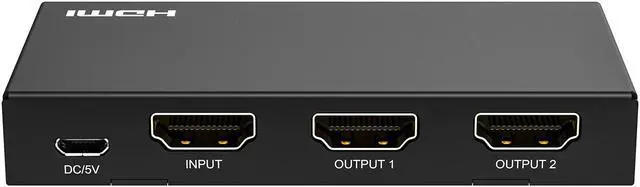

Input Ports HDMI x 1
Output Ports HDMI x 2
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 6.0G bps/600MHz per channel (18Gbps all channels)
Interlaced(50&60Hz) 480i, 576i, 1080i
Progressive(50&60Hz) 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
Operating Temperature 0 to 70
Storage Humidity 5% to 90% RH non-condensation
Power Supply USB Power Cable
Power Consumption (Max) 5W
Splitter Unit Cert FCC, CE, RoHS
Power Supply Cert FCC, CE, RoHS
Power Adapter Standard US, EU, UK, AU Standard etc.
Dimension (LxWxH) 90*44*14mm
Net Weight 87g
Material Metal
User Manual English Version
