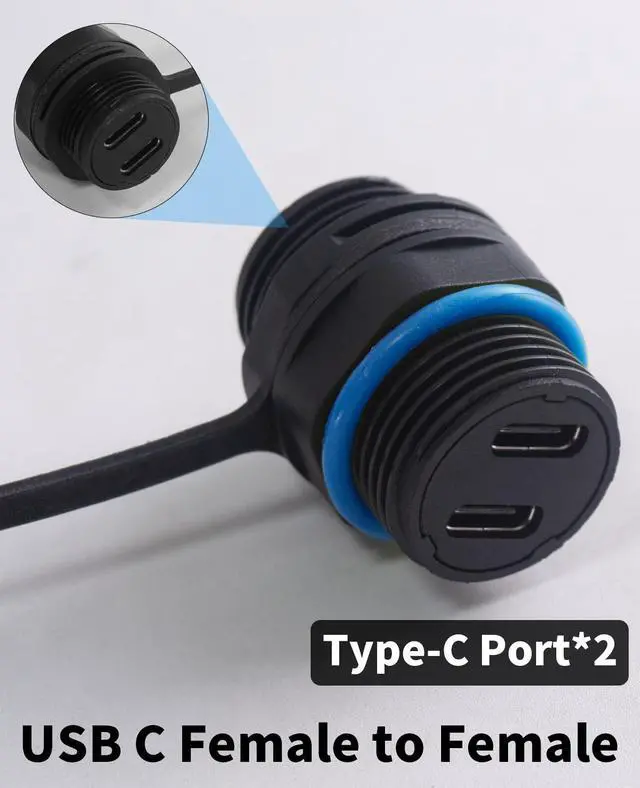

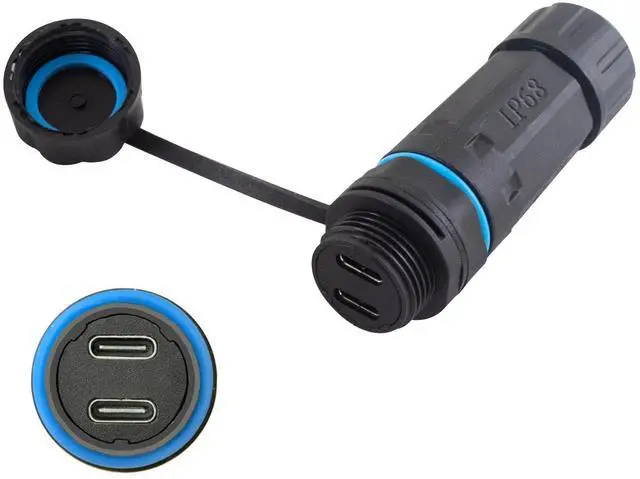

Vszerda 10Gbps Waterproof USB C Connector, 2Port USB C Female to Female Panel Mount Waterproof Connector, 3.1 Type C Extender Passthough Bulkhead Outdoor Charging Data Socket, 1PCS

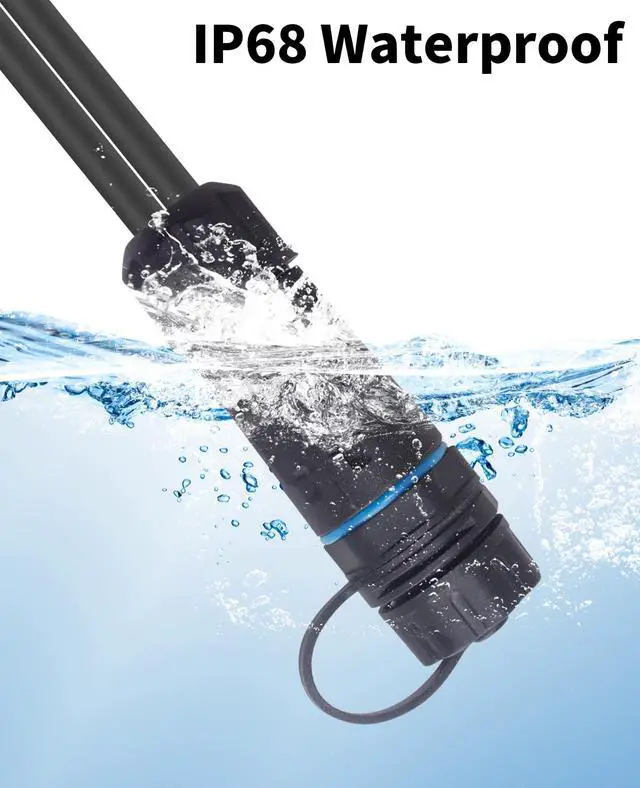

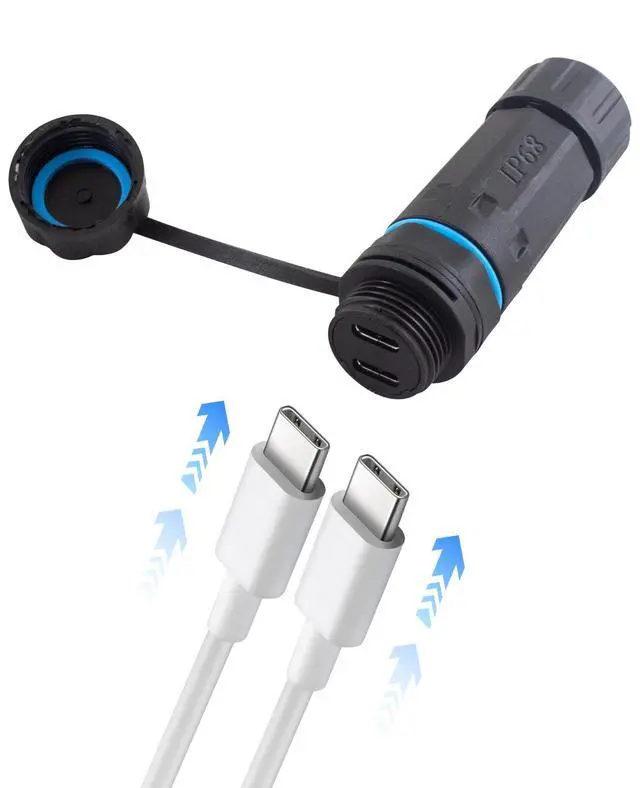

- [Waterproof USB C Connector]This IP68 waterproof USB C adapter with weatherproof cap, features 2-port USB C female to female adapter, allowing for simultaneous extension of two USB C cables. The integrated waterproof cover and sealing gasket provide effective protection against rain and debris, ensuring the safety of your devices in outdoor environments.
- [10Gbps USB C Waterproof Data Adapter]This USB C Waterproof Adapter boasts copper pins with brass solid terminals and gold plating, allowing for extended use and high-speed transmission of up to 10Gbps. Ideal for charging and data transfer on devices with Type C input.
- [USB 3.1 Type C Panel Mount Waterproof Connector]This IP68 Waterproof USB-C adapter meets industry standards for protection against moisture, dust, rain, and snow, ensuring a reliable and high-quality connection. The adjustable waterproof casing allows for versatile use on ground sockets, desktop sockets, and 86 panels.
- [Feature]The nylon PA 66 shell of this USB C female-to-female bulkhead connector is waterproof and flame-retardant, making it perfect for outdoor environments requiring data transmission. With a plug-and-play Panel Mount design, no tools are needed for installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Waterproof rating: IP68with Waterproof/Dust Cap
Connection type: Double Type-C
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Connector transmission classification: USB3.1
Transmission speed range: 10Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: PA66
Socket contact pin: phosphor copper
Waterproof rubber ring: M20 silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 10Gbps.
Package Included:
1x Waterproof Type C Connector
Additional Features

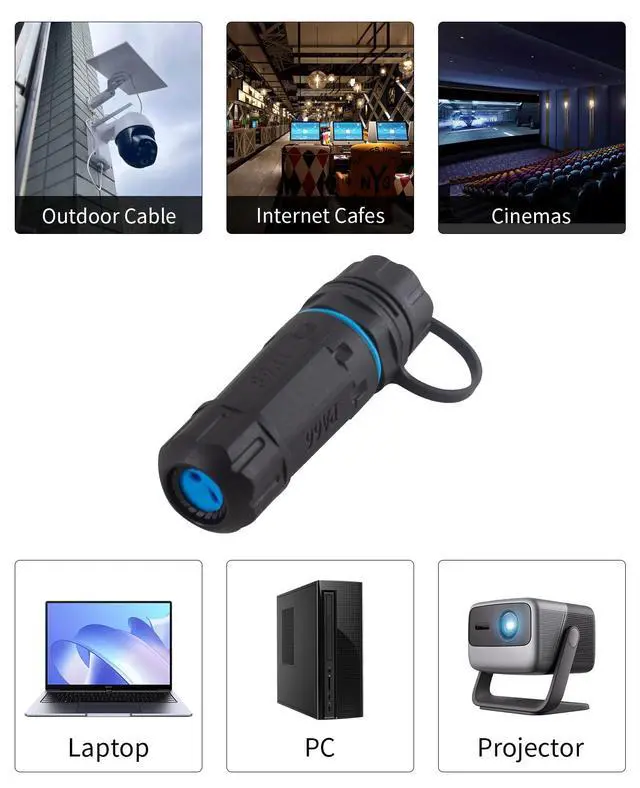

- [Wide Use]USB Type C 3.1 Panel Mount Waterproof socket can be installed on ground socket, desktop socket and 86 panel, and is widely used in cinemas, stages, home audio and video, KTV, automatic intelligent equipment and various weak current engineering facilities. Also can be used for data transmission and charging for mobile phones, tablets, digital electronic devices.
