PPC Ex6xl Plus Rg6 Connectors Qty:1000 (20 Bags with 50 Connectors)

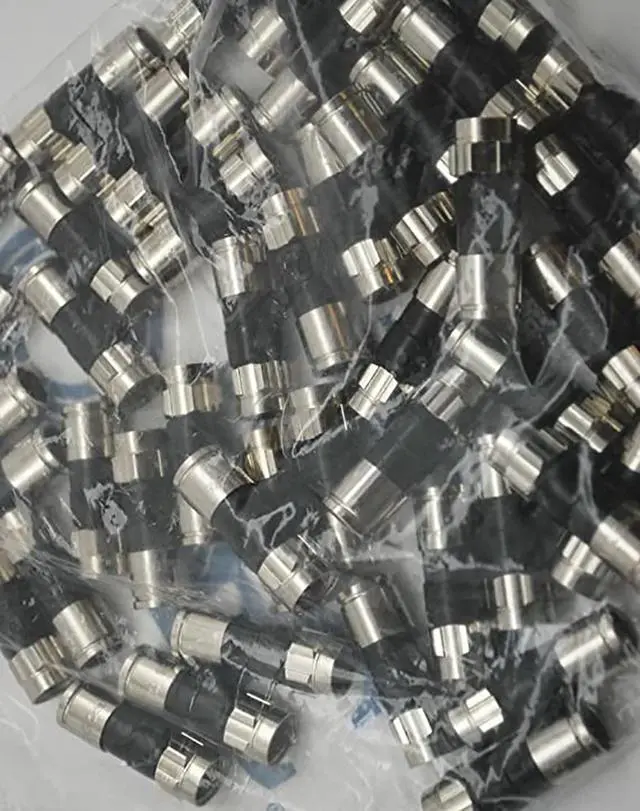

- In order to guarantee genuine PPC connectors please make sure your connectors come in PPC branded packaging and not in a clear plastic bag. The EX connector is designed with a compliant co-polymer body to achieve a universality on 60% of braided cable to Quad cable. The EX® connector was designed with the challenging requirements of IP Telephony and High-Speed Data.
- The unique patented design with a compliant co-polymer body achieves true universality across all cable braids. PPC RG6
- Outdoor Connector Features: Moisture-tight Patented Design Universal on 60% to Quad cable 1 Piece Construction Physically Contoured Parts for Easy Size Identification.Dish and DirecTV Approved Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess which connector is
- The unique patented design of the EX® body achieves true universality on 60% through Quad Shield for PE, and PVC jackets for 6 and 59 series cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
In order to guarantee genuine PPC connectors please make sure your connectors come in PPC branded packaging and not in a clear plastic bag.. SignalTight drop connectors for 6 Series cable minimize the number of self installs that become truck rolls. SignalTight technology enables signal transmission approaching that of a fully tightened connector, even if left loose. Product Specifications Bandwidth: 0 MHz to 3 GHz Impedance: 75 Ohms Return Loss: Minimum -30 dB to 3 GHz Insertion Loss: Less than .10 dB to 3 GHz Shielding Effectiveness* (dynamic): Enhanced by 25dB Operating Temperature: -40F to +140F ( -40C to +60C) Cable Retention: 45 lbs (20.41 kg) minimum Meets or exceeds all SCTE Specifications *As compared to standard connector. Tests were performed with the nut in loose condition with dynamic motion applied to the jumpers. Preparation and Installation Tools - universal drop cable preparation tool: LDT596-250, DDT59611 7/16" snap torque wrench: TW207, TW307, TW307 AH
