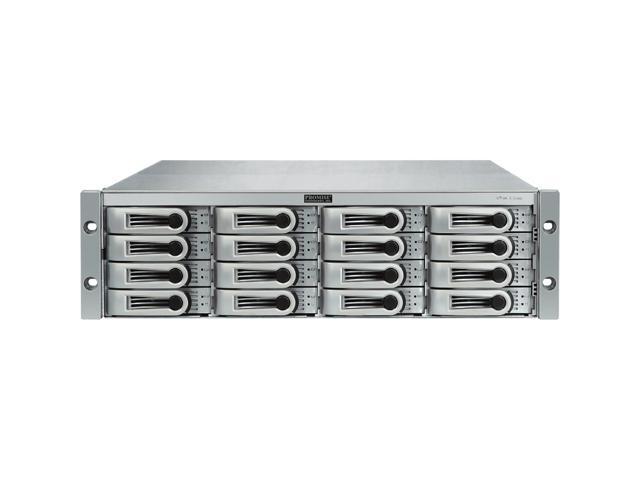

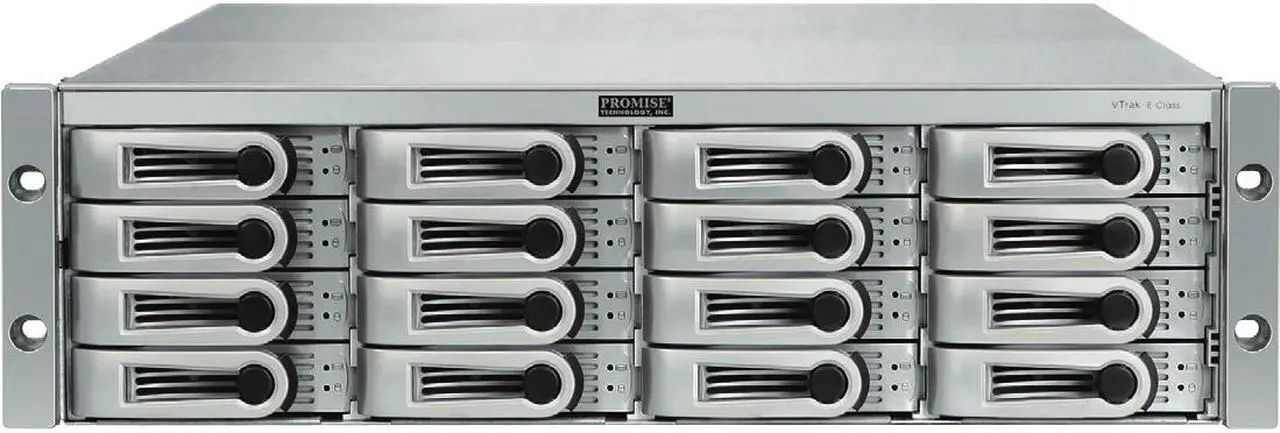

PROMISE VTrak E-Class H1142VC/A RAID 0/1/1E/5/6/10/50/60 16 x Hot-swap 3.5" Drive Bays Dual 4Gb Fibre Channel ports; One external 3Gb/s 4x wide SAS port (per controller) 3U Rackmount 16-Bay 32TB RAID Sub-System

Be the first to review this product...

SATA
16 x Hot-swap 3.5" Drive Bays
RAID 0/1/1E/5/6/10/50/60

Overview

Specs

Reviews

Affordable Enterprise - Class Storage

The PROMISE VTrak E-Class RAID subsystem is a High Availability (HA) RAID solution developed to meet the needs of mission critical enterprise and power today's demanding video workflows. At the heart of the PROMISE VTrak E-Class RAID subsystem is a mature RAID engine developed over the course of two decades and four generations of code that delivers cutting-edge performance and data integrity features rivaling any competitor.

Model
Brand	PROMISE
Series	VTrak E-Class
Model	H1142VC/A

Details
Drive	SATA
External I/O	Dual 4Gb Fibre Channel ports; One external 3Gb/s 4x wide SAS port (per controller)
RAID Levels	RAID 0/1/1E/5/6/10/50/60

Expansion
3.5" Drive Bays	16 x Hot-swap

System Management
OS Supported	Mac OS X, Mac OS X Server, Windows 2003/2008, Fedora Core 9, Redhat Linux, Suse Linux, VMware ESX Server v3.5/4.0

Mechanical Spec
Power Supply	Dual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design

Features
Features	VTrak E-Class for Mac OS X 3U/16-bay with 16x 2TB SATA Drives installed Dual-Controller w/dual 4Gb FC ports for connectivity and w/2GB cache Supports RAID 0, 1, 1E, 5, 6, 10, 50, 60 with multiple global or dedicated hot-spare drive support Scalable from 16-bays up to 80-bays by attaching up to 4/VTrak J-Class Expansion Chassis.

Package Contents
Package Contents	Enclosure w/16-2TB SATA Drives 2 Power cords for US Quick Start Guide Product CD Slide mount assembly and screws

Additional Information
Date First Available	July 18, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
