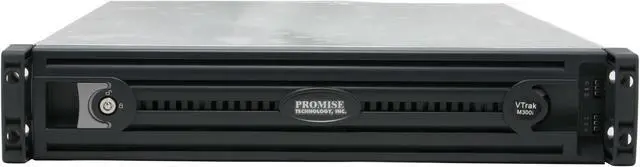

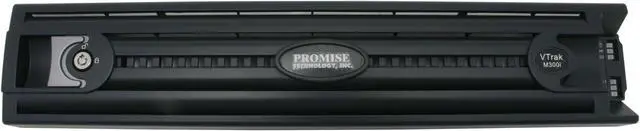

Promise - VTrak™ M300i SATA RAID Storage System
Shop All Promise Technology Products

PROMISE VTARK M300i 12-bay SATA RAID storage connected through a dual host-port hardware-accelerated iSCSI interface

(3) Write a Review
  • 12 Drives (3.5" x 1" only) -- Supports Serial ATA I & II (SATA) drives
  • Global and dedicated (per array) hot spare with revertible hot spare support
  • Dual 1-Gbps switched full-duplex Ethernet ports
This item is covered under the Manufacturer Only Return Policy.
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Promise Technology VTARK M300i

Model
Brand PROMISE
Model VTARK M300i
Details
Drive 12 Drives (3.5" x 1" only) -- Supports Serial ATA I & II (SATA) drives

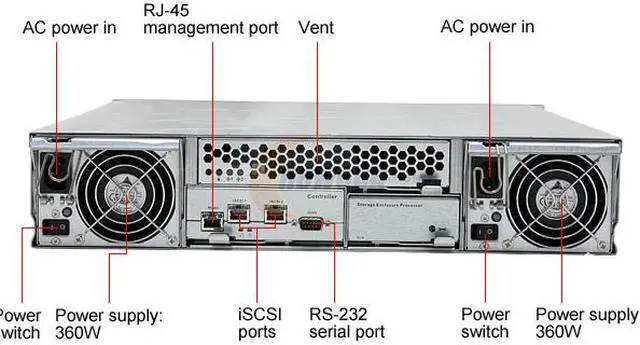

External I/O Dual 1 (one) Gigabit Ethernet iSCSI ports standard Gigabit Ethernet over copper cabling
Cache Up to 350MB/s (using both ports cached)
Ethernet Interface Dual 1-Gbps switched full-duplex Ethernet ports
RAID Levels RAID 0, 1, 1E, 5, 10, 50
Hot-spares Global and dedicated (per array) hot spare with revertible hot spare support
Max LUNs per subsystem 256 in any combination of RAID levels and array types
Max LUNs per array 32 logical drives (LUNs). Supports LUN Carving by allowing an array to be divided into multiple logical drives. RAID level, Stripe size, sector size and cache policy is settable per LUN; Out of order LD deletion and re-creation
Expansion
3.5" Drive Bays 12
System Management
OS Supported Windows 2000, Windows 2003, Linux (Red Hat, SuSE), Macintosh OS X
Management Interfaces Ethernet, RS232 (Serial); SNMP, SSL, WBEM/CIM, Telnet, Microsoft VDS; Email, audible (buzzer), and visible (LEDs) alarms
Mechanical Spec
Power Consumption 340 Watts (under load)
Power Supply Dual 360W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Thermal Output 1160 BTU/hour (max current)
Environmental
Temperature 5 to 40°C
Humidity 95% maximum (Non-Condensing)
Features

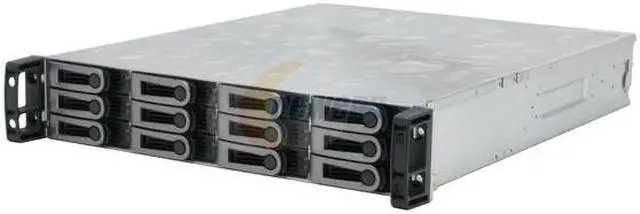

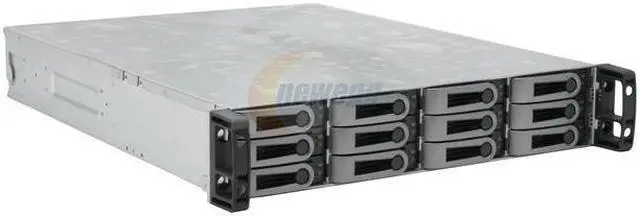

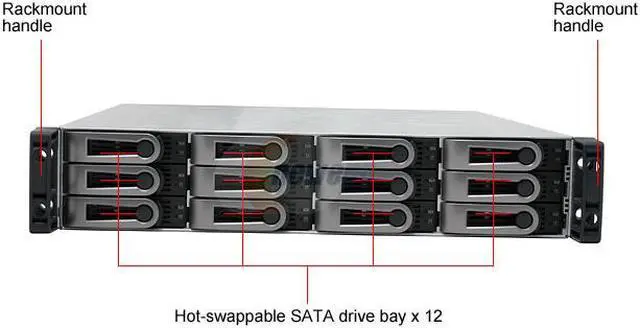

Features 12 hot-swap drive bays in a robust 2U chassis
Supports Native Command Queuing (NCQ) and Tagged Command Queuing (TCQ)
Network management through web-based application, email, SNMP, WBEM/CIM, SSL
LUN Masking and Mapping enable SANs, and largeclusters
Multiple global or designated hot-spare drives
PerfectRAID and Predictive Data Migration technology for robust error handling and recovery
Dimensions & Weight
Dimensions 3.5" x 17.6" x 23.5"
Weight 46.3 lbs.(without drives)
Additional Information
First Listed on Newegg August 12, 2005
