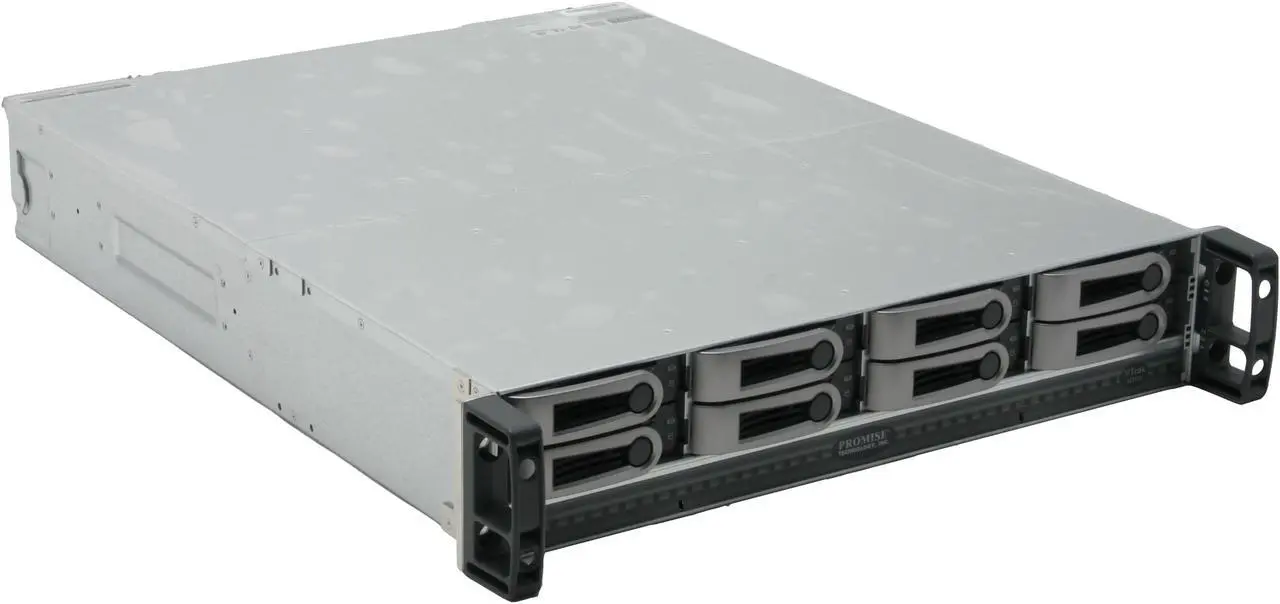

PROMISE VTrak M200i RAID 0, 1, 1E, 5, 10, 50 8 3.5" Drive Bays Dual 1 (one) Gigabit Ethernet iSCSI ports standard Gigabit Ethernet over copper cabling high-availability, high-performance 8-bay SATA RAID Storage

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Promise Tech. VTrak M200i

Model
Brand	PROMISE
Model	VTrak M200i

Details
Drive	8 Drives (3.5" x 1" only) -- Supports Serial ATA I & II (SATA) drives

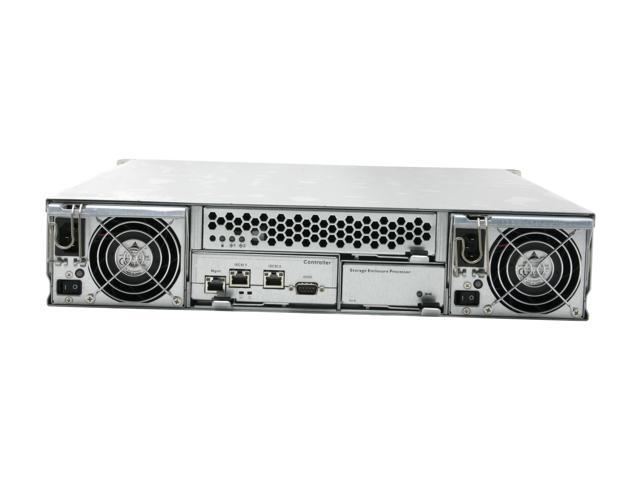

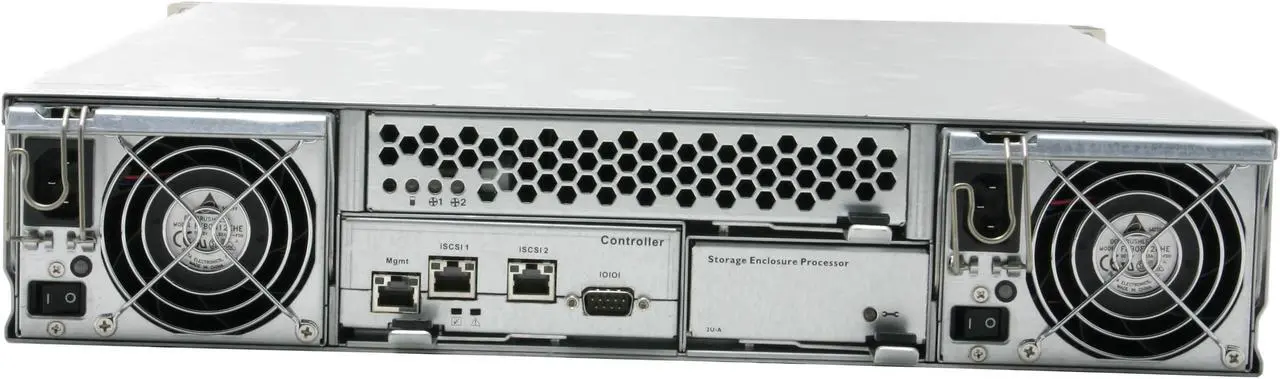

External I/O	Dual 1 (one) Gigabit Ethernet iSCSI ports standard Gigabit Ethernet over copper cabling
Cache	256MB predictive data cache (max. to 512MB) automatic write cache destaging and 72-hour battery backup
Ethernet Interface	Dual 1-Gbps switched full-duplex Ethernet ports
RAID Levels	RAID 0, 1, 1E, 5, 10, 50
Hot-spares	Global and dedicated (per array) hot spare with revertible hot spare support
Max LUNs per subsystem	256 in any combination of RAID levels and array types
Max LUNs per array	32 logical drives (LUNs). Supports LUN Carving by allowing an array to be divided into multiple logical drives. RAID level, Stripe size, sector size and cache policy is settable per LUN; Out of order LD deletion and re-creation

Expansion
3.5" Drive Bays	8

System Management
OS Supported	Windows 2000, Windows 2003, Linux (Red Hat, SuSE), Macintosh OS X
Management Interfaces	Ethernet, RS232 (Serial); SNMP, SSL, WBEM/CIM, Telnet, Microsoft VDS; Email, audible (buzzer), and visible (LEDs) alarms

Mechanical Spec
Power Consumption	260 Watts (under load)
Power Supply	Dual 360W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Thermal Output	887 BTU/hour (max current)

Environmental
Temperature	5 to 40°C
Humidity	95% maximum (Non-Condensing)

Features

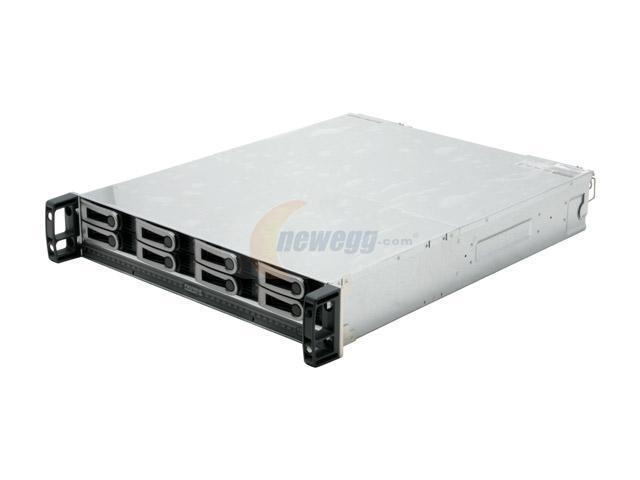

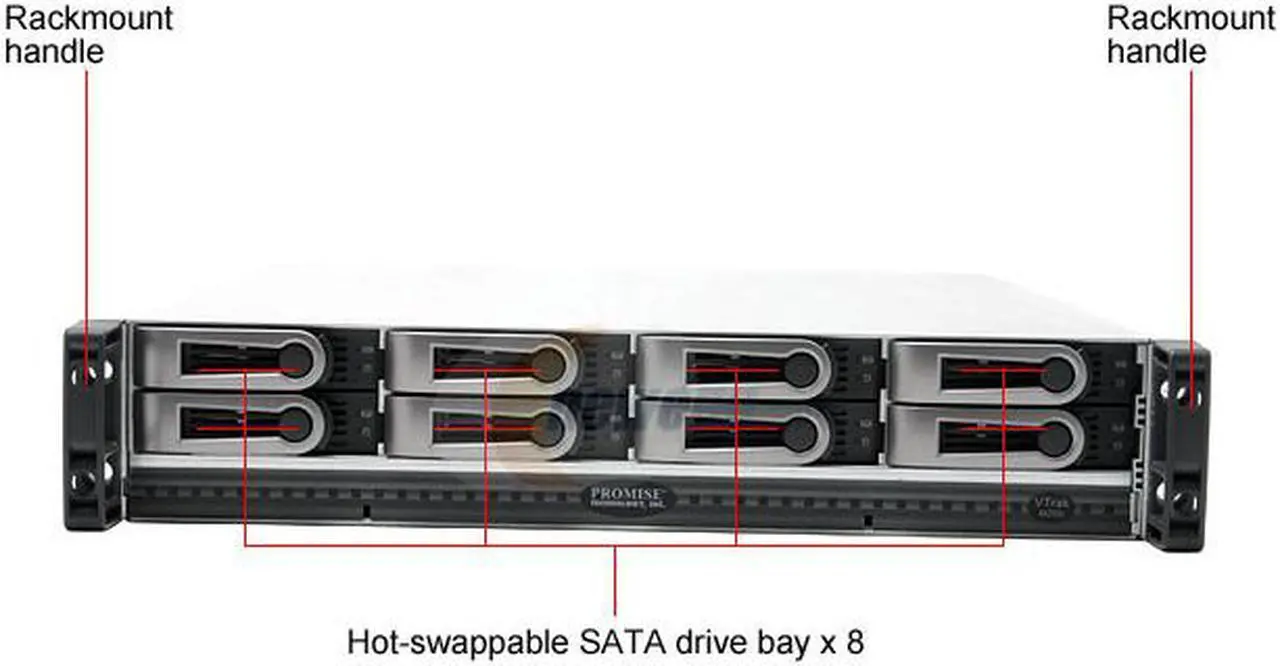

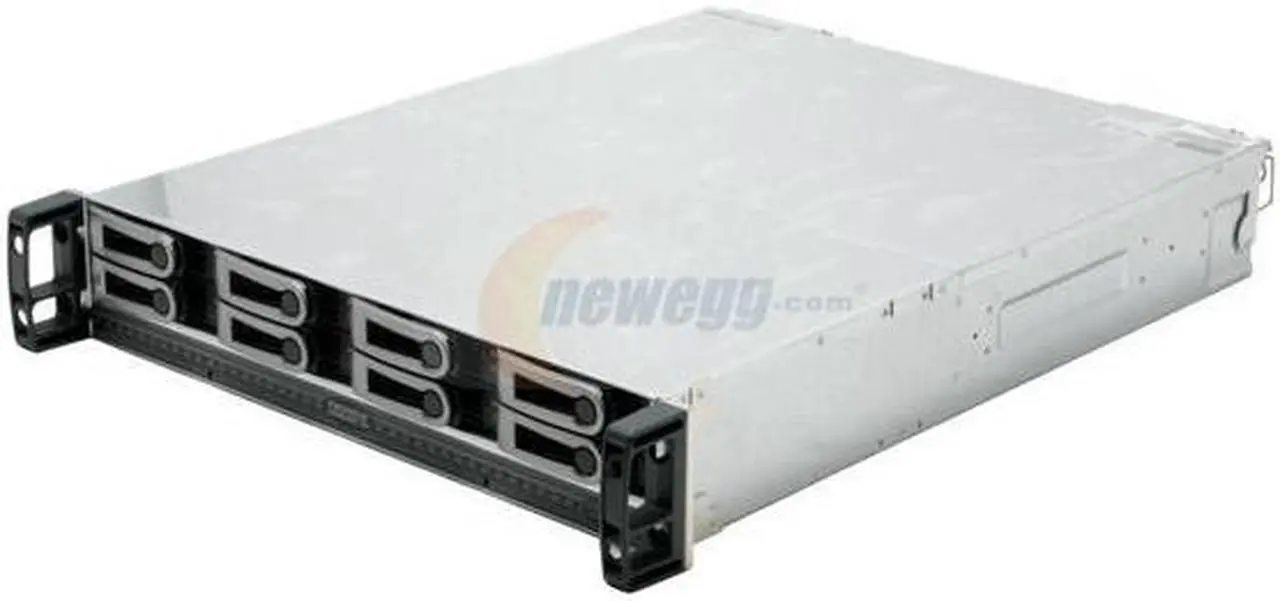

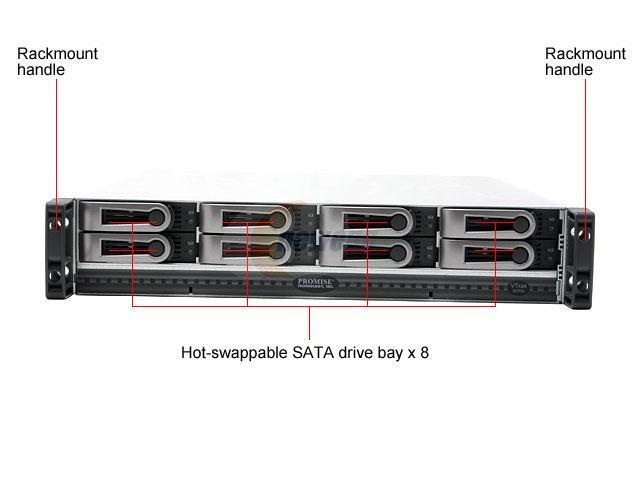

Features	8 hot-swap drive bays in a robust 2U chassis Up to 350 MB/s sustained throughput Redundant, hot-swap power and cooling LUN Masking and Mapping enable SANs, and largeclusters Multiple global or designated hot-spare drives PerfectRAID and Predictive Data Migration technology for robust error handling and recovery

Dimensions & Weight
Dimensions	3.5" x 17.6" x 23.5"
Weight	44.09 lbs.(without drives)

Package Contents

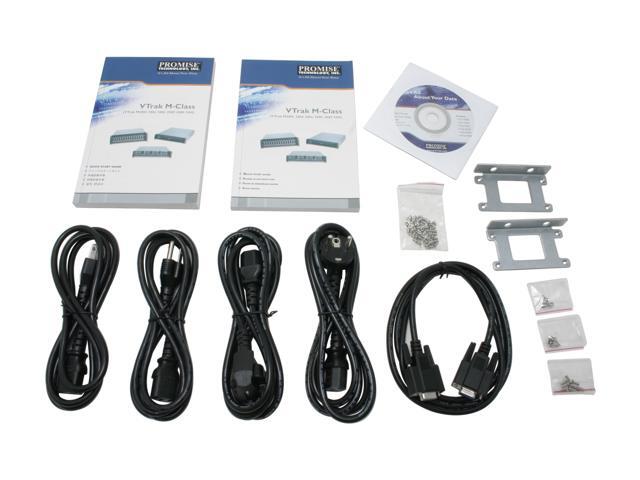

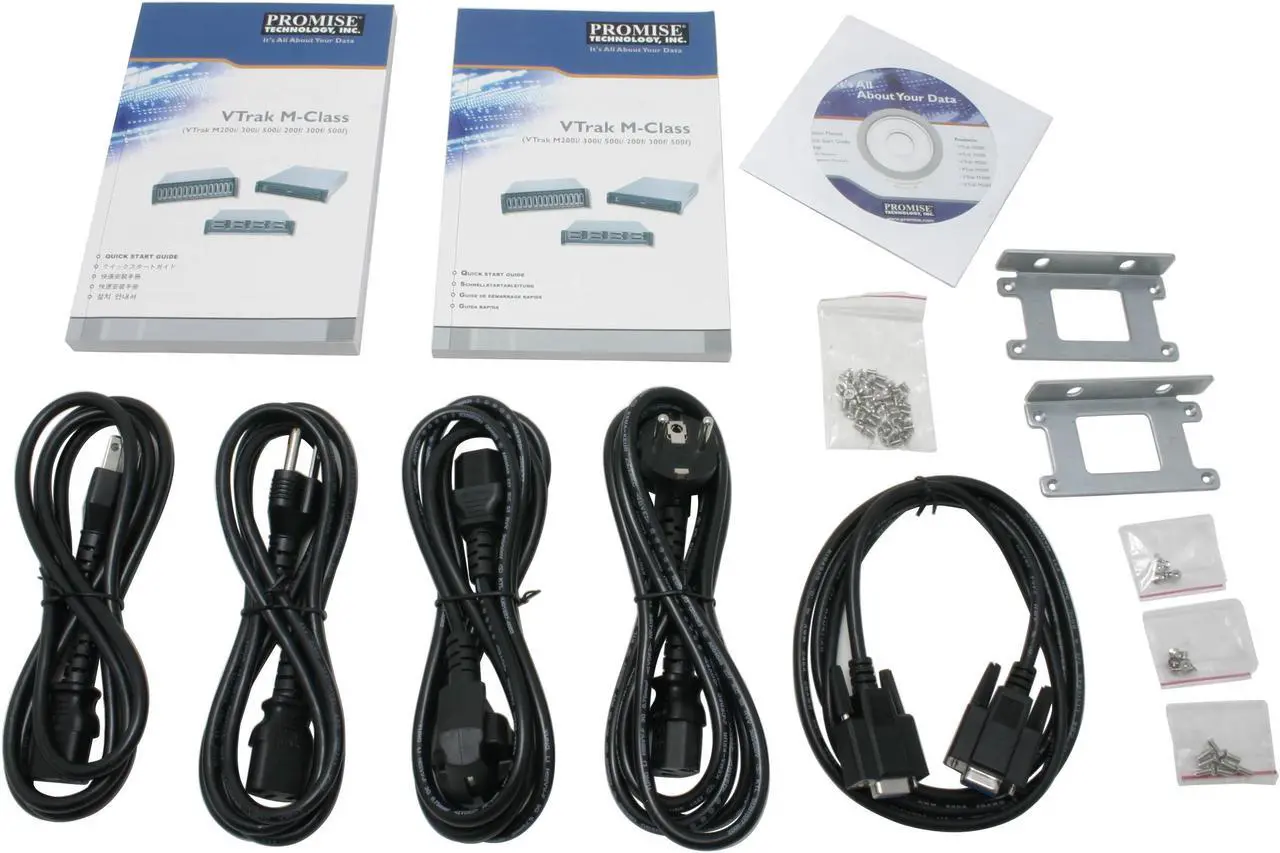

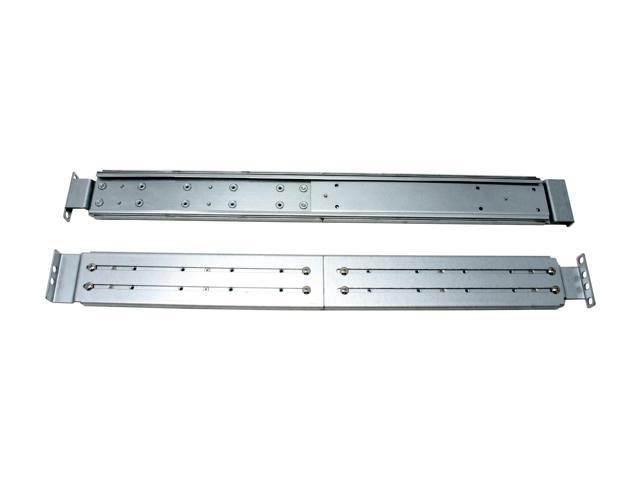

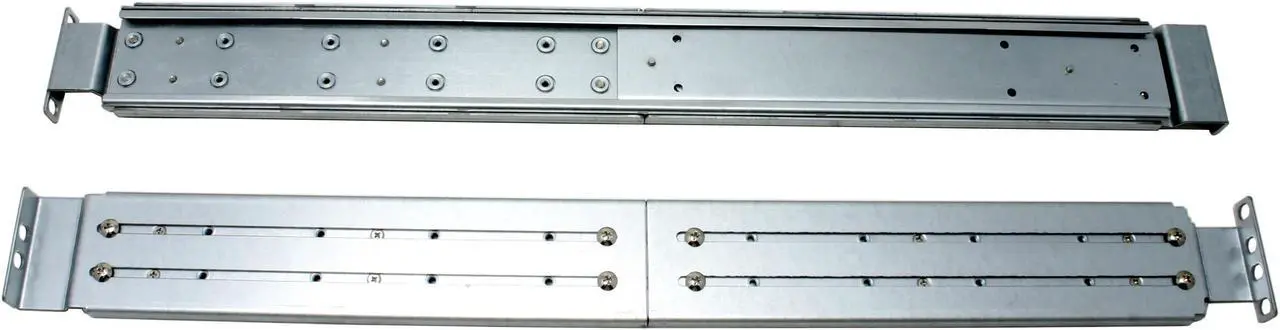

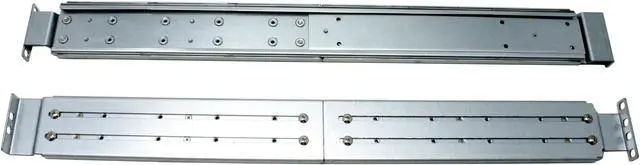

Package Contents	VTrak M200ip 2 x User Manual Software Disk 4 x Power Cord Serial Cable Screws Rails Other Accessories

Additional Information
Date First Available	August 09, 2005
