PROMISE VTrak M300p RAID 0, 1, 1E, 5, 10, 50 12 3.5" Drive Bays Dual Ultra 320 SCSI channels with four VHDCI ports Sustained Throughput Up to 465MB/sec (using both channels cached) Dual channel Ultra 320 SCSI to 12-bay SATA 3Gb/s Storage Sy

  • SATA 1.5 & 3Gb/s
  • 12 3.5" Drive Bays
  • RAID 0, 1, 1E, 5, 10, 50
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Promise Technology VTrak M300p

Model
Brand PROMISE
Model VTrak M300p
Details
Drive SATA 1.5 & 3Gb/s

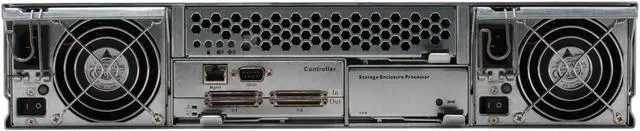

External I/O Dual Ultra 320 SCSI channels with four VHDCI ports
Sustained Throughput Up to 465MB/sec (using both channels cached)
Cache Shared 256MB predictive data cache (max. to 512MB) with automatic write cache destaging and 72-hour battery backup (for 256MB)
Ethernet Interface 1x RJ45
RAID Levels RAID 0, 1, 1E, 5, 10, 50
Hot-spares Multiple global or designated dedicated hot-spare drives with revert options
Max LUNs per subsystem 256 in any combination of RAID levels and array types
Max LUNs per array 32 logical drives (LUNs); Supports LUN Carving by allowing an array to be divided into multiple logical drives; RAID level, stripe size, sector size and cache policy can be configured per LUN; Out of order logical drive deletion and re-creation
Expansion
3.5" Drive Bays 12
System Management
OS Supported Windows 2000, Windows 2003, Linux (Red Hat, SuSE), Macintosh OS X, Solaris
Management Interfaces Ethernet, RS232 Serial Port; SNMP, SSL, WBEM/CIM, Telnet, Microsoft VDS;
Email, audible (buzzer), and visible (LEDs) alarms
Mechanical Spec
Power Consumption 340 Watts (under load)
Power Supply Dual 360W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Thermal Output 1160 BTU/hour (max current)
Environmental
Temperature 5 to 40°C
Humidity 95% maximum (Non-Condensing)
Features

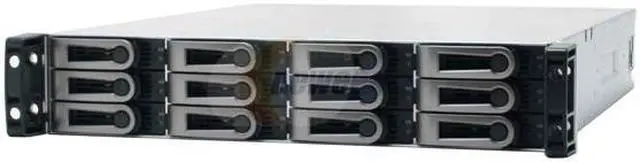

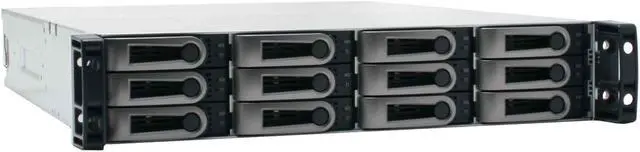

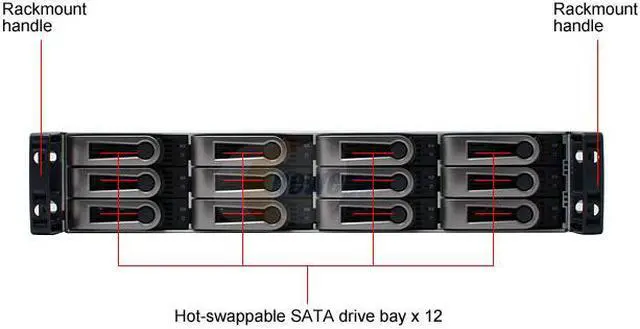

Features 12 hot-swappable SATA drive bays in a robust 2U chassis
Supports 3Gb/s and 1.5Gb/s Serial ATA drives – NCQ and TCQ
Dual Ultra 320 SCSI channels with four VHDCI ports
Up to 465MB/sec sustained throughput (cache hit using both ports)
Redundant, hot-swappable power and cooling
Comprehensive embedded web-based management via Ethernet
Command Line Interface/Utility via RS232 Serial Port
LUN Mapping and Masking
Multiple global or dedicated hot-spare drives
PerfectRAID and Predictive Data Migration technolog y for robust error handling and recovery
Dimensions & Weight
Dimensions 3.5" x 17.6" x 22.1"
Weight 52.2 lbs.(without drives)
Package Contents
Package Contents VTrak M300p
User Manual
Software Disk

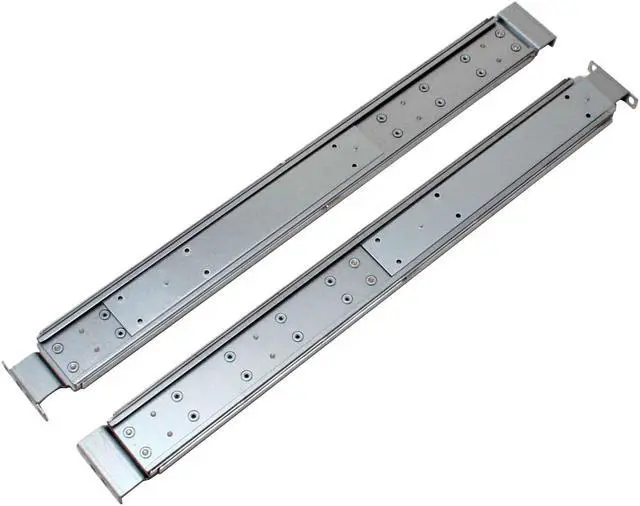

Rails

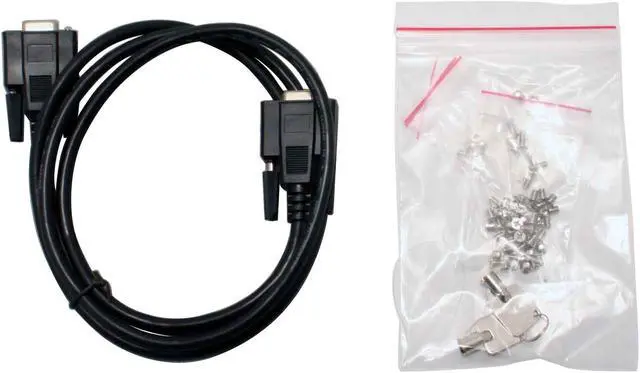

Screws

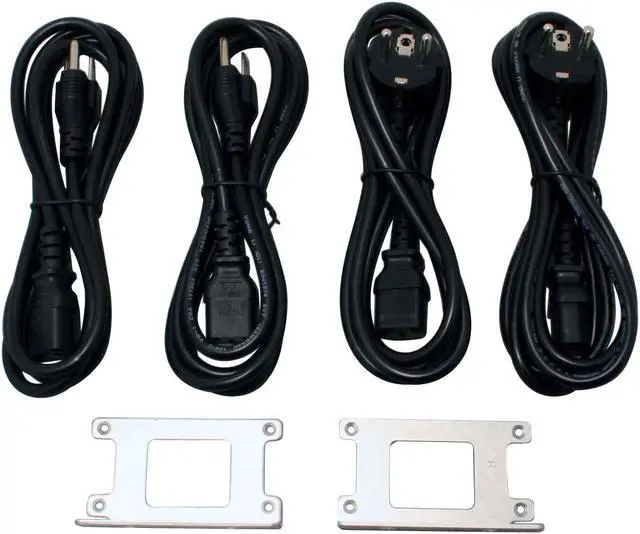

4 x Power Cord

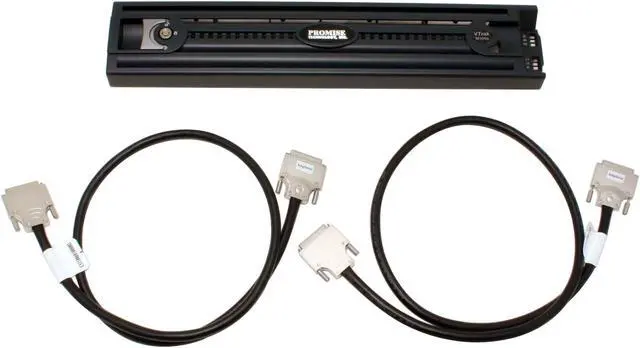

Other Accessories
Additional Information
First Listed on Newegg April 04, 2006
