Tailor-Made Motherboards
Innovative Design & Modernized Materials
Engineered for 11th Gen Intel® Core™ Processors
Explore VRM Collection of High-Precision Power Delivery Materials
90A Dr. MOS
Intelligently delivers higher current and provides enhanced thermal results.14 Power Phase Design
Sturdy components and completely smooth power delivery for the CPU.8-Layer PCB
Comes with 2oz copper inner layers for higher energy efficiency.Personalized MOS FAN
Optimized FAN design for better heat dissipation.3cm fan and 4cm fan bracket included.
Lightning Gaming Ports (Patent Pending)
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that allow gamers to connect high speed mice/keyboards with the lowest jitter latency in order to win with the best performance!CPU Direct Source LAN

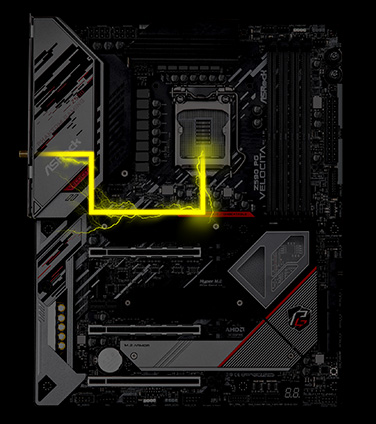

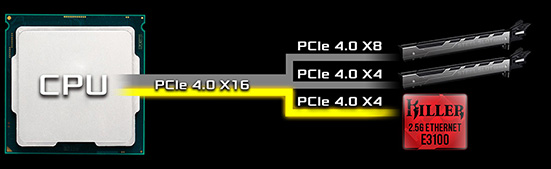

True gaming focused design! Unlike most so called gaming motherboards that are only decorated with standard design, the Killer E3100 2.5G LAN chip architecture on the Z590 PG Velocita can be controlled directly by the CPU. Hence, it can provide a new gaming experience with lower latency, faster internet networking and give overall performance a huge boost.

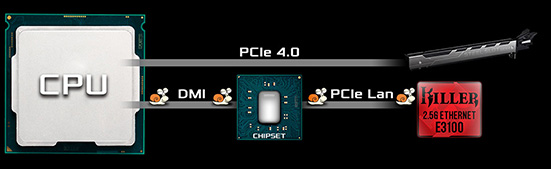

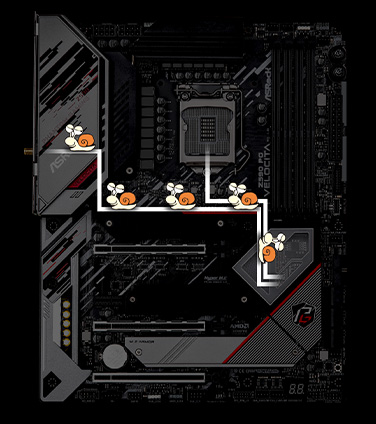

The default setting is for Direct Source to be disabled, the LAN chip accessed via chipset through DMI and PCIe lanes, bringing longer routes, adding latency and sacrificing internet performance.

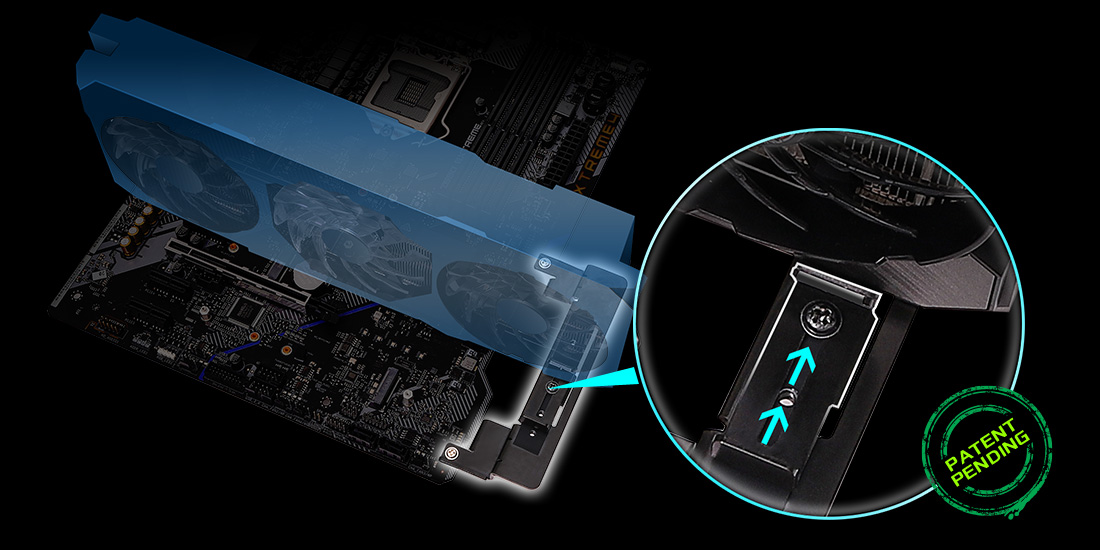

ASRock Graphics Card Holder (Patent Pending)
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required to keep your graphics card in place.

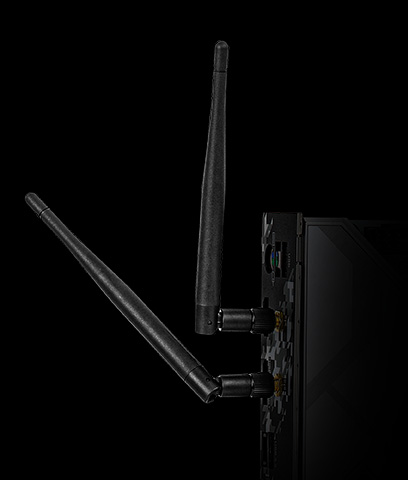

WiFi 6E (802.11ax)

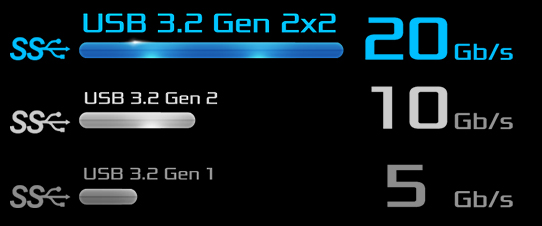

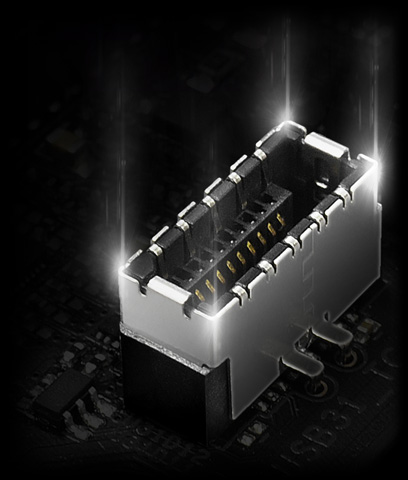

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and providing even better and faster internet traffic. In addition to delivering higher speeds, the WiFi 6E also enhances lower latency and supports service levels that are equivalent to 5G networks.Front USB 3.2 Gen 2X2 20Gb/s
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to delivering higher speeds, the WiFi 6E also enhances lower latency and supports service levels that are equivalent to 5G networks.
Wireless Dongle USB Bracket
Allow ASRock to be your most trustworthy ally, as it provides anti-interference hardware. Place your wireless dongle as far away as possible to prevent noise impact between devices on the 2.4GHz data spectrum. This Wireless Dongle USB Bracket is designed for select motherboards to aid you in building your PC without interference.
ASRock Intel 500 Series Motherboards
| Z590 PG Velocita | Z590 EXTREME WiFi 6E | |
| Form Factor | ATX | ATX |
| DIMM | 4 DIMMs | 4 DIMMs |
| PCIe x16 | 3 (x16, x8, x4) | 2 (x16, x4) |
| PCIe x4 | 0 | 0 |
| PCIe x1 | 1 | 3 |
| M.2 Key M for SSD (11th Gen Intel Core Processor) |
3 SSD 1*PCIe Gen 4x4 2*PCIe Gen 3x4 & SATA 3 |
3 SSD 1*PCIe Gen 4x4 2*PCIe Gen 3x4 & SATA 3 |
| M.2 Key M for SSD (10th Gen Intel Core Processor) |
2 SSD 2*PCIe Gen 3x4 & SATA 3 |
2 SSD 2*PCIe Gen 3x4 & SATA 3 |
| M.2 Key E for WiFi | Occupied (WiFi Onboard) | Yes (PCIe & CNVi) |
| Graphic Output | HDMI/DP | HDMI/DP |
| SATA 3 | 6 | 6 |
| Thunderbolt 4 Maple Ridge |
No | No |
| Front USB 3.2 Gen 2x2 Type-C (20Gbps) | 1 | 1 |
| Front USB 3.2 Gen 1 Type-C (5Gbps) | 0 | 0 |
| Rear USB 3.2 Gen 2 Gen 2x2 (20Gbps) |
0 | 0 |
| Rear USB 3.2 Gen 2 (10Gbps) | 2 (Type-A+C) | 2 (Type-A+C) |
| USB 3.2 Gen 1 (5Gbps) | 10 (4 Front, 6 Rear) | 6 (4 Front, 2 Rear) |
| USB 2.0 | 4 (2 Front, 2 Rear) | 6 (4 Front, 2 Rear) |
| LAN | Intel I219V Realtek Killer E3100G |
Intel I219V Realtek 2.5G |
| WiFi | 2T2R 802.11ax WiFi 6E Killer AX1675x |
2T2R 802.11ax WiFi 6E Intel AX210 |
| Audio | Realtek 1220 Nahimic Audio |
Realtek 1220 Nahimic Audio |
| Onboard LED | Yes | Yes |
| RGB LED Header | 4 (2*RGB 12V + 2*Addressable 5V) | 4 (2*RGB 12V + 2*Addressable 5V) |
| Z590 Steel Legend WiFi 6E | Z590 Pro4 | |
| Form Factor | ATX | ATX |
| DIMM | 4 DIMMs | 4 DIMMs |
| PCIe x16 | 2 (x16, x4) | 2 (x16, x4) |
| PCIe x4 | 0 | 0 |
| PCIe x1 | 3 | 3 |
| M.2 Key M for SSD (11th Gen Intel Core Processor) |
3 SSD 1*PCIe Gen 4x4 2*PCIe Gen 3x4 & SATA 3 |
3 SSD 1*PCIe Gen 4x4 2*PCIe Gen 3x4 & SATA 3 |
| M.2 Key M for SSD (10th Gen Intel Core Processor) |
2 SSD 2*PCIe Gen 3x4 & SATA 3 |
2 SSD 2*PCIe Gen 3x4 & SATA 3 |
| M.2 Key E for WiFi | Yes (PCIe & CNVi) |
Yes (PCIe & CNVi) |
| Graphic Output | HDMI/DP | HDMI, DP |
| SATA 3 | 6 | 6 |
| Thunderbolt 4 Maple Ridge |
No | No |
| Front USB 3.2 Gen 2x2 Type-C (20Gbps) | 1 | 1 |
| Front USB 3.2 Gen 1 Type-C (5Gbps) | 0 | 0 |
| Rear USB 3.2 Gen 2 Gen 2x2 (20Gbps) |
0 | 0 |
| Rear USB 3.2 Gen 2 (10Gbps) | 2 (Type-A+C) | 2 Type-A |
| USB 3.2 Gen 1 (5Gbps) | 6 (4 Front, 2 Rear) | 6 (4 Front, 2 Rear) |
| USB 2.0 | 6 (4 Front, 2 Rear) | 6 (4 Front, 2 Rear) |
| LAN | Realtek 2.5G | Realtek 2.5G |
| WiFi | 2T2R 802.11ax WiFi 6E Intel AX210 |
No |
| Audio | Realtek ALC897 Nahimic Audio |
Realtek ALC897 Nahimic Audio |
| Onboard LED | Yes | Yes |
| RGB LED Header | 4 (2*RGB 12V + 2*Addressable 5V) | 4 (2*RGB 12V + 2*Addressable 5V) |
| Z590M Pro4 | Z590M Phantom Gaming4 | Z590M-ITX/ax | |
| Form Factor | Micro ATX | Micro ATX | Mini-ITX |
| DIMM | 4 DIMMs | 4 DIMMs | 2 DIMMs |
| PCIe x16 | 2 (x16, x4) | 1 (x16) | 1 (x16) |
| PCIe x4 | 0 | 1 | 0 |
| PCIe x1 | 2 | 1 | 0 |
| M.2 Key M for SSD (11th Gen Intel Core Processor) |
2 SSD 1*PCIe Gen 4x4 & SATA 3 1*PCIe Gen 3x4 & SATA 3 |
2 SSD 1*PCIe Gen 4x4 1*PCIe Gen 3x4 & SATA 3 |
2 SSD 1*PCIe Gen 4x4 1*PCIe Gen 3x4 & SATA 3 |
| M.2 Key M for SSD (10th Gen Intel Core Processor) |
2 SSD 2*PCIe Gen 3x4 & SATA 3 |
1 SSD 1*PCIe Gen 3x4 & SATA 3 |
1 SSD 1*PCIe Gen 3x4 & SATA 3 |
| M.2 Key E for WiFi | Yes (PCIe & CNVi) |
Yes (PCIe & CNVi) |
Occupied (WiFi Onboard) |
| Graphic Output | HDMI/DP | HDMI | HDMI/DP |
| SATA 3 | 4 | 4 | 4 |
| Thunderbolt 4 Maple Ridge |
No | No | No |
| Front USB 3.2 Gen 2x2 Type-C (20Gbps) | 0 | 0 | 0 |
| Front USB 3.2 Gen 1 Type-C (5Gbps) | 1 | 0 | 1 |
| Rear USB 3.2 Gen 2 Gen 2x2 (20Gbps) |
0 | 0 | 1 |
| Rear USB 3.2 Gen 2 (10Gbps) | 2*Type-A | 2*Type-A | 4 x Type-A |
| USB 3.2 Gen 1 (5Gbps) | 6 (4 Front, 2 Rear) | 8 (4 Front, 4 Rear) | 2 (Front) |
| USB 2.0 | 6 (4 Front, 2 Rear) | 4 (Front) | 3 (2 Front, 1 ) |
| LAN | Intel I219V | Intel I219V | Intel I219V Realtek 2.5G |
| WiFi | No | No | 2T2R 802.11ax WiFi 6E Intel AX210 |
| Audio | Realtek ALC897 Nahimic Audio |
Realtek ALC897 Nahimic Audio |
Realtek ALC897 Nahimic Audio |
| Onboard LED | Yes | No | No |
| RGB LED Header | 4 (2*RGB 12V + 2*Addressable 5V) | 4 (2*RGB 12V + 2*Addressable 5V) | 2 (1*RGB 12V + 1*Addressable 5V) |
| Z590 OC Formula | Z590 Phantom Gaming 4 | |
| Form Factor | EATX | ATX |
| DIMM | 2 DIMMs | 4 DIMMs |
| PCIe x16 | 3 (x16, x8, x4) | 2 (x16, x4) |
| PCIe x4 | 0 | 0 |
| PCIe x1 | 2 (PCIe 2.0) | 3 |
| M.2 Key M for SSD (11th Gen Intel Core Processor) |
3 SSD 1*PCIe Gen4 x4 2*PCIe Gen3 x4 & SATA3 |
3 SSD 1*PCIe Gen4 x4 2*PCIe Gen3 x4 & SATA3 |
| M.2 Key M for SSD (10th Gen Intel Core Processor) |
3* SSD 1*PCIe Gen3 x4 2*PCIe Gen3 x4 & SATA3 |
2 SSD 2*PCIe Gen3 x4 & SATA3 |
| M.2 Key E for WiFi | Occupied (WiFi Onboard) | YES |
| Graphic Output | N/A | HDMI |
| SATA 3 | 8 | 6 |
| Thunderbolt 4 Maple Ridge |
N/A | N/A |
| Front USB 3.2 Gen 2x2 Type-C (20Gbps) | 1 | 1 |
| Front USB 3.2 Gen 1 Type-C (5Gbps) | 0 | 0 |
| Rear USB 3.2 Gen 2 Gen 2x2 (20Gbps) |
0 | 0 |
| Rear USB 3.2 Gen 2 (10Gbps) | 4 (3*Type A + 1*Type-C) | 2 (1*Type-A + 1*Type-C) |
| USB 3.2 Gen 1 (5Gbps) | 8 (4 Front, 4 Rear) | 6 (4 Front, 2 Rear) |
| USB 2.0 | 4 (Front) | 6 (4 Front, 2 Rear) |
| LAN | Intel 2.5G Intel 219V | Intel I219V |
| WiFi | 2T2R 802.11ax WiFi6E Intel AX210 |
No |
| Audio | Realtek 1220 ESS DAC 9218 WIMA Audio Caps Nahimic Audio |
Realtek ALC897 |
| Onboard LED | YES | No |
| RGB LED Header | 4 (2*RGB 12V + 2*Addressable 5V) | 4 (2*RGB 12V + 2*Addressable 5V) |
