PROSTER 1080P 2K*4K HDMI to HDMI Audio L/R SPDIF Stereo Extractor Splitter Converter Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output SPDIF R/L analog Audio Output with 5V USB Power Cable
Limited time offer, ends 07/12 By GGnix
- 1.Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.
- 2.Audio output supports: SPDIF + R/L analog Audio Output.
- 3.Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
- 4.HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
- 5.LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.
- Power adapter format.:input:AC(50/60Hz)100V-240V;Output: DC5V/1A
- Operating temperature range:(-15 to +55°C)
- Operating humidity range:5 to 90% RH(NO Condensation)
- Dimension (LxWxH):84.5 x 61.8 x 21(mm)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
1.Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.
2.Audio output supports: SPDIF + R/L analog Audio Output.
3.Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
4.HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
5.LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.
Specification:
HDCP Version:HDCP1.4
HDMI Version.: HDMI1.4b
HDMI resolution:2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format: 24bits/deep color 30bit,36bit
Audio output:L/R+SPDIF
Max bandwidth:340MHz
Max baud rate:10.2Gbps
Input/ Output TMDS signal:0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal:5Volts p-p(TTL)
Input cable distance:<=7m AWG26 standard cable HDMI
Output cable distance:<=8m AWG26 standard cable HDMI
Max working current:500mA
Power adapter format.:input:AC(50/60Hz)100V-240V;Output: DC5V/1A
Operating temperature range:(-15 to +55°C)
Operating humidity range:5 to 90% RH(NO Condensation)
Dimension (LxWxH):84.5 x 61.8 x 21(mm)
Weight:135g

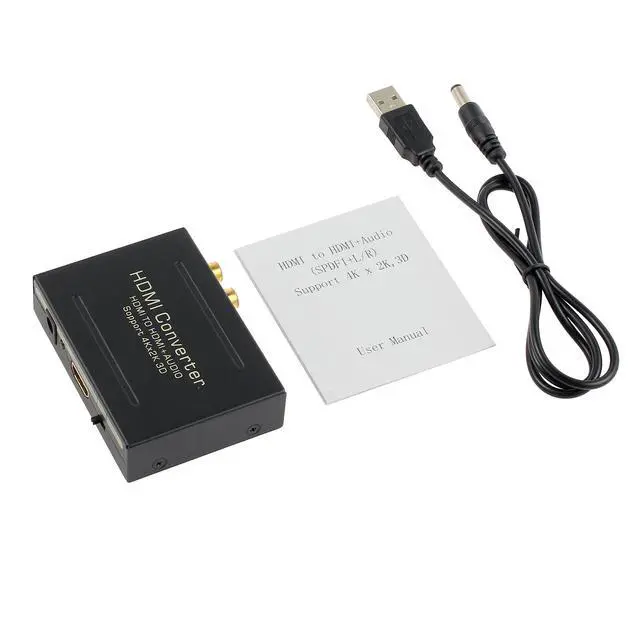

Package List:
1 x Extractor
1 x 5V USB Power
1 x User Manual
1.Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.
2.Audio output supports: SPDIF + R/L analog Audio Output.
3.Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
4.HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
5.LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.
Specification:
HDCP Version:HDCP1.4
HDMI Version.: HDMI1.4b
HDMI resolution:2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format: 24bits/deep color 30bit,36bit
Audio output:L/R+SPDIF
Max bandwidth:340MHz
Max baud rate:10.2Gbps
Input/ Output TMDS signal:0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal:5Volts p-p(TTL)
Input cable distance:<=7m AWG26 standard cable HDMI
Output cable distance:<=8m AWG26 standard cable HDMI
Max working current:500mA
Power adapter format.:input:AC(50/60Hz)100V-240V;Output: DC5V/1A
Operating temperature range:(-15 to +55°C)
Operating humidity range:5 to 90% RH(NO Condensation)
Dimension (LxWxH):84.5 x 61.8 x 21(mm)
Weight:135g
Package List:
1 x Extractor
1 x 5V USB Power
1 x User Manual
