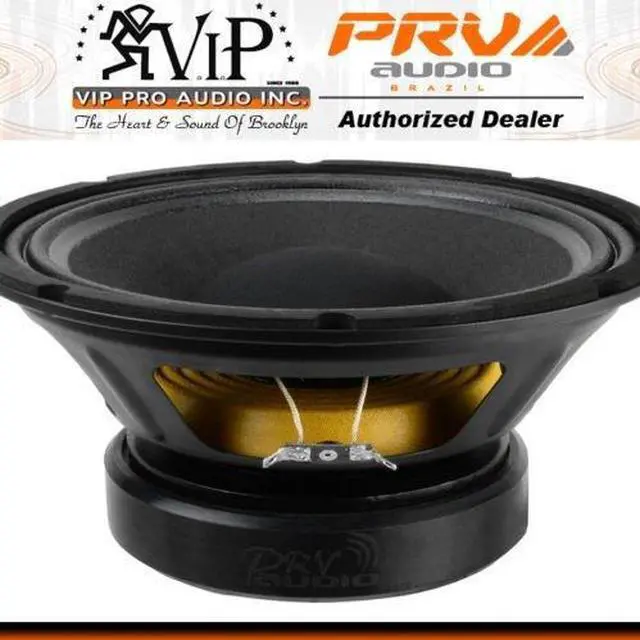

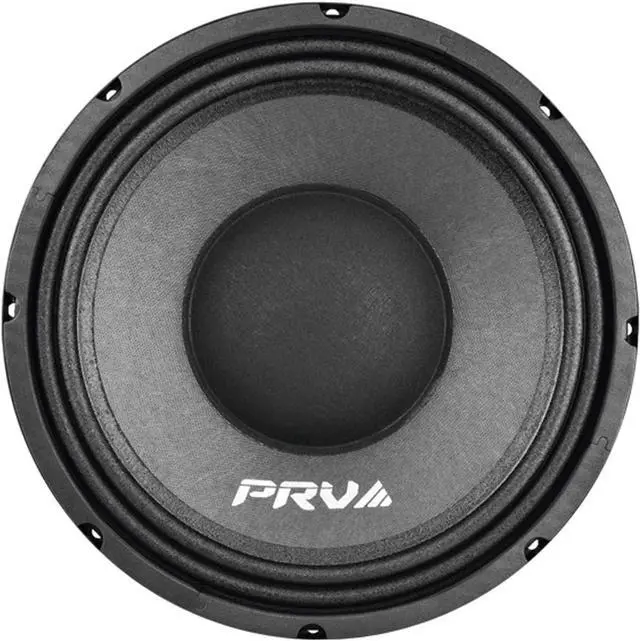

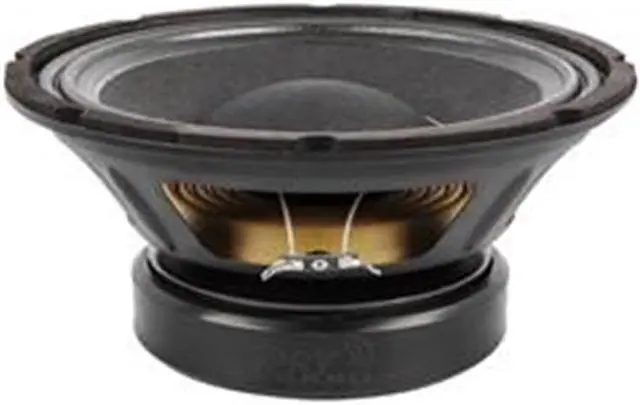

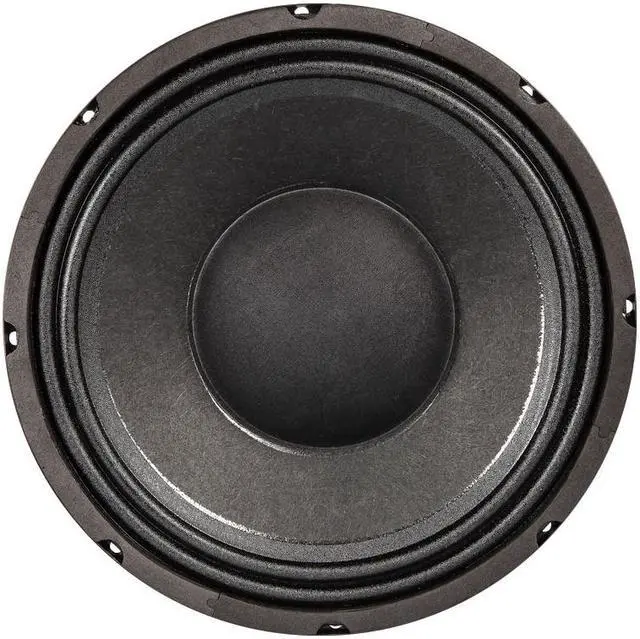

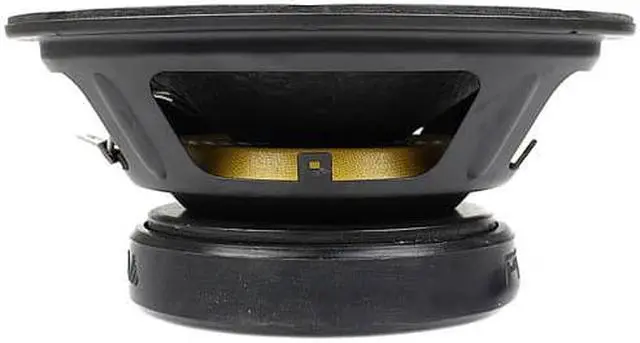

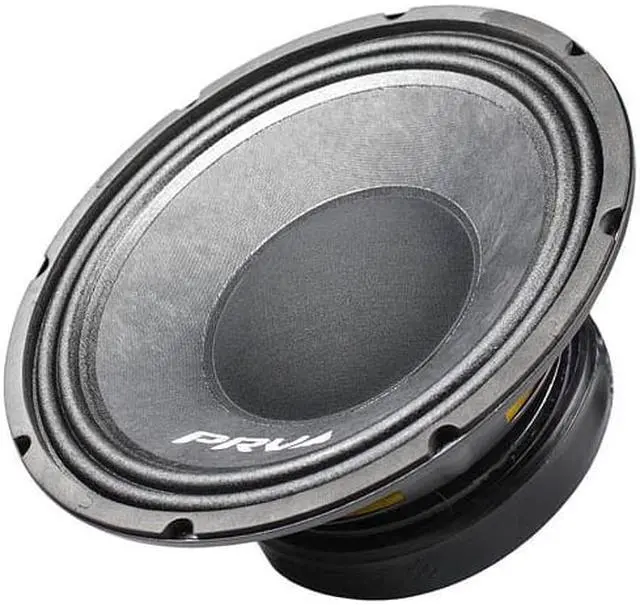

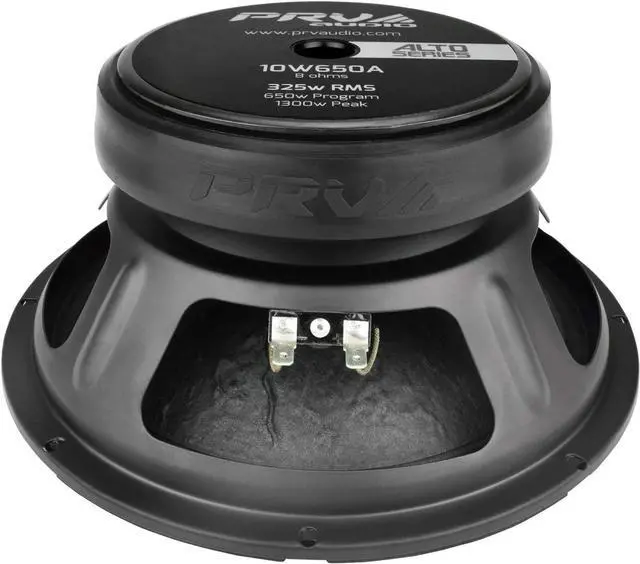

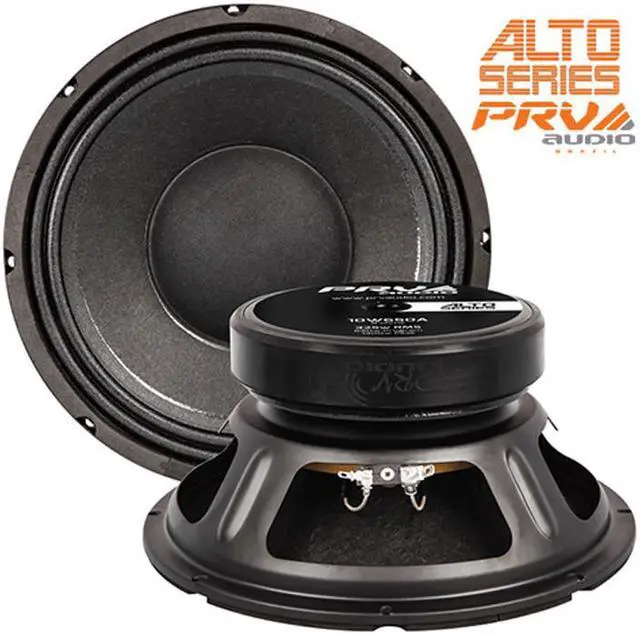

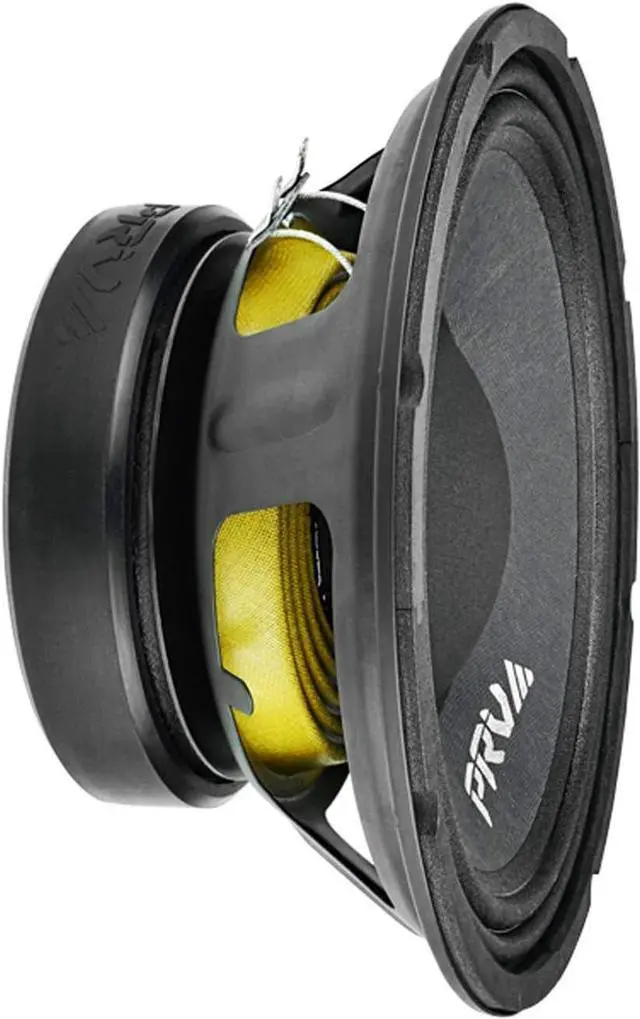

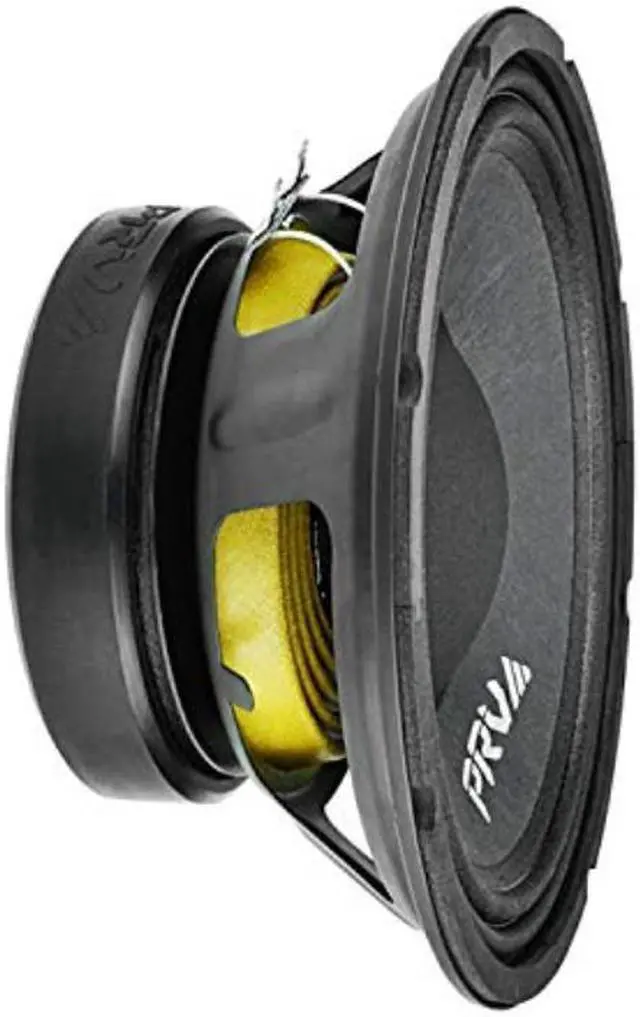

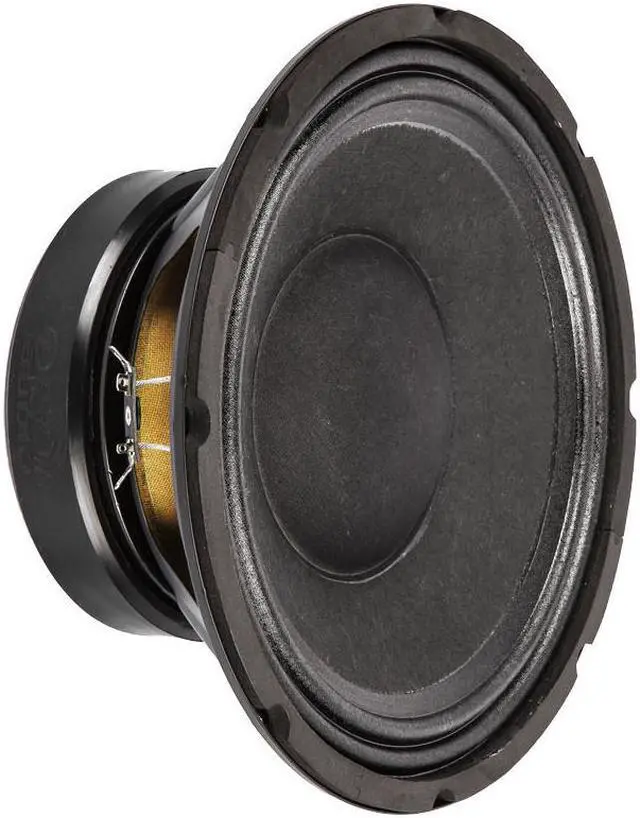

PRV 10W650A Alto Series 10" Pro 8O 325W (650W Peak) Woofer w/ 2.5" Voice Coil
- PRV Audio
- 8 Ohm Impedance
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
PRV 10" High Fidelity Loudspeaker Alto Series 10W650A
High fidelity meets high output PRV Audio ALTO Series Woofers. PRV Audios Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic. A special composite cone is built with non-pressed paper for reduced break-up and smooth sound. A unique, woven-cloth dust cap helps to achieve high sensitivity by reducing moving mass while helping to cool the voice coil.
Features
Nominal Impedance: 8 Ohms
Sensitivity (1W/1m): 97 dB
RMS Power Handling: 325 Watts
MAX Power Handling: 650 Watts
Recommended Hi-Pass Crossover For Full Power Handling: 150 Hz -12db Per Octave Crossover

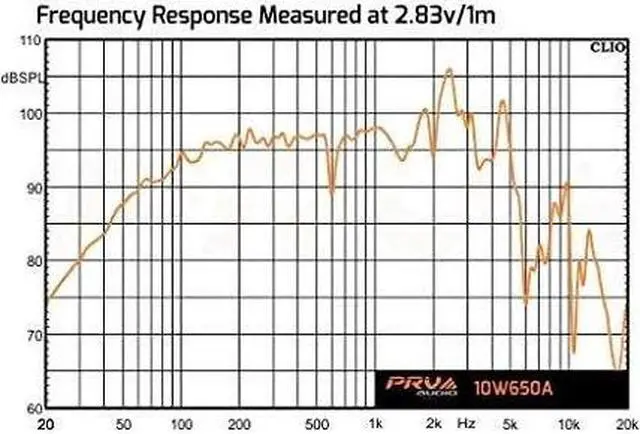

Frequency Response at -10dB: 75 5, 500 Hz
Voice Coil Diameter: 2.5 ( 65.5 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 13.0 mm
Former Material: Kapton
Magnetic Gap Depth: 8.0 mm
Frame Material: Stamped Steel

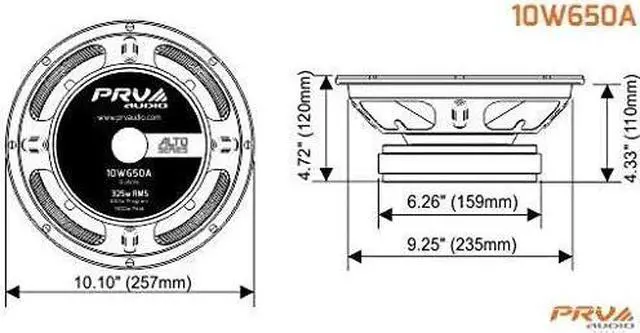

Overall Diameter: 10.10 (257 mm)
Front Mount Baffle Cutout: 9.25 ( 235 mm)
Mounting Depth: 4.3 (110 mm)
Overall Depth: 4.72 (120 mm)
High fidelity meets high output PRV Audio ALTO Series Woofers. PRV Audios Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic. A special composite cone is built with non-pressed paper for reduced break-up and smooth sound. A unique, woven-cloth dust cap helps to achieve high sensitivity by reducing moving mass while helping to cool the voice coil.
Features
Nominal Impedance: 8 Ohms
Sensitivity (1W/1m): 97 dB
RMS Power Handling: 325 Watts
MAX Power Handling: 650 Watts
Recommended Hi-Pass Crossover For Full Power Handling: 150 Hz -12db Per Octave Crossover
Frequency Response at -10dB: 75 5, 500 Hz
Voice Coil Diameter: 2.5 ( 65.5 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 13.0 mm
Former Material: Kapton
Magnetic Gap Depth: 8.0 mm
Frame Material: Stamped Steel
Overall Diameter: 10.10 (257 mm)
Front Mount Baffle Cutout: 9.25 ( 235 mm)
Mounting Depth: 4.3 (110 mm)
Overall Depth: 4.72 (120 mm)
