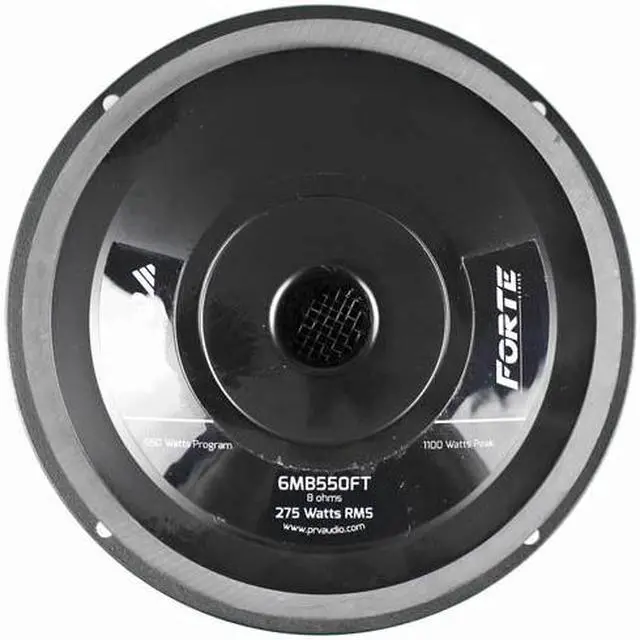

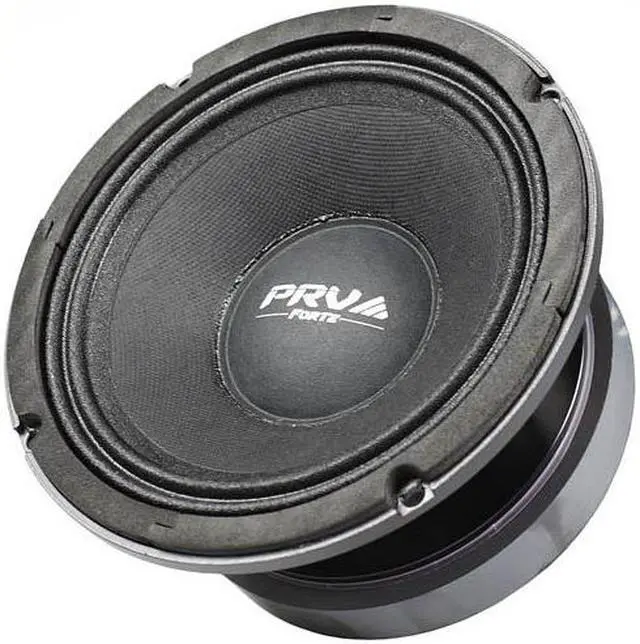

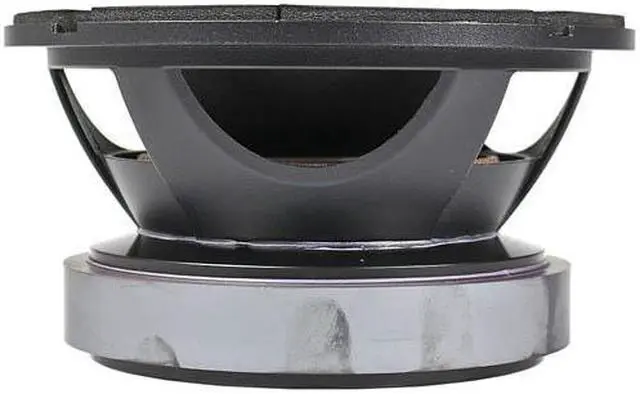

PRV Audio 6" Mid Bass Loudspeaker 550 Watts Max Car Audio 8 Ohm 6MB550FT Single

PRV Audio 6" Mid Range Loudspeaker 8 Ohm 6MB655FT

PRV Audios 6MB550FT 6.5 Forte Series midbass was specially tailored to give you more Xmax and less distortion on mid low mid bass frequencies, with its Peak-to-Peak excursion going up to 14 mm ( 0.55 ) this speaker can give a heck of a punch! The tall 2 voice coil ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion with recommended High Pass filter of 95Hz at 12 dB Octave. All this attention to detail makes the 6MB550FT one impressive driver. With 94.5 dB efficiency and 550 watts power handling this mid bass is ideally used in stage monitor, auditorium, touring, and outdoor systems.

The smooth response from 85 to 7, 500 Hz makes it perfect for 2 or 3-way designs.

Features

Designed to handle low frequency at a high power output
Xmax 5.40 mm 14 mm Peak-to-Peak excursion before damage
A huge magnet for increased efficiency and control
High power copper tinsel lead wire
Vented pole piece minimizes power compression and increases power handling
Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
Natural paper cone and double-roll surround for smooth response
Nominal Diameter: 6 (152 mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 275 Watts
Program Power: 550 Watts
Sensitivity 2.83V at 1m: 94.5 dB
Frequency Response at -10dB: 85 7, 500 Hz
Voice Coil Diameter: 2 (51 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 14.8 mm
Former Material: Kapton
Magnetic Gap Depth: 8.0 mm
Frame Material: Die cast aluminum
Overall Diameter: 6.48 ( 164.5 mm)
Front Mount Baffle Cutout: 5.59 (142 mm)
Mounting Depth: 3.33 ( 84.5 mm)
Overall Depth: 3.64 ( 92.5 mm)
