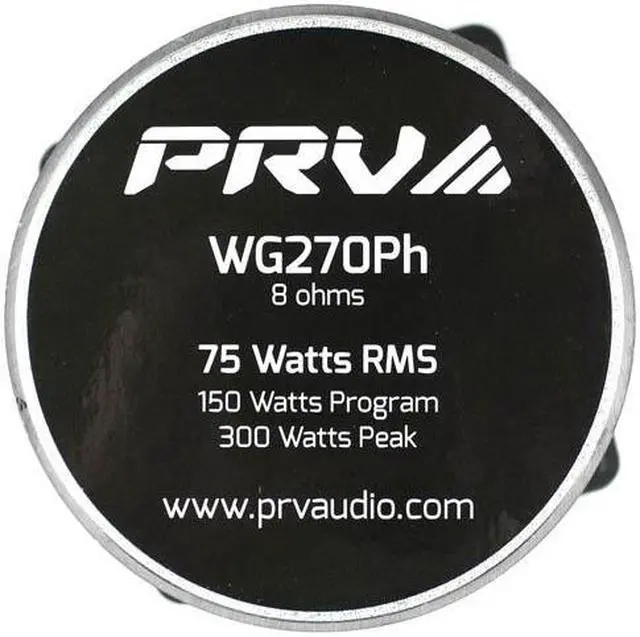

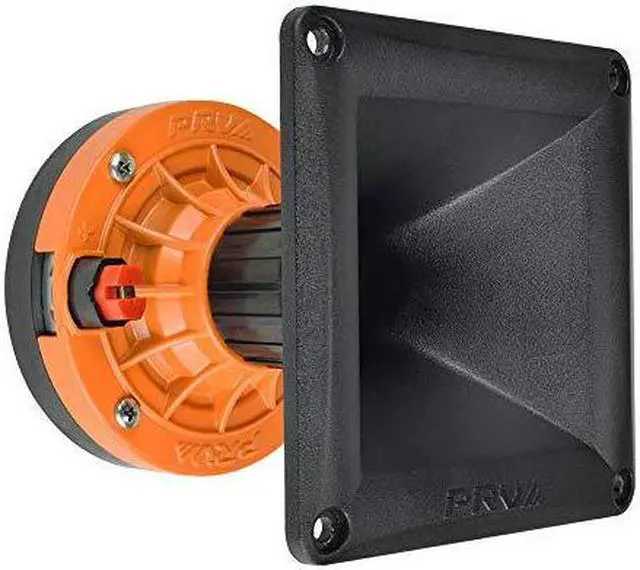

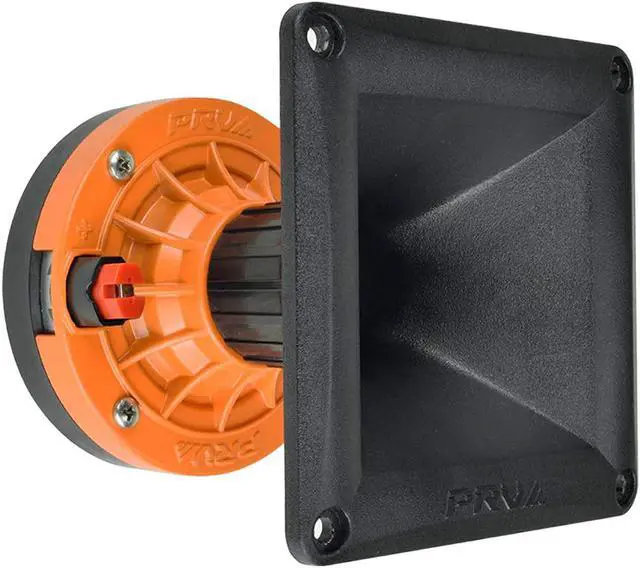

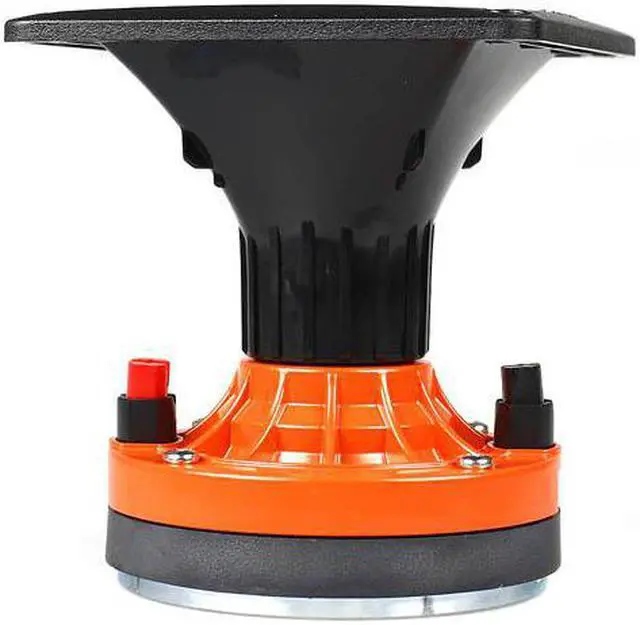

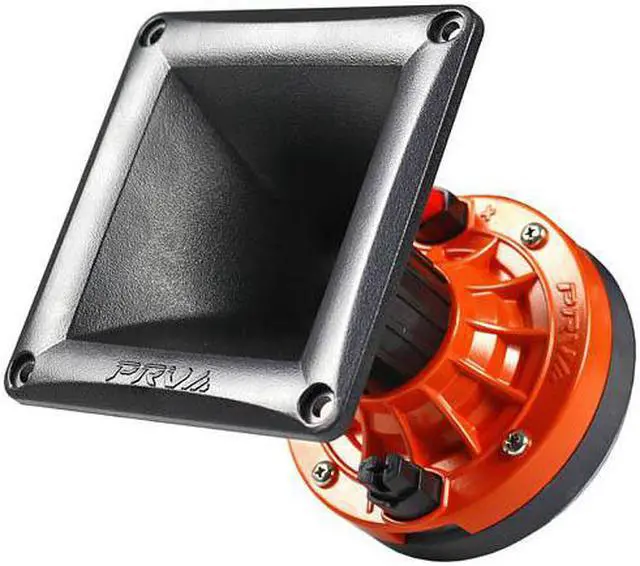

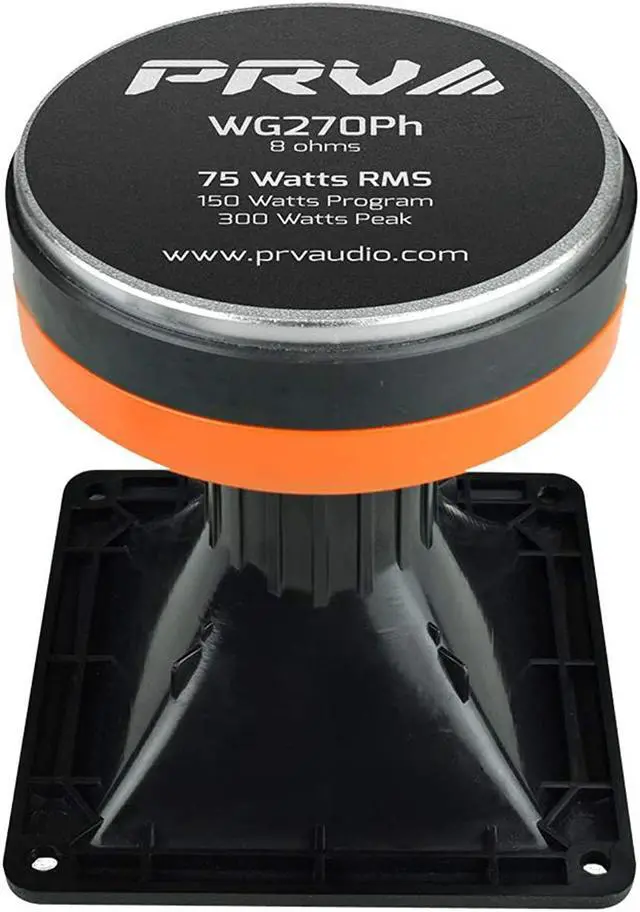

Prv Audio Wg270Ph 1" Exit Phenolic Compression Driver 75 Watts Rms 106.5Db Tweeter + Horn Combo For Car Audio

The high-temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The nearly-indestructible phenolic diaphragm, that can play down to 500 Hz, is built to resist the elements, perfect for outdoor use. The compact driver design makes for easy front mount installation without detaching the driver from the horn. This combo is all about high output, low distortion vocal reproduction, and is the perfect solution for use in high output PA systems.

Features

Exit Throat Diameter: 1 ( 25.4 mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 75 Watts
Program Power: 150 Watts
Sensitivity 2.83V at 1m: 106.5 dB
Recommended Hi-Pass Crossover For Full Power Handling: 500 Hz**
**12db Per Octave Crossover

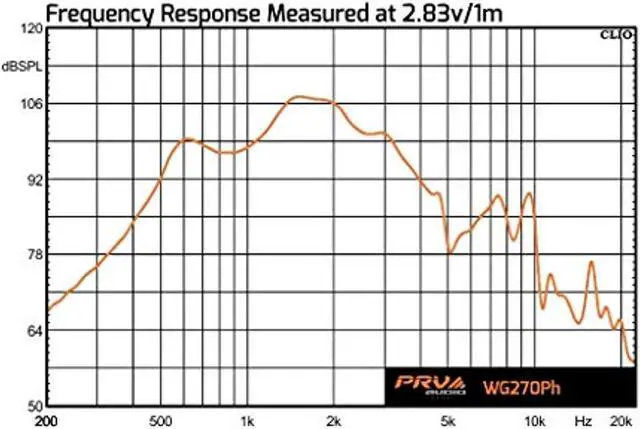

Frequency Response at -10dB: 600 8, 000 Hz
Voice Coil Diameter: 2 (50 mm)
Voice Coil Wire: Copper
Voice Coil Former Material: Kapton

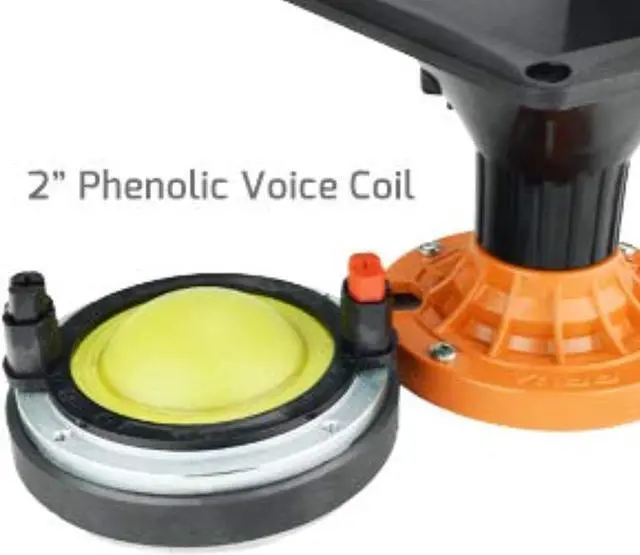

Diaphragm Material: Phenolic
Flux Density: 1.10 T
Magnet Material: Ferrite

Physical

Specifications

:

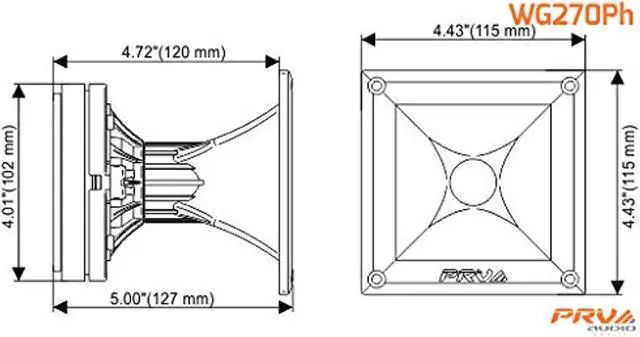

Overall Depth: 5.00 (127 mm)
Mounting Depth: 4.72 (120 mm)
Overall Width: 4.43 (115 mm)
Overall Height: 4.43 (115 mm)

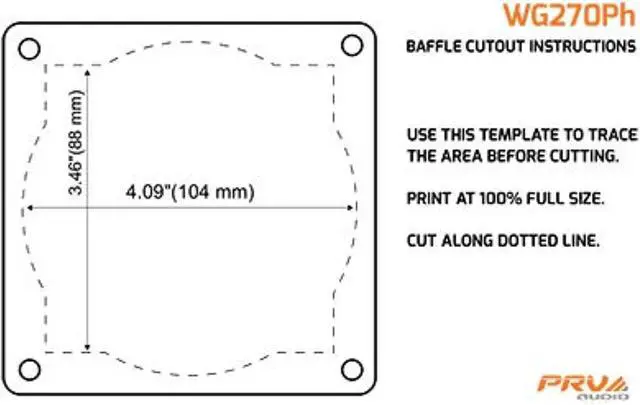

Baffle Cutout Diameter: 4.01 (102 mm)
