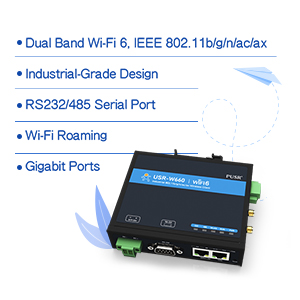

Dual Band WiFi 6 | WiFi Roaming | Gigabit Ports | RS232/485 | Industrial-Grade Design Serial to WiFi6 Converter
USR-W660 is a powerful dual-band Wi-Fi serial device server, which can realize data communication between serial devices and Ethernet/Wi-Fi devices. It adopts high performance Qualcomm quad-core processor, the main frequency is up to 1.2Ghz. USR-W660 is equipped with 1*RS232, 1*RS485, 2*RJ45 Gigabit Ethernet port, 2.4G and 5.8G dual-band Wi-Fi. It supports Wi-Fi roaming function with fast switching time, especially suitable for mobile scenarios, such as AGV, robot, etc.

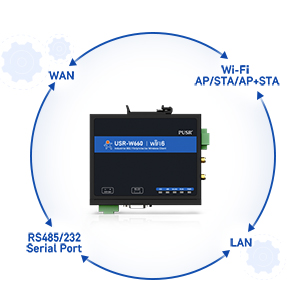

Rich Networking Methods
USR-W660 provides a wealth of networking methods: AP, STA, AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.

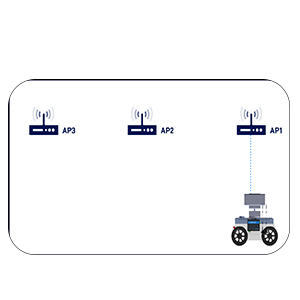

Fast Wi-Fi Roaming, More Stable Communication
USR-W660 can realize fast switching between different APs through the W-Fi roaming function. The switching time is less than 100ms, which can ensure real-time and reliable data transmission. It is very suitable for mobile scenarios such as AGV and robots.

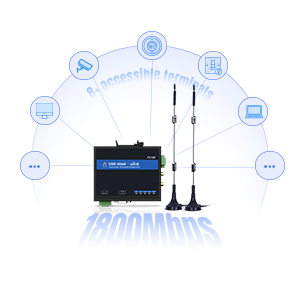

Dual Band Wi-Fi6, More Powerful Performance
2.4G & 5.8G Wi-Fi, IEEE 802.11 b/g/n/ac/ax.
2*2 MIMO, theoretical speed up to 1800Mbps..
8+ accessible terminals.
AP/STA/AP+STA mode supported.
Wi-Fi roaming function, less than 100ms latency.
Multiple security authentication methods and encryption algorithms supported: mixed-psk/psk/psk2/psk2+ccmp.
In an open environment, the coverage distance can reach 200 meters

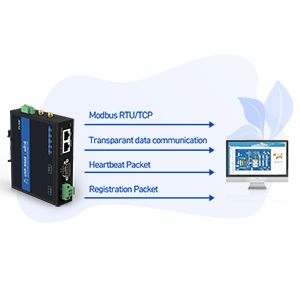

Rich Product Features
Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
Support Transparant MQTT/TCP/UDP/HTTP data communication.
Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.
Registration Packet Funciton: The server can identify different clients by usingregistration packets.

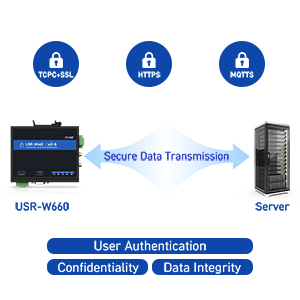

Data Transmission Encryption, More Security
Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes.
Supports two-way certificates authentication.

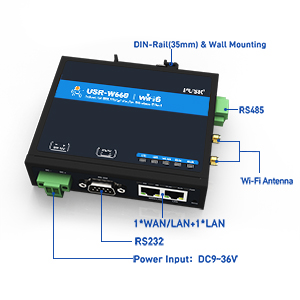

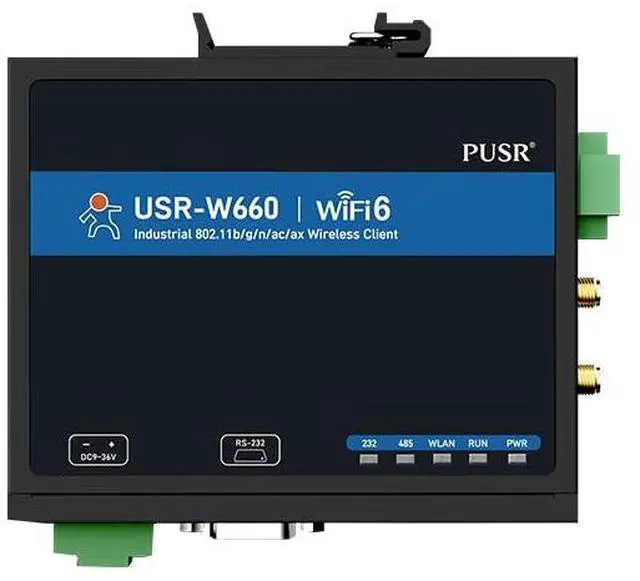

Product Details
Dimension: 115*94*29 mm.
Serial port: 1*RS232+1*RS485. RS232: 1200~115.2Kbps, DB9-Male.RS485: 1200~230.4Kbps, 3-pin terminal block. The two serial port can work simultaneously.
Ethernet port: 1*WAN/LAN, 1*LAN, 10/100/1000M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.
Power Supply: 9~36V input, 2-pin terminal block.
Installation: Wall mounting & DIN rail mounting.
Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
Antenna Connector: 2*SMA-Female
