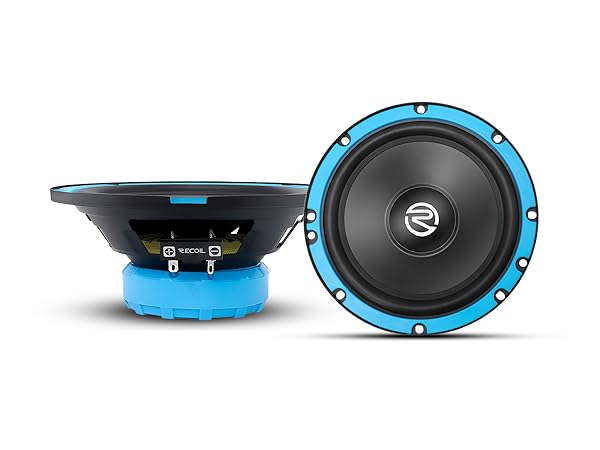

ECHO SERIES 6.5” COMPONENT SPEAKER SYSTEM

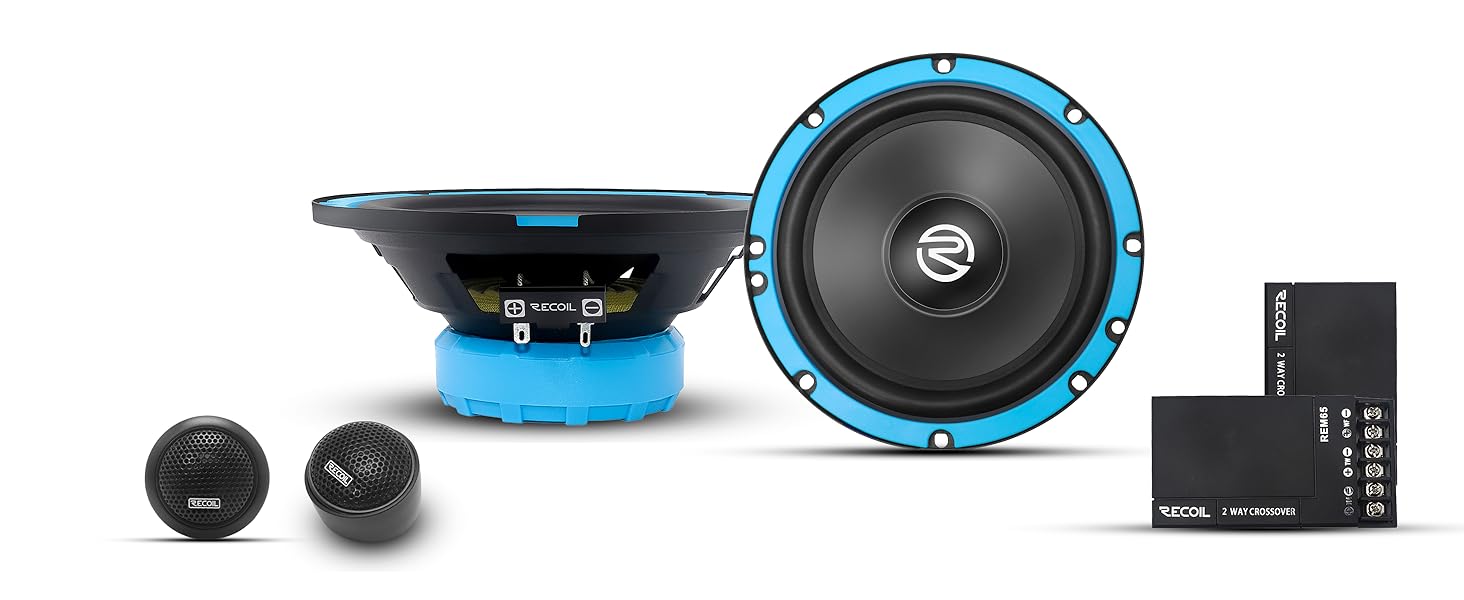

Recoil Echo Series REM65 6.5-inch 2-Way component speaker system delivers unequivocal sound quality and performance for enhanced listening experience.
The Polypropylene cones enable faster midrange response. The Nitrile Butadiene Rubber surrounds provide durability and deeper mid-bass impact. Surround/Cone Coupling utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses.

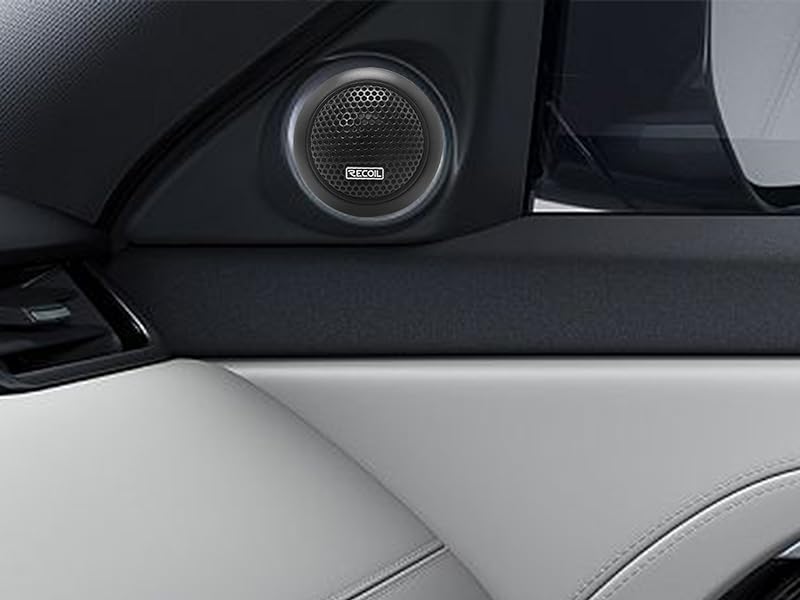

ELEVATE YOUR SOUND EXPERIENCE WITH THE TWEETER MOUNTING SYSTEM

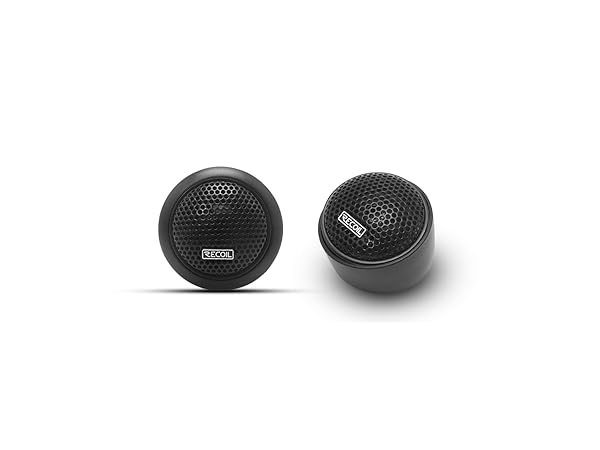

REM65 features 1-inch high-fidelity silk dome tweeters that deliver incredibly rich, crystal-clear highs. The tweeter voice coil is designed for greater heat dissipation and higher power handling resulting in smooth, fatigue free highs. Every aspect of Recoil speakers is of the highest audiophile grade!
Echo Series
 REM65 |  RCX65 |  REM525 |  RCX525 |  RCX694 |  RCX4 | |
|---|---|---|---|---|---|---|
Price | — | — | — | — | — | — |
Size | 6.5-Inch | 6.5-Inch | 5.25-Inch | 5.25-Inch | 6X9-Inch | 4-Inch |
RMS Power | 50 Watts | 50 Watts | 40 Watts | 40 Watts | 60 Watts | 25 Watts |
Peak Power | 100 Watts | 100 Watts | 80 Watts | 80 Watts | 120 Watts | 50 Watts |
Sensitivity | 88dB | 88dB | 87dB | 87dB | 90dB | 86dB |
Cone Material | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
RECOIL Audio was founded in 2004 with only one goal – Great Affordable product! Recoil is vertically integrated with Engineering, Sales, and Marketing teams located in Phoenix, Arizona, USA.
Fifty years of industry experience give us the tools to pull from our home and car audio’s technology heritage. This allows us to deliver products that celebrate the best sounding, most innovative products in today’s conscience marketplace.
SPEAKERS
AMPLIFIEERS
WIRING KITS
DISTRIBUTION BLOCKS
RCA CABLES
BUSBAR
ACCESSORY
ECHO SERIES 6.5” COMPONENT SPEAKER SYSTEM
Recoil Echo Series REM65 6.5-inch 2-Way component speaker system delivers unequivocal sound quality and performance for enhanced listening experience.
The Polypropylene cones enable faster midrange response. The Nitrile Butadiene Rubber surrounds provide durability and deeper mid-bass impact. Surround/Cone Coupling utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses.
ELEVATE YOUR SOUND EXPERIENCE WITH THE TWEETER MOUNTING SYSTEM
REM65 features 1-inch high-fidelity silk dome tweeters that deliver incredibly rich, crystal-clear highs. The tweeter voice coil is designed for greater heat dissipation and higher power handling resulting in smooth, fatigue free highs. Every aspect of Recoil speakers is of the highest audiophile grade!

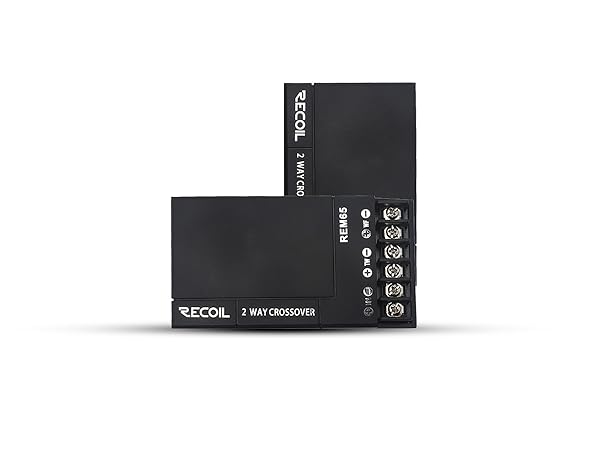

12dB crossovers
12dB crossovers with a smaller footprint for easier installation
Deliver remarkable bass response
NBR rubber surround assists with precise linear excursion
Three mounting choices
Silk dome tweeter construction and neodymium magnets to reveal subtle details,Three tweeter mounting options including flush, angled and surface pods.

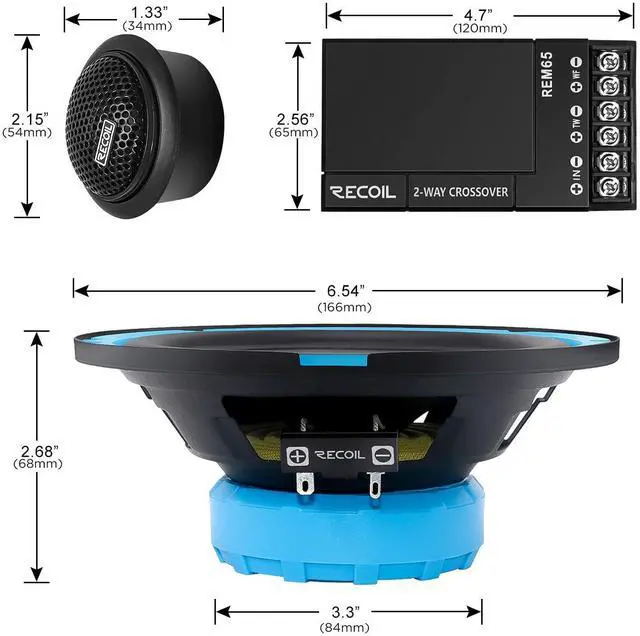

| Nominal Diameter | 6.5”(165mm) |
|---|---|
| DCR(O) | 2.8 |
| Magnet(OZ) | 12 |
| Frequency Response(Hz) | 60-20KHz |
| Cone | PP |
| Voice Coil Diameter | 1"(25.5mm) |
| Surround | NBR |
| Power Rating(RMS/Peak) | 50W/100W |
| Tweeter Diaphragm | Silk |
| Fs - Free Air Resonance | 60 |
| Voice coil | ASV |
| Qts&Qes | 0.58 & 0.61 |
| Qms | 9.3 |
| Crossover Point(Hz) | 4500 |
| Vas(L) | 16.2 |
| Sensitivity (1W/1M) | 88dB |
Echo Series
REM65 | RCX65 |  REM525 |  RCX525 |  RCX694 | RCX4 |
|---|---|---|---|---|---|
| Price | |||||
| — | — | — | — | — | — |
| Size | |||||
| 6.5-Inch | 6.5-Inch | 5.25-Inch | 5.25-Inch | 6X9-Inch | 4-Inch |
| RMS Power | |||||
| 50 Watts | 50 Watts | 40 Watts | 40 Watts | 60 Watts | 25 Watts |
| Peak Power | |||||
| 100 Watts | 100 Watts | 80 Watts | 80 Watts | 120 Watts | 50 Watts |
| Sensitivity | |||||
| 88dB | 88dB | 87dB | 87dB | 90dB | 86dB |
| Cone Material | |||||
| Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
