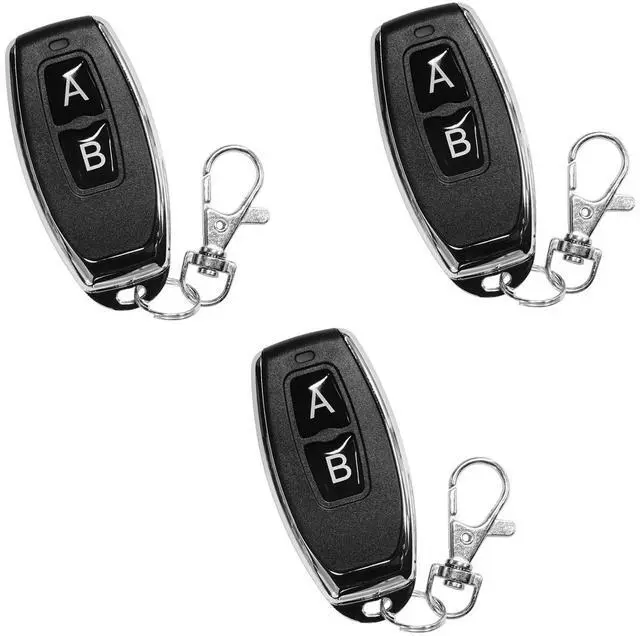

Remote Model: KT05-AB
Independent Operation: Assign Button A and B to different receivers or channels for tailored control.
Mode Adaptability: Works with Momentary, Latching, and Toggle modes based on your receiver's settings. Latching mode is perfect for dedicated on/off switching (e.g., A for on, B for off).
Key Reminder: This remote is Non-Clonable. It pairs directly with QIACHIP receivers and cannot replicate signals from other transmitters.
Remote Model: KT05-AB
Independent Operation: Assign Button A and B to different receivers or channels for tailored control.
Mode Adaptability: Works with Momentary, Latching, and Toggle modes based on your receiver's settings. Latching mode is perfect for dedicated on/off switching (e.g., A for on, B for off).
Key Reminder: This remote is Non-Clonable. It pairs directly with QIACHIP receivers and cannot replicate signals from other transmitters.
| Operating Voltage | DC 3–6 V |
| Operating Current | =12 mA |
| Operating Frequency | 433 MHz |
| Transmission Power | =10 mW |
| Reference Range | 50 meters (open area with no interference) |
| Frequency Deviation | ±0.2 MHz |
| Data Rate | 50–60 kHz |
| Dimensions | 60 × 31 × 11 mm |
| Oscillation resistance | 270–330 kO |
| Encoding method | 1527 learning code (first key: 0001, second key: 0010) |
| Battery type | 2 × CR2016 or 1 × CR2032 |
