QNAP TBS-H574TX-I3-12G-US SAN/NAS Storage System - Intel Core i3 i3-1320PE - 5x SSD Supported -12 GB DDR4 SDRAM - NVMe Controller -5x Total Bays - 10 Gigabit Ethernet

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel Core performance required by video production, allowing creators using Mac or Windows to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.

Ultra-fast RAW file editing

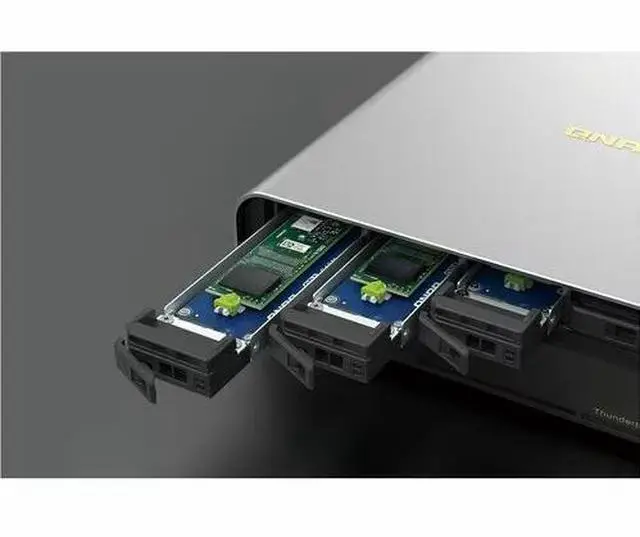

With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt 4 for faster direct connections
Two Thunderbolt 4 ports allow directly connecting Mac/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking
The 13th Gen Intel Core processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.

All-flash NASbook supporting E1.S/M.2 NVMe SSDs - a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.

M.2 NVMe SSD
Supports M.2 2280 modules
Smaller capacity but more available on the market
More affordable and more vendor options; suited for diverse applications
Faster than SATA SSDs
HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for maximizing the M.2 PCIe NVMe SSD cooling efficiency for stable data transfer

EDSFF E1.S SSD
Supports heights of 5.9mm / 9.5mm / 15mm
Larger capacity but less common on the market
Suited for high-intensity data transfer and is more future-proof
Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
Advanced power-loss protection (PLP) that prevents data loss
HS-M2SSD-07 heatsink (optional purchase) is recommended for maximizing the cooling efficiency of 5.9mm E1.S SSD to ensure stable data transfer

Maximize uptime with hot-swappable M.2 / E1.S SSD
Frontline video production teams are sometimes at risk of project interruptions due to unexpected SSD failures in storage devices. The TBS-h574TX supports hot-swappable SSDs, along with conditional automatic RAID replacement with spares. If an SSD enters a critical state, the system automatically moves data from the affected drive to a spare in the RAID group, seamlessly integrating it into the existing RAID without the need for RAID rebuilding, significantly reducing the risk of data loss.
