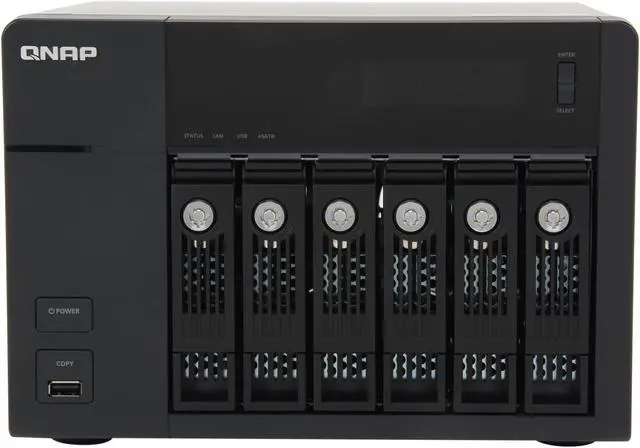

Main image of QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

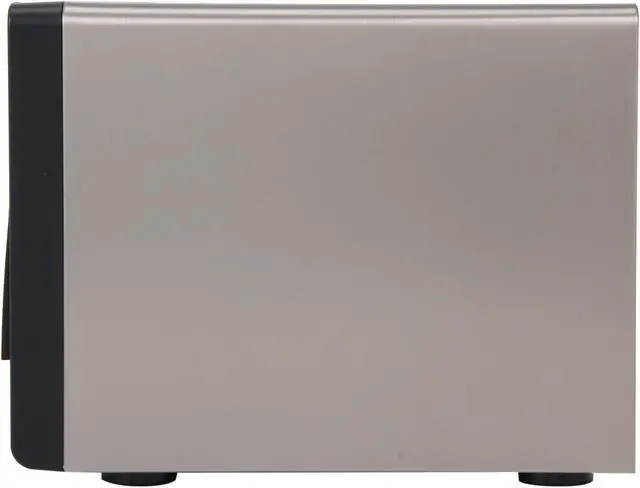

Alt view image 2 of 6 - QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

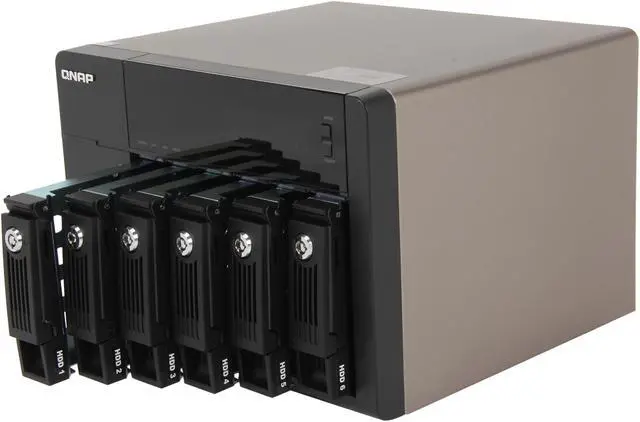

Alt view image 3 of 6 - QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

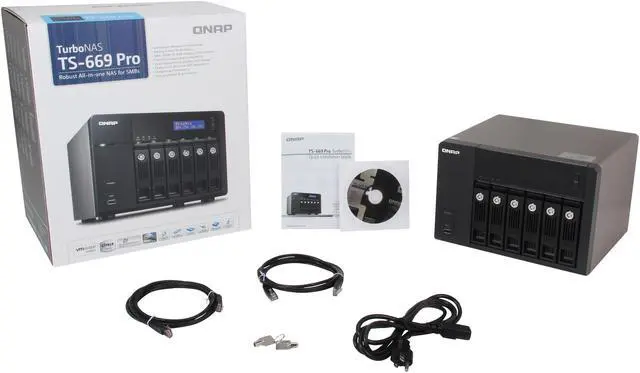

Alt view image 4 of 6 - QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

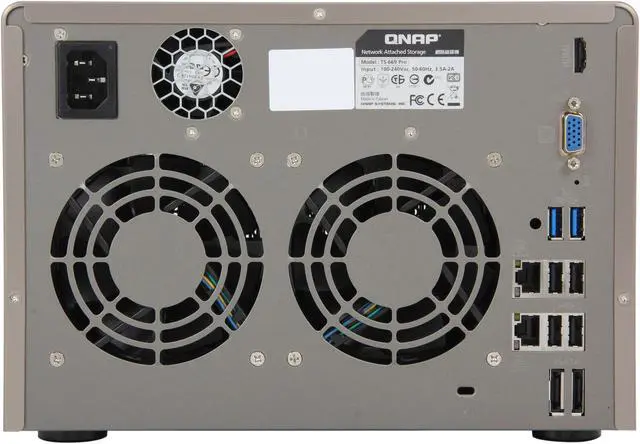

Alt view image 5 of 6 - QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

Alt view image 6 of 6 - QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

Shop All Qnap Products

QNAP TS-669-PRO-US Diskless System 6-Bay, All-in-One NAS

Be the first to review this product...

6-Bay
Usage Ultra high prerformance for large number of users
Diskless System
Intel Atom 2.13GHz Dual-core Processor Processor
2 x 10/100/1000M
2 x USB 3.0 port (Back: 2) 5 x USB 2.0 port (Front: 1; Back: 4)

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	QNAP
Model	TS-669-PRO-US
Type	Desktop NAS

Configuration
Ports	2 x 1GbE / 2 x eSATA / 2 x USB 3.2 Gen 1 / 5 x USB 2.0

Interfaces
Port RJ-45	2 x 10/100/1000M
Port USB	2 x USB 3.0 port (Back: 2) 5 x USB 2.0 port (Front: 1; Back: 4)
Port eSATA	2 x eSATA
HDD Interface	6 x Hot-swappable and lockable tray

Configuration
Form Factor	6-Bay
Operating System	Embedded Linux
Processor	Intel Atom 2.13GHz Dual-core Processor
Installed Memory	1GB RAM (Expandable RAM, up to 3GB) NOTE: 1. The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module. 2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Max Memory Capacity	3GB

Hard Drive Performance
Included HDD Capacity	Diskless System

Convenience
Supported Protocols	Networking - TCP/IP (IPv4 & IPv6: Dual Stack) - Dual Gigabit LAN with Jumbo Frame - Multi-IP Settings, Port Trunking/NIC Teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) - DHCP Client, DHCP Server - Protocols: CIFS/SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI and SNMP. - Network Service Discovery(UPnP, Bonjour) - Virtual LAN Support - USB Wi-Fi 802.11n Adapter Support (Optional Purchase) Network File Sharing - CIFS/SMB (Plus DFS Support) - AFP - NFS - FTP - WebDAV
Management	Disk Management - Single Disk, JBOD, RAID 0 / 1 / 5 /10/ 5+Hot Spare / 6 /10 - Online RAID Capacity Expansion & Online RAID Level Migration - Bad Block Scan & HDD S.M.A.R.T - Global Spare Drive - AES 256-bit Volume-based Encryption - RAID Recovery - Bitmap Support - Supports ISO Mounting (via Web File Manager) Power Management - Wake on LAN - Scheduled Power on/off (Max 15 settings) - Automatic Power on after Power Recovery Access Right Management - Max User Accounts: 4,096 - Max Groups: 512 - Max. Share Folder: 512 - Batch Creating Users - Import/Export Users - User Quota Management - Subfolder Permissions Support

Power
Power	100-240 VAC 50/60Hz

Environmental
Temperature	0°C - 40 °C
Humidity	0-95% R.H

Features
Features	Centralized Storage and File Sharing Backup Center for Business NAS, iSCSI/ IP-SAN Storage Combo Solution for Server Virtualization iSCSI and Virtualization Deployment Feature-rich All-in-one NAS Applications Private Cloud Storage for Ease of Deployment Exceptional Performance: 221.8 MB/sec Reading, 220.8 MB/sec Writing SuperSpeed USB3.0, SATA 6Gb/s Supported Energy-efficient & Eco-friendly
Usage	Ultra high prerformance for large number of users

Dimensions & Weight
Dimensions	10.12" x 9.25" x 6.89"
Weight	11.46 lbs.

Additional Information
First Listed on Newegg	March 19, 2012
