4x GbE LAN, optional 10GbE PCIe expansion, Surveillance Station free 4 & max 72 channels, USB Quick Access
Integrated Radeon R7 GPU for 4K video playback ; Two PCIe slots support 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards
Use the NAS as a PC by attaching a keyboard, mouse, and HDMI display ; Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AMD RX-421BD 2.1 3.4 GHz, 8GB DDR4 RAM, 4x 2.5"/3.5" + 2x M.2 2280/2260 SATA 6Gb/s drives, 4x GbE LAN, optional 10GbE PCIe expansion, Surveillance Station free 4 & max 72 channels, USB QuickAccess
Learn more about the Qnap TVS-473e-8G-US
Model
Brand
QNAP
Model
TVS-473e-8G-US
Type
Desktop NAS
Configuration

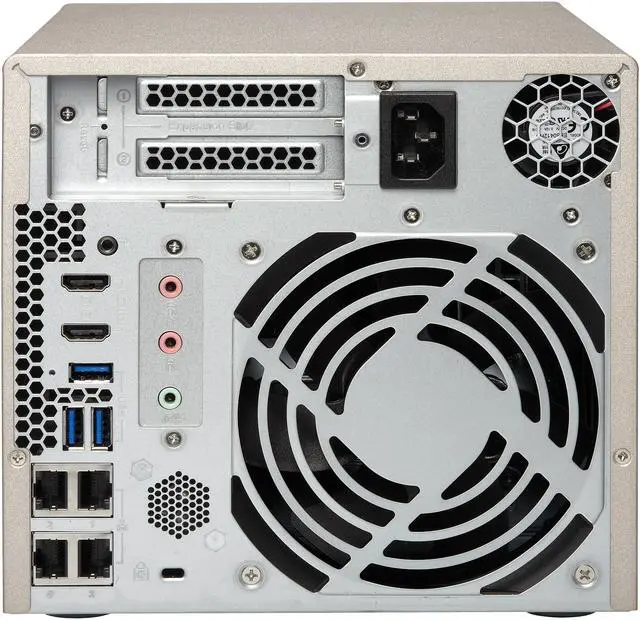

Ports
4 x 1GbE / 4 x USB 3.0
Interfaces
Port RJ-45
4 x 10/100/1000M
Port USB
4 x USB 3.0 (Front: 1; Back: 3)
HDD Interface
4 x SATA (4 x Bay)
Configuration
Form Factor
4-Bay
Processor
AMD R-Series RX-421BD quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz
Installed Memory
8GB DDR4 (2 x 4GB)
Max Memory Capacity
64GB
Memory Slot
4 x DDR4 SODIMM
Hard Drive Performance
Included HDD Capacity
Diskless System
Power
Power
ATX 250W, 100-240V AC, 50/60 Hz
Environmental
Temperature
0°C - 40 °C
Humidity
5-95% R.H
Dimensions & Weight
Dimensions
7.41" x 7.85" x 11.01"
Weight
10.80 lbs.
Package Contents
Package Contents
TVS-473e 2 x Ethernet Cable 1 x Power Cord 2 x Flat head screw (for M.2 SSD) 12 x Flat head screw (for 2.5" HDD) Quick Installation Guide (QIG) 2 x M.2 SSD Heatsink
