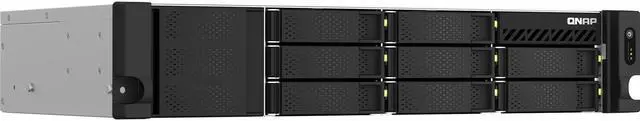

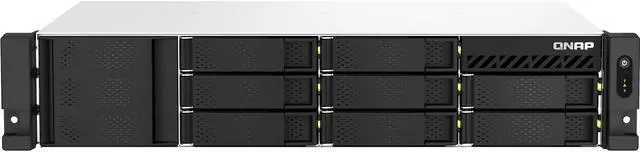

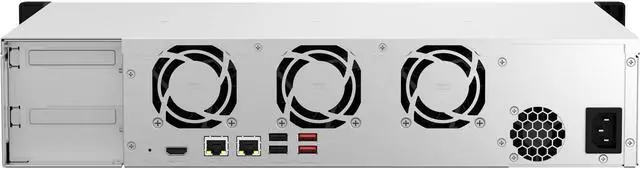

QNAP TS-864eU-4G-US 8 Bay High-Speed Short Depth Rackmount Rackmount NAS with Dual-2.5GbE, Intel Celeron CPU, 4GB DDR4 Memory and 2.5GbE (2.5G/1G/100M) Network Connectivity (Diskless)

Intel Celeron N5105/N5095 4C/4T burst up to 2.9 GHz processor and 4GB DDR4 RAM (up to 16GB)
Dual 2.5GbE (2.5G/1G/100M) ports accelerates file sharing across teams and devices or streamline large file transfers
Dual M.2 PCIe Gen 3 x1 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance
Multiple USB 3.2 Gen 2 ports (type-A) with up to 10Gb/s transfer speeds, allowing compatibility with newer, faster USB drives/expansion enclosures for transferring large media files
4K media playback and real-time transcoding; display multimedia content saved on the NAS via HDMI 1.4b (4K @30Hz) output
Backup Google Workspace & Microsoft 365 accounts and files to NAS with Boxafe
Comprehensive surveillance solution for 24/7 security with QVR Pro
Create a disaster recovery plan with ransomware protection using QNAP’s storage snapshot solution

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Detailed Specifications

Model
Brand	QNAP
Part Number	TS-864EU-4G

Interfaces
Port RJ-45	2 x 2.5 GbE
HDD Interface	8 x SATA (8 x Bay)

Configuration
Form Factor	8-Bay
Processor	Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
Installed Memory	4GB
Max Memory Capacity	16GB
Memory Slot	2 x DDR4 SODIMM

Hard Drive Performance
Included HDD Capacity	Diskless System
Max Capacity	176TB
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives

Conveniences
LEDs	HDD 1-8, Status, LAN, Expansion, Power

Power
Power	300W, 100-240V
Power Consumption	Power Consumption: HDD Sleep Mode 24.776 W Power Consumption: Operating Mode, Typical 51.022 W

Features
Usage	Ultra high prerformance for large number of users

Environmental
Temperature	Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F)
Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Dimensions & Weight
Dimensions	88.6 × 482.14 × 318.13 mm
Weight	Weight (Net) 6.68 kg Weight (Gross) 9.25 kg

Additional Information
First Listed on Newegg	December 16, 2022
