Question 1

is this fot the Lenovo 14 pin main board?

Accepted Answer

That is a 20 or 24pin (20+4Pin) motherboard plug .

Question 2

Why does it show only 1 sata connector? It says in one place that it has one, and in another it says it has 3x 5 pin sata. It only has one Sata power connector correct? and the rest of the peripheral power is Molex 4 pin right?

Accepted Answer

Mine has 3 sata connectors also.

Question 3

What are the size specs? Thanks

Accepted Answer

Standard width and height (5 and 7/8in wide, 3 and 5/16in tall) and 5.5in deep. It just died on me... get a better brand. It worked from September 2013 til may 2015 though... so I mean it will work for a while

Question 4

Hi, I have some spare computer parts and I decided to make those parts into a small server instead of using my gaming PC. I have everything except a PSU. I plan to run Source servers, so it isn't too demanding. I plan to run this for long periods of time, regardless of the noise I've seen in reviews for this product (Put it in my basement). SHOULD I BUY THIS?

Accepted Answer

I actually did the same thing you want to do with this PSU.
It still works perfectly, and it has been on for a looong time. It has an AMD a8-3870k and 4GB RAM, and also an amd graphics card Radeon HD6870.
I've run everything from Minecraft to ArmA 2 servers on it for long periods at a time, no problems.

Yes, you should buy this. =)

Question 5

I plug in to 120v outlet turn on power switch no fan, no DC POWER
what to do?  I have  3 all the same bought last week and just pulled from the box.No diagrams included

Accepted Answer

Check them with a voltmeter first. My recommendation is to return them if no power is transfered to any of the outlet plugs, ie the ones you plug into peripherals etc. I ordered two. The first one came in DOA. I ordered a second one and it checked out fine. Still works till this day.

Question 6

I'm trying to replace a Bestec ATX0300D5WB Rev.: X3. Will this unit work?

Accepted Answer

It should work just fine

Brand	RAIDMAX
Model	RX-380K

Type	ATX12V
Maximum Power	380 W
SLI	No
CrossFire	No
Modular	No

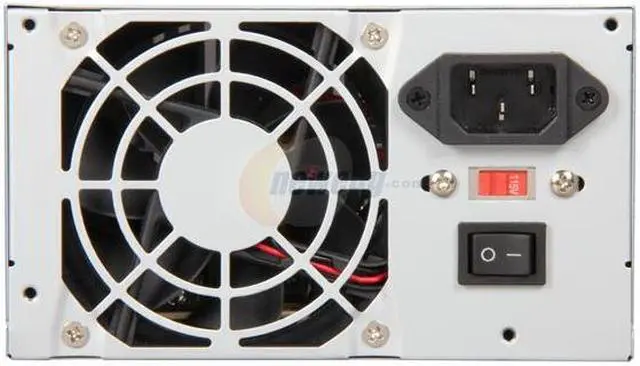

Fans	1 x 80mm Fan

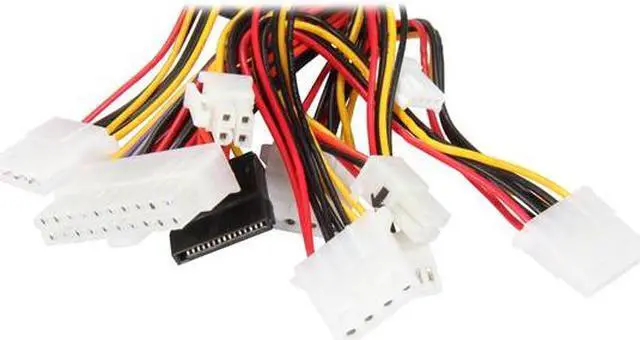

Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	No
SATA Power Connector	1
Efficiency	Up to 75%
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10A/5A

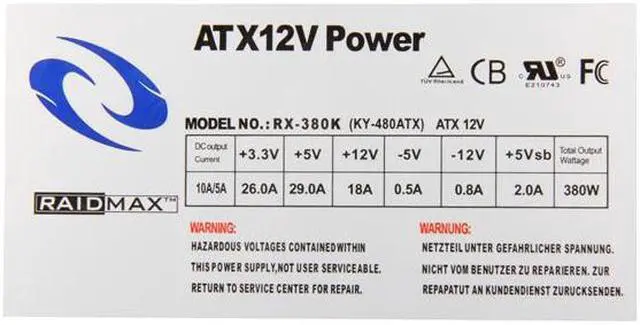

Output	+3.3V@20A, +5V@20A, +12V@24A, [email protected] ,[email protected]
Approvals	TUV, UL, CSA, CE, FCC, CB

Meet Your Seller

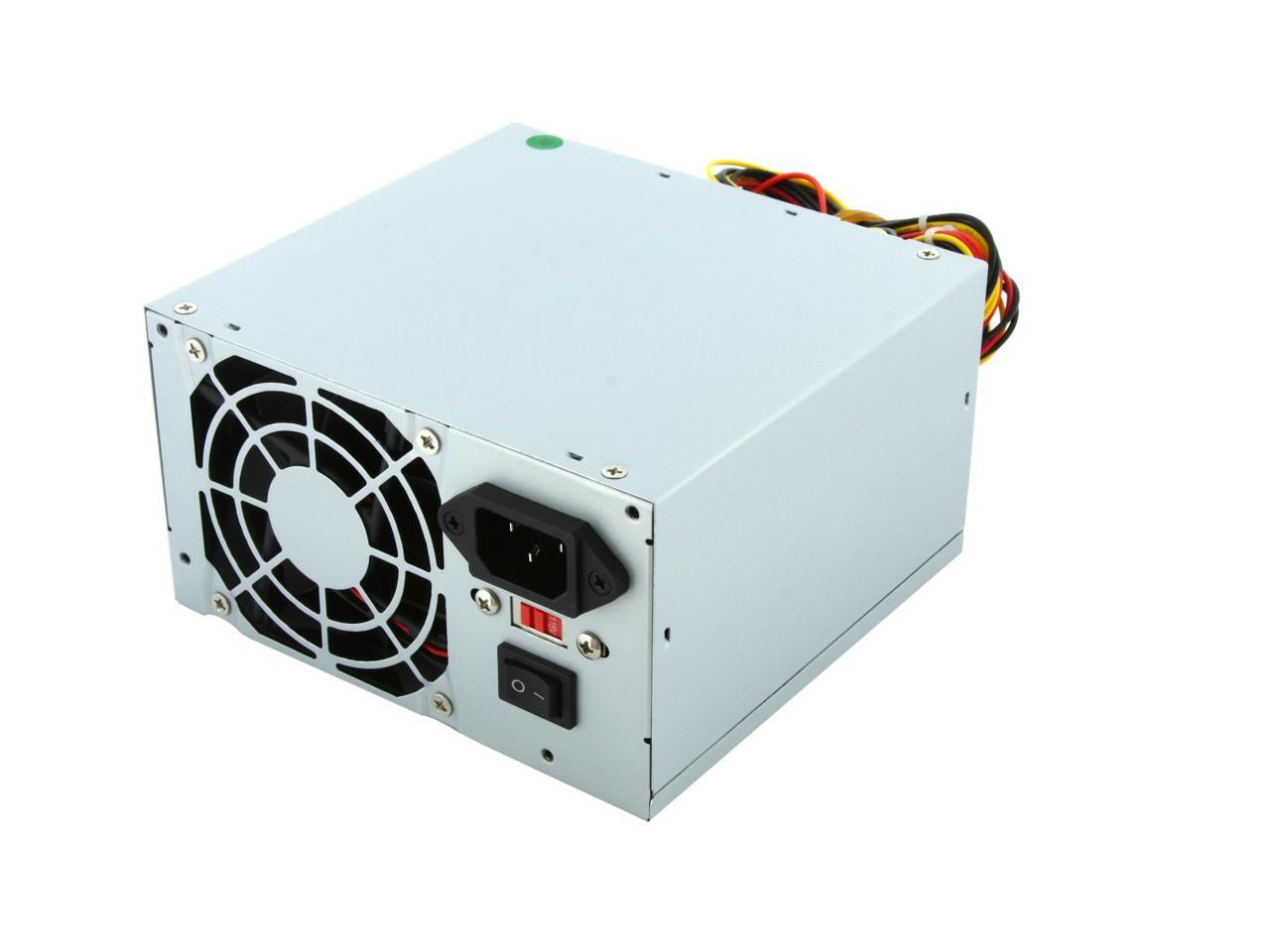

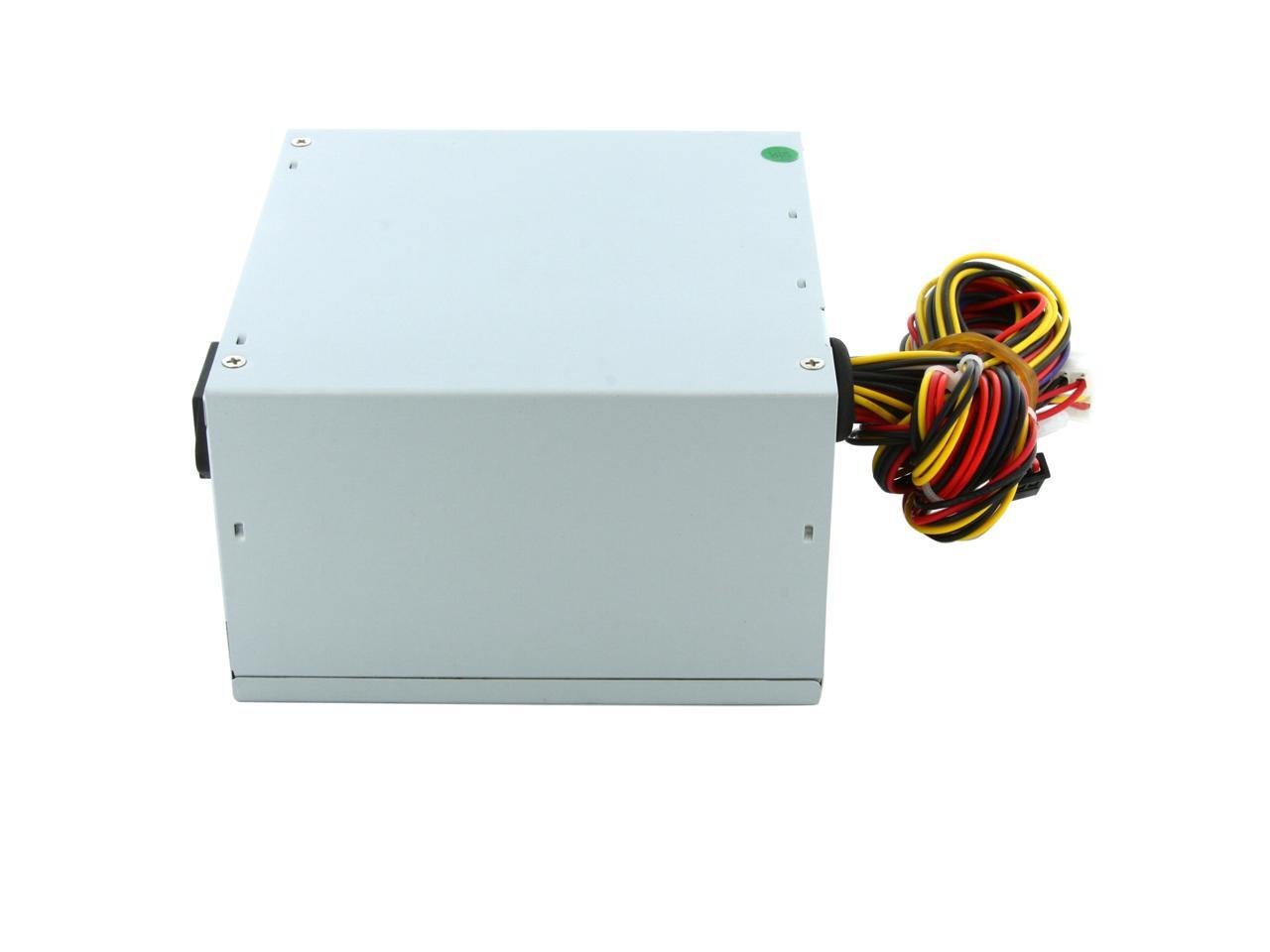

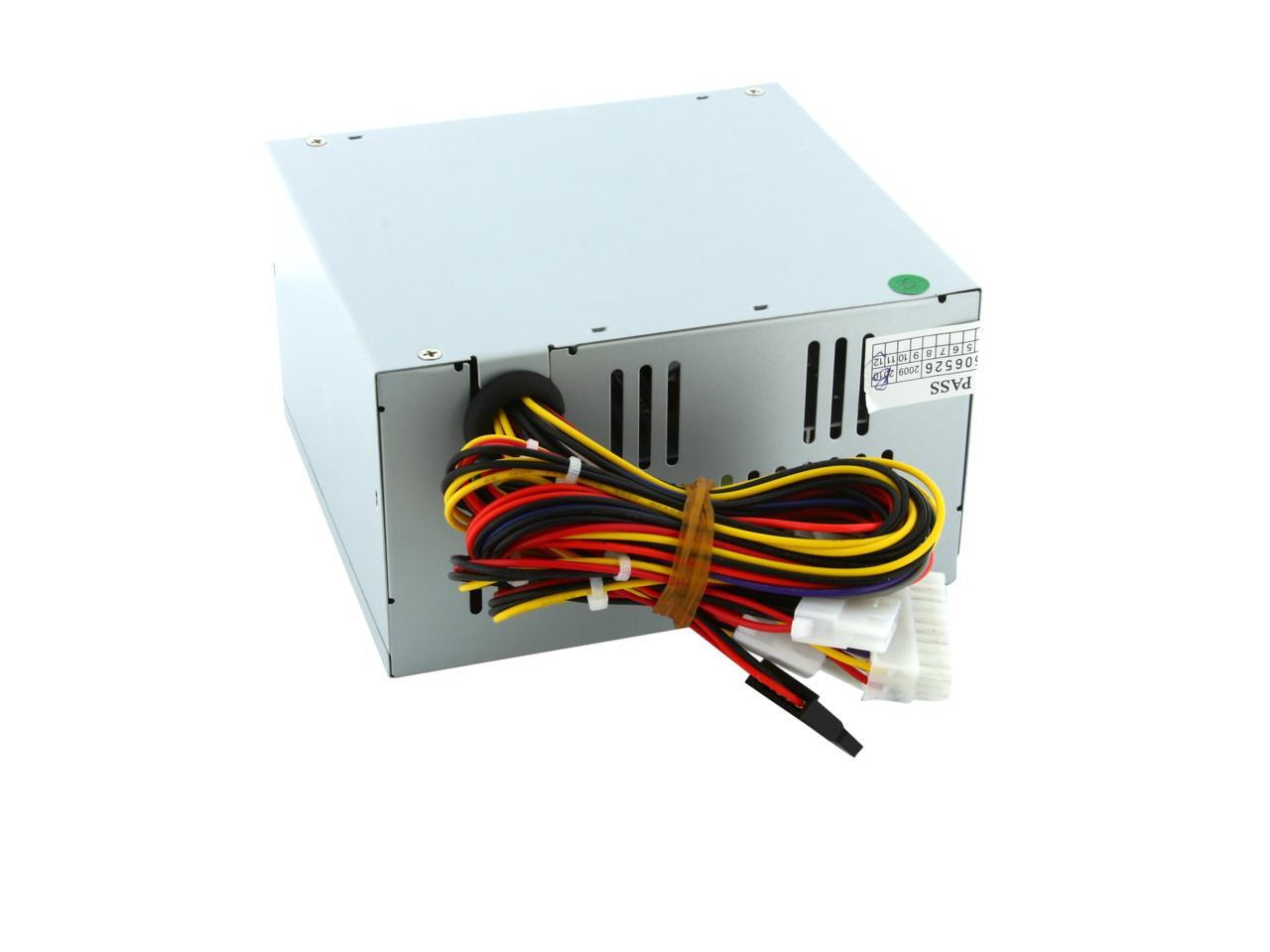

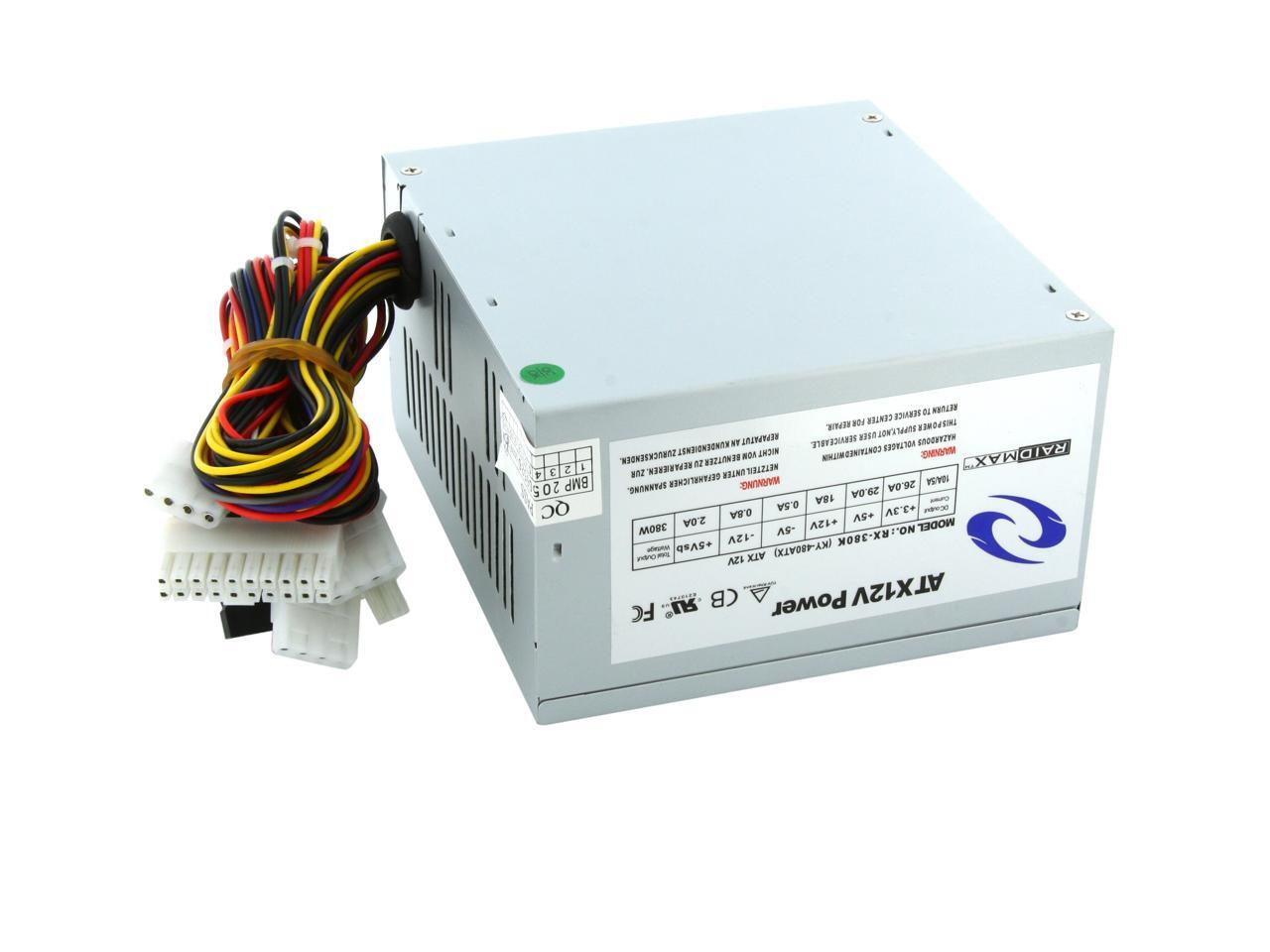

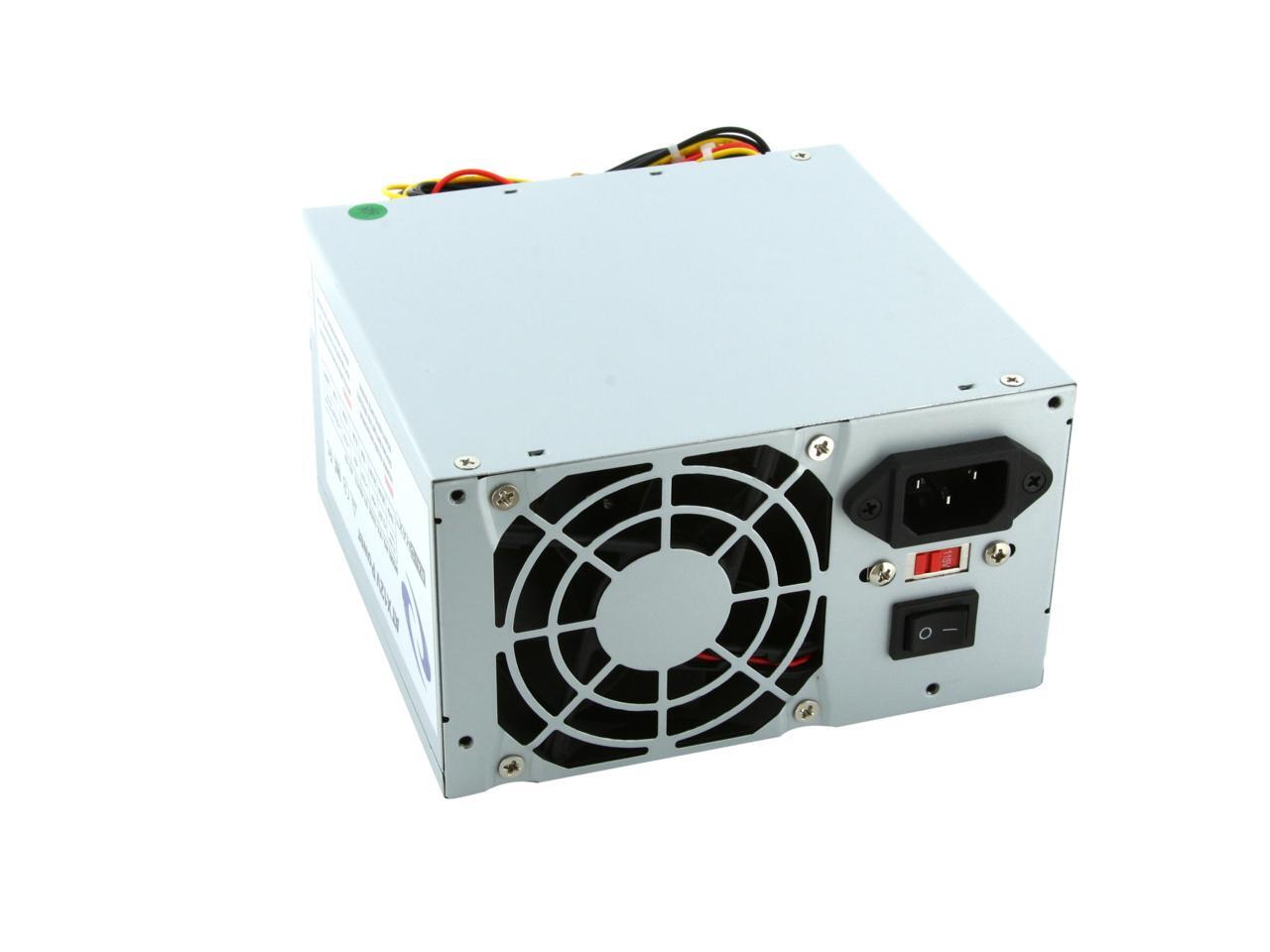

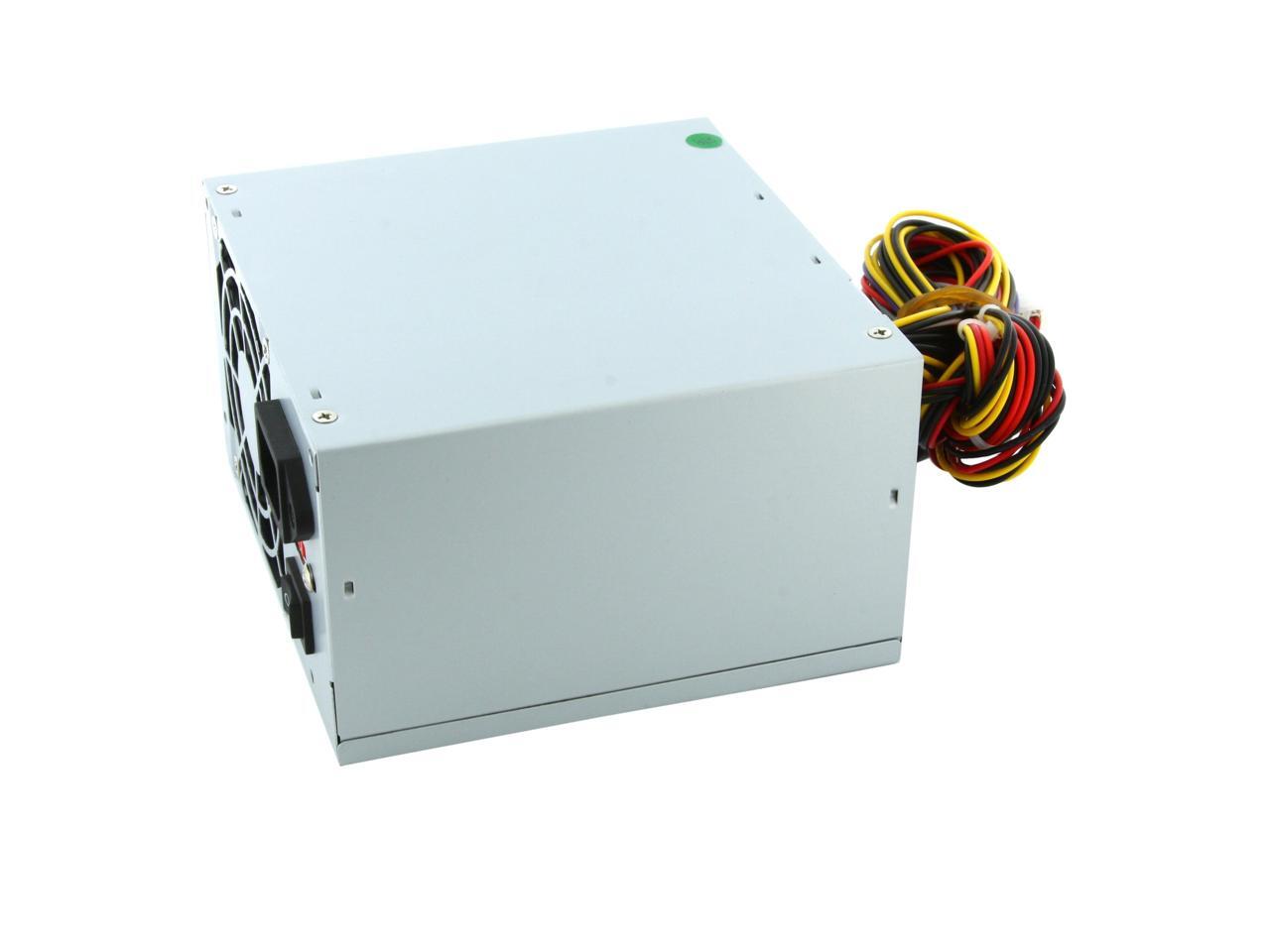

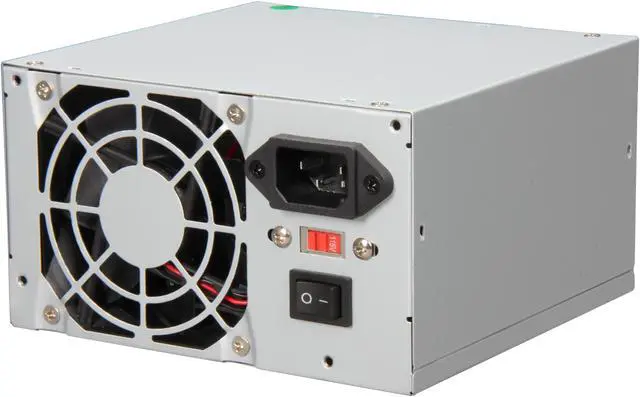

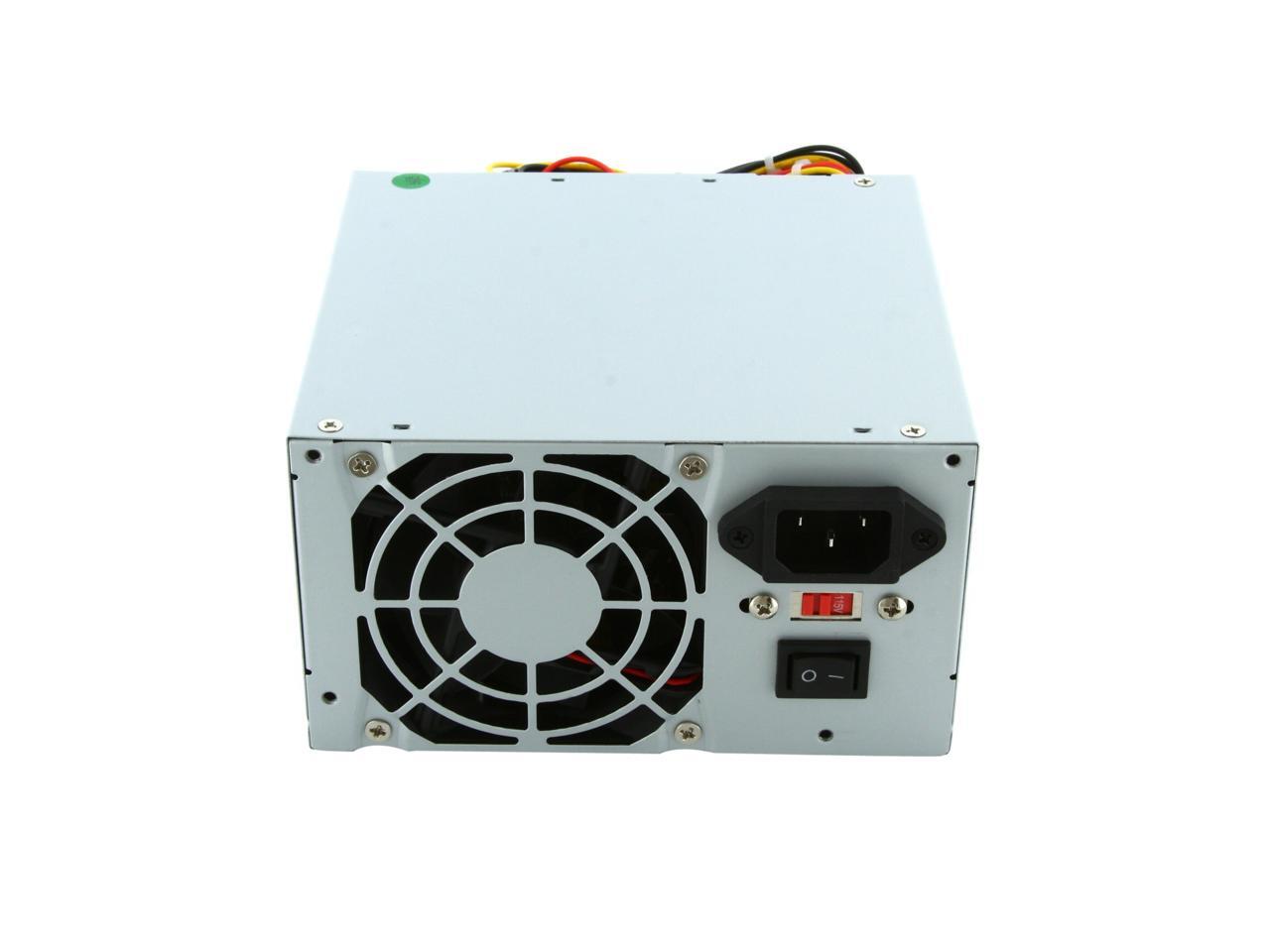

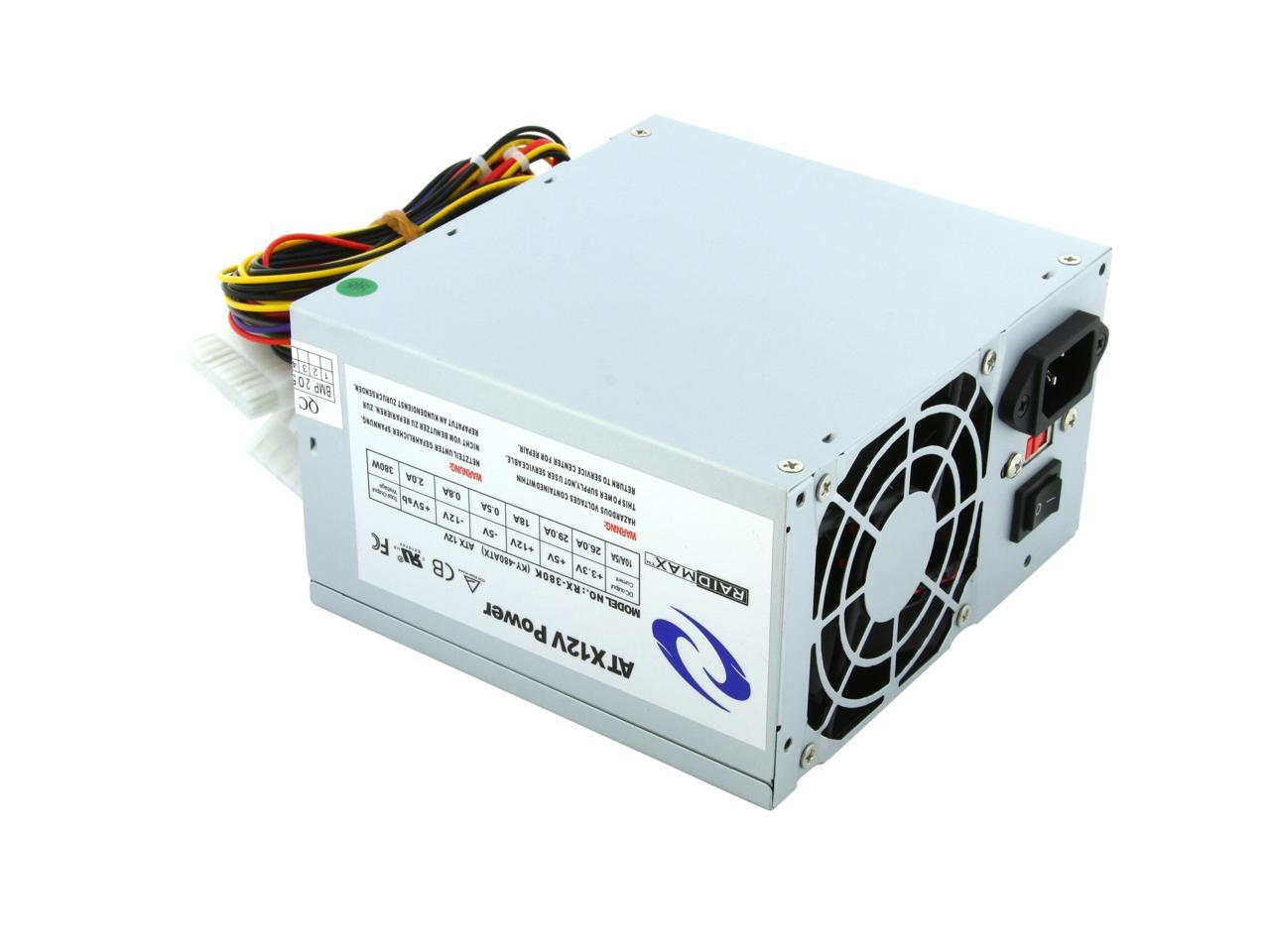

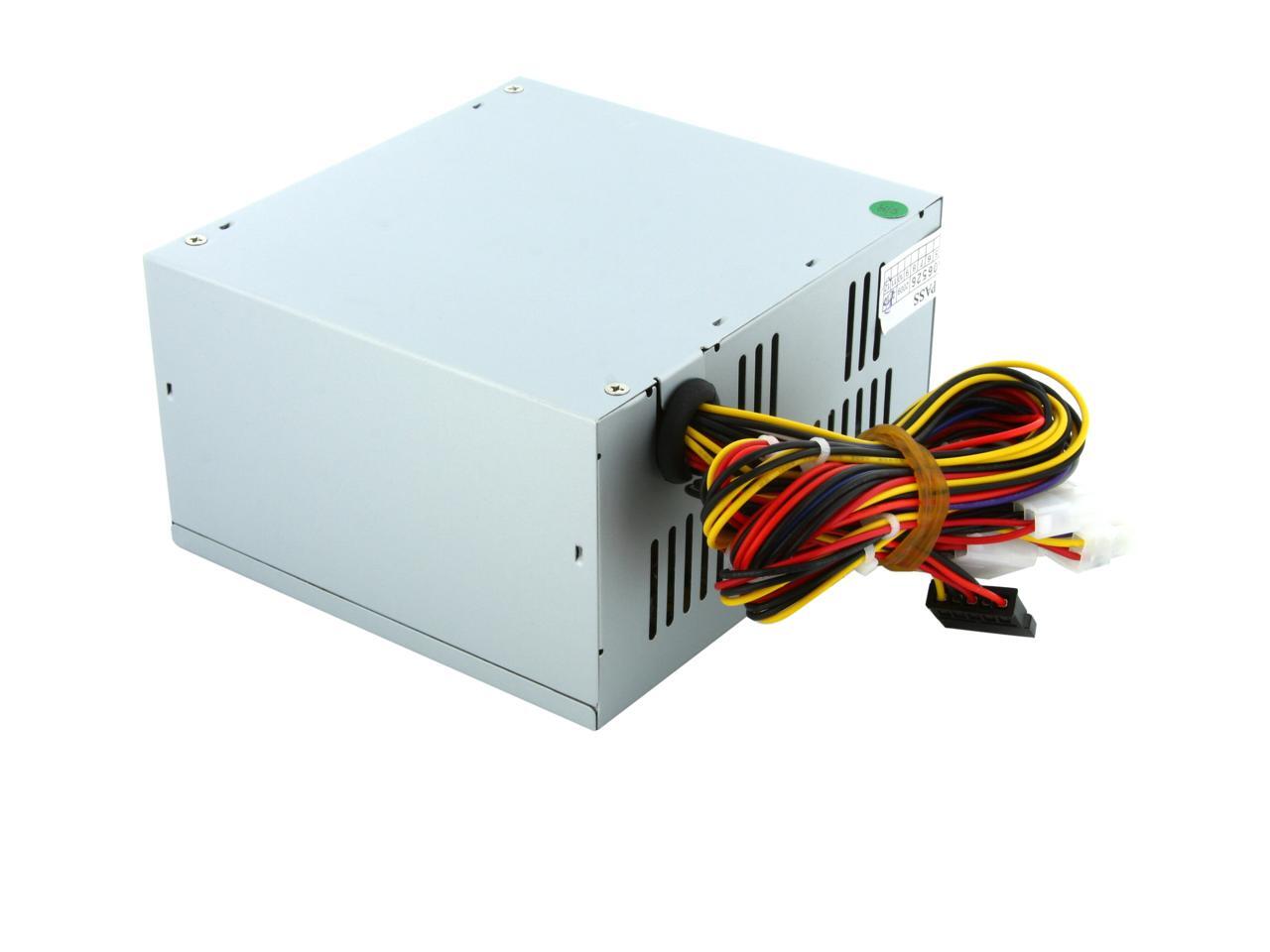

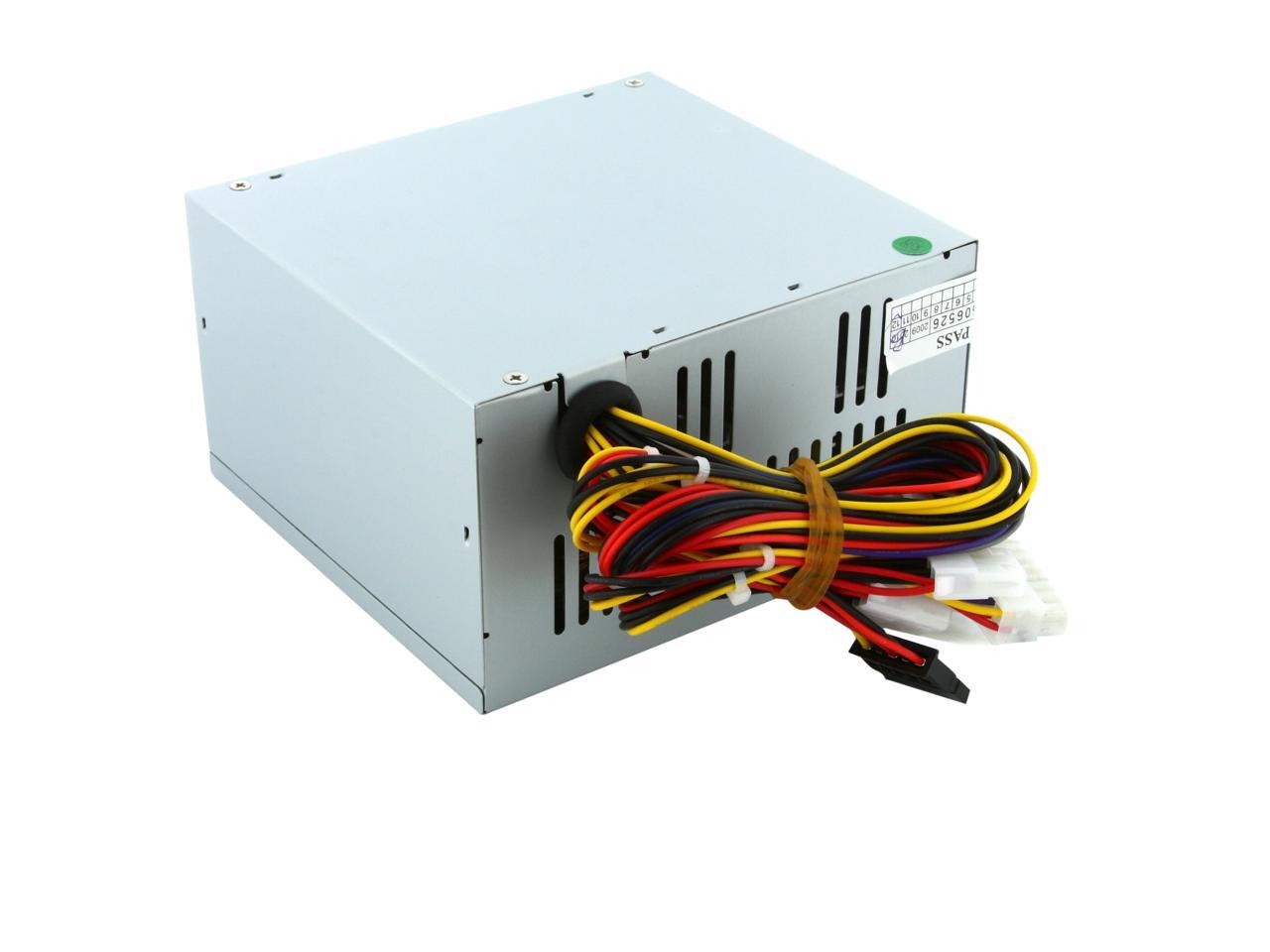

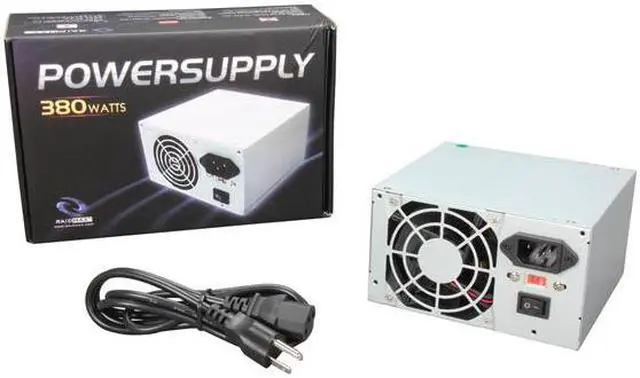

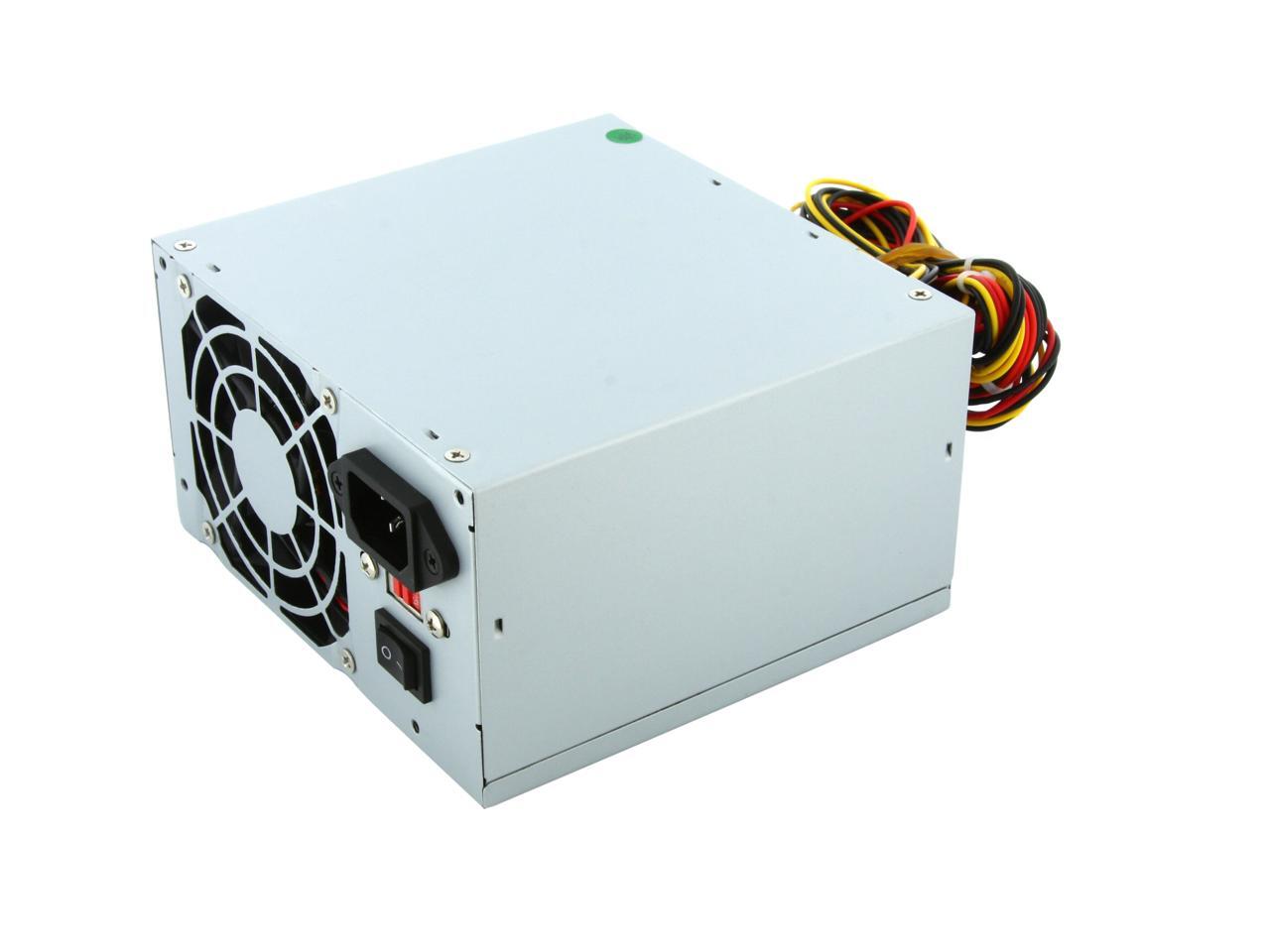

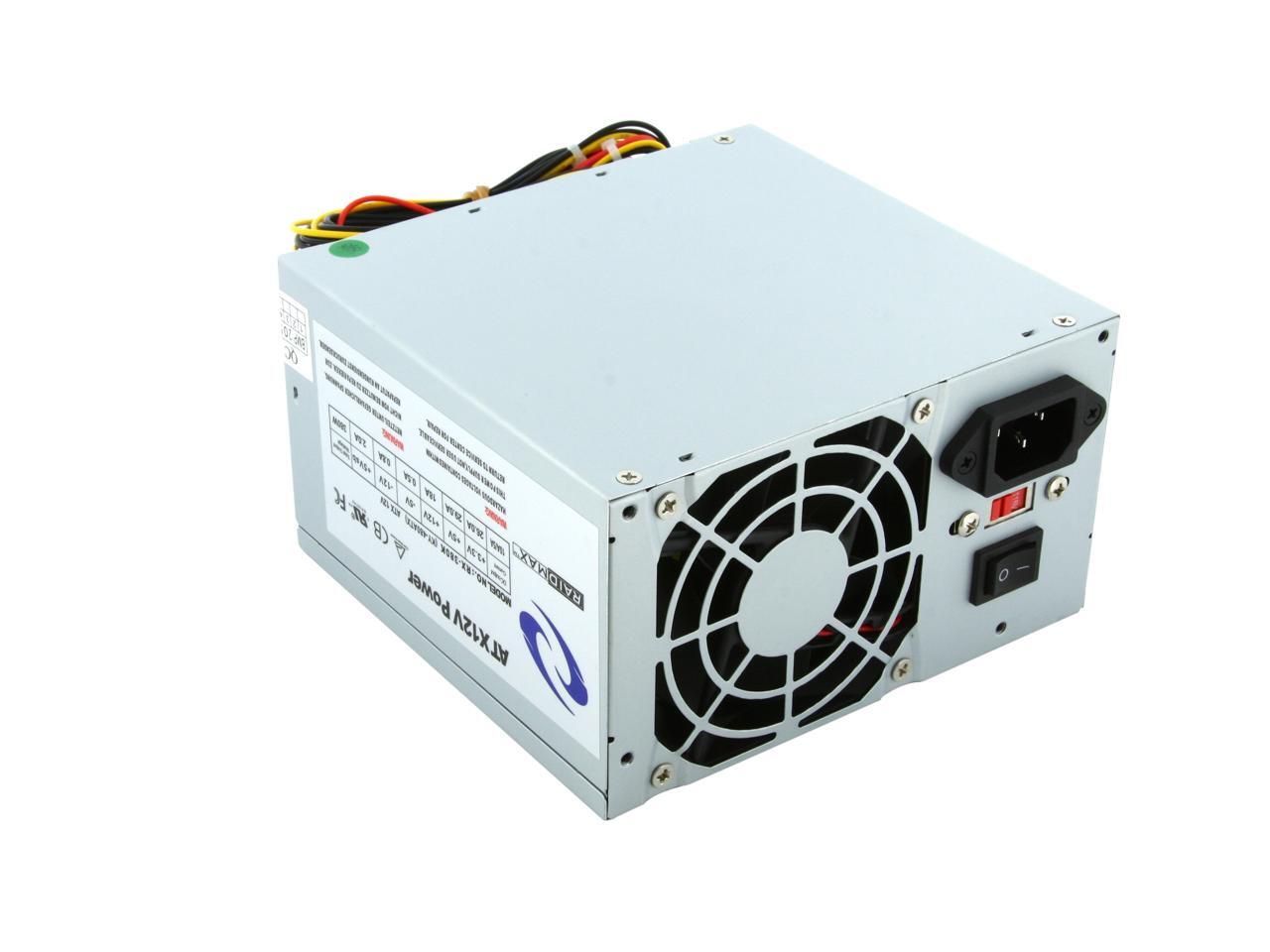

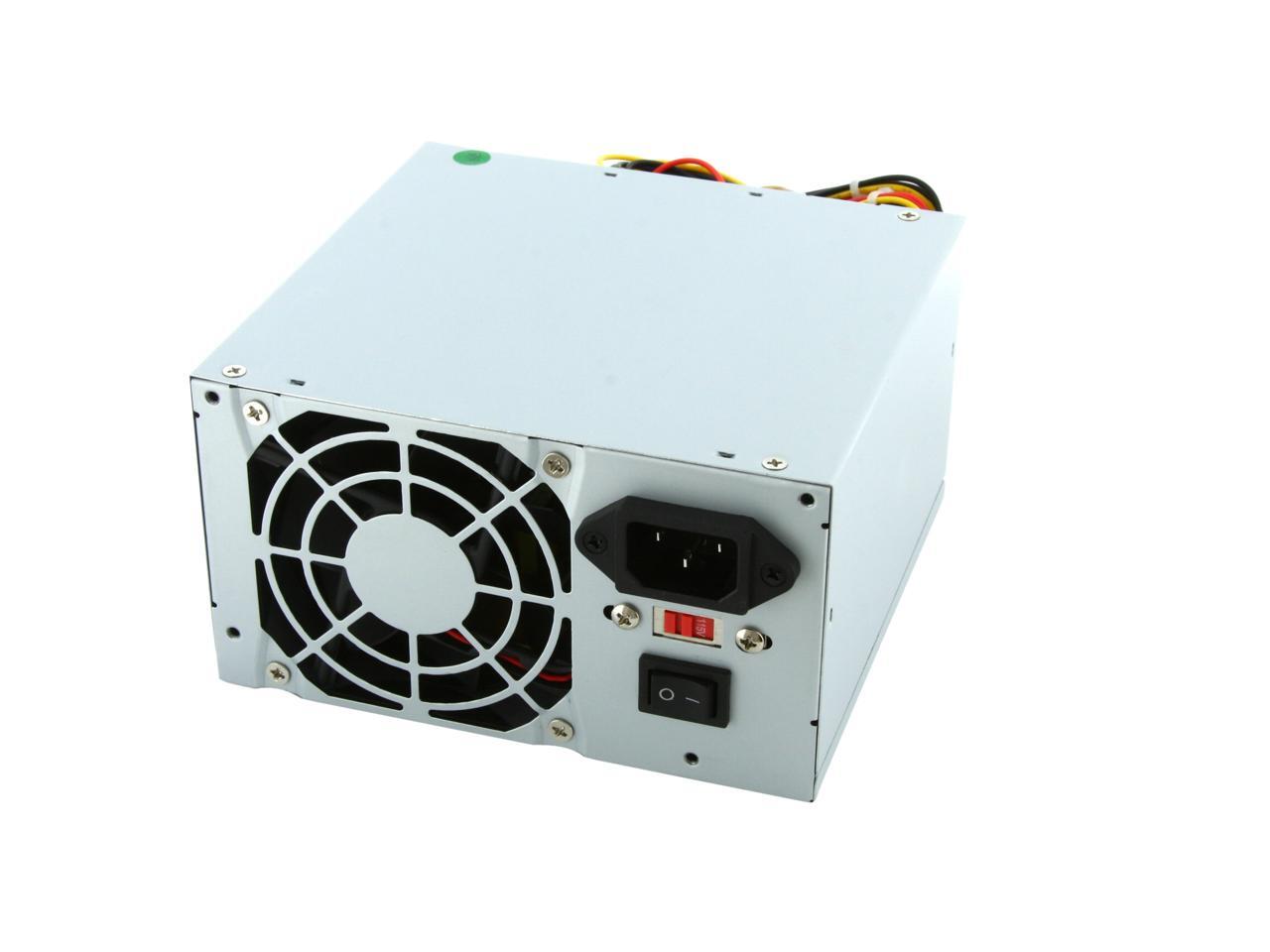

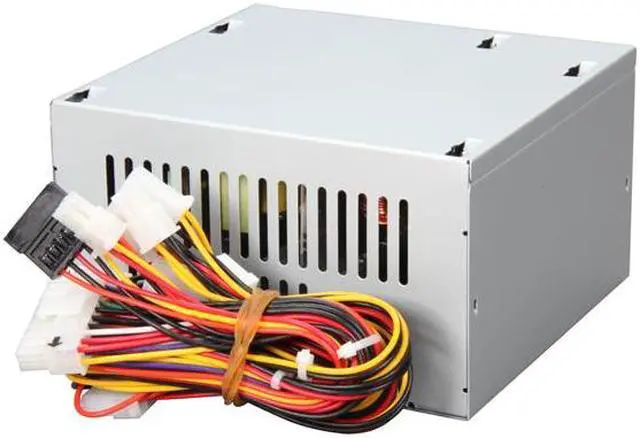

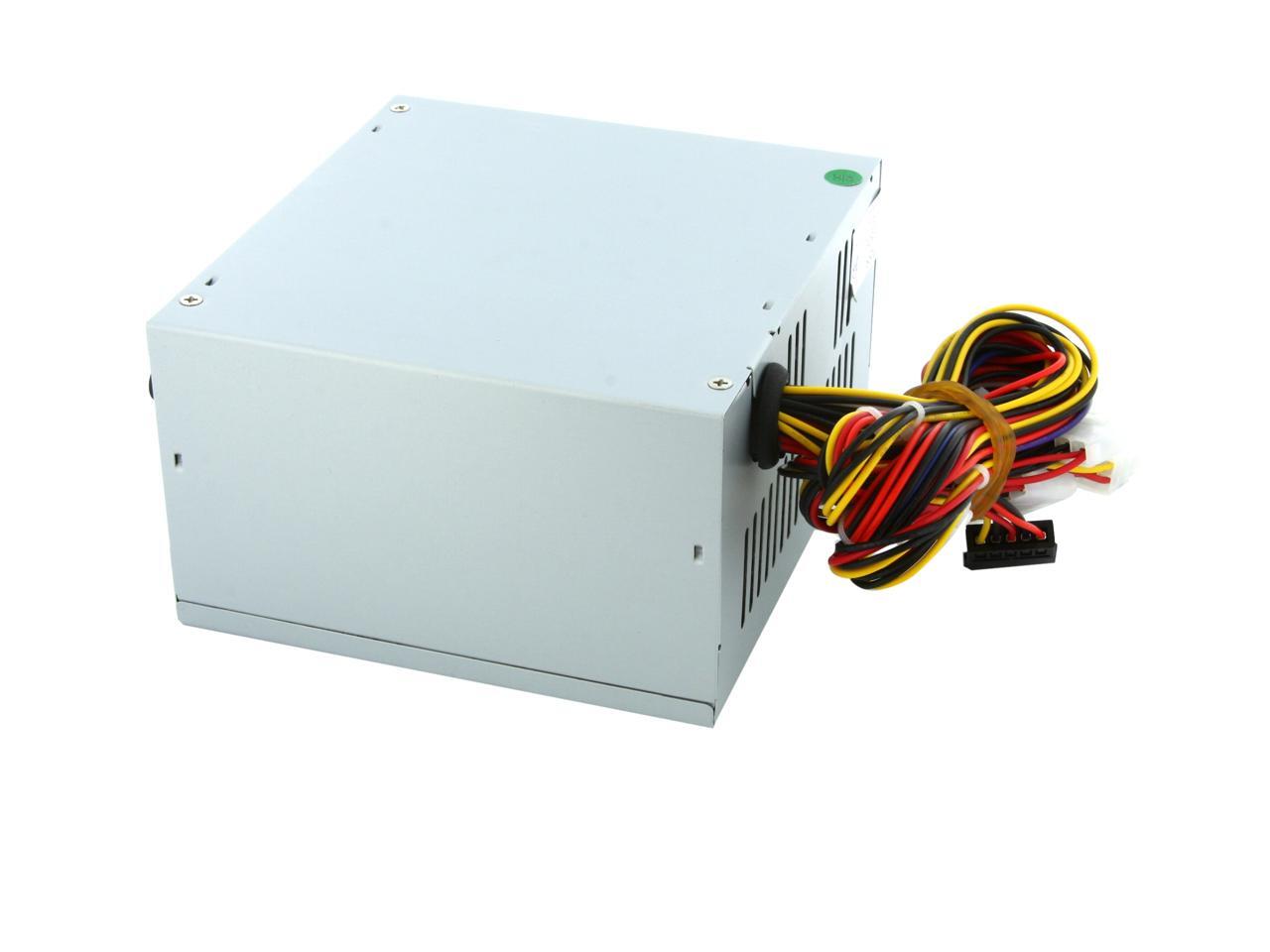

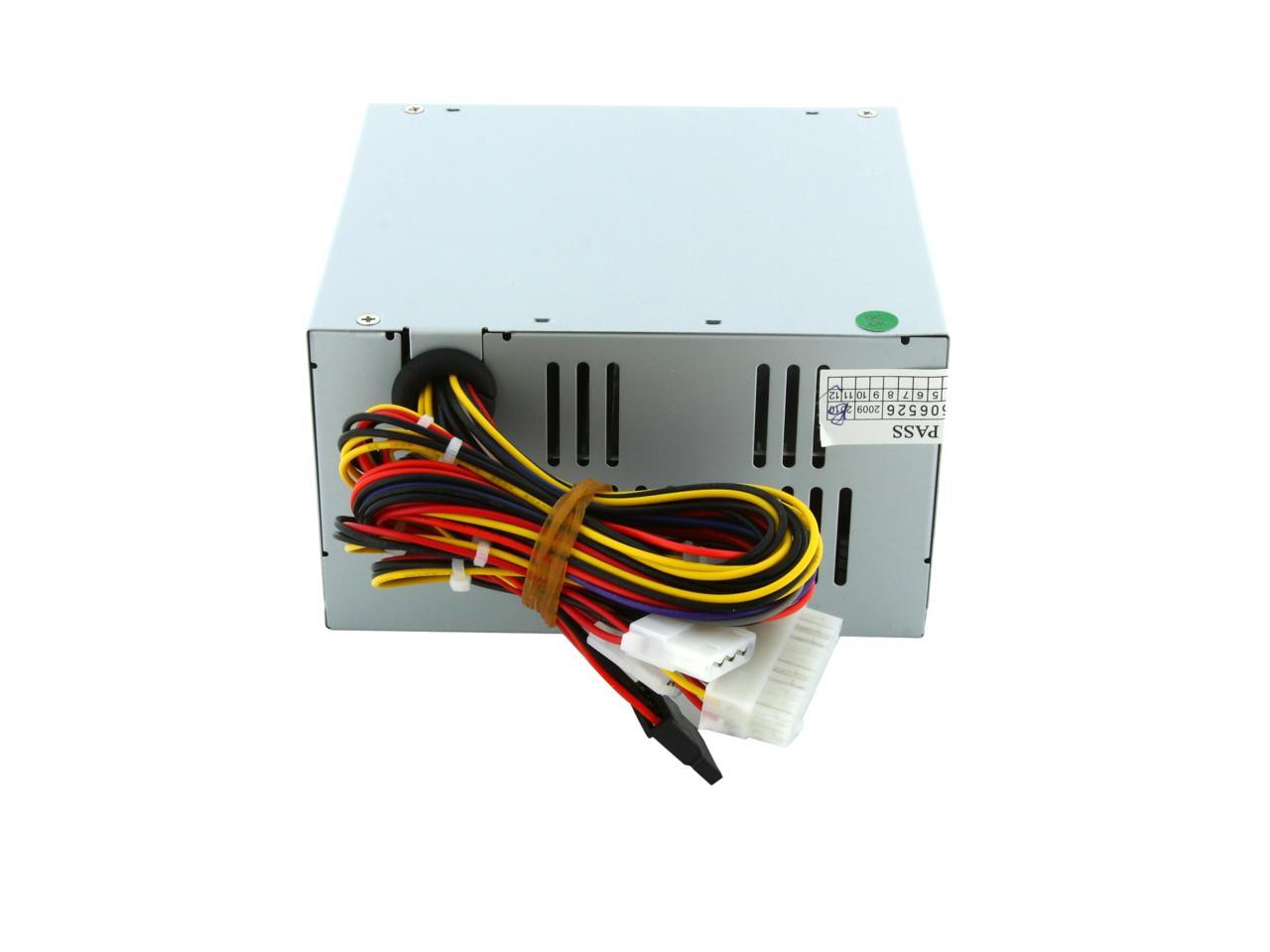

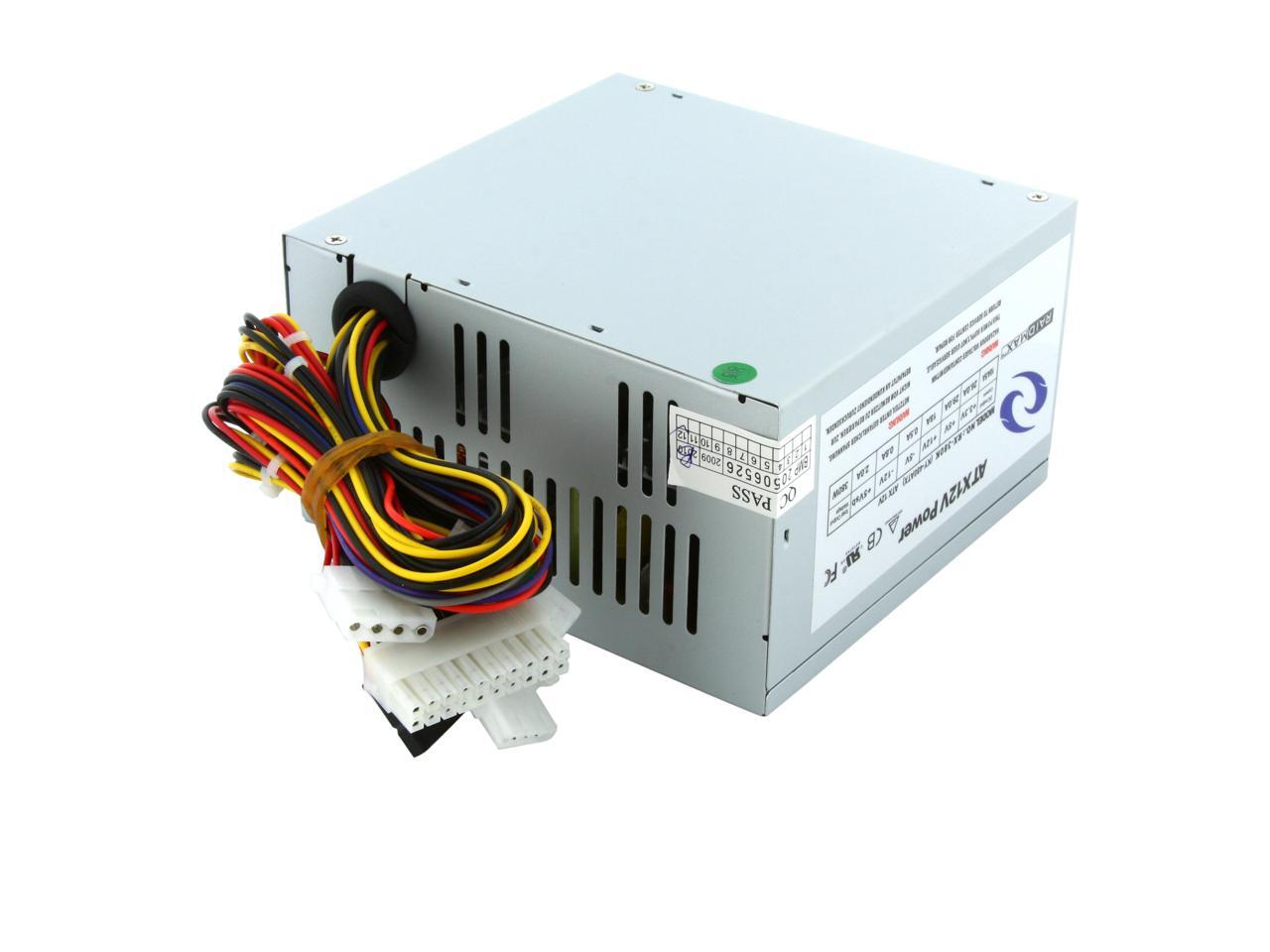

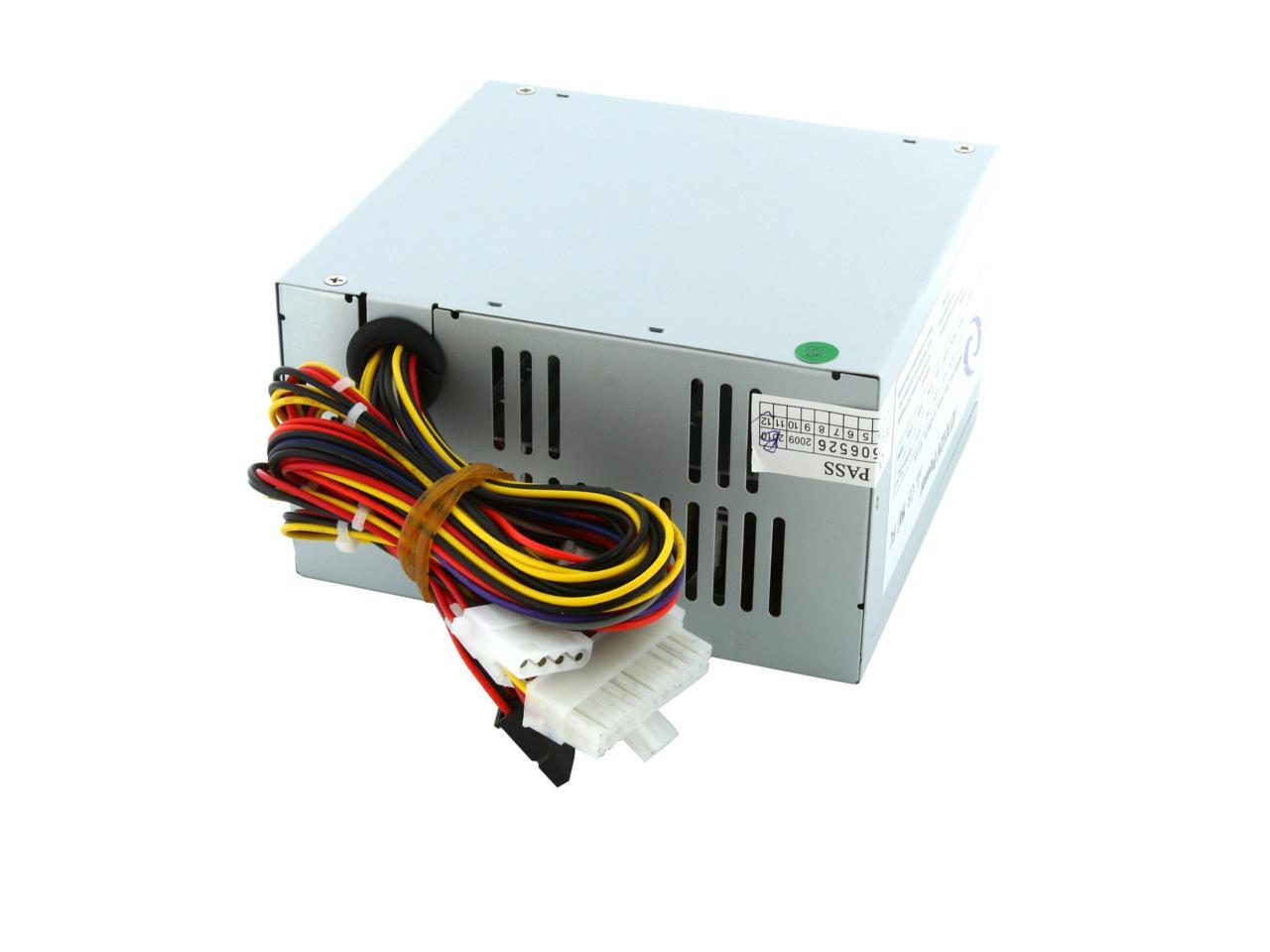

RAIDMAX RX-380K 380 W ATX12V Power Supply

Used - Very Good

Learn more about the Raidmax RX-380K

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimension & Weight
Dimensions	5.91" x 6.89" x 3.39"
Weight	4

Details
Haswell Support	No
Energy-Efficient	No

Item#: 9SIAEENK485887
