Does this fit on a Lga 1151 socket?

Hello there, Thank you for contacting us in regards to your question. The Raijintek CPU Cooler is listed to support the Intel LGA 115x which includes support for LGA 1151 and would fit this socket. Hope this helps, Newegg Support

Can I used the fan connectors without the control hub? Do they fit a standard motherboard?

From what I can tell, they are made for the hub and can't fit on the motherboard. However there is a slot where you can plug an included wire in to have it controlled by the motherboard. As of the second, I have not tested it and just used the included remote.

Do you plug the RGB cable into 5 volt or 12 volt rgb header on motherboard?

The RGB control hub connects to a 5V RGB header on your motherboard, and also has a Molex connector to connect directly to your power supply, so that it has enough power to control up to 8 RGB devices regardless of the maximum power available through the motherboard RGB header. (The two fans and the CPU water block for the cooler are 3 devices, so you can run up to 5 more with this same control hub.) Also note that the addressable RGB header on your motherboard will have three pins, with a gap the width of a pin in between two of them, but the controller cable that plugs into your motherboard has four wires. It DOES work with the 5V addressable RGB header anyway. One of the wires in the controller cable will have a label that says "5V". Make sure you plug it into your motherboard so that that wire connects to the 5V pin on the motherboard RGB header, and it will work fine.

I can't get the cpu cooler itself to light up. Is there a trick to it? The instructions were not the best.

Hey there, I had this exact same issue when the cooler rgb wasn’t coming on. Check the connections from the cooler to the rgb adapter. If that is still not working I fixed it by moving the little switch on the adapter from m to b. My moving the switch it tells the adapter if your going to use the remote or the motherboard to control the rgb.

what is tdp of this cooler?

TDP is typically the heat output of a cpu. The cooler puts off almost no heat. the fans have incredibly low friction. running an I7 9700K And an RTX 2060 with less then optimal air flow I stay at 28-31 C on idle which is basically room temp and up to 70 C with a full load.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 7 wish lists)

Sold by RAIJINTEK CO., Ltd.

4.6 (1,785 seller ratings)

Shipped by RAIJINTEK CO., Ltd.

Meet Your Seller

RAIJINTEK CO., Ltd.

See Seller Store

Main image of RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 2 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 3 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 4 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 5 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 6 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 7 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 8 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 9 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 10 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 11 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 12 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 13 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Alt view image 14 of 14 - RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

Customer images

Visit RAIJINTEK CO., Ltd. Store

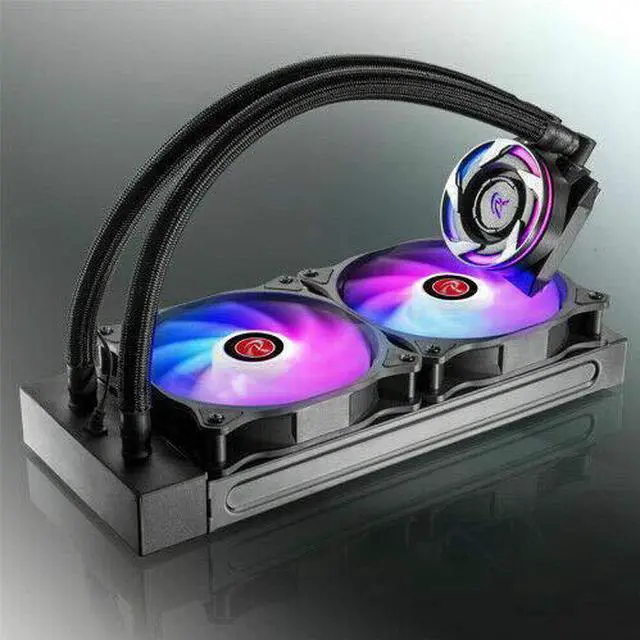

RAIJINTEK ORCUS 240 RBW, an AIO Water cooler for CPU, with 2pcs 12025 ARGB PWM Fans, Copper water block, Durable and reliable PUMP, Rotating Blade with ARGB LED, Compatible with Intel & AMD Socket CPU

(68)(3) Write a Review

All-In-One liquid CPU cooler with external PUMP
Copper Water block and Flow indicator with Addresable RGB light.
12025 Addressable RGB PWM fan
8port control hub and Remote controller
Multiple mounting kits for INTEL, AMD

Overview

Specs

Reviews (68)

Any questions? Our AI beta will help you find out quickly.

Try me now

ORCUS 240 RBW RAIJINTEK’s evolution All-In-One liquid cooling CPU cooler, designed in Germany and made in Taiwan. With several years of experience in liquid cooling products and cooperation with global engineers and manufactures, RAIJINTEK’s RD team developed the concepts of most performing AIO CPU liquid cooler and spent years to design one of most user friendly and spot light product for enthusiasts. ORCUS’s copper water block is a most advanced design of micro channels ( 0.1 mm), extra large contact fin area with multiple channels for the best direct flow of liquid. More than this, ORCUS’s Pump is placed externally which will not incur vibration and stress on M/B and CPU.

ORCUS external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type. Not only a new design pump and water block are used, ORCUS’s radiator is also using high density design fin radiator. ORCUS has led the trend to designing a “Rotating Blade” flow indicator with most popular Addressable RGB lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS is also designed to be refillable. Furthermore, ORCUS cooling fan system is with 12025 Addressable RGB PWM fans, 8port control Hub, and remote controller.

With switch function (M/B; Remote) of controller Hub, either you can connect control hub to M/B ADD header (thus, all cooling system Addresable RGB lighting including M/B Addressable RGB will be controlled synchronously by M/B), or you can switch to “remote” of control hub if no ADD header on M/B, then all Addressable RGB lighting will be controlled by Remote controller. ORCUS 240 RBW is not only one of the best performing All-In-One liquid cooling at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, providing extra 100ml coolant for your convenience for refill, which brought to you for the joy of friendly design and the surprisingly efficient performance.

- Best performing, most user friendly and most spot light catch, an AIO liquid cooling system at market. - All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade (Flow indicator) with Addressable RGB light. - New design and External Pump with high Q-max (84 L/H) and no vibration incurred on M/B and CPU. - Durable and reliable PUMP Bearing type - Ceramic axis. - Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid - Cooling fan system with 12025 Addressable RGB PWM fans, 8 port control hub and remote controller - 8port Control hub with switch of “M/B; Remote” to provide most usage of Addressable RGB lighting control.

- Rotating Blade design with Addressable RGB LED inside tank to show water flow and indicates the coolant level. - 2pcs performing 12025 PWM fans with Addressable RGB lighting. Specific 11 fan blade design and 8pcs Anti-vibration rubbers - Refillable and high capacity coolants pre-filled design. - 240mm high density fin radiator with 12 channels - Solid mounting kits to provide sturdy installation - Mesh tube with low evaporation rate - Multiple mo

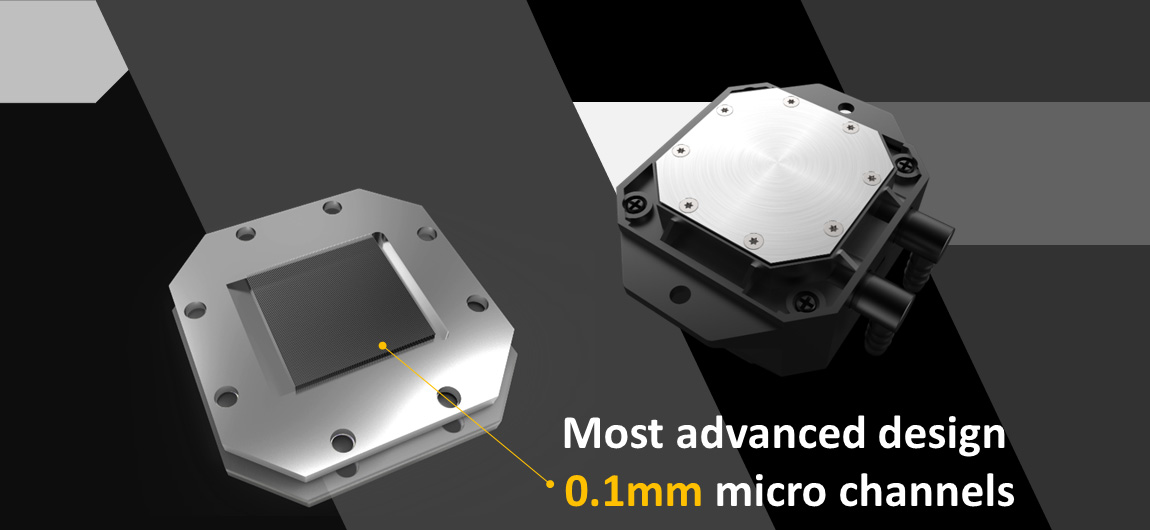

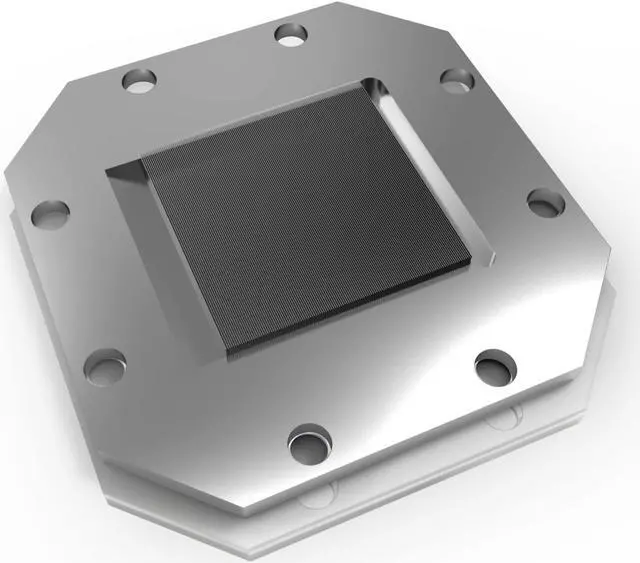

COPPER WATER BLOCK

ORCUS’s copper water block is the most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid.

Monitor your water flow & coolant level.

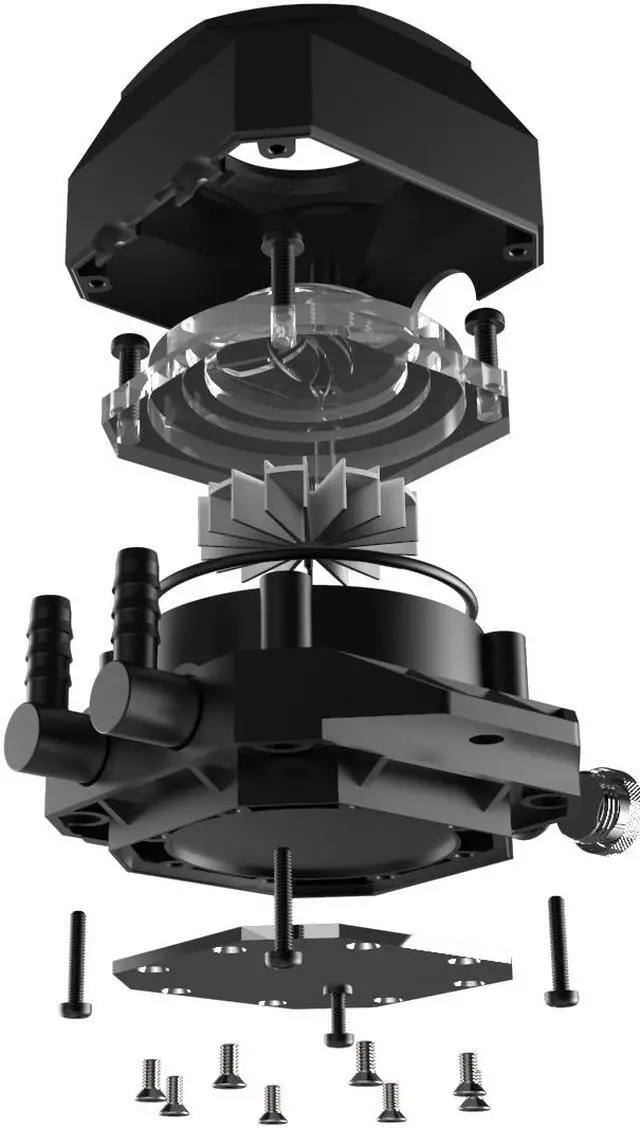

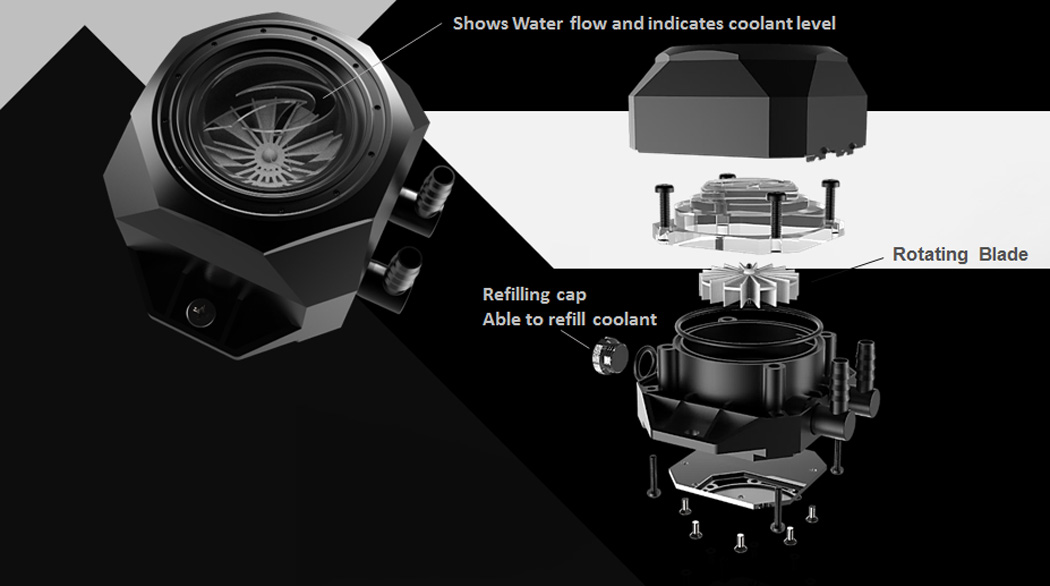

Addressable Block with Flow Blade

ORCUS has led the trend to designing a “Rotating Blade” with most popular Addressable LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS is also designed to be refillable.

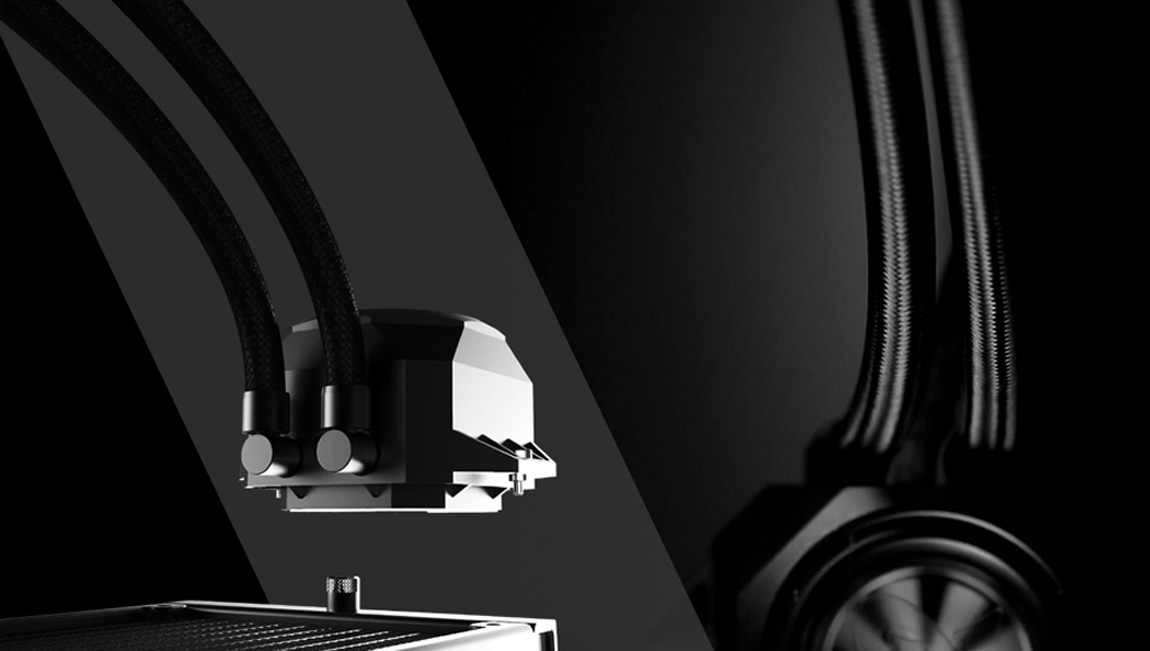

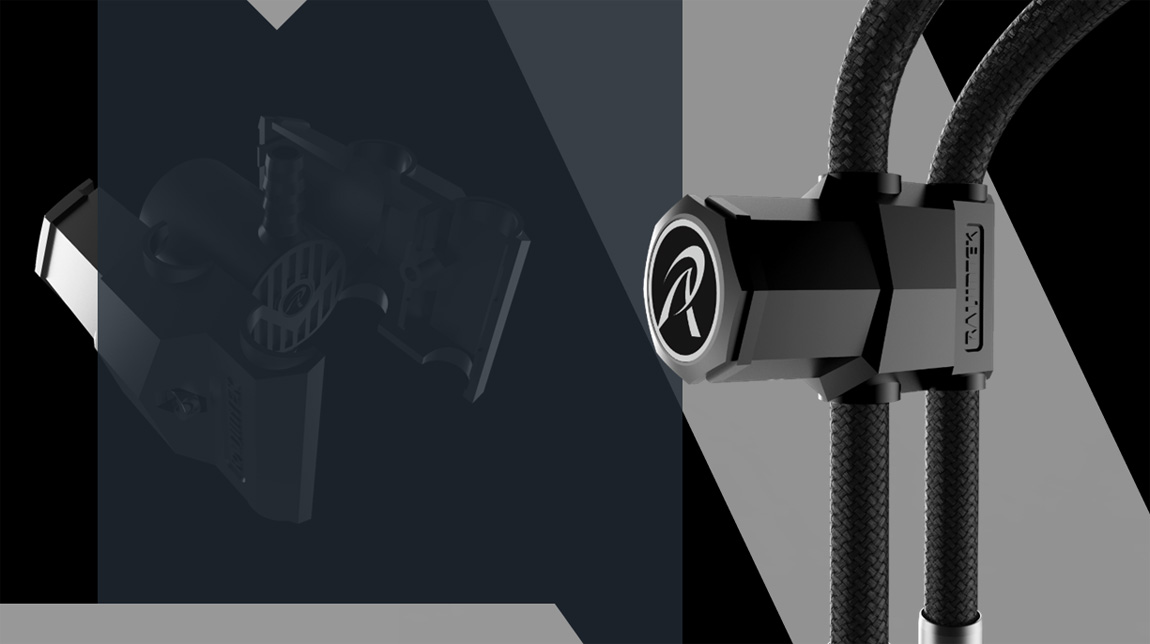

EXTERNAL PUMP

Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type.

Bearing Type : Graphite Pipe and Ceramic Axis
Pressure Head: 1.4 Meter
Noise Level: 25 dBA (Max.)
Life Expectancy: 50,000 hrs
High-Q-Max (84 L / H) high-flow design
Speed : 4500±10% R.P.M. @ 12VDC
Dimension [H×D]: W69.5 x D40 x H33mm
Rated current: 150mA
Voltage Rating: 12V
Power Consumption: 1.8W

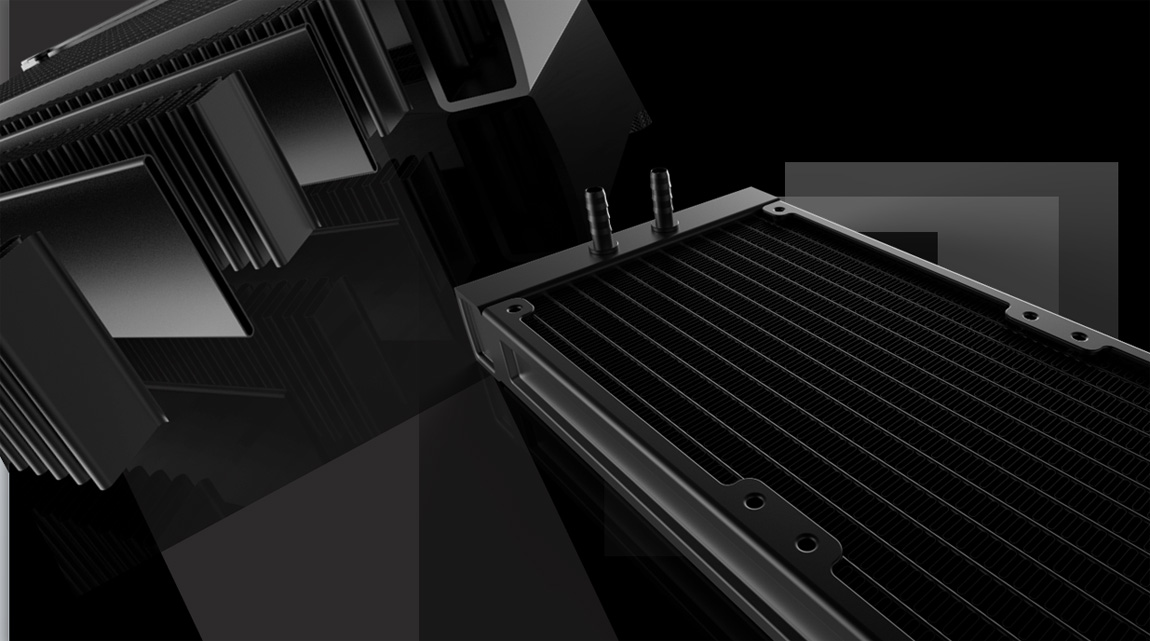

RADIATOR

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

12-channel 280mm high-density heat sink water tunnel and support up to 2 x 140mm fan, achieve high efficiency cooling, User can also add an extra two fans to use double row double effect and achieve the best cooling performance.

TEFLON MESH TUBE

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

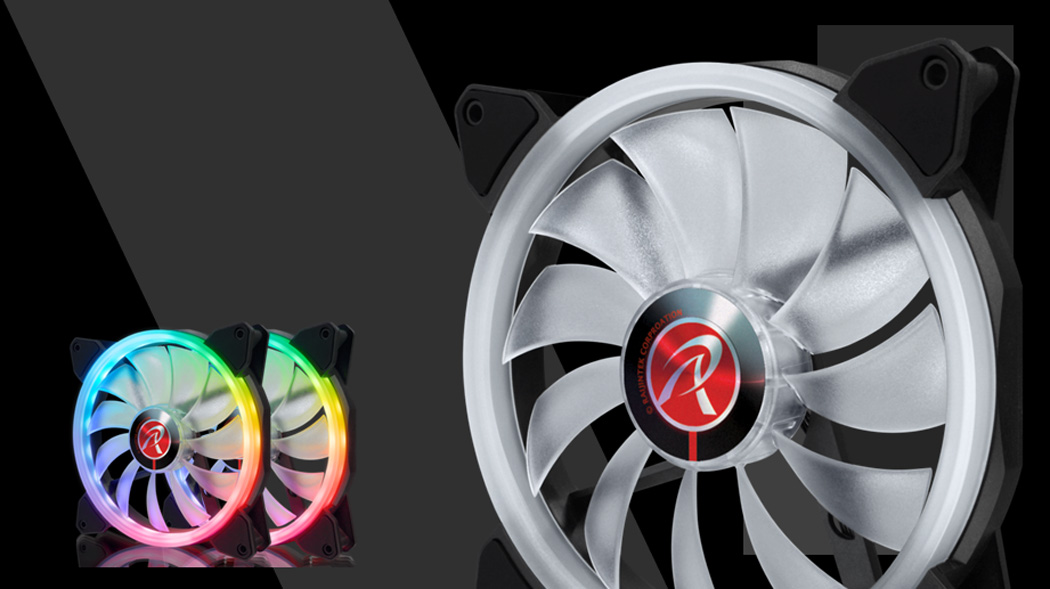

Addressable RGB PWM FAN

Perfect balance of airflow and air pressure to exhaust air through the fins, the fans uses an Specific 11 fan blade design and 8pcs Anti-vibration rubbers for silent operation and reduce noise.

*For more details, please refer to the manual or website

CONTROL BOX

8 Ports on control Hub: for Addressable header (+5V)

Addressable LED fans (+5V)
Black ADD header (+5V)
For devices with Addressable (ADD) 4pin header (+5V)

Switch: M/B & Remote
If M/B with RGB header(+5V), then switch to left: RGB function is controlled synchronously by M/B

If M/B w/o RGB header(+5V), then switch to right: RGB function is controlled by Remote controller

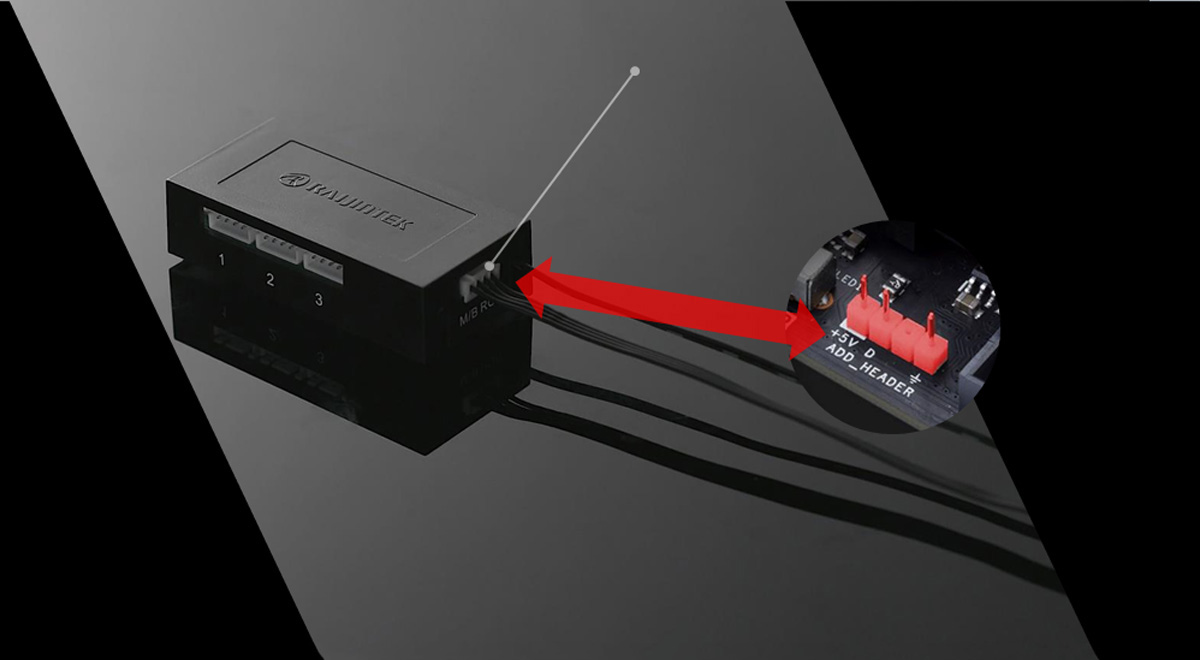

HUB FUNCTION

M/B Addressable ADD port (+5V) :

If M/B with ADD header (+5V)
Use connect cable to link “M/B RGB” port & “M/B ADD header” (+5V)
Addressable LED synchronously controlled by M/B

Connect cable Header
ADD Header (+5V) (2.5 Crimp)
Compatible with ASUS M/B ADD header

Noted:

All 4pin header spec: 2.5 Crimp ADD Header (+5V)
Addressable LED can not be controlled simultaneously by Remoter controller or M/B
Addressable LED controlled is either by M/B or Remote controller (by switch)

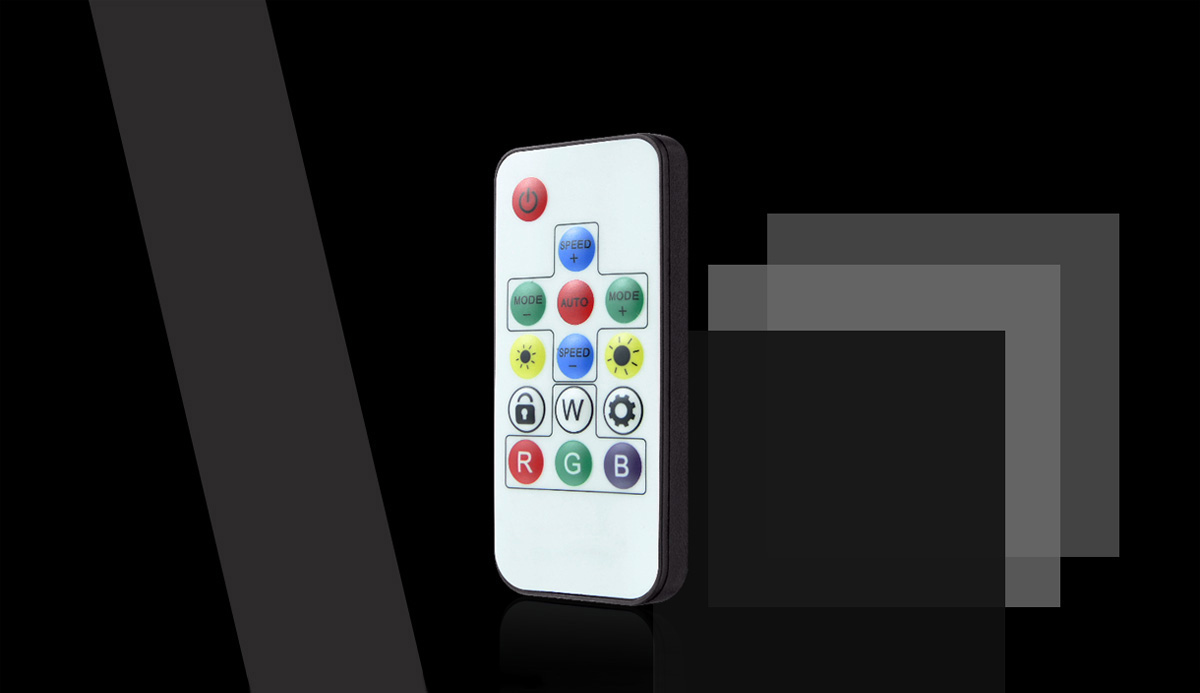

REMOTE CONTROLLER

Button function

On/off: Power on/off
SPEED (+): While Dynamic color mode, increase speed of color change; Not for Static mode
SPEED (-): While Dynamic color mode, decrease speed of color change; Not for Static mode
MODE (+): Forward to next mode
MODE (-): Backward to previous mode
AUTO: Automatically to mode 18
W: Single White LED
R: Single Red LED
G: Single Green LED
B: Single Blue LED

Modes introduction

Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
Mode 15: Dynamic 7 single colors switch by breathing effect
Mode 16: Dynamic 7 colors switch
Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
Mode 18: Dynamic 7 colors switch by low to high brightness effect
Mode 19: Light off

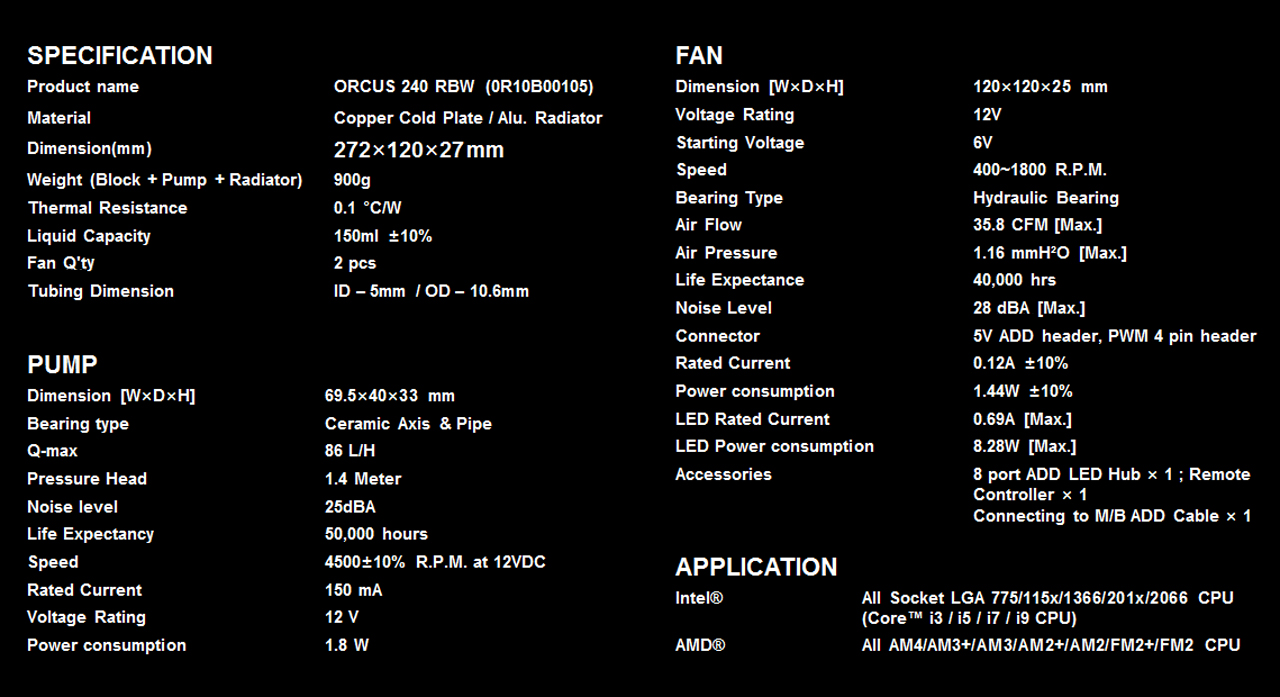

Model
Brand	RAIJINTEK
Series	ORCUS 240
Model	0R10B00105
Type	All-in-One CPU water cooler

Block
Block Compatibility	Intel LGA 2066 / 201x / 1366 / 1200 / 115x / 775 (Core i3 / i5 / i7 / i9 CPU) AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Block Dim.	54 x 54mm
Block Material	Copper

Pump
Pump Dim.	33.00 x 69.50 x 40.00 mm
Pump Bearing	Ceramic Axis
Pump Capacity	84 L/H
Pump Noise	25 dBA (Max.)

Radiator
Radiator Size	272.00 x 120.00 x 27.00 mm
Radiator Material	Aluminum

Fan
Fan Size	2 Fan Slots (120 mm)
Fan Dim.	120.00 x 120.00 x 25.00 mm
Bearing Type	Hydraulic Bearing
Fan RPM	800 - 1800 +/- 10% RPM
Fan Air Flow	35.8 CFM (Max.)
Fan Noise	28 dBA (Max.)
Fan Connector	4 Pin
Color	Black
LED Color	ARGB

Tube
Tube Dim.	ID - 5mm / OD - 10.6mm

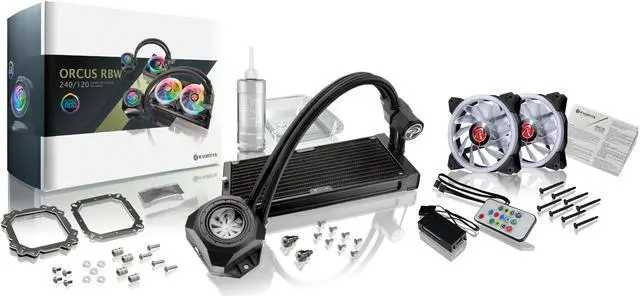

Package Contents
Package Contents	Accessories: 1 x ARGB-PWM control hub 1 x Remote Controller 1 x Connect cable
