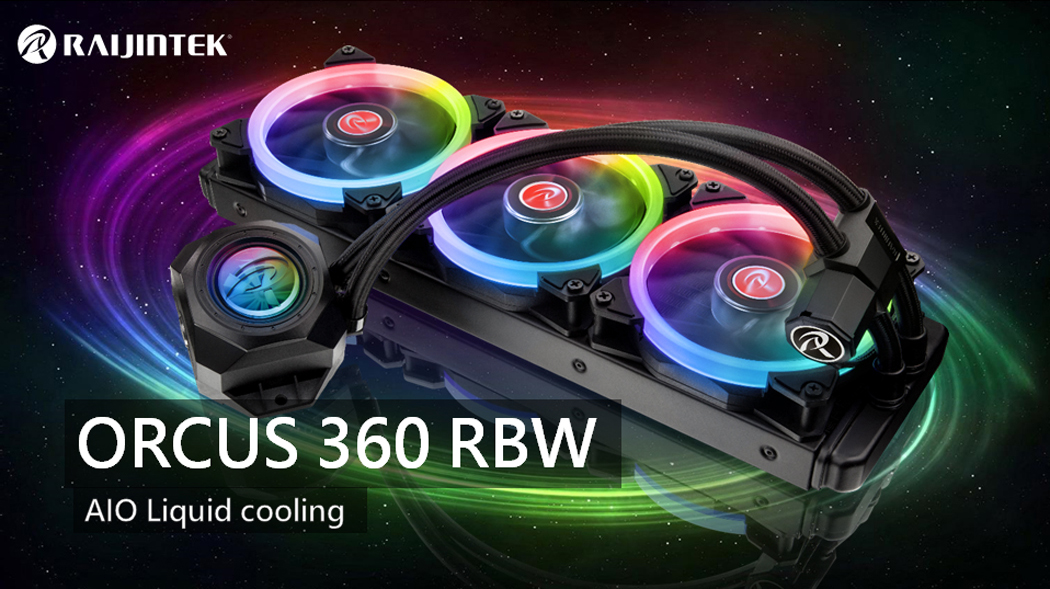

RAIJINTEK ORCUS 360 RBW, an AIO water cooling with 360mm radiator, 3pcs 12025 ARGB LED PWM fans, Addressable LED tank, 8port Control hub and Remote controller, compatible with most INTEL & AMD sockets

Ships from United States.

Sold by RAIJINTEK CO., Ltd. a-seller and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller

International SellerFirst

First from ASIA brings the most desired and unique products from Asia to you. All First from ASIA products meet US product regulations. You can expect the same Newegg service but difference in shipping lead-time may apply.
First From ASIA
  • All-In-One liquid CPU cooler with external PUMP
  • Copper Water block and Rotating Blade with Addressable LED
  • 12025 Addressable LED PWM fans, 8port hub and Remote controller
  • Mounting kits for INTEL, AMD

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
RAIJINTEK
RAIJINTEK

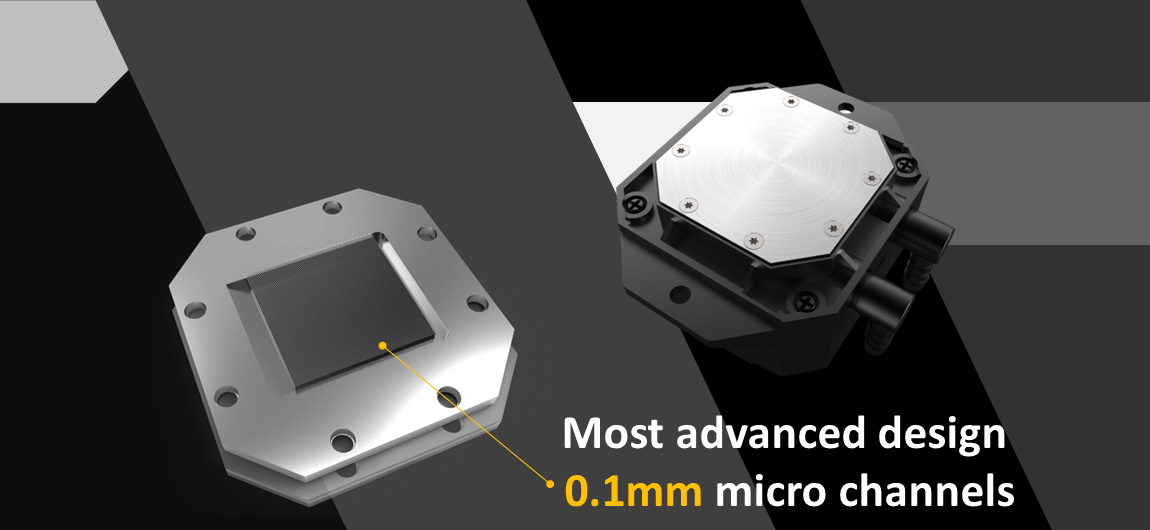

COPPER WATER BLOCK

ORCUS’s copper water block is the most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid.

RAIJINTEK

Monitor your water flow & coolant level.

Addressable Block with Flow Blade

ORCUS has led the trend to designing a “Rotating Blade” with most popular Addressable LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS is also designed to be refillable.

RAIJINTEK

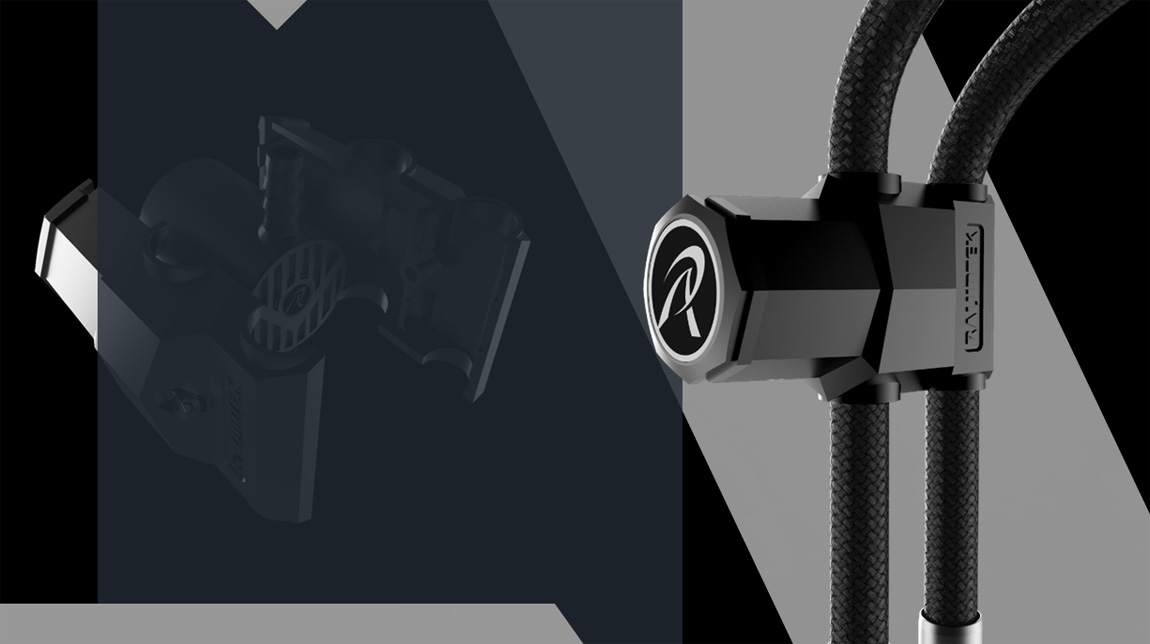

EXTERNAL PUMP

Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type.

  • Bearing Type : Graphite Pipe and Ceramic Axis
  • Pressure Head: 1.4 Meter
  • Noise Level: 25 dBA (Max.)
  • Life Expectancy: 50,000 hrs
  • High-Q-Max (84 L / H) high-flow design
  • Speed : 4500±10% R.P.M. @ 12VDC
  • Dimension [H×D]: W69.5 x D40 x H33mm
  • Rated current: 150mA
  • Voltage Rating: 12V
  • Power Consumption: 1.8W
RAIJINTEK

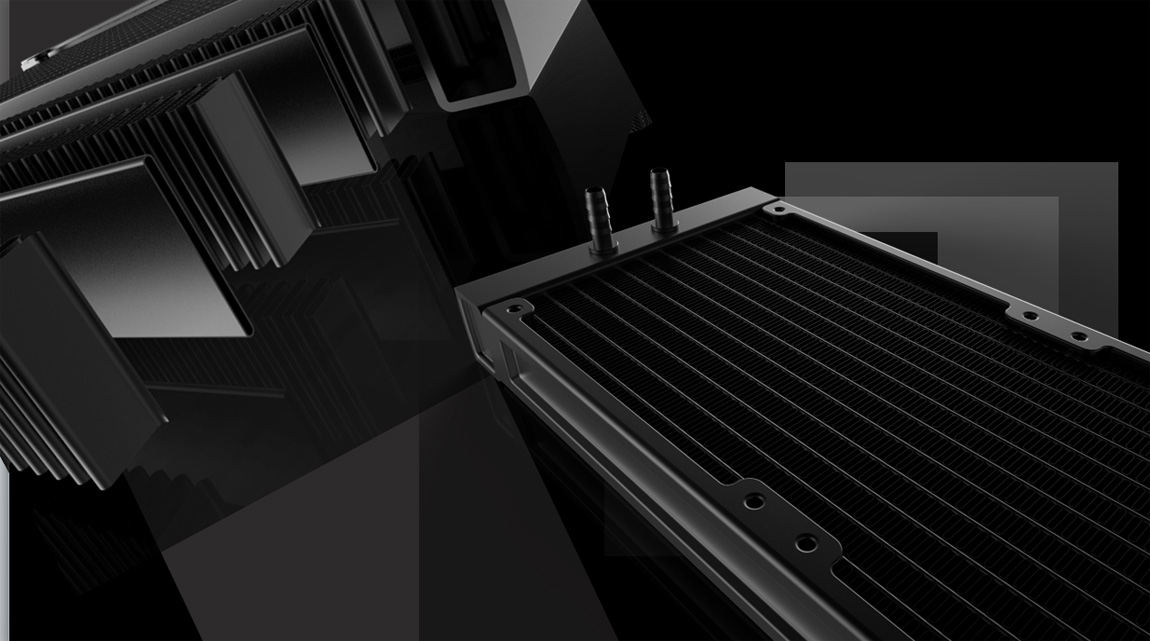

RADIATOR

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

12-channel 360mm high-density heat sink water tunnel and support up to 3 x 120mm fan, achieve high efficiency cooling, User can also add an extra two fans to use double row double effect and achieve the best cooling performance.

RAIJINTEK

TEFLON MESH TUBE

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

RAIJINTEK

Addressable LED PWM FAN

Perfect balance of airflow and air pressure to exhaust air through the fins, the fans uses an Specific 11 fan blade design and 8pcs Anti-vibration rubbers for silent operation and reduce noise.

RAIJINTEK

*For more details, please refer to the manual or website

CONTROL BOX

8 Ports on control Hub: for Addressable header (+5V)

  • Addressable LED fans (+5V)
  • Black ADD header (+5V)
  • For devices with Addressable (ADD) 4pin header (+5V)

Switch: M/B & Remote
If M/B with RGB header(+5V), then switch to left: RGB function is controlled synchronously by M/B

If M/B w/o RGB header(+5V), then switch to right: RGB function is controlled by Remote controller

RAIJINTEK

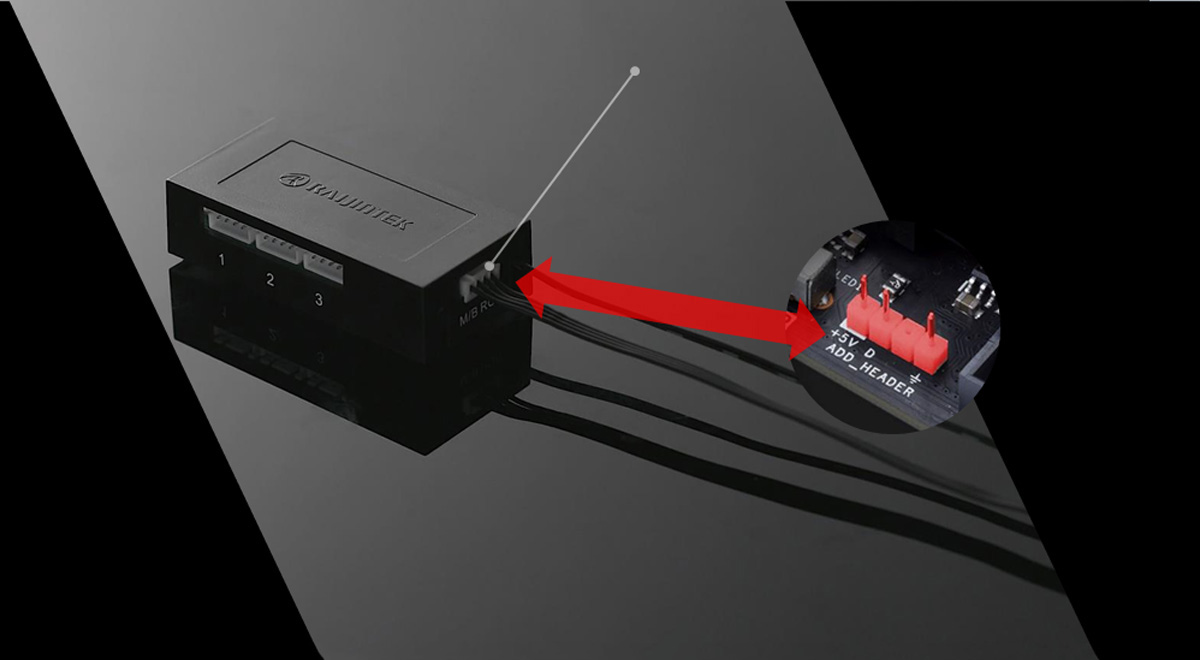

HUB FUNCTION

M/B Addressable ADD port (+5V) :

  • If M/B with ADD header (+5V)
  • Use connect cable to link “M/B RGB” port & “M/B ADD header” (+5V)
  • Addressable LED synchronously controlled by M/B

Connect cable Header
ADD Header (+5V) (2.5 Crimp)
Compatible with ASUS M/B ADD header

Noted:

  • All 4pin header spec: 2.5 Crimp ADD Header (+5V)
  • Addressable LED can not be controlled simultaneously by Remoter controller or M/B
  • Addressable LED controlled is either by M/B or Remote controller (by switch)
RAIJINTEK

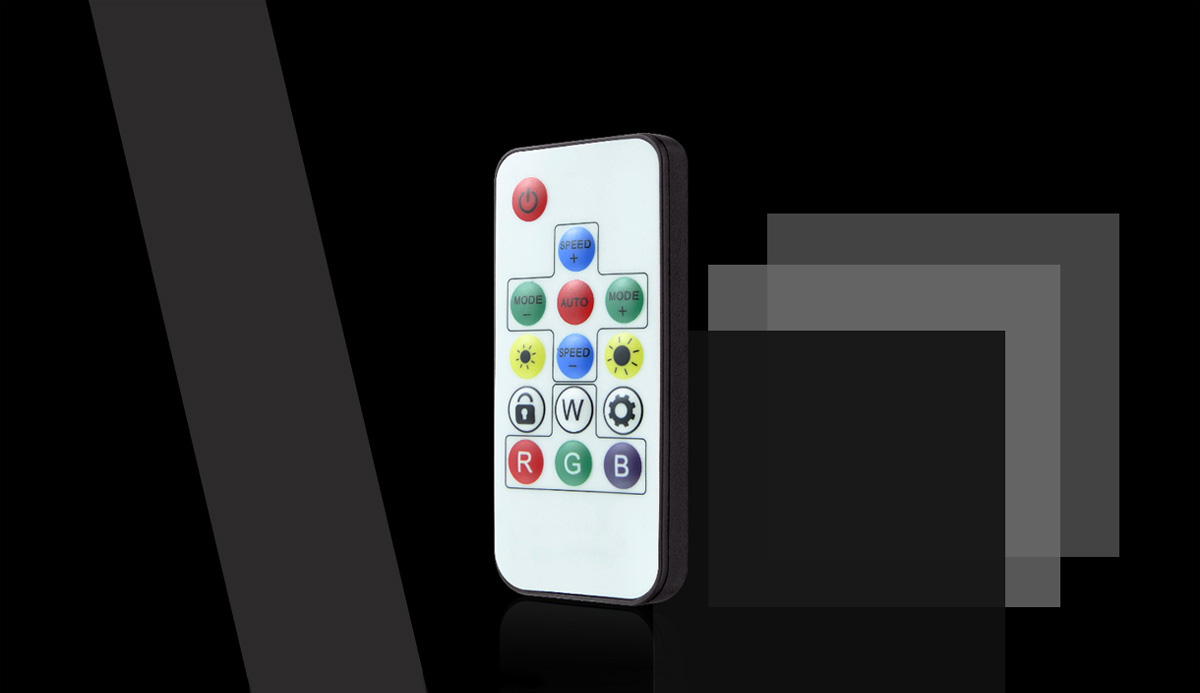

REMOTE CONTROLLER

Button function

  • On/off: Power on/off
  • SPEED (+): While Dynamic color mode, increase speed of color change; Not for Static mode
  • SPEED (-): While Dynamic color mode, decrease speed of color change; Not for Static mode
  • MODE (+): Forward to next mode
  • MODE (-): Backward to previous mode
  • AUTO: Automatically to mode 18
  • W: Single White LED
  • R: Single Red LED
  • G: Single Green LED
  • B: Single Blue LED

Modes introduction

  • Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
  • Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
  • Mode 15: Dynamic 7 single colors switch by breathing effect
  • Mode 16: Dynamic 7 colors switch
  • Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
  • Mode 18: Dynamic 7 colors switch by low to high brightness effect
  • Mode 19: Light off
RAIJINTEK
  • Best performing, most user friendly and most spot light catch, an AIO liquid cooling system at market.
  • All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade with RGB light.
  • New design and External Pump with high Q-max (84 L/H) and no vibration incurred on M/B and CPU.
  • Durable and reliable PUMP Bearing type - Ceramic axis.
  • Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid
  • Cooling fan system with 12025 Addressable LED PWM fans, 8 port control hub and remote controller
  • 8port Control hub with switch of “M/B ; Remote” to provide most usage of Addressable LED lighting control.
  • Rotating Blade design with Addressable LED inside tank to show water flow and indicates the coolant level.
  • 3pcs performing 12025 PWM fans with Addressable LED lighting.
  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers
  • Refillable and high capacity coolants pre-filled design.
  • 360mm high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy installation
  • Mesh tube with low evaporation rate
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU

APPLICATION

  • All Intel® Socket LGA 2066/201x/115x/1366/775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
  • All AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU

Learn more about the RAIJINTEK CO., LTD 0R10B00103

Warranty, Returns, And Additional Information
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Overall Good AIO 12/22/2019 7:52:27 PM

Pros: -Looks great
-Flow meter is nice to have
-Mounting CPU block was quick and easy
-Fans are pretty good quality
-Keeps my 9600k @ 5ghz relatively cool, max temp was 71 during stress tests
-Remote makes controlling RGB and fan speed easy

Cons: -RGB hub was meh, I was unable to control using my motherboard header
-Pump is mounted on the tubing, could cause trouble mounting.

Overall Review: Was looking for a good RGB AIO that wasn't ridiculously overpriced and stumbled upon this Raijintek. Read multiple reviews for this one and decided to pull the trigger. I have been satisfied so far, no major complaints. Overall I would definitely recommend.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
3/ 5
it is an amazing cooler 3/21/2019 5:17:20 AM

Pros: keeps my 9900 very cool.

Cons: the rgb was faulty. the CPU cooler was stuck on a pinkish color for 2 days then just stopped working. I made sure that all the rgb was on the 5v addressable header because i know of people setting it on the 12v and blowing them. The rgb controller was complete garbage. Smoke came from it after I plugged it into the molex connector with a burnt plastic smell.

Overall Review: If you're looking for a cooler that performs with a visual clue the pump is circulating then get this. Dont get this for the rgb I was very disappointed. I ended up voiding my warranty because I spliced the fan rgb lines (because controller almost caught fire). Was not going to wait for an rma. After the splice and making sure to put on a 5v addressable header the fans (not the cooler) do look amazing.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Very nice looking, well made cooler with pretty good performance 2/4/2019 2:34:14 PM

Pros: I mounted this in the top of my Lian Li Dynamic PC-011 case. No issues whatsoever with the fit. This is the only RGB I have in this very windowed case and this cooler provides a very nice ambient glow to the motherboard. It's not so bright that the black metal of the case really shows so it makes the motherboard stand out in a subtle and pleasing way. The included RGB controller has plenty of functions and a handy remote.

Performance seems good. This cooler exhausting on the top and my blower video card are the only fans I have in the Lian Li Dynamic. The cooler basically gets me to silicon limits of my Xeon e5-1650 v2 (basically a 4930k) which is 4.3GHz. At that clock and a voltage of 1.28V, I get 74C max core temp when running Prime95. I started Prime95 while writing this review and the hottest core is 74, coolest is 63. Gaming is usually in the 50s or 60s. Idle is around 30C.

Cons: Occasionally the pump has made some noise, oscillating on and off a couple times a second. Like a subtle wah-wah-wah. It is usually silent but this sound is loud enough to be annoying when it happens. Also the little windmill in the middle that serves as a flow meter will stop spinning sometimes. Doing a heavy CPU load will get it started again so far. The cons haven't bothered me much so far. I took off a star because it isn't perfect but really I would give 4.5 if I could.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
3/ 5
Great Fan for a great Price ! 11/4/2018 7:14:19 PM

Pros: Looks great and runs really well with my Newly built PC. I built 2 other computers using Raijinteks Cooling systems. And had no issues with them until now.

Cons: The liquid lines need to be a longer for the Thermaltake Core P5, so it can reach from the radiator to the CPU with ease. Its a tight fit for sure. Also, test it before you install, perhaps if I did from the start I would have noticed my LED on the CPU isn't functioning. Going to see if I can replace it ASAP. Maybe the Raijintek can do further tests before they leave for shipping ?

Overall Review: My thoughts are as followed, make sure to test anything before installing, if you can do it before installing, then perhaps you'd save sometime for a return/replacement. I just love RGB !! i7-8086 8th gen w/ Asus Black Ops Edition Motherboard G.skill TridentZ 3200(32)GBs Ram, Thermaltake 850 Power supply, Nvidia RTX 2080 Ti Founders Edition. Vertex Dual raid 120 Gigs SSD's. Raijintek Orcus 360 RBW. Maybe Raijintek can test their products before shipping them out ?

6 out of 6 people found this review helpful. Did you?
