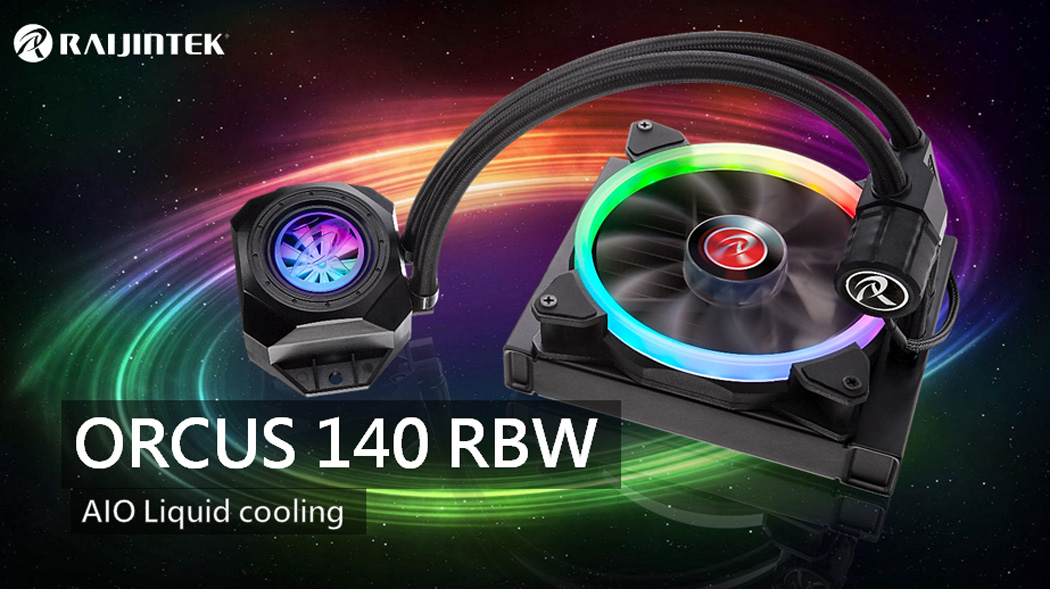

RAIJINTEK ORCUS 140 RBW AIO water cooling, with Addressable LED fans, Addressable LED tank, 8port Control hub and Remote controller

Ships from United States.

Sold by RAIJINTEK CO., Ltd. a-seller and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller

International SellerFirst

First from ASIA brings the most desired and unique products from Asia to you. All First from ASIA products meet US product regulations. You can expect the same Newegg service but difference in shipping lead-time may apply.
First From ASIA
  • AIO liquid CPU cooler with external PUMP
  • Copper Water block and Rotating Blade with addressable LED
  • 14025 Addressable LED PWM fan, Control hub, Remote controller
  • Multiple mounting kits for INTEL, AMD

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
RAIJINTEK
RAIJINTEK

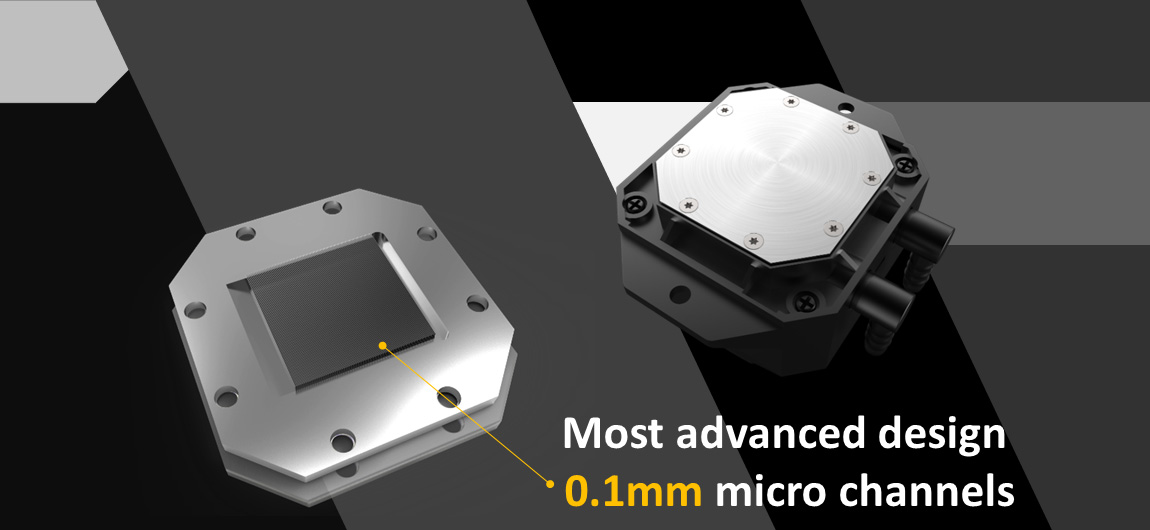

COPPER WATER BLOCK

ORCUS’s copper water block is the most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid.

RAIJINTEK

Monitor your water flow & coolant level.

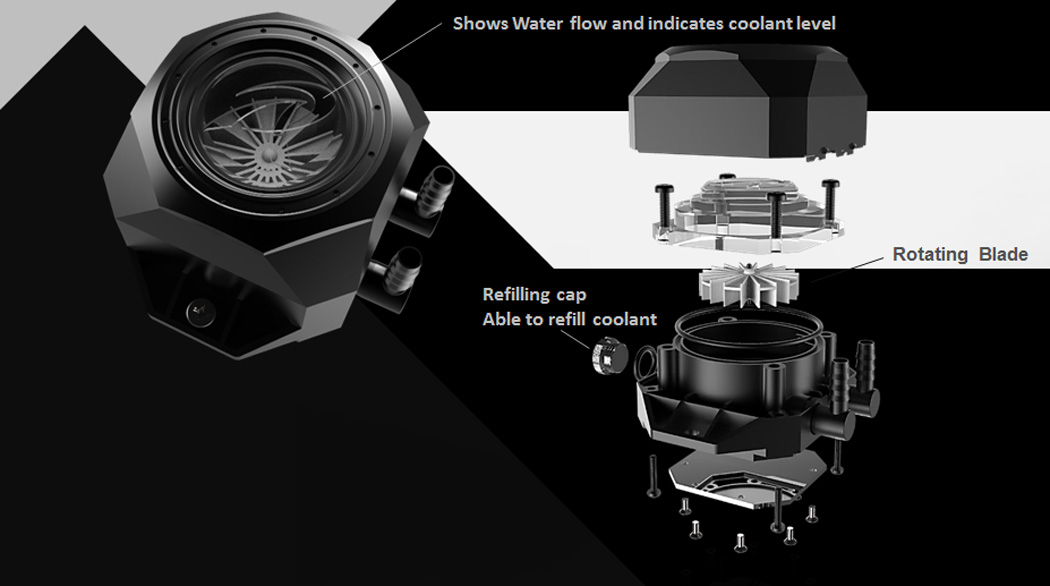

Addressable Block with Flow Blade

ORCUS has led the trend to designing a “Rotating Blade” with most popular Addressable LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS is also designed to be refillable.

RAIJINTEK

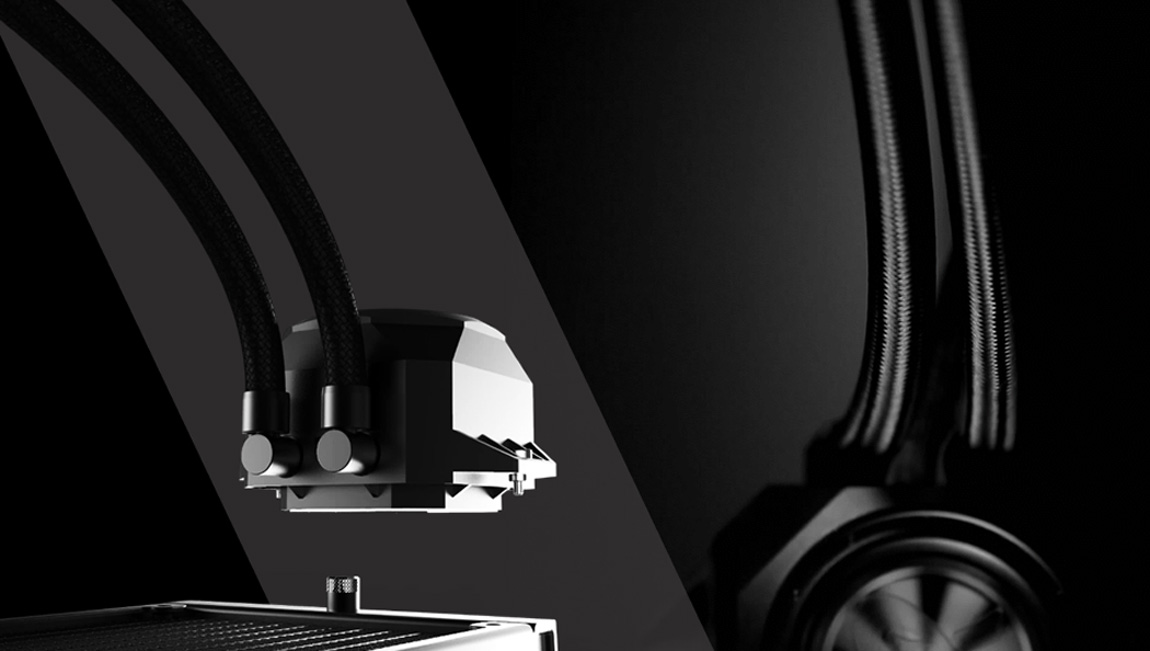

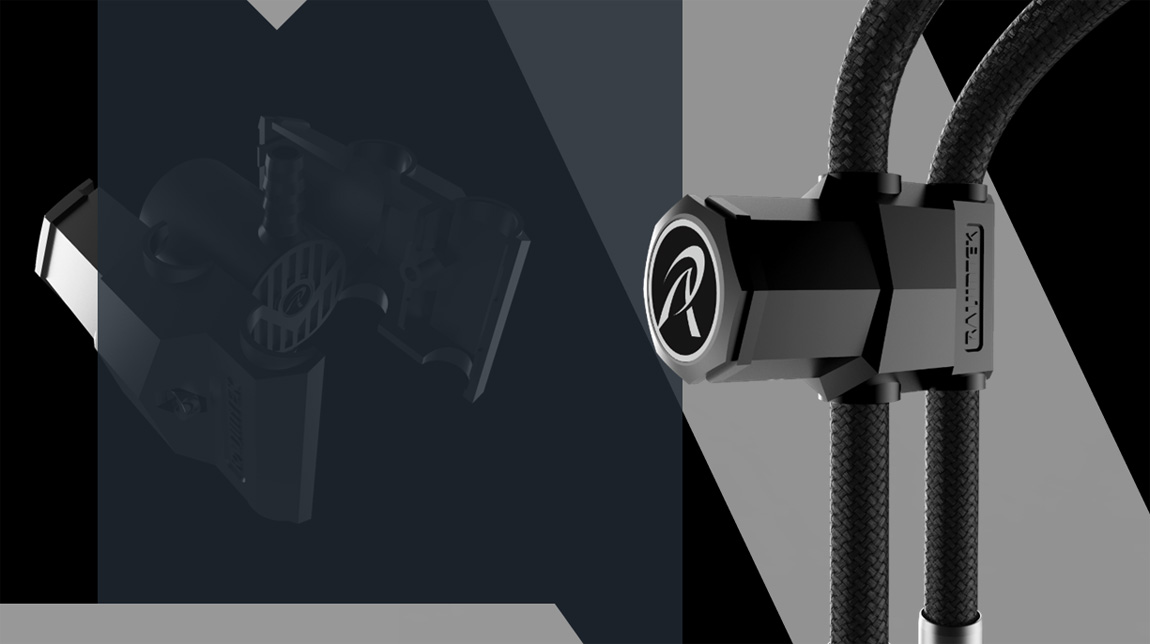

EXTERNAL PUMP

Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type.

  • Bearing Type : Graphite Pipe and Ceramic Axis
  • Pressure Head: 1.4 Meter
  • Noise Level: 25 dBA (Max.)
  • Life Expectancy: 50,000 hrs
  • High-Q-Max (84 L / H) high-flow design
  • Speed : 4500±10% R.P.M. @ 12VDC
  • Dimension [H×D]: W69.5 x D40 x H33mm
  • Rated current: 150mA
  • Voltage Rating: 12V
  • Power Consumption: 1.8W
RAIJINTEK

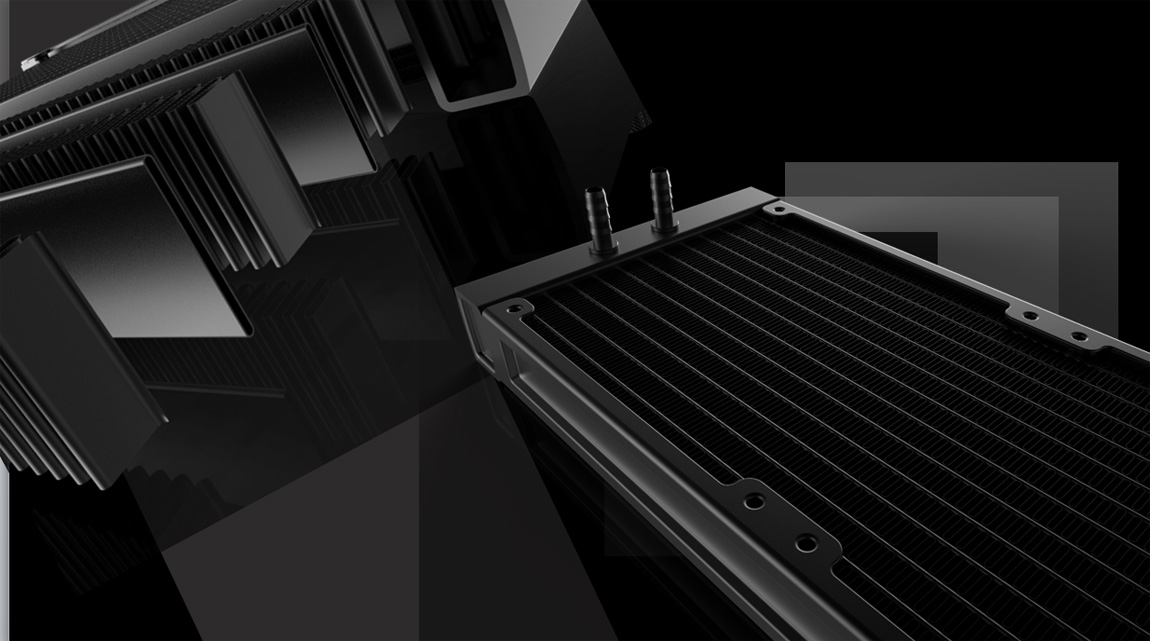

RADIATOR

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

12-channel 360mm high-density heat sink water tunnel and support up to 3 x 120mm fan, achieve high efficiency cooling, User can also add an extra two fans to use double row double effect and achieve the best cooling performance.

RAIJINTEK

TEFLON MESH TUBE

Reinforced Teflon water cooling pipe reducing the evaporation rate of water-cooled liquid.

RAIJINTEK

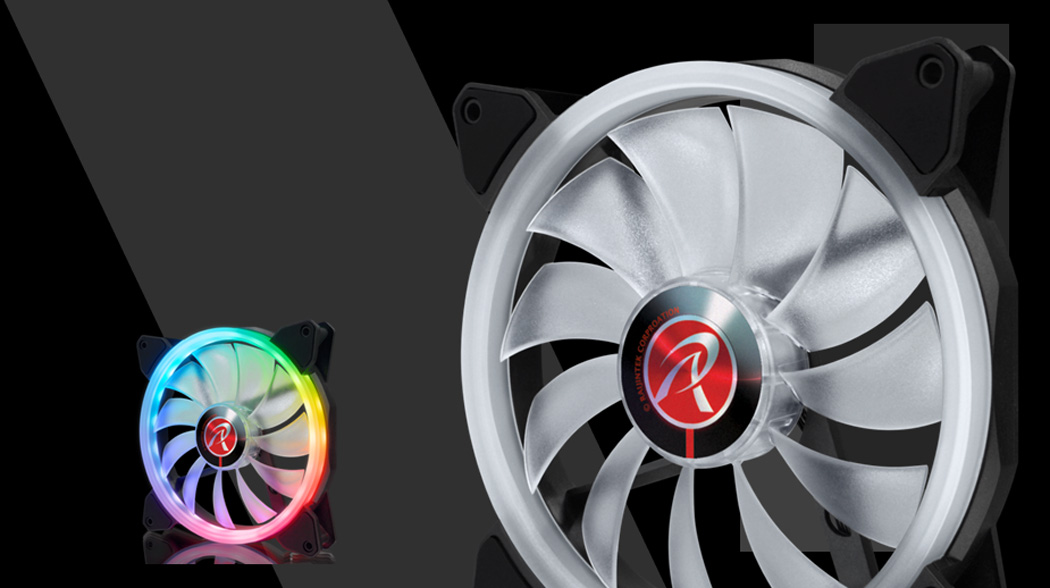

Addressable LED PWM FAN

Perfect balance of airflow and air pressure to exhaust air through the fins, the fans uses an Specific 11 fan blade design and 8pcs Anti-vibration rubbers for silent operation and reduce noise.

RAIJINTEK

*For more details, please refer to the manual or website

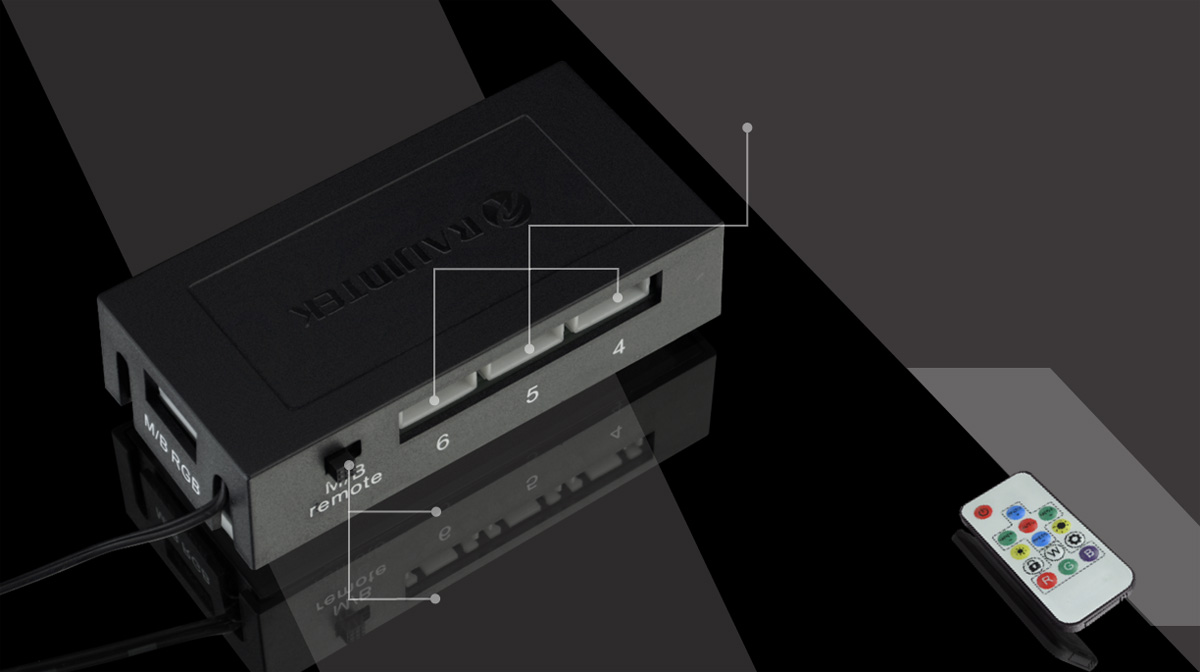

CONTROL BOX

8 Ports on control Hub: for Addressable header (+5V)

  • Addressable LED fans (+5V)
  • Black ADD header (+5V)
  • For devices with Addressable (ADD) 4pin header (+5V)

Switch: M/B & Remote
If M/B with RGB header(+5V), then switch to left: RGB function is controlled synchronously by M/B

If M/B w/o RGB header(+5V), then switch to right: RGB function is controlled by Remote controller

RAIJINTEK

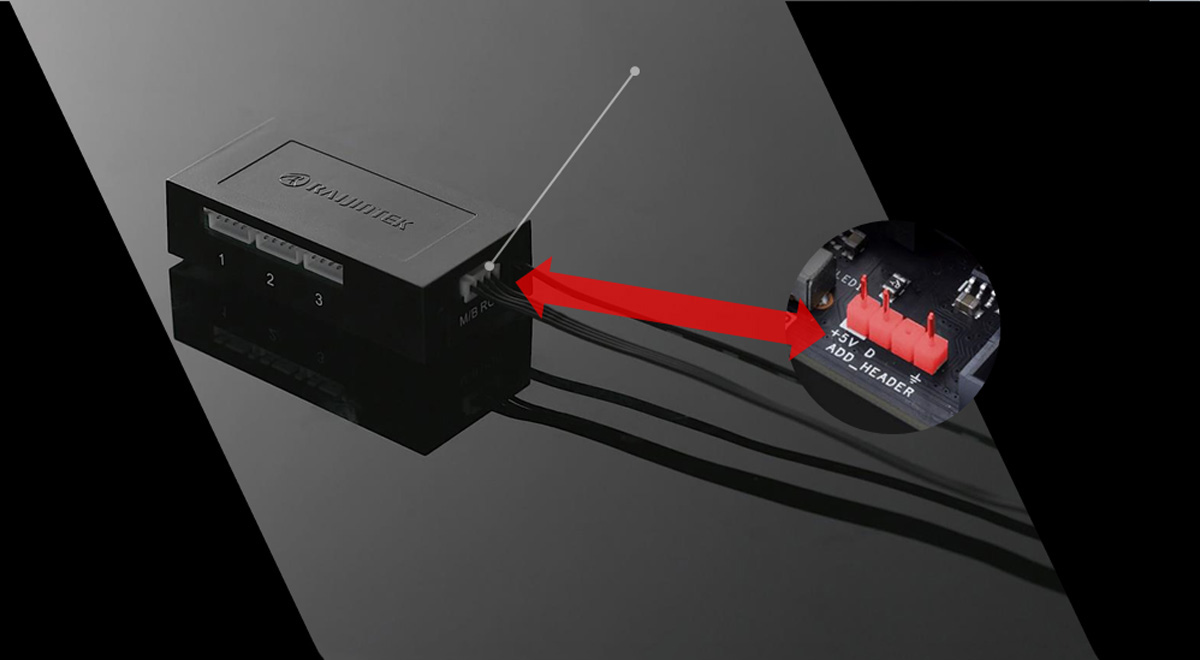

HUB FUNCTION

M/B Addressable ADD port (+5V) :

  • If M/B with ADD header (+5V)
  • Use connect cable to link “M/B RGB” port & “M/B ADD header” (+5V)
  • Addressable LED synchronously controlled by M/B

Connect cable Header
ADD Header (+5V) (2.5 Crimp)
Compatible with ASUS M/B ADD header

Noted:

  • All 4pin header spec: 2.5 Crimp ADD Header (+5V)
  • Addressable LED can not be controlled simultaneously by Remoter controller or M/B
  • Addressable LED controlled is either by M/B or Remote controller (by switch)
RAIJINTEK

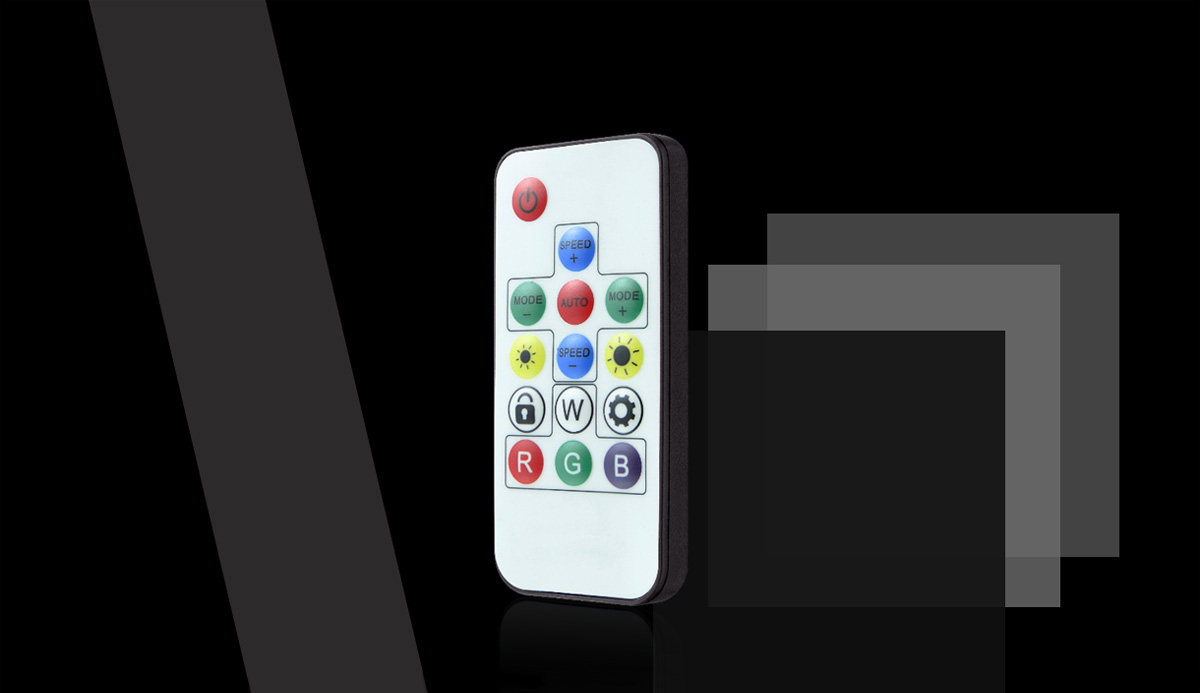

REMOTE CONTROLLER

Button function

  • On/off: Power on/off
  • SPEED (+): While Dynamic color mode, increase speed of color change; Not for Static mode
  • SPEED (-): While Dynamic color mode, decrease speed of color change; Not for Static mode
  • MODE (+): Forward to next mode
  • MODE (-): Backward to previous mode
  • AUTO: Automatically to mode 18
  • W: Single White LED
  • R: Single Red LED
  • G: Single Green LED
  • B: Single Blue LED

Modes introduction

  • Mode 1-7: Static single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
  • Mode 8-14: Breathing single LED color, Red/Green/Blue/Yellow/Purple/Bluegreen/White
  • Mode 15: Dynamic 7 single colors switch by breathing effect
  • Mode 16: Dynamic 7 colors switch
  • Mode 17: Dynamic 7 colors switch at 1 second gap by shinning effect
  • Mode 18: Dynamic 7 colors switch by low to high brightness effect
  • Mode 19: Light off
RAIJINTEK
  • Best performing, most user friendly and most spot light catch, an AIO liquid cooling system at market.
  • All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade with Addressable LED.
  • New design and External Pump with high Q-max (84 L/H) and no vibration incurred on M/B and CPU.
  • Durable and reliable PUMP Bearing type - Ceramic axis.
  • Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid
  • Cooling fan system with 14025 Addressable LED PWM fan, 8 port control hub and remote controller
  • 8 port Control hub with switch of “M/B ; Remote” to provide most usage of Addressable LED control.
  • Rotating Blade design with Addressable LED inside tank to show water flow and indicates the coolant level.
  • 1pcs performing 14025 PWM fans with Addressable LED.
  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers
  • Refillable and high capacity coolants pre-filled design.
  • 140mm high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy installation
  • Mesh tube with low evaporation rate
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU

APPLICATION
  • All Intel® Socket LGA 2066/201x/115x/1366/775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
  • All AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU
