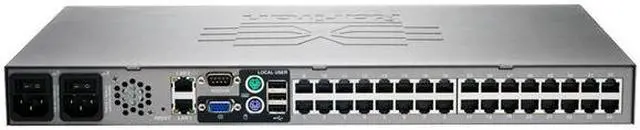

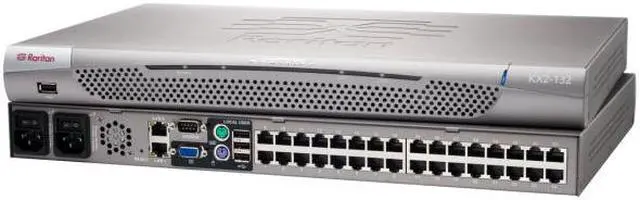

Raritan Dominion KX II-132 KVM-Over-IP Switch

Be the first to review this product...

32 Ports Computer Connections
1 Port Monitor Connections
Video Resolution 1600 x 1200

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The Dominion DKX2-132 32-Ports KVM Switch is an enterprise-class, secure, KVM-over-IP switch that provides remote BIOS-level control of up to 32 servers. It raises the bar in KVM-over-IP technology with standard features such as Virtual Media and dual power available that maximize performance, security, reliability and versatility.

Model
Brand	Raritan
Model	Dominion KX II-132

Details
Type	DVI, PS/2, USB
Console Connectors	Video: HD15(F) VGA Keyboard/Mouse: Mini-DIN6 (F) PS/2 and USB (F), 1 USB front, 3 USB rear
Computer Connections	32 Ports
Monitor Connections	1 Port
Video Resolution	1600 x 1200

Environmental
Temperature	Operating: 32° (0°C) to 104° (40°C)

Features
Features	32 Server Ports, 1 Remote User, 1 Local Port for Rack Use 1U, full width, rack mountable (brackets included) Dual Failover 10/100/1000 gigabit Ethernet (RJ45) The KX2-132 offers the industry's highest video resolution — 1600 x 1200. Allows remote installation of software, file transferring and data back up with Universal Virtual Media. And 128-bit SSL AES or RC4 encryption. Offers the tightest mouse in the industry, reducing installation time with Absolute Mouse Synchronization. Controls power to servers with optional remote power unit. Comes standard with dual power and dual gigabit Ethernet with automatic failover. The Dominion KX II provides dual stack IP networking with simultaneous support of IPv4 and IPv6. Features Virtual KVM Desktop, a common browser-based user interface that supports the industry's widest range of operating systems and browsers. Plus, it includes the industry's first and only browser-based local access. The Dominion KX II solution consists of the KVM-over-IP switch and Computer Interface Modules: CIMs connect to the server's KVM ports and can be located up to 150 feet away from the switch using UTP (Cat5/5e/6) cabling. CIMs also provide keep-alive keyboard/mouse emulation. Access from Windows, Linux, Sun or Mac desktops via a wide range of Web browsers or standalone client. Raritan's remote client software is automatically downloaded via Web browser; standalone multi-platform client available for emergency modem access. Provides its entire feature set out of the box: Virtual Media, 128-bit AES or RC4 encryption, dual power supplies and dual gigabit Ethernet ports with failover, SNMP, Syslog, as well as integration with LDAP, Radius and Active Directory authentication.

Dimensions & Weight
Dimensions	17.3" (W) x 11.4" (D) x 1.75 " (H)
Weight	9.0 lbs. / (4.1 kg)

Additional Information
First Listed on Newegg	December 30, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
