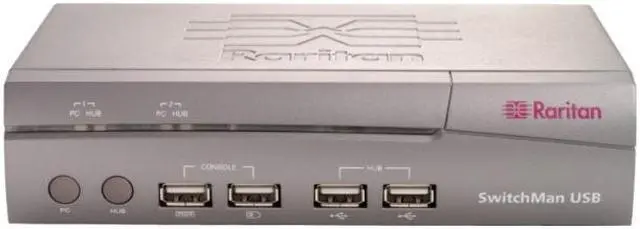

Raritan SW4-USB SwitchMan USB 4-Port KVM Switch

Name: Raritan SW4-USB SwitchMan USB 4-Port KVM Switch
Brand: Raritan
SKU: N82E16817724067
Rating: 3 (2 reviews)

(2) Write a Review

4 Ports Computer Connections
1 Port Monitor Connections
Video Resolution 1920 x 1440

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Raritan's SwitchMan USB allows control of up to 4 USB computers from a single USB keyboard, video and mouse (KVM) console. SwitchMans built-in USB hub allows multiple computers to share USB supported devices such as scanners, digital cameras, printers, CD ROMs and PDAs. Its audio capability lets you share a single microphone and stereo speakers regardless of which computer you connect to.

SwitchMans small footprint saves valuable desk space and color-coded connectors and premium cables make installation easy. There is no complicated setup or software to load, just plug in a standard USB keyboard, USB mouse and VGA monitor and you are up and running. SwitchMan USB supports both PCs and/or Apple Macs, with connectivity via Raritan's premium KVM cables for the highest video and audio quality.

SwitchMan USB is available in 2 and 4 port models and can be mounted horizontally or vertically on your desktop. SwitchMan USB has the same bulletproof reliability as the Raritan enterprise-class products used in over 50,000 data centers worldwide.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Type	D-Sub
PC Connectors	4 x 4-pin Type B USB 4 x 15-pin HD-15 Female Video 4 x mini phone Line-out 4 x mini phone Line-in
Console Connectors	1 x 4-pin USB Type A Keyboard 1 x 4-pin USB Type A Mouse 1 x 15-pin D-Sub (HD-15) Female VGA/SVGA 1 x 3.5mm Line-out 1 x 3.5mm Line-in
Computer Connections	4 Ports
Monitor Connections	1 Port
Video Resolution	1920 x 1440
Monitors Supported	VGA, SVGA and Multi-Sync

Temperature	Operating: 0 to 40 Degrees C (32 to 104 Degrees F) Storage: -20 to 60 Degrees C (-4 to 140 Degrees F)
Humidity	0% to 80%,Non-Condensing

USB Features	with USB support
Features	Easy switching between computers with a push button or hot keys. Hot Swap feature allows adding or changing devices without the need to power down your PC. Built-in microphone and speaker jacks for high quality multi-media. Hot key and auto-scan enables health monitoring of connected computers. LED displays for easy status monitoring. Connects to standard PS/2ports with any PS/2 to USB adapter (not included). Works with Windows 98/2000/ME/XP and Mac. Works with USB supported peripheral devices and keyboard/mouse with USB connectors. Supports VGA, SVGA and Multisync monitors with resolution up to 1920 x 1440 @ 75Hz Supports Microsoft IntelliMouse3 ~ 5 Key Mouse and Microsoft Naturalkeyboard pro-series Can draw electric power from connected PCs or via external power supply (included).

Dimensions	9.25" (W) x 5.54" (D) x 1.73" (H)
Weight	2.33 lbs. / 1.05 kg
