FAQs
Q: The ports on the switch is 100mbps instead of 1000mbit.
A: We have both 100mbps and gigabit for 4/8/16/24 port poe switch, please choose the right one you need.
Q: What kind of cameras can be connected to the POE switch?
A: All POE cameras that support IEEE 802.3AF/AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.
Q: What situation is suitable for extend mode?
A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.
Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.
A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.
Note: RealHD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.
RealHD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF
Technical Specification
 8 Port 100Mbps Ethernet Unmanaged PoE Switch |  16 Port 100Mbps Ethernet Unmanaged PoE Switch |  24 Port 100Mbps Ethernet Unmanaged PoE Switch |  24 Port Gigabit Ethernet Unmanaged PoE Switch |  4 Port 100Mbps Ethernet Unmanaged PoE Switch |  4 Port Gigabit Ethernet Unmanaged PoE Switch | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| PoE Port | 8x10/100Mbps | 16x10/100Mbps | 24x10/100Mbps | 24x100/1000Mbps | 4x10/100Mbps | 4x100/1000Mbps |
| UpLink Port | 2x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps 1x SFP | 2x1000Mbps SFP | 2x100/1000Mbps | 2x100/1000Mbps 1xSFP |
| Extend function | YES | YES | YES | YES | YES | YES |
| PoE Power Output | 120W | 300W | 300W | 300W | 65W | 65W |
| Case Material | Metal | Metal | Metal | Metal | Metal | Metal |
Real HD is committed to providing smart security solutions for homes and businesses. Products include surveillance cameras, DVR/NVR, PoE switches, Kits, monitors, and accessories.
At Real HD, we strive to provide our customers with affordable and reliable products as well as after-service. US local office can quickly respond to any inquiry or provide support.
Real HD New Release IP Camera
Real HD Y Series 4K IP Camera
5/6MP IP CAMERA
10/100Mbps PoE Switches
Gigabit PoE Switch
2MP TVI CAMERA
5MP/8MP TVI CAMERA
FAQs
Q: The ports on the switch is 100mbps instead of 1000mbit.
A: We have both 100mbps and gigabit for 4/8/16/24 port poe switch, please choose the right one you need.
Q: What kind of cameras can be connected to the POE switch?
A: All POE cameras that support IEEE 802.3AF/AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.
Q: What situation is suitable for extend mode?
A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.
Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.
A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.
Note: RealHD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.
RealHD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF
Technical Specification

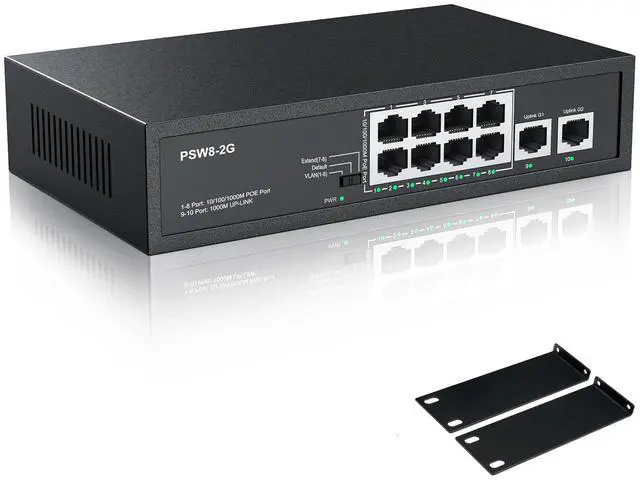

| Port | 8×10/100/1000M PoE Ports and 2 Uplink Ports |
| PoE Protocol | IEEE 802.3af/at |
| Network Port | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/at DTE Power via MDI; IEEE 802.3af/at |
| PoE Port Power | 30W for each(120Wfor total) |
| Transmission Distance | 100m support |
| Bandwidth | 20Gbps (non-blocking) |
| MAC adress | 2K |
| Net Weight | 0.92kg |
| Fan | Fanless |
| Working Environment | Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
| Power Supply | Power input: AC100-240V 50/60Hz |
| Product Dimension | (L*W*H):22cm*16cm*3.5cm |
8 Port 100Mbps Ethernet Unmanaged PoE Switch | 16 Port 100Mbps Ethernet Unmanaged PoE Switch | 24 Port 100Mbps Ethernet Unmanaged PoE Switch | 24 Port Gigabit Ethernet Unmanaged PoE Switch | 4 Port 100Mbps Ethernet Unmanaged PoE Switch | 4 Port Gigabit Ethernet Unmanaged PoE Switch | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| PoE Port | 8x10/100Mbps | 16x10/100Mbps | 24x10/100Mbps | 24x100/1000Mbps | 4x10/100Mbps | 4x100/1000Mbps |
| UpLink Port | 2x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps 1x SFP | 2x1000Mbps SFP | 2x100/1000Mbps | 2x100/1000Mbps 1xSFP |
| Extend function | YES | YES | YES | YES | YES | YES |
| PoE Power Output | 120W | 300W | 300W | 300W | 65W | 65W |
| Case Material | Metal | Metal | Metal | Metal | Metal | Metal |
