 POE5002 |  POE5003 |  POE5004 |  POE5003-G | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — no data | — |

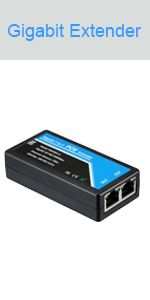

| Data Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps |
| PoE input | 1 RJ45 port (DC 44-57V) | 1 RJ45 port(DC 48-57V) | 1 RJ45 port(DC 48-57V) | 1 RJ45 port(DC 48-57V) |

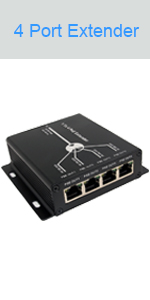

| PoE output | 1 RJ45 port | 2 RJ45 port | 4 RJ45 port | 2 RJ45 port |
| Input power | 13 Watts | 30 Watts Max | 30 Watts Max | 30 Watts Max |
| Output power | 12.2 Watts | 15 Watts Max | 15 Watts | 15 Watts Max |
| PoE Standard | IEEE 802.3af | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |

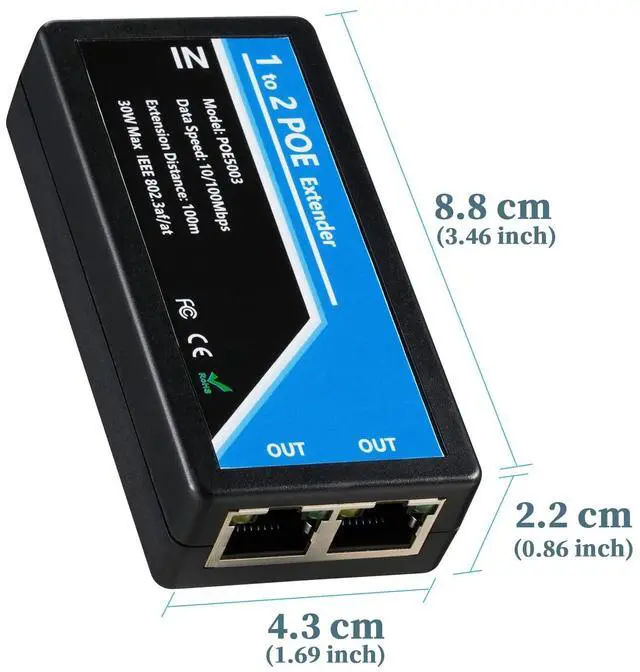

| Dimension | 75x37x26.5mm | 88x44x22mm | 105x93x28.5mm | 88x44x22mm |
| Weight | 60g | 52g | 200g | 52g |
Specification

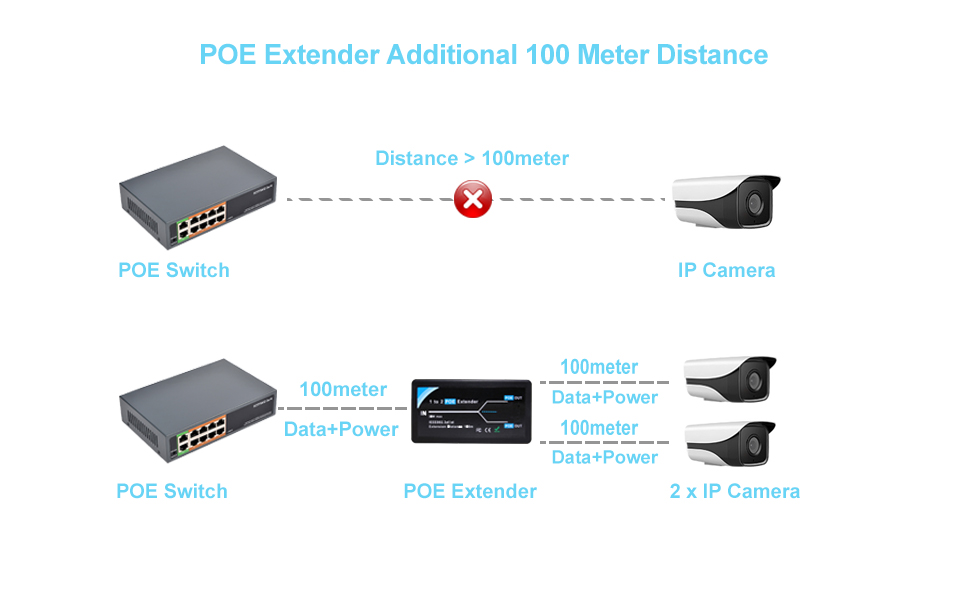

POE Extender additional 100 meter distance

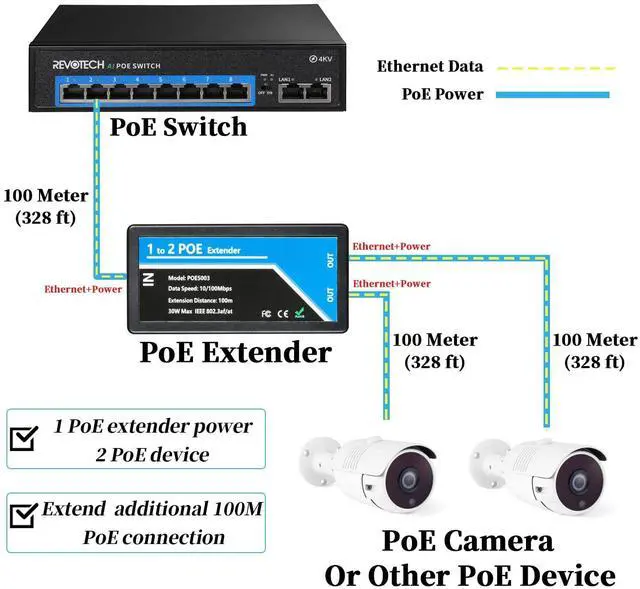

PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.

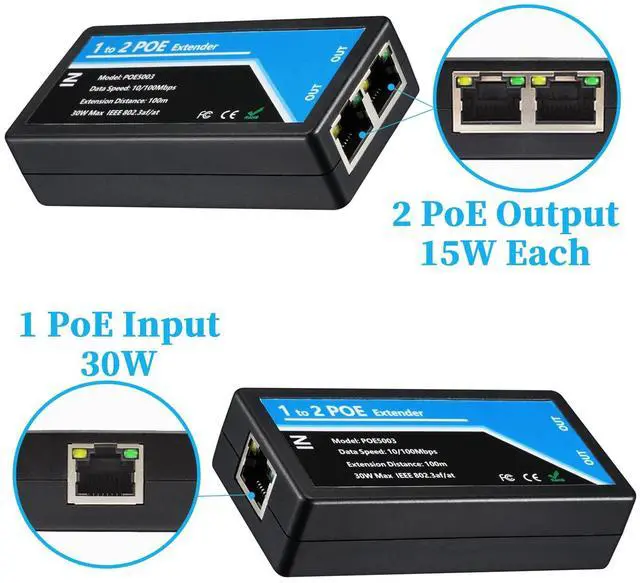

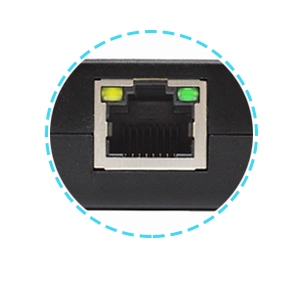

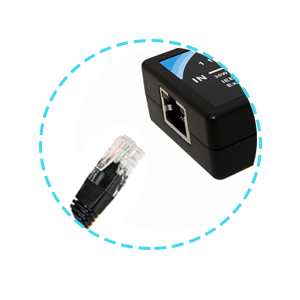

1 RJ45 input port
The green indicator light is always on and the yellow indicator flashes. This means that it is working properly.

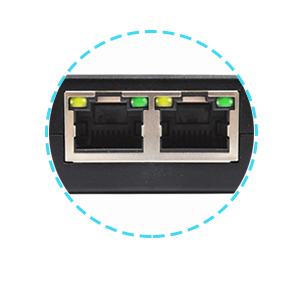

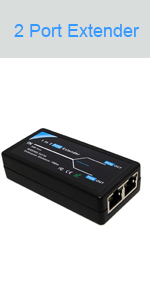

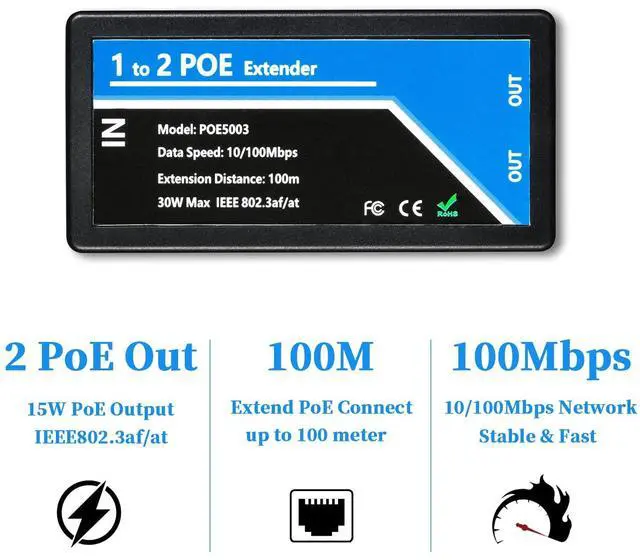

2 port POE output
One network cable to connect one/two/four POE IP devices

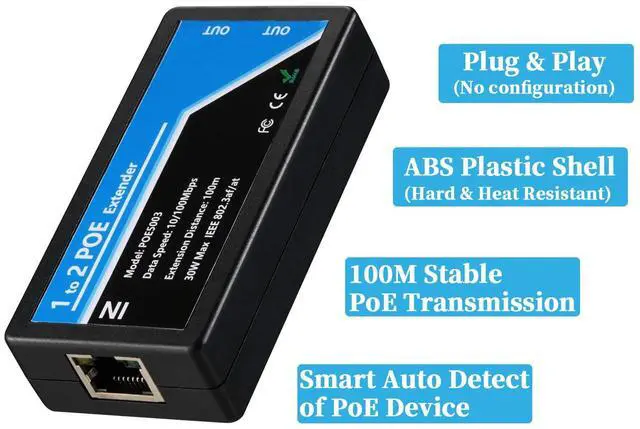

Plug & play
Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.
Note:
1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.
2. Please don't place any heavy thing on the PoE extender;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4. Suggest to use PoE extender indoors. When installing the extender in outdoor please install it in a waterproof place.
POE5002 | POE5003 | POE5004 | POE5003-G | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — no data | — |
| Data Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps |
| PoE input | 1 RJ45 port (DC 44-57V) | 1 RJ45 port(DC 48-57V) | 1 RJ45 port(DC 48-57V) | 1 RJ45 port(DC 48-57V) |
| PoE output | 1 RJ45 port | 2 RJ45 port | 4 RJ45 port | 2 RJ45 port |
| Input power | 13 Watts | 30 Watts Max | 30 Watts Max | 30 Watts Max |
| Output power | 12.2 Watts | 15 Watts Max | 15 Watts | 15 Watts Max |
| PoE Standard | IEEE 802.3af | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
| Dimension | 75x37x26.5mm | 88x44x22mm | 105x93x28.5mm | 88x44x22mm |
| Weight | 60g | 52g | 200g | 52g |
Specification
| Network Medium | Cat5 or better UTP cables (less than 100m) |
| Repeater Mode | Store and forward |
| MAC Address Table | 2K |
| Packet Buffer Memory | 48 Byte |
| Switching Capacity | 400Mbps |
| Power Supply Type | 1/2+,3/6-,Mode A, End-Span |
| Network Protocol | IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet |
| Storage Humidity | 5%~90%, No Condensation |
| Operating temperature | -10~45? |
POE Extender additional 100 meter distance
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.
1 RJ45 input port
The green indicator light is always on and the yellow indicator flashes. This means that it is working properly.
2 port POE output
One network cable to connect one/two/four POE IP devices
Plug & play
Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.
Note:
1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.
2. Please don't place any heavy thing on the PoE extender;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4. Suggest to use PoE extender indoors. When installing the extender in outdoor please install it in a waterproof place.
