- Note:
1. Support Both B-Key and M-Key M.2 SSD (PCIe NVMe, NGFF SATA Based ).
2. Date Transfer Rate up to 10Gbps for USB 3.1 Type A, 5Gbps for USB 3.0 Type A. - 3. NOT support PCIe AHCI SSD, please note!
- M.2 to USB Adapter, RIITOP M2 SSD to USB 3.0 Card Reader Compatible with Both NVMe (PCI-e Channel) & B+M Key (SATA Channel) SSD,allows adding NVMe or B+M Key M.2 SSD to your PC via USB 3.1 3.0 Type-A Port at perfect performance
- Transfer Speed - Adopts USB3.1 GEN2 transmission speed 10Gbps. NOTE: It will be reduced to USB 3.0 5Gbps Speed if connecting to USB 3.0 Type-A but not USB 3.1 Type-A Port
- Compatible with M.2 SSDs ( Both NVMe and B+M key SATA): 80x22mm, 60x22mm and 42x22mm. Compatible with M.2 SSDs (NVMe and B+M Key SATA): 80x22mm, 60x22mm and 42x22mm. Such as PM961, 960EVO, such as Samsung 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD

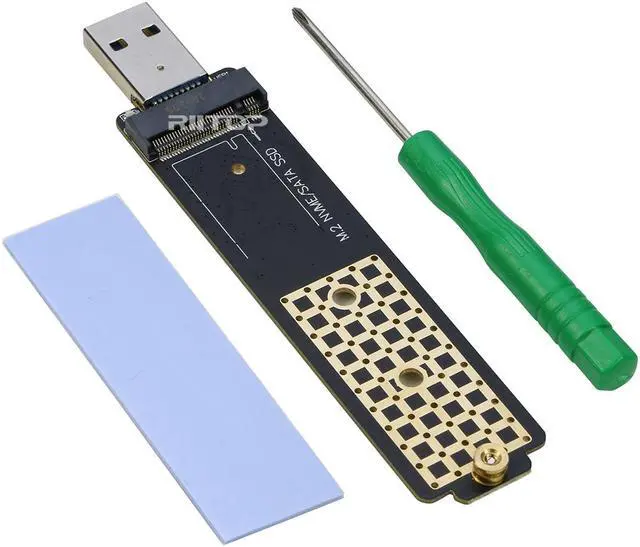

- Package including: 1x M2 to USB Adapter, 1x silicone pad, 1x screwdriver
RIITOP M2 SSD to USB Card Reader Adapter
Compatible with Both M Key NVMe (PCI-e Channel) & B+M Key (SATA Channel) SSD, allows adding NVMe or B+M Key M.2 SSD to your PC via USB 3.1 3.0 Type-A Port at perfect performance.
Apply to 80x22mm, 60x22mm and 42x22mm M.2 SSD (Both M Key NVMe, and B+M Key SATA SSD).
Such as Samsung PM961, 960EVO, 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD.
Please note: NOT support AHCI SSD.

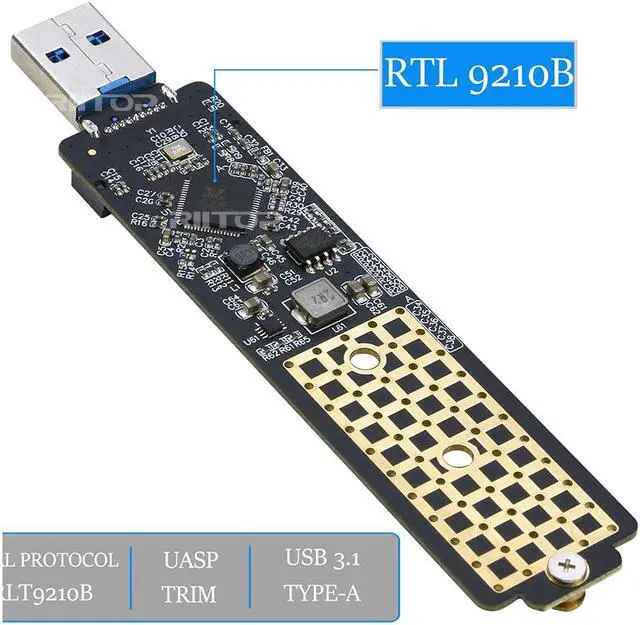

Adopt USB3.1 GEN2 10Gbps transmission speed chipset.

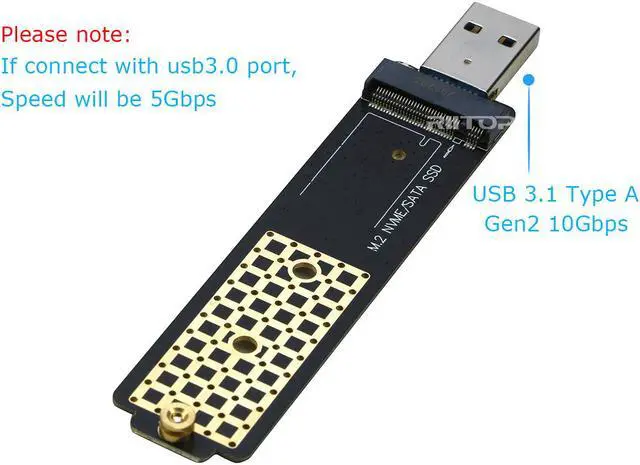

NOTE: It will be reduced to USB 3.0 Speed (5Gbps) if connecting to USB 3.0 Type-A But not USB 3.1 Type-A Port

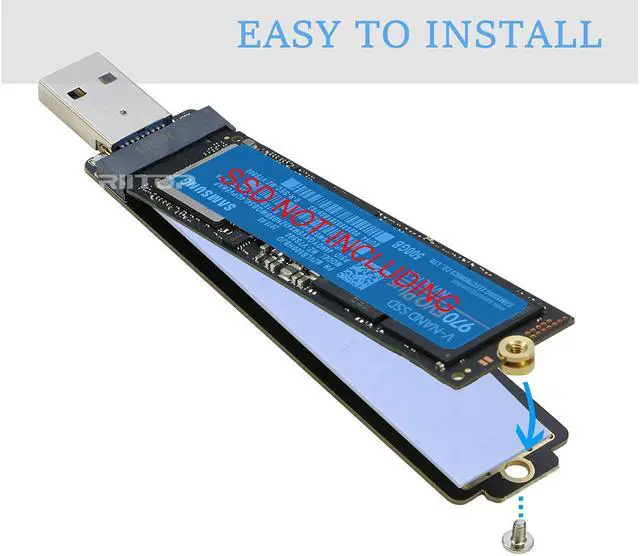

- Prepare your SSD, adapter card, screwdriver, screws(come with adapter card).
- Tighten down screw and copper post from PCB Board, insert the SSD into the slot of the board as the picture shown.
- Stuck the Tail end of SSD with copper post, tighten the screws through the reverse side of the PCB Board with the copper posts with SSD as the picture shown.
- Connect it with pc computer and enjoy it (if your SSD is brand new, it need to be initialization and partitioning in [disk manager] before use, please note!).
Features:
RIITOP M.2 to USB 3.1 Type A Adapter.
Both B-Key and M-Key M.2 SSD (NVMe, SATA Protocol) Support.
Date Transfer Rate up to 10Gbps for USB 3.1, 5Gbps for USB 3.0 Type A.
Plug & Play and Hot-Swapping.
Supports Windows XP/Visata/7/8/10.
Compatible with 2242, 2260, 2280 mm Four Different Specifications M. 2 SSDs.
Specifications:
Item: M. 2 SSD to USB 3.1 Type A Adapter Board.
Material: PCB Board.
Protocol: M-Key NVMe and B+M Key SATA.
Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based).
Output: USB 3.1 Type A.
Dimension: 115*25*6 mm.
Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).
| Products | ||||||
|---|---|---|---|---|---|---|
| Input | M Key or B+M Key M.2 SSD | M Key or B+M Key M.2 SSD | M Key or B+M Key M.2 SSD | NVMe SSD | NVMe SSD | |
| Output | USB Type A | USB Type C | USB Type C | USB Type C + Type A | USB Type C |
