Question 1

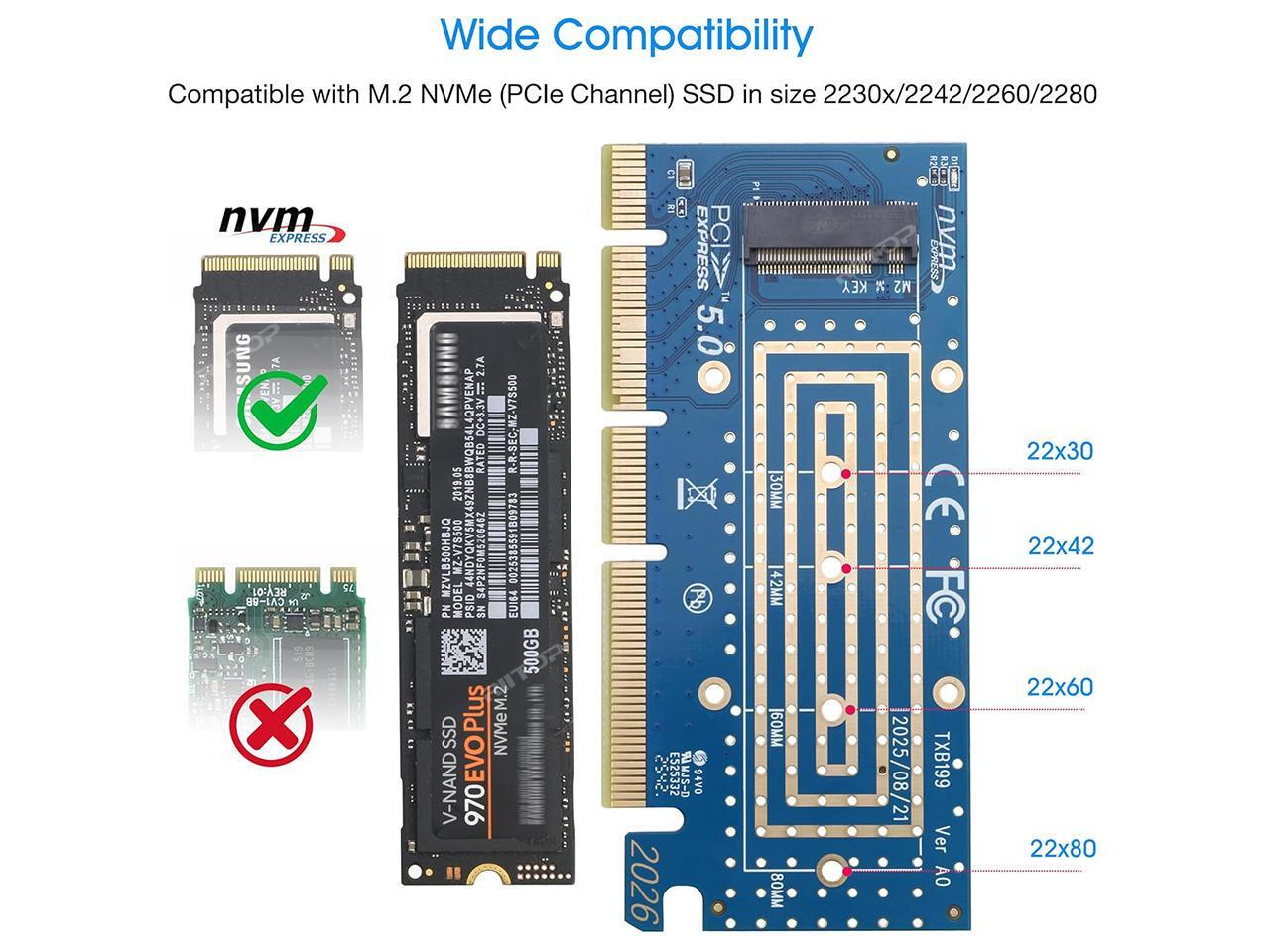

Specs state that it works with the Samsung 960EVO.  Does it also work with the 970EVO?

Accepted Answer

Yes! My 970 works great! I left the aluminum housing off as it kept over Heating but other than that this is perfect.

Question 2

Can you use this to clone from an existing M.2 boot drive in the MB's M.2 slot and then swap the newly cloned M.2 drive into the M.2 slot as the new boot drive?  I'm looking for a faster solution to get a larger M.2 drive cloned and working in a single M.2 slot motherboard.

Accepted Answer

Yes I used Macrium and it worked very well

Question 3

Will this work with the Intel SSDPEKNW010T8X1? https://www.newegg.com/intel-660p-series-1tb/p/N82E16820167462

Accepted Answer

Yes.  I have had the PCIe M.2 NVMe AHCI SSD to PCIE 3.0 16x Adapter Card from a previous install AND just ordered/received/installed the exact same Intel SSDPEKNW010T8X1 (you referenced) into this card.  No problems with the install and setup.  Used an available motherboard PCIe slot to plug both card and drive into.  After initial drive setup (formatting, volume label, etc.), the Intel 1 TB was recognized.   Just installed both units and have not had the time to do any detailed performance testing.  (NOTE:  My motherboard has two M.2 sockets and had planned to install this new drive into second M.2 slot.  However, wanted to answer the question so I installed the drive/card.  Will move it to M.2 slot on MB at a later date.)

Hope this helps and best-of-luck on your upgrade/purchase!

Question 4

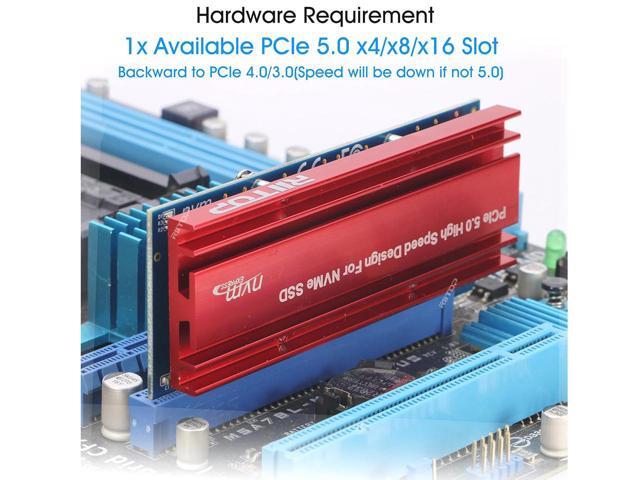

Well I order this....its weight is like a steel engine block! With no support bracket...man the PCIe slot will be tested. Was going into a Asus X58 MB and only the small PCIe 2.0 slot is available. Can it possibly work and fit?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.  Please contact our customer service department for assistance at 1-800-390-1119. The will be an agent ready to transfer you to our Product Support team to further assist you.

Thank you,
Newegg Support

Question 5

Does it use 16 channels? That seems more than the NVMe itslef can fill.

Accepted Answer

Technically, you could saw/cut or somehow remove the other sections and leave only the 4x so that it would fit a pcie 4x slot.

Question 6

I have a evga Z97 Classified MOBO with a 4790K  I have a M.2 in a 4X 3.0 slot and it works but not at 16X speeds . Anyone try this in a Z97 Classy?

Accepted Answer

Although it may have a full 16x pin layout t's not a 16x card only a 4x. If you look carefully at the board there are only leads from the 4x pins the remaining pins are nulled.

Question 7

I have a evga Z97 Classified MOBO with a 4790K  I have a M.2 in a 4X 3.0 slot and it works but not at 16X speeds . Anyone try this in a Z97 Classy?

Accepted Answer

Are you certain your m2 supports X16?  Not all m2 NVMe are equal.
