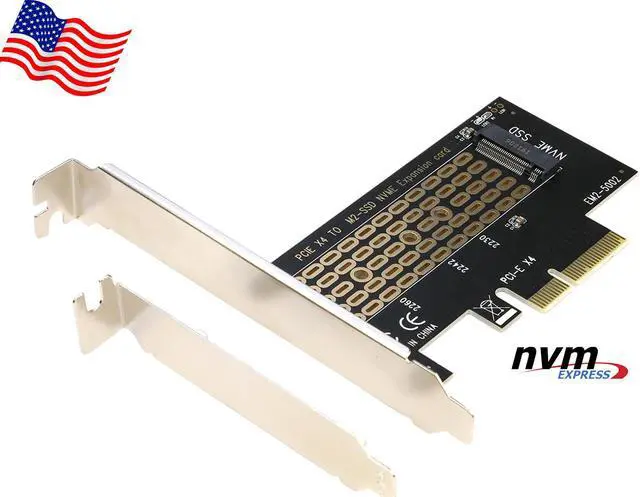

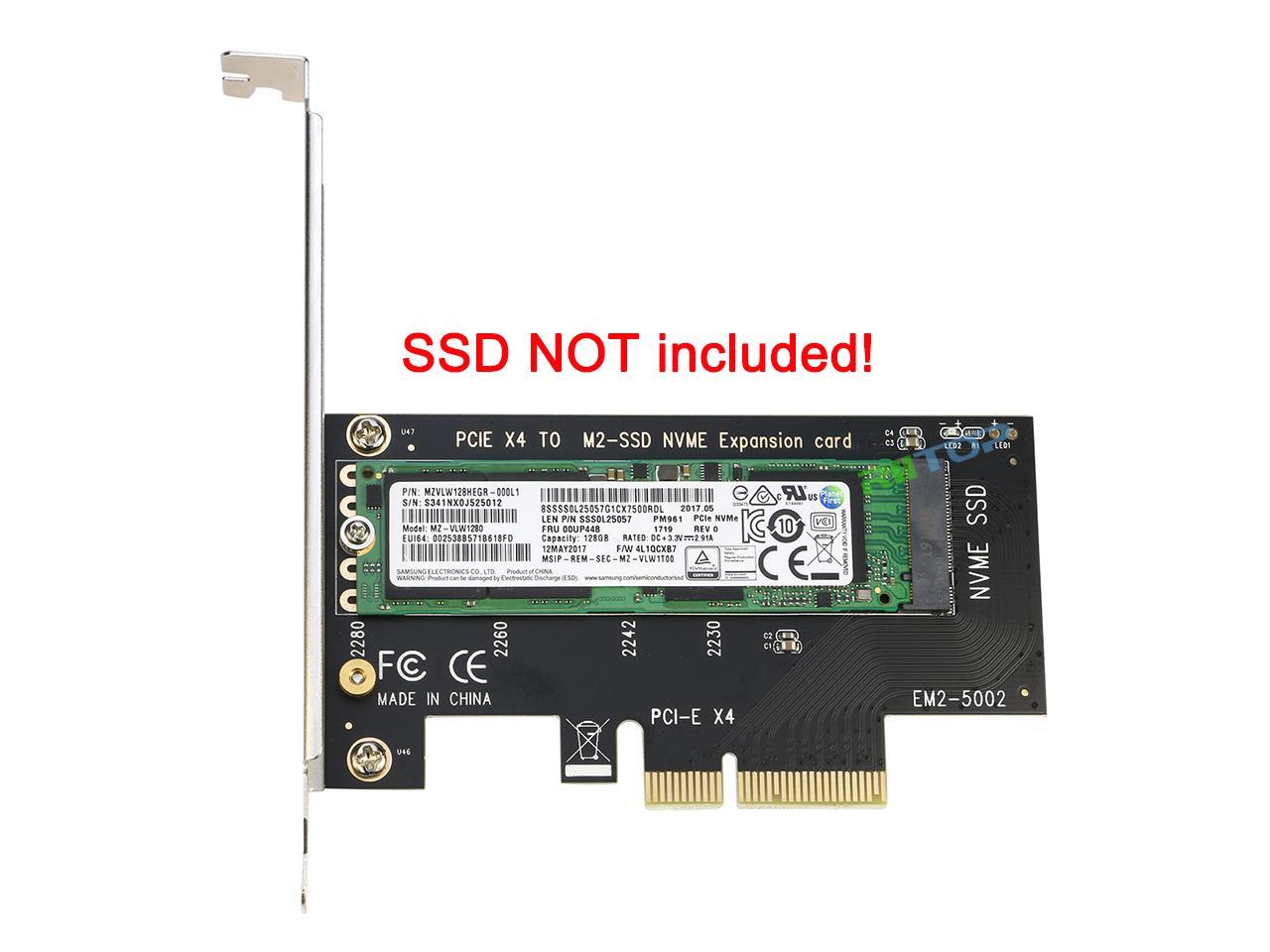

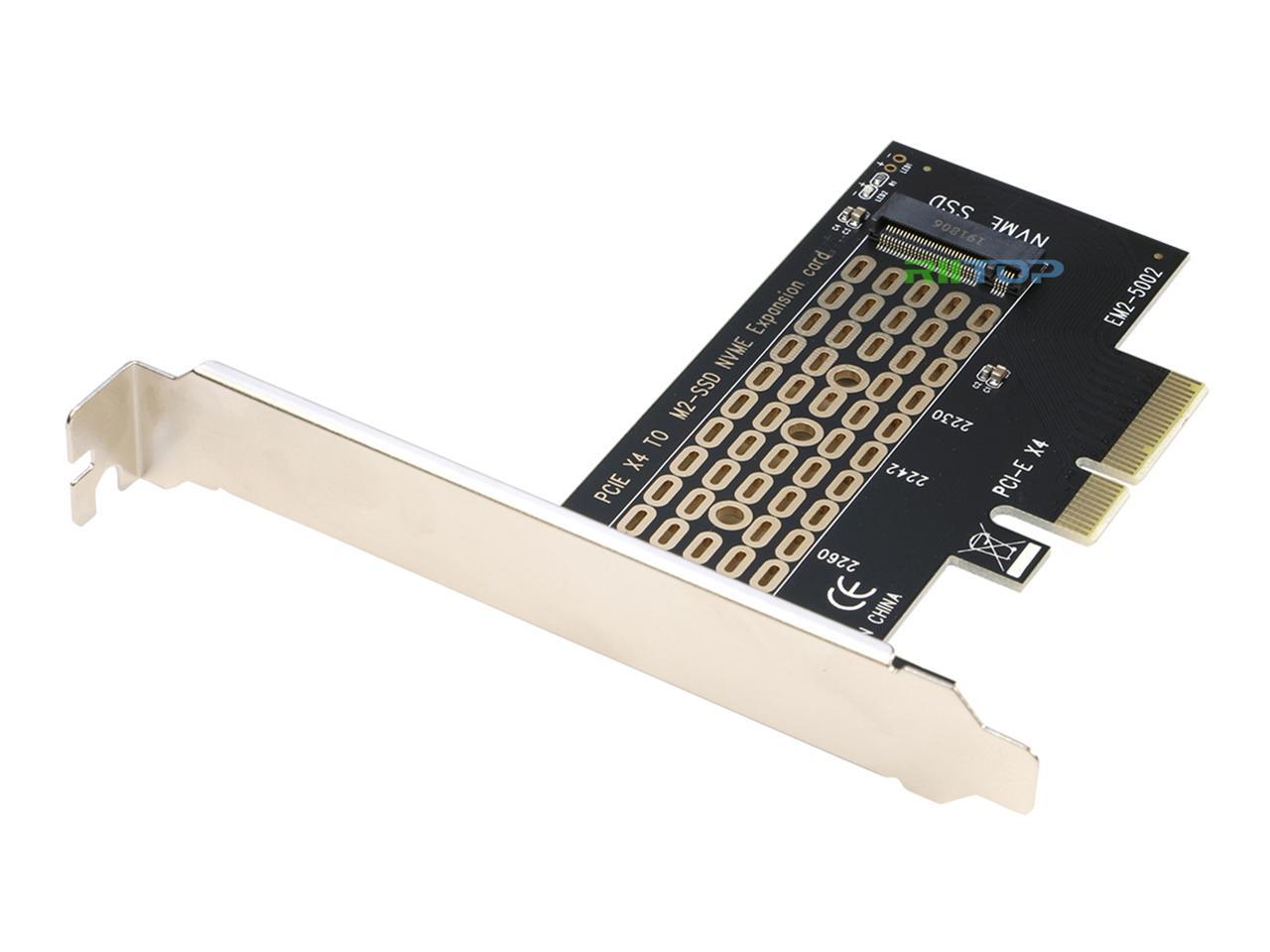

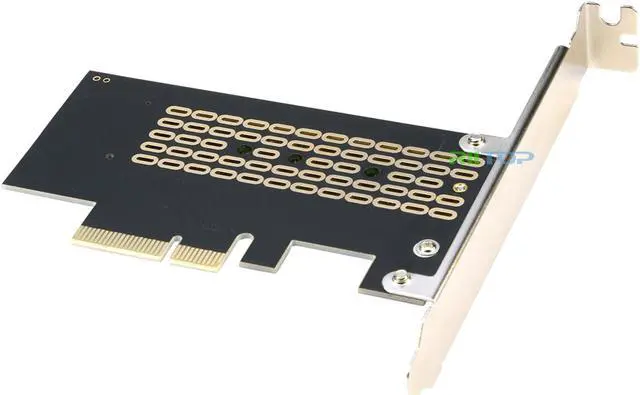

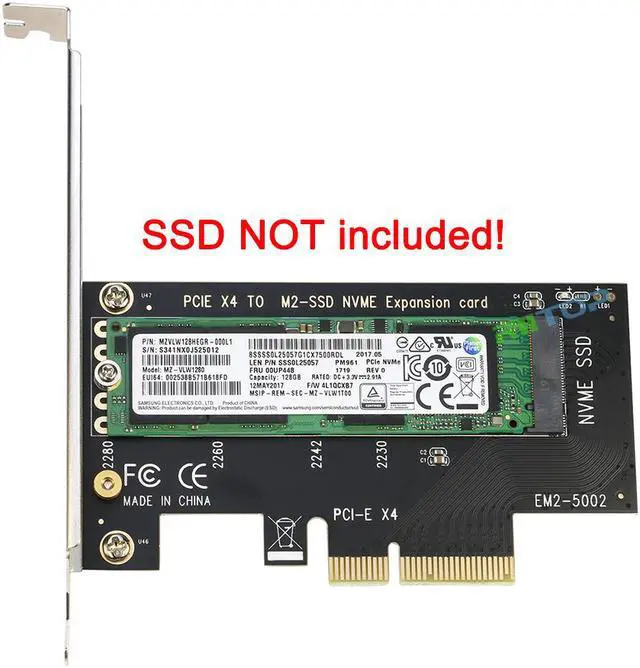

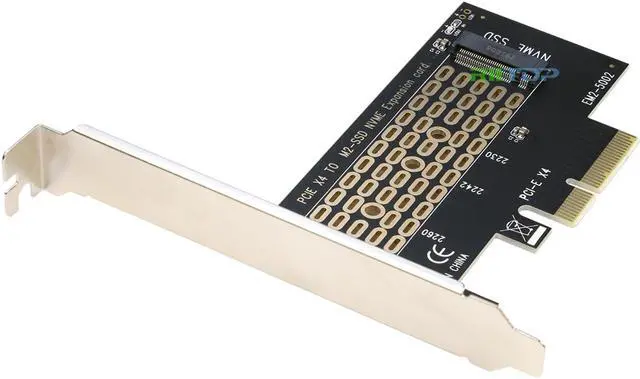

RIITOP NVMe PCIe Adapter, PCI-e 3.0 x4 to NVMe AHCI SSD Converter Adapter Card for M Key M.2 NVMe 2280 2260 2242 2230 mm SSD Hard Drive

(6) Write a Review
  • NVMe to PCIe Adapter
  • M Key M.2 NVMe SSD to PCI-e 3.0 4x Adapter Converter Card
  • Vents for heatsink, better heat dissipation
  • Convert M Key M.2 NVMe or AHCI SSD to work in Mainboard PCIe 3.0 x4 (or above) bus slot
  • Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
  • Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD. Adjustable stand-offs and multiple mounting holes
  • LED indicates power and data transfer status, includes both low-profile and full-profile slot brackets for flexible system chassis installation
  • This adapter is only for 'M' key M.2 PCIe SSD such as Samsung 970 EVO/XP941/SM951/950 Pro, Plextor M6e Series, Kingston HyperX Predator M.2 SSD and so on
  • Not support any 'B' key M.2 SATA SSD
Overview
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Note:
1. Not support any 'B' key M. 2 SATA SSD. Only support M Key M. 2 PCIe NVMe AHCI SSD.
2. Need mainboard with a freedom PCI-e x4 or above slot (PCIe v 3.0 will be faster in transfering).
3. Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only, Win7 and Windows Server 2008 R2 are NOT compatible with NVME SSD.
4. If you wish to boot off using M. 2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M. 2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function. 5. M. 2 PCIe-NVMe mode SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system.
6. If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that! RIITOP NVMe PCIe Adapter PCI-e 3.0 x4 to M Key M. 2 NVMe AHCI SSD Converter Card for 2280 2260 2242 2230 mm SSD Drive
Features:
Connector: 1x M-key (type 2280-D5-M) M. 2 socket for M. 2 NGFF PCIe based SSD. Convert M. 2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot. PCI Express 3.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included. Supports PCIe 2.0 and PCIe 3.0 motherboard. Movable M. 2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M. 2. Supports M. 2 NGFF PCIe 80mm, 60mm, 42mm SSDs. Supports dual-sided M. 2 SSD module with 1.5 mm component height on the top and bottom side.
Supports industrial operating temperature range: -40 - 85 ºC. M. 2 PCIe SSD gets power from motherboard PCIe bus slot 3.3V.
Software: No driver installation required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI.
Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base.
Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only.
Hardware Requirement: An empty PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot.
Compatibility (Incomplete List): Samsung XP941, SM951 (AHCI or NVMe), 950 Pro Series SSDs. Kingston HyperX Predator M. 2. Plextor M6e Series M. 2 SSD.
Package Contents: 1x M Key M. 2 NVMe SSD to PCIe 3.0 x4 Adapter Card. 1x Low Profile Bracket. 1x Screwdriver. Mounting Screws.













riitop nvme ssd to pcie adapter
RIITOP NVMe SSD to PCIe 3.0 x4 Adapter Card
M Key M.2 NVMe SSD to PCI-e Express Adapter Card
Compatibility:

Samsung 950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO
Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series.
Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000.


NOTE :

It is designed to work only with 'M' key M.2 PCIe SSD. NOT compatible with 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.

nvme to pcie adapter card
Features:

Supports PCIE M.2 SSD NVMe (Key-M)
Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot.
Compliant with PCIE 4.0 X4 80Gbps full speed support.
Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard, .
Support TRIM and UASP.
LED indicators for power and access.

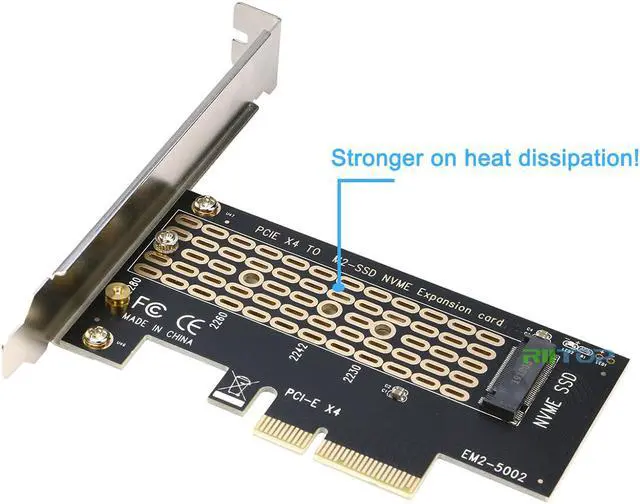

PCB 24 X 5 copper hole effective ventilation heat dissipation.

m key m.2 nvme ssd to pci-e 4.0 adpater card
Hardware compatible:

SSD Size support:
Apply to 2280/2260/2242/2230mm M.2 NVMe SSD.

System:
Supports any OS like Windows, Mac and Linux.(no driver required)

Applicable Slots:
Supports PCI-Express X4, X8, X16 slots.

M.2 NVME to PCIe 3.0 x4 Adapter
Package Contents:

1x M Key M. 2 NVMe SSD to PCIe 3.0 x4 Adapter Card.

 1x Low Profile Bracket.

1x Screwdriver.

Mounting Screws.
