Features:
Converts one M.2 (M Key) NVMe to PCIe 3.0 16x interface (PCIe 2.0,1.0 Compatible), No drivers required.
Supports PCIe M.2 SSD (NVMe , Key-M), PCIe 3.0 X4 32Gbps bandwidth.

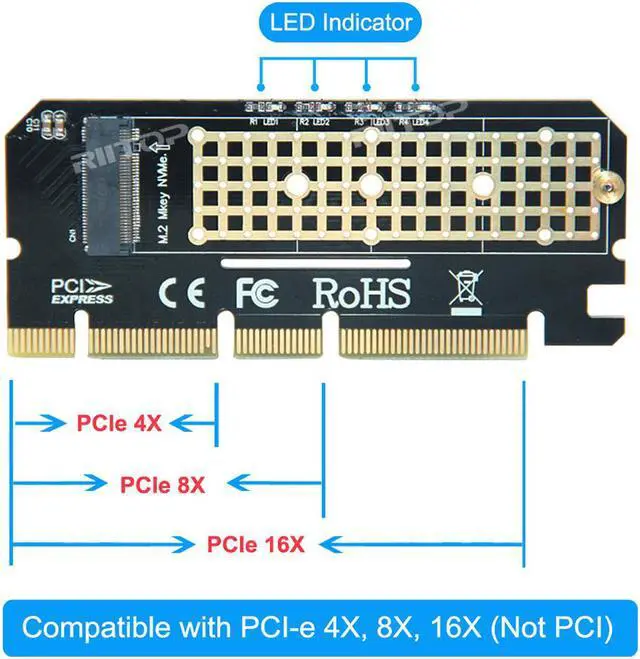

Support TRIM and UASP. PCIE x4/x8x16 lane installation.
( If add in PCI-e 2.0 slot, the transfer speed will be 16Gbps, please note that!)
Compatible with Windows/MAC/Linux, no driver required. (Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD).
Dimension:105.0 (L) x 44.0 (W) x 11.0 (H) mm / 4.13 x 1.73 x 0.43 in.
Compatible with:

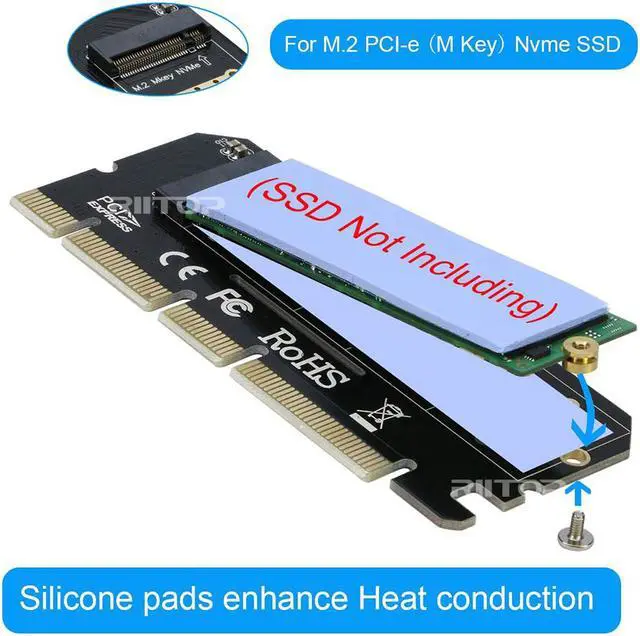

Apply to 2280/2260/2242 / 2230mm M.2 PCI-e NVMe SSD.

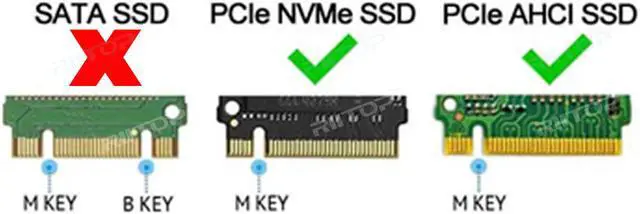

Not supported B-Key or B+M Key SATA-based M.2 SSD.
Compatibility with PCIe NVMe SSD (Incomplete List):
Samsung XP941, SM951 (NVMe),
950 Pro Series SSDs, PM961, 960EVO, SM961, PM951, 960EVO.
INTEL 600P. Liteon T10.
Kingston HyperX Predator M.2. Plextor M6e Series M.2 SSD.
Hardware Requirement:
1x Available PCI-e 3.0/2.0/1.0 4x/8x/16x Slot on mainboard.
(Transfer speed will be lower if add on PCIe 1.0 or 2.0 version slot, please note!)
Package Including:
1x NVMe to PCIe Adapter Card.
