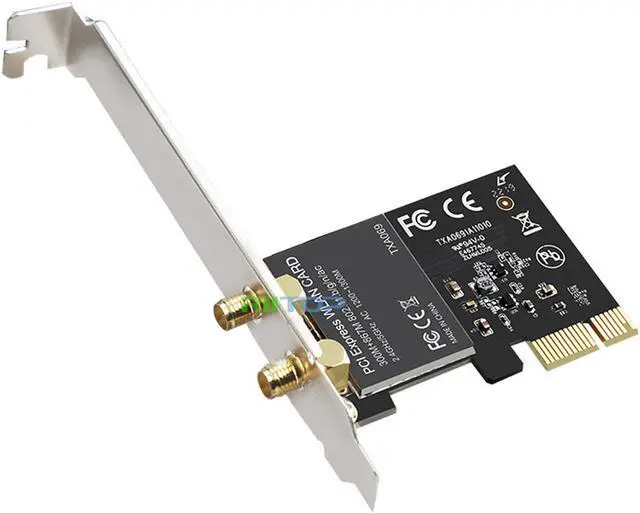

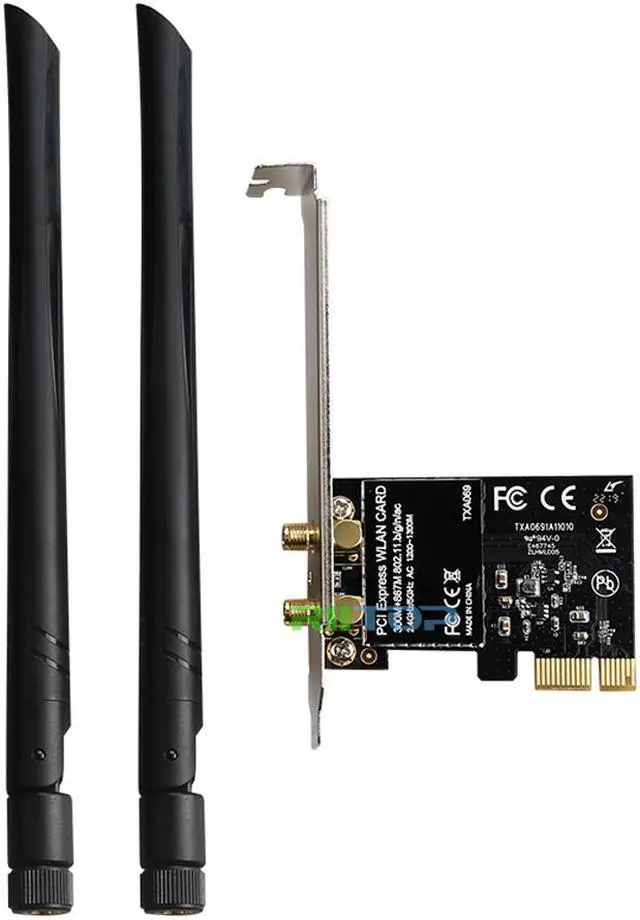

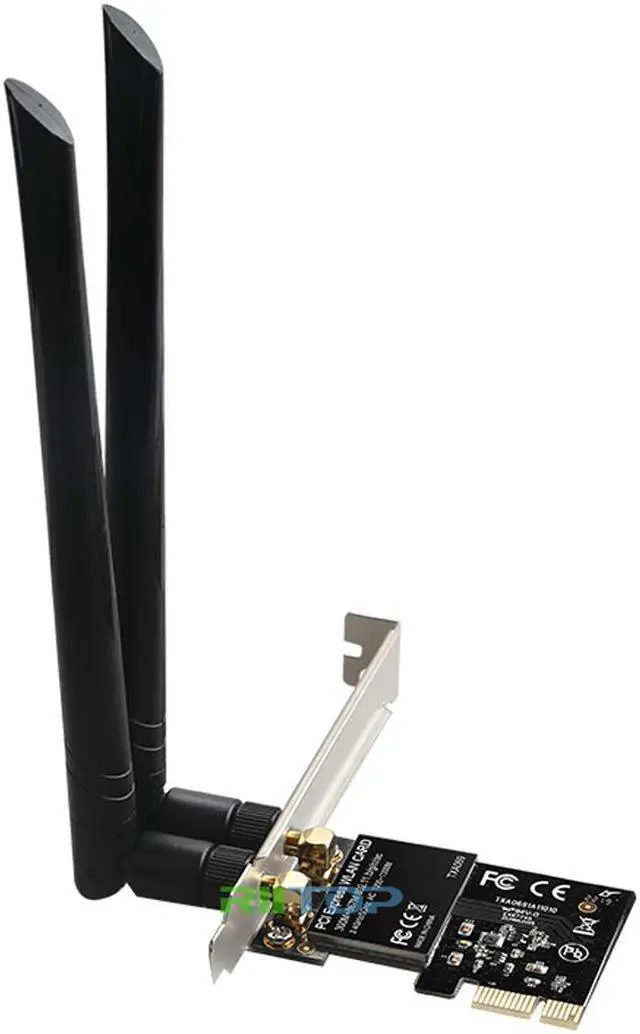

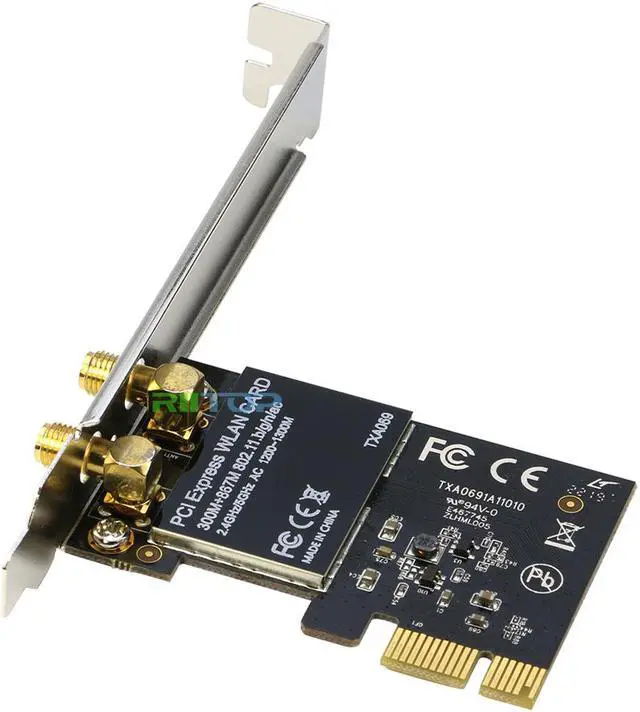

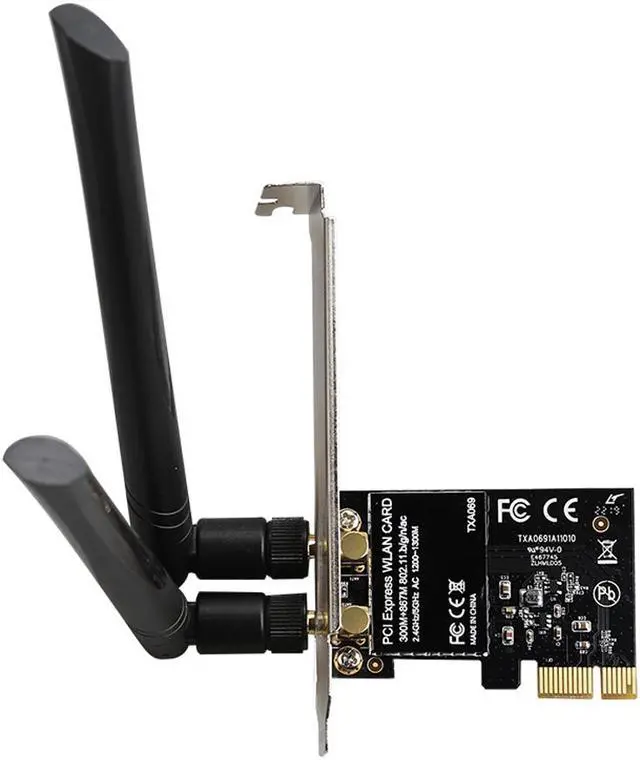

RIITOP 1200M PCI-e Express WIFI Card Adapter Wireless AC Dual-Band 2.4G 5G with Realtek 8112AE Chipset
- PCIe wifi card adapter 1200Mbps
- PCI-e Wireless dual band WIFI Adapter Card
- 2.4G / 5G Dual Band wifi card 300Mbps ~1200Mbps
- Wireless Standard: IEEE802.11.ac,IEEE802.11.n,IEEE802.11.b,IEEE802.11.g,IEEE802.11.a.
- Frequency: 2.4G / 5G.
- Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz.
- With 2DB Wifi Antenna
Overview
Specs
Reviews (3)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Chipset: RTL8112AE.
Wireless Standard: IEEE 802.11. ac, IEEE 802.11. n, IEEE 802.11. b, IEEE 802.11. g, IEEE 802.11. a.
Frequency: 2.4G / 5G.
Signal Rate: 300Mbps at 2.4GH z, 867Mbps at 5GHz.
Output Power:
2.4G: 802.11.
b@11M: 18dBm 802.11.
g@54m: 15dBm 802.11. n@HT 20:15 dBm 802.11.
n@HT 40:14 dBm 5G: 802.11.
ac@54m: 15dBm 802.11. ac@HT 20:15 dBm 802.11. ac@HT 40:15 dBm 802.11. ac@HT 80:13.
5dBm Sensitivity: 5G_11ac
HT80M_MCS9: -51dBm @10%
PER HT40M_MCS7: -62dBm @10%
PER HT20M_MCS7: -65dBm @10% PER 11N_ 2.4G
HT40M_MCS7: -62dBm @10%
PER HT20M_MCS7: -65dBm @10%
PER OFDM_54M: -68dBm@10%
PER 11b_11M: -81dBm@10%
PER Interface: PCI Express 1x slot.
Antenna: 2*5dBi un-fixed.
LED Indicator: WLAN enable.

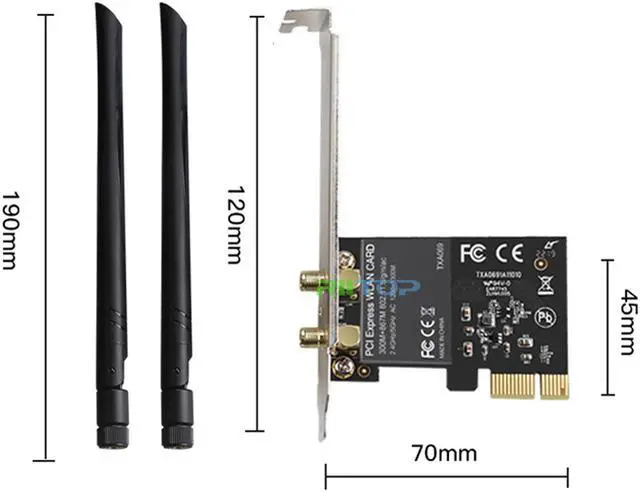

Dimension: 65* 44.5 * 1.6 mm.
Support OS: Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10. x (Intel based, tested up to 10.9 ) Linux 2.4. x and later (Tested up to 3.5 )
Environment:
Operating Temperature: 0? ~70? (32 ~104).
Relative Humidity: 10%-90%(non-condensing).
Storage Temperature: -10? ~70? (-40 ~158).
Relative Humidity: 5%-90%(non-condensing).
Package Contents: 1x 1200Mbps PCI Express WIFI Lan Card Adapter. Driver CD.
Chipset: RTL8112AE.
Wireless Standard: IEEE 802.11. ac, IEEE 802.11. n, IEEE 802.11. b, IEEE 802.11. g, IEEE 802.11. a.
Frequency: 2.4G / 5G.
Signal Rate: 300Mbps at 2.4GH z, 867Mbps at 5GHz.
Output Power:
2.4G: 802.11.
b@11M: 18dBm 802.11.
g@54m: 15dBm 802.11. n@HT 20:15 dBm 802.11.
n@HT 40:14 dBm 5G: 802.11.
ac@54m: 15dBm 802.11. ac@HT 20:15 dBm 802.11. ac@HT 40:15 dBm 802.11. ac@HT 80:13.
5dBm Sensitivity: 5G_11ac
HT80M_MCS9: -51dBm @10%
PER HT40M_MCS7: -62dBm @10%
PER HT20M_MCS7: -65dBm @10% PER 11N_ 2.4G
HT40M_MCS7: -62dBm @10%
PER HT20M_MCS7: -65dBm @10%
PER OFDM_54M: -68dBm@10%
PER 11b_11M: -81dBm@10%
PER Interface: PCI Express 1x slot.
Antenna: 2*5dBi un-fixed.
LED Indicator: WLAN enable.
Dimension: 65* 44.5 * 1.6 mm.
Support OS: Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10. x (Intel based, tested up to 10.9 ) Linux 2.4. x and later (Tested up to 3.5 )
Environment:
Operating Temperature: 0? ~70? (32 ~104).
Relative Humidity: 10%-90%(non-condensing).
Storage Temperature: -10? ~70? (-40 ~158).
Relative Humidity: 5%-90%(non-condensing).
Package Contents: 1x 1200Mbps PCI Express WIFI Lan Card Adapter. Driver CD.
