U.2 to PCIe Adapter Expansion Card, RIITOP PCIe 3.0 x4 to 2.5" U.2 (SFF-8639) SSD or SATA3 (6G) to 2.5 SATA SSD Expansion Card
- [U.2 to PCIe Adapter] Extending an U.2 (SFF-8639) Interface on your desktop or server for 2.5" U.2 NVMe SSD, or you may need install an 2.5" SATA SSD to original SATA 3 Port sometime. This U.2 to PCIe 3.0 x4 Adapter meets both of your requirement

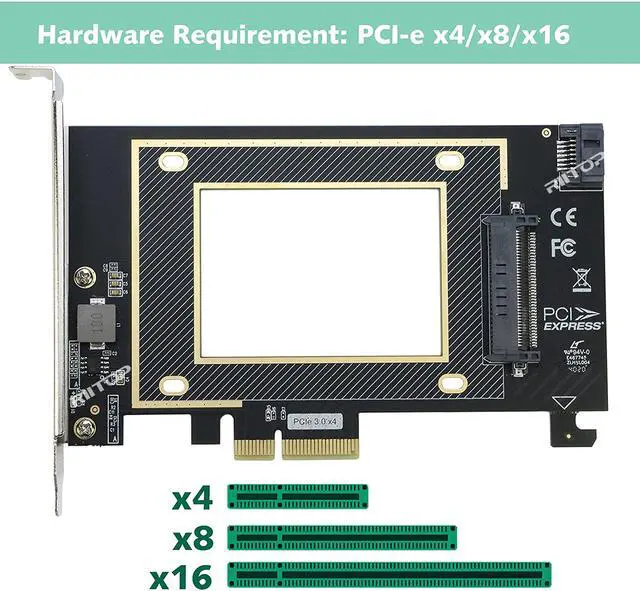

- [Bandwidth PCI-e 3.0 x4 ] Compatible with PCI Express 3.0 x4/x8/x16, ensure your 2.5" U.2 NVMe SSD runs in full performance. Backward Compatible with PCIe 2.0/1.0, the speed will be slower

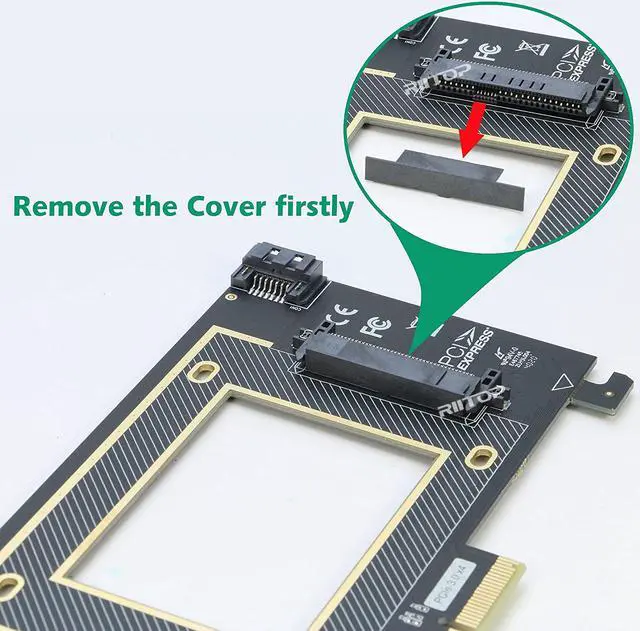

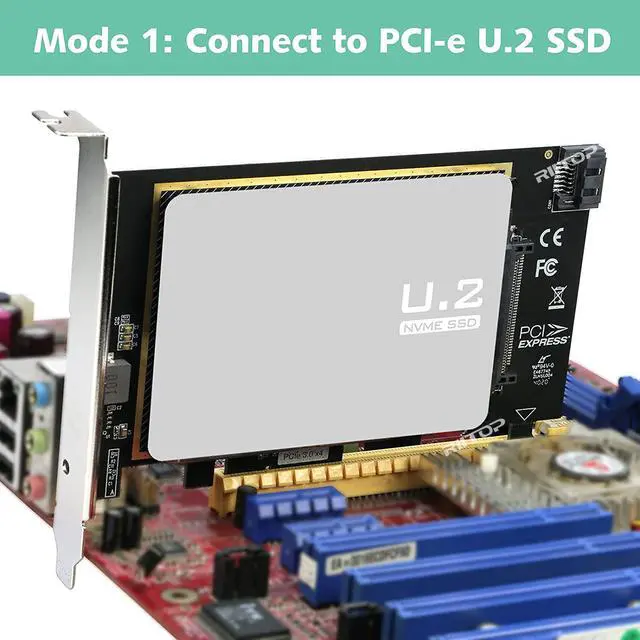

- [Installation]1. When install 2.5" U.2 NVMe SSD, only PCI-e slot needed 2. When install 2.5" SATA SSD, SATA data cable needed to be connected
- [Please Note] 1. It can not be as a system disk if MOBO does not support NVME protocol, only as a storage disk 2. Please install WIN10 system; It may need install driver if WIN7, and the speed may not be improved

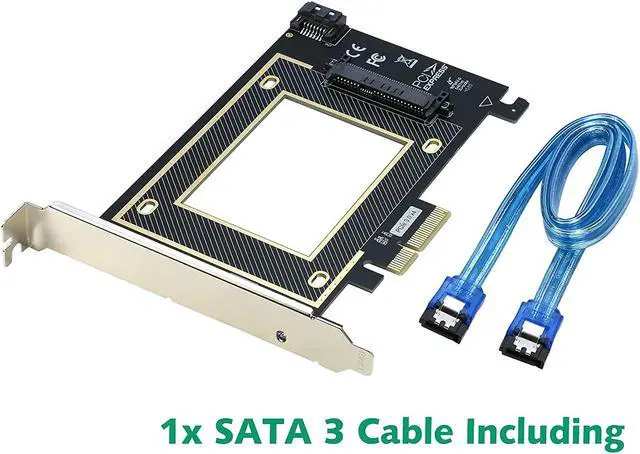

- [Package including] 1x U.2 NVMe to PCI-e Adapter , 1x SATA3 Cable, Mounting Screws for SSD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note:
This card can support 2.5-inch SATA hard disks. Connect the delivered SATA cable to the motherboard's SATA port during use. Only need to support PCE-E 3.0 to run to high speed.
Features:

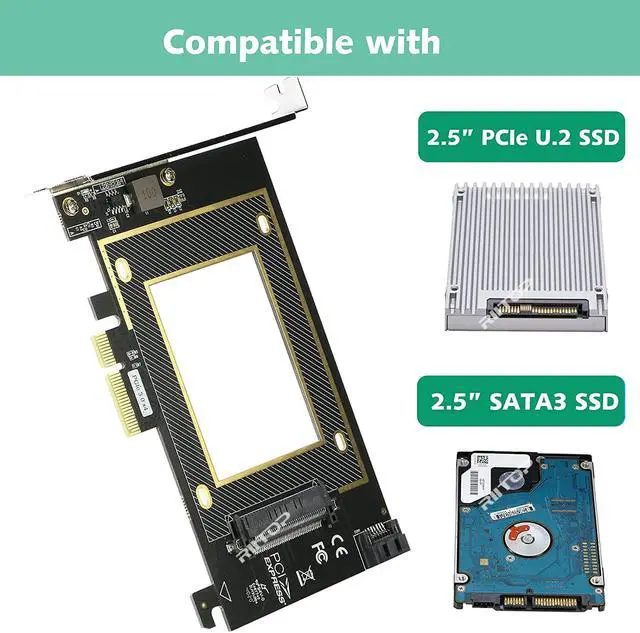

Support of dual interface protocol: U.2 SDD (direct use without connection) / SATA SDD (required to connect the SATA data cable).
The U.2 interface supports the NVMe standard protocol, high speed, low latency and low power consumption, bandwidth takes PCI-E3.0 x4, transmission speed up to 32 Gbit / s, 5 A power supply module (SATA only 6 Gbit / s , more than five times faster than SATA).
Support for AMD motherboard chipsets: B350 X370 X399 A320, the previous one is not supported. You must use RYZEN as your CPU motherboard to support NVME.
The U.2 interface uses two SATA 6 Gbit / s interfaces and a 4-pin mini SATA interface. The small interface can only be connected to the PCI-E cable to ensure backward compatibility.
U.2 SFF-8639 has 6 channels / 4 channels intended for PCI-E to connect directly to CPU / 2 channels intended for SAS and SATA to connect HBA / RAID controller and chipset connect.
U.2 to PCI-e adapter card U.2 adapter card SFF-8639 to SSD expansion card U.2 to PCI-e 3.0.
It is a solid-state mechanical hard disk interface for 2.5-inch storage, with PCI-E/SATA/SAS signals inside.
Precision PCB technology has passed the signal integrity test, fully suppressing EMI, and signal integrity.
Specifications:
Type: PCI-E 4X to U.2 SFF-8639 expansion card.
Parameters: 100g.
Interface: PCI-E 4X U.2SFF-8639.
Support system: WIN7/WIN8 WIN10 32/64BIT/MAC/Linux.
Package Contents:
1x U.2 NVMe to PCI-e Adapter.
1x SATA3 Cable.
Mounting Screws.
This card can support 2.5-inch SATA hard disks. Connect the delivered SATA cable to the motherboard's SATA port during use. Only need to support PCE-E 3.0 to run to high speed.
Features:
Support of dual interface protocol: U.2 SDD (direct use without connection) / SATA SDD (required to connect the SATA data cable).
The U.2 interface supports the NVMe standard protocol, high speed, low latency and low power consumption, bandwidth takes PCI-E3.0 x4, transmission speed up to 32 Gbit / s, 5 A power supply module (SATA only 6 Gbit / s , more than five times faster than SATA).
Support for AMD motherboard chipsets: B350 X370 X399 A320, the previous one is not supported. You must use RYZEN as your CPU motherboard to support NVME.
The U.2 interface uses two SATA 6 Gbit / s interfaces and a 4-pin mini SATA interface. The small interface can only be connected to the PCI-E cable to ensure backward compatibility.
U.2 SFF-8639 has 6 channels / 4 channels intended for PCI-E to connect directly to CPU / 2 channels intended for SAS and SATA to connect HBA / RAID controller and chipset connect.
U.2 to PCI-e adapter card U.2 adapter card SFF-8639 to SSD expansion card U.2 to PCI-e 3.0.
It is a solid-state mechanical hard disk interface for 2.5-inch storage, with PCI-E/SATA/SAS signals inside.
Precision PCB technology has passed the signal integrity test, fully suppressing EMI, and signal integrity.
Specifications:
Type: PCI-E 4X to U.2 SFF-8639 expansion card.
Parameters: 100g.
Interface: PCI-E 4X U.2SFF-8639.
Support system: WIN7/WIN8 WIN10 32/64BIT/MAC/Linux.
Package Contents:
1x U.2 NVMe to PCI-e Adapter.
1x SATA3 Cable.
Mounting Screws.
