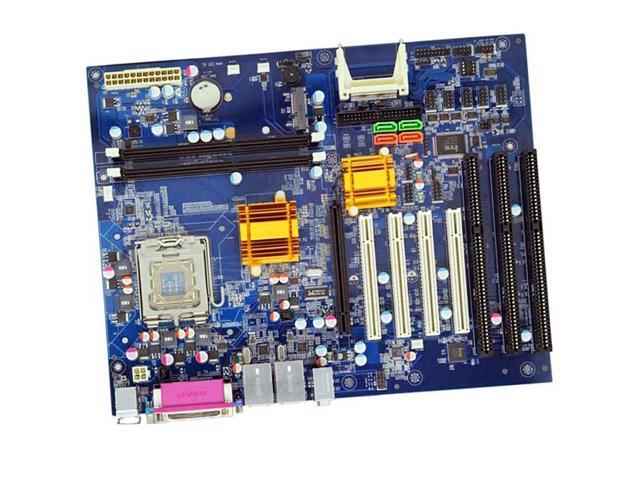

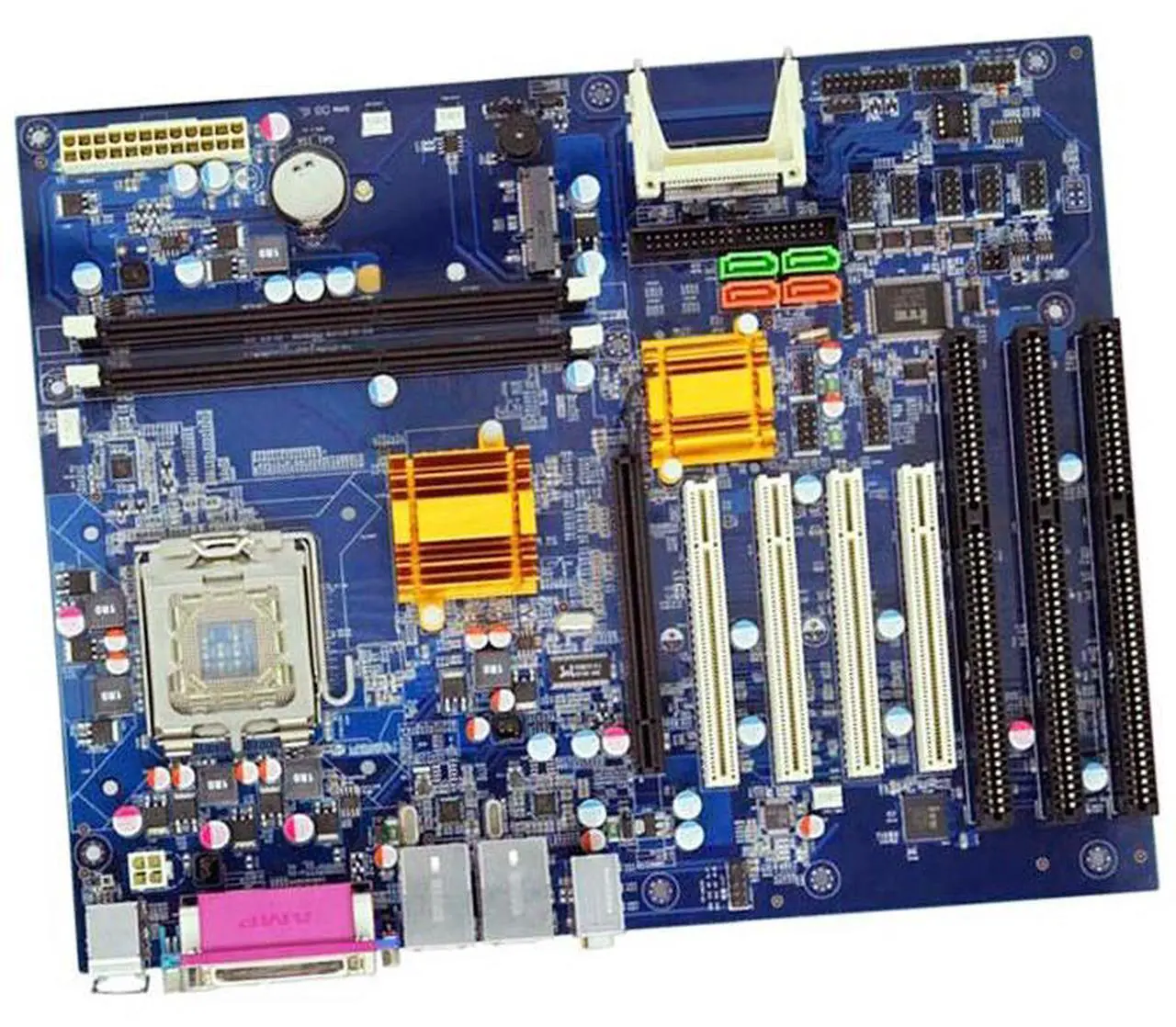

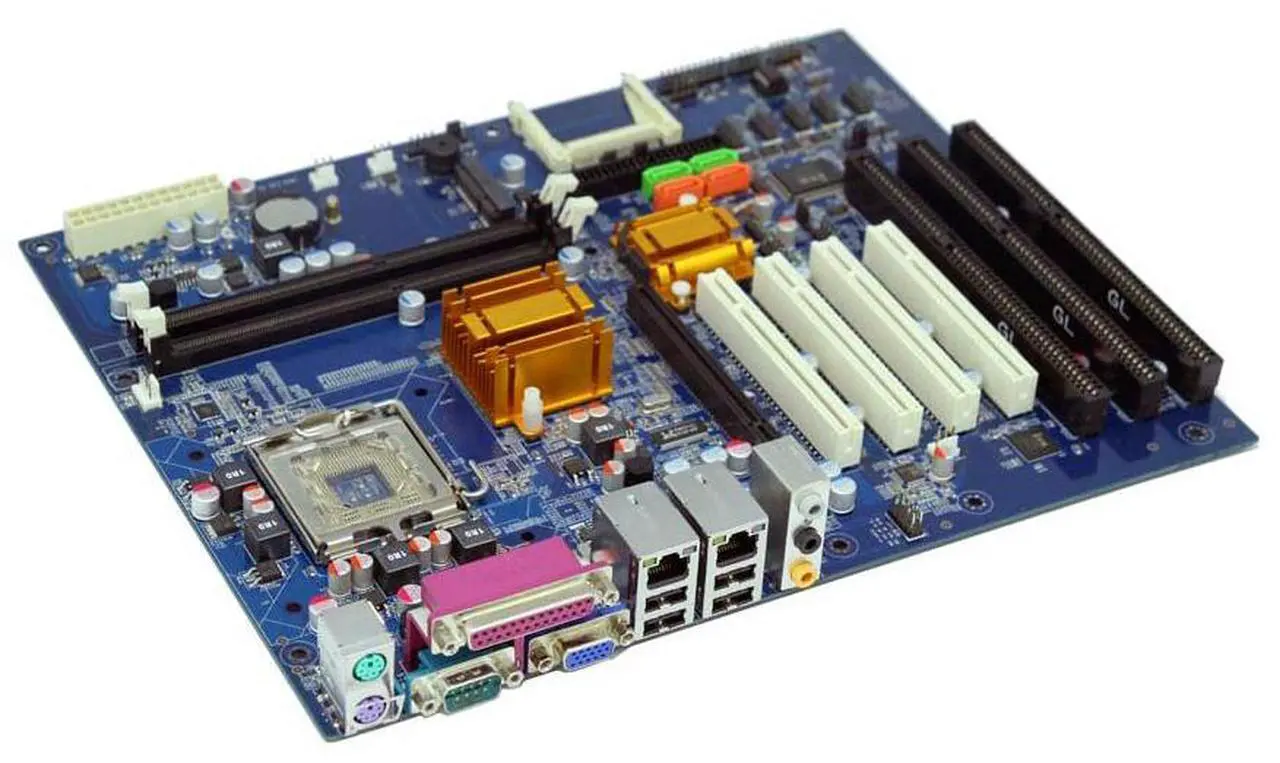

ISA Motherboard G41 with 3 ISA Slots,4 PCI ATX Mainboard,Socket LGA775 CPU,2 DDR3 Slots,4 PCI Slots,1 PCIE 16x Slot,2 LAN Ports,for Industrial Server PC Computer
- ISA Industrial motherboard ,G41 ATX Board,G41 ISA Slot Mainboard for desktop computer server
- G41 ISA PCI Mainboard ATX Motherboard,Compatible devices: Server,PC Desktop,Computer,G41 Socket 775 ATX Industrial motherboard
- Cpu model socket: Socket LGA775 for Core2,Core 2 Quad,Core 2 Duo CPU,FSB 533/800/1066/1333 CPU, 2* DDR3 DIMM Slots,support 1333/1066/800MHz ,MAX. 8GB
- Chipset G41+ 82801GB
- Slots: 4*PCI,1*PCIe 16x,3*ISA, 4*USB , 1* COM , 1*VGA ,2* RJ45 LAN port
- Size : 305 x 244 mm,ATX
+
+
Overview
Specs
Reviews

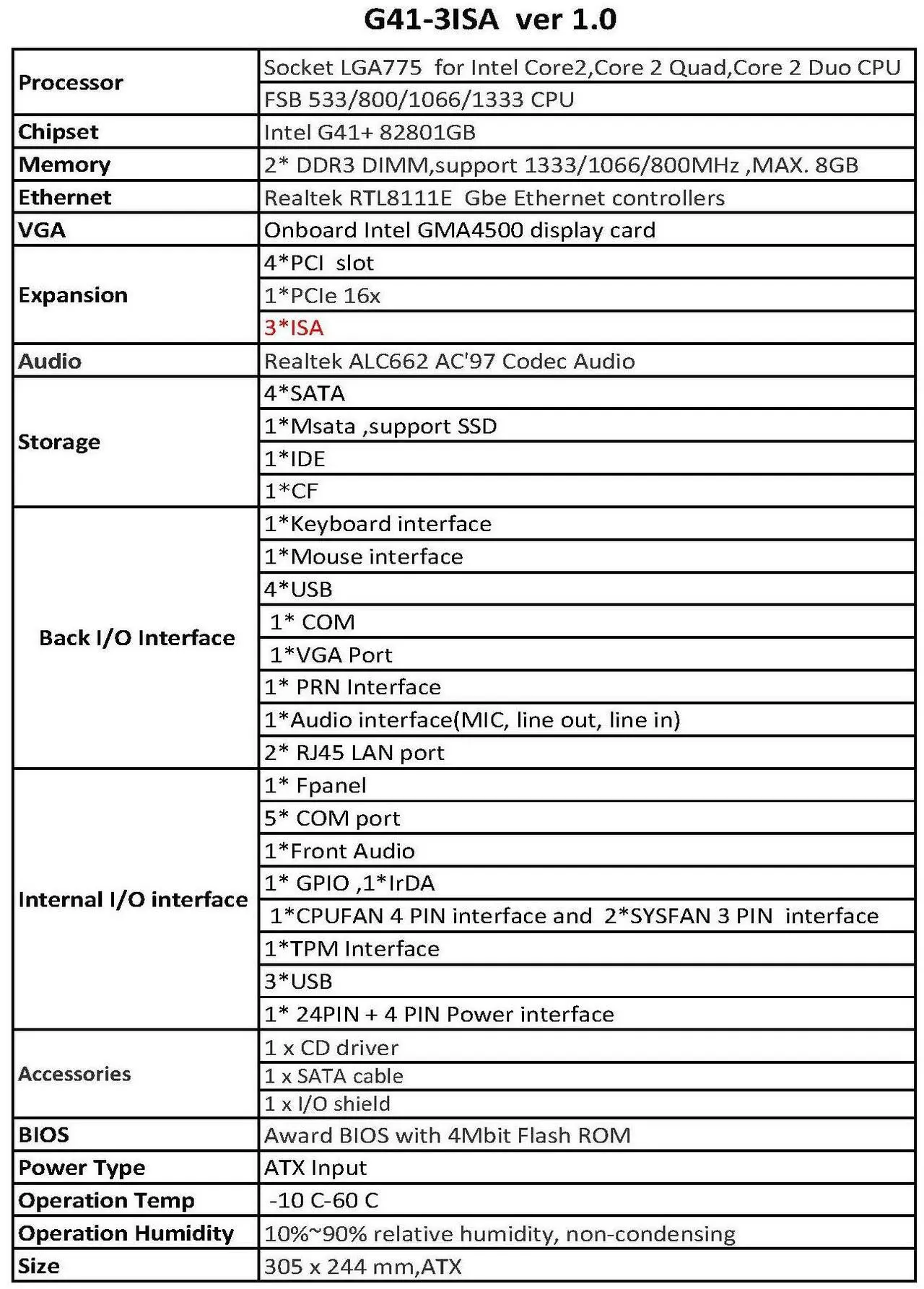

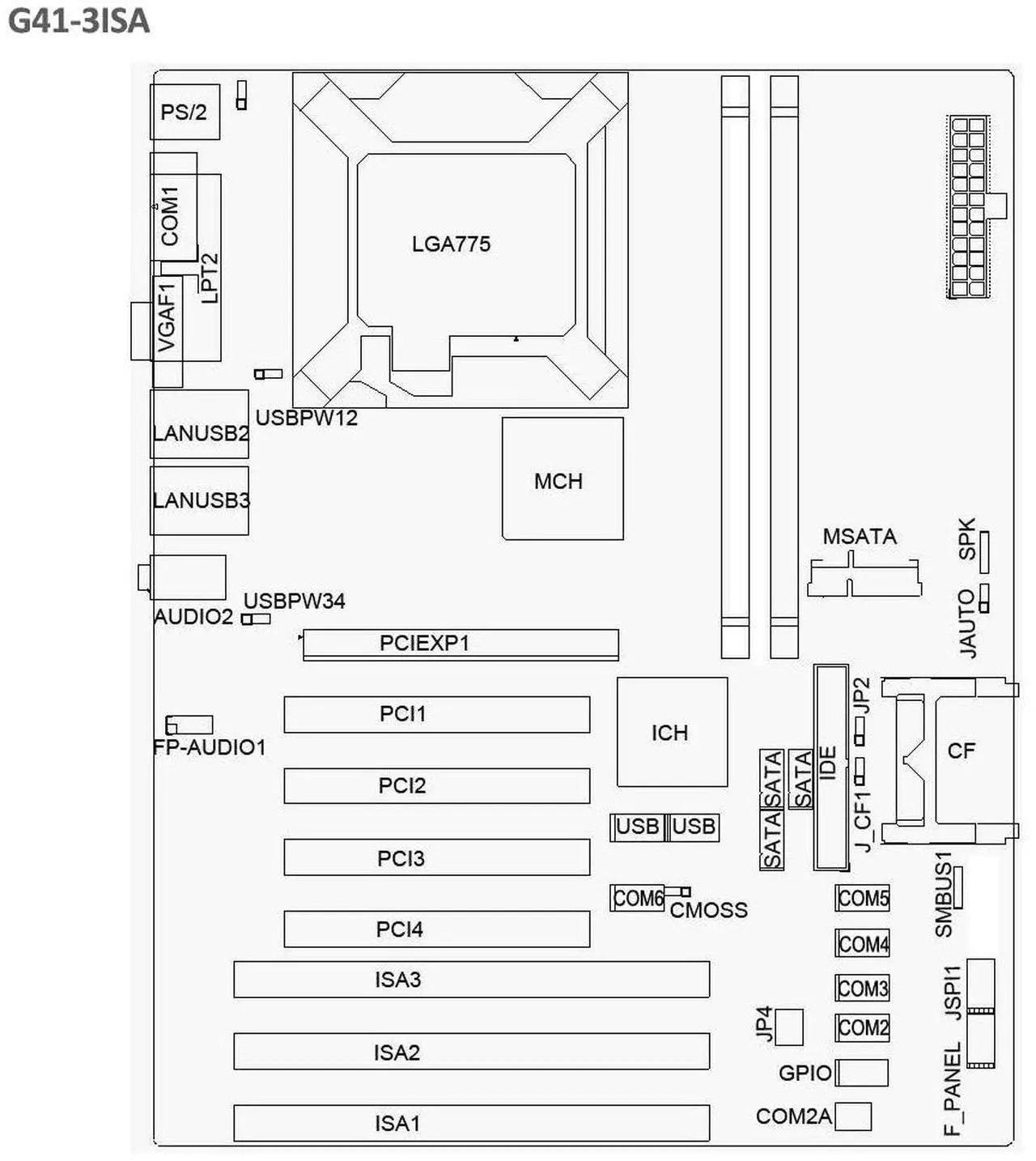

ISA Motherboard . Model No.: G41-3ISA
Processor: Socket LGA775 for Core2, Core 2 Quad, Core 2 Duo CPU
FSB 533/800/1066/1333 CPU
Chipset: G41+ 82801GB
Memory: 2* DDR3 DIMM Slots, support 1333/1066/800MHz, MAX. 8GB
Ethernet: Realtek RTL8111E Gbe Ethernet controllers
VGA: Onboard GMA4500 display card
Expansion:
4*PCI slots
1*PCIe 16x
3*ISA
Audio: Realtek ALC662 AC'97 Codec Audio
Storage:
4*SATA
1*Msata, support SSD
1*IDE
1*CF

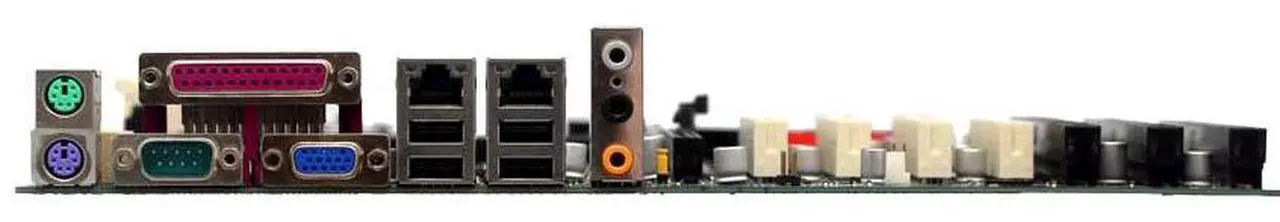

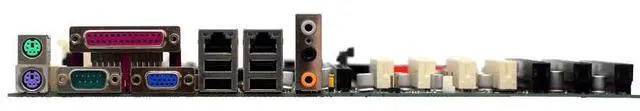

Back I/O Interface:
1*Keyboard interface
1*Mouse interface
4*USB ports
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
Internal I/O interface:
1* Fpanel
5* COM port
1*Front Audio
1* GPIO, 1*IrDA
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
1*TPM Interface
3*USB
1* 24PIN + 4 PIN Power interface
BIOS
Award BIOS with 4Mbit Flash ROM
Power Type: ATX Input
Operation Temp: -10 C-60 C
Operation Humidity: 10%~90% relative humidity, non-condensing
Size: 305 x 244 mm, ATX
Processor: Socket LGA775 for Core2, Core 2 Quad, Core 2 Duo CPU
FSB 533/800/1066/1333 CPU
Chipset: G41+ 82801GB
Memory: 2* DDR3 DIMM Slots, support 1333/1066/800MHz, MAX. 8GB
Ethernet: Realtek RTL8111E Gbe Ethernet controllers
VGA: Onboard GMA4500 display card
Expansion:
4*PCI slots
1*PCIe 16x
3*ISA
Audio: Realtek ALC662 AC'97 Codec Audio
Storage:
4*SATA
1*Msata, support SSD
1*IDE
1*CF
Back I/O Interface:
1*Keyboard interface
1*Mouse interface
4*USB ports
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
Internal I/O interface:
1* Fpanel
5* COM port
1*Front Audio
1* GPIO, 1*IrDA
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
1*TPM Interface
3*USB
1* 24PIN + 4 PIN Power interface
BIOS
Award BIOS with 4Mbit Flash ROM
Power Type: ATX Input
Operation Temp: -10 C-60 C
Operation Humidity: 10%~90% relative humidity, non-condensing
Size: 305 x 244 mm, ATX
