$249.00
Ships from China.
Meet Your Seller

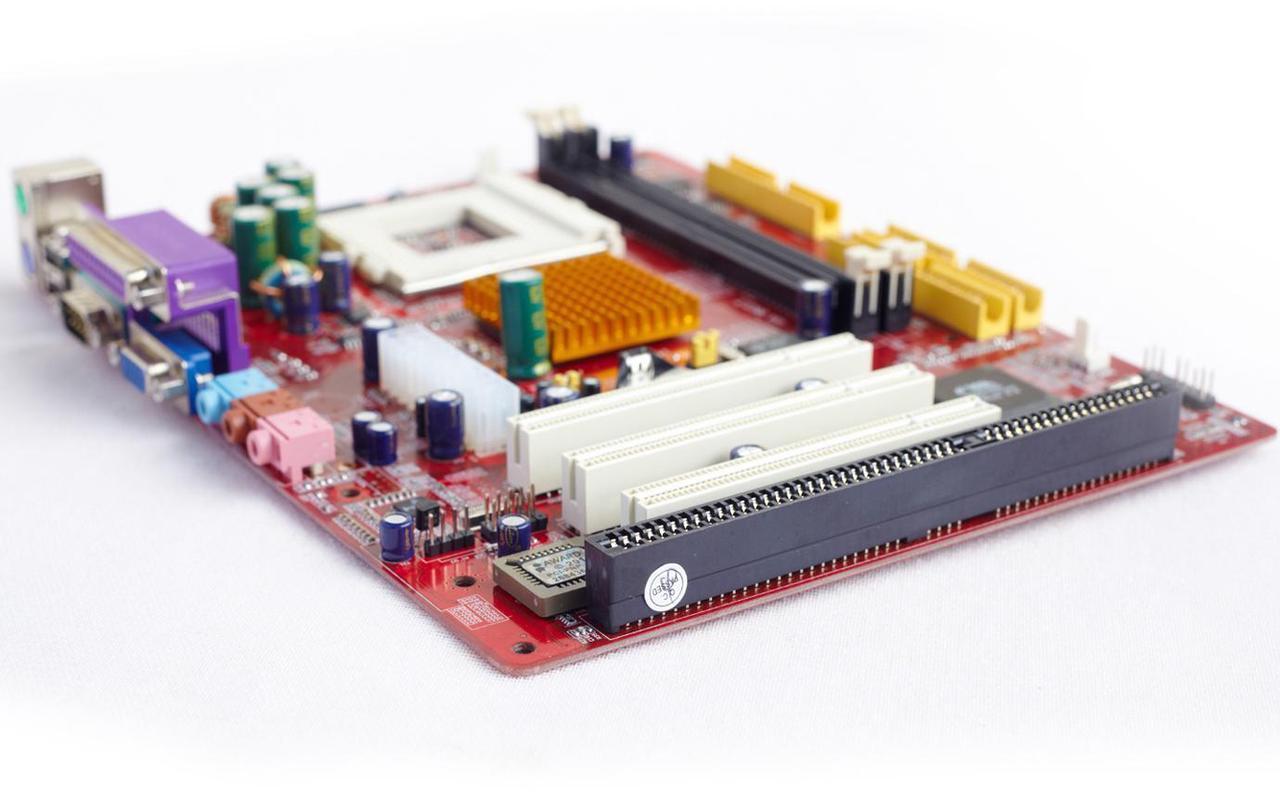

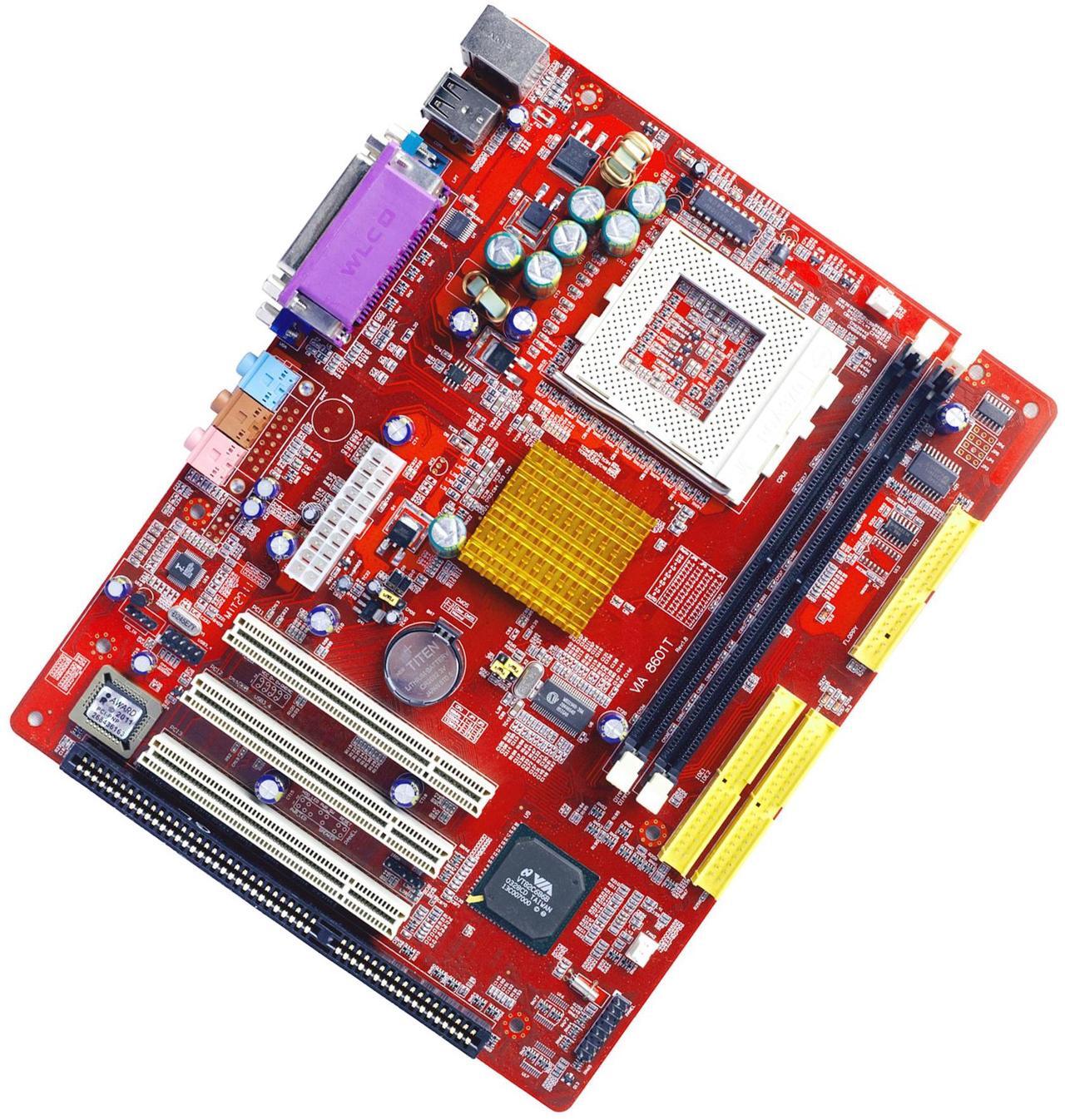

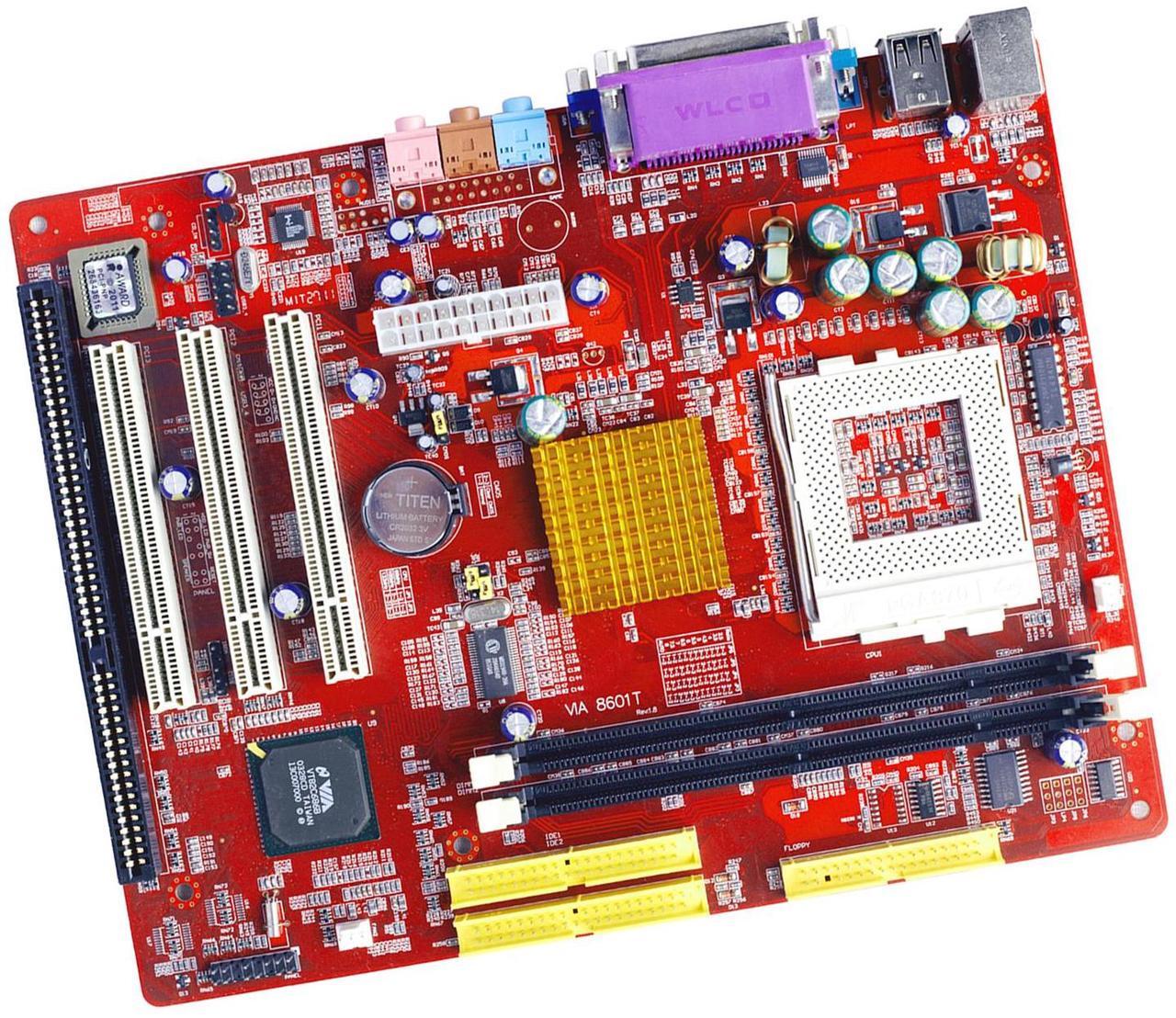

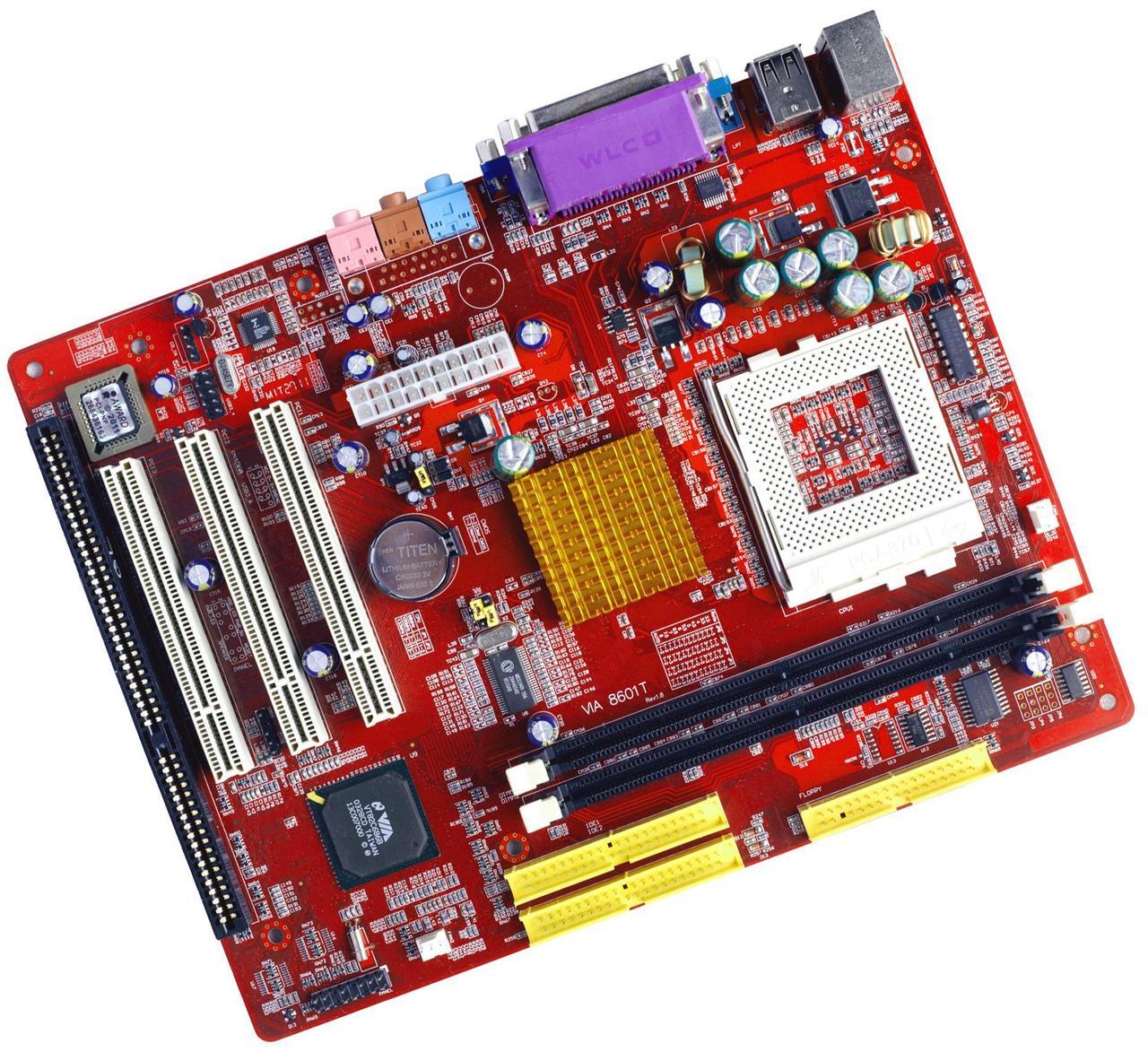

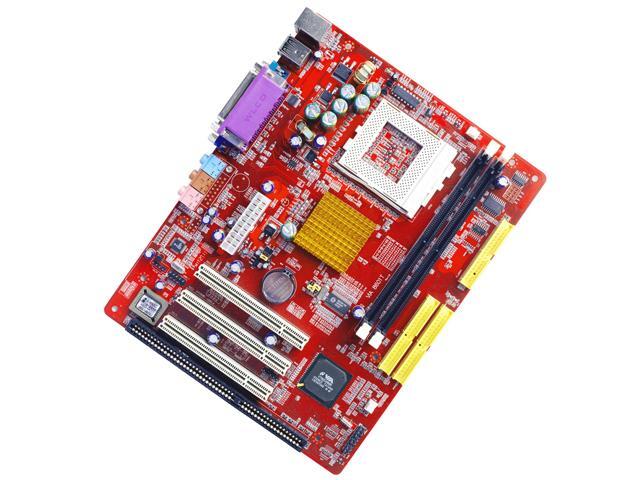

V8601T ISA PCI Motherboard mATX Mainboard,3 PCI Slots,Chipset Via 8601,with 1 ISA Slot,Socket 370 Pentium 3,Celeron 2/3 CPU,2 SDRAM Slots 8601T For Industrial Computer Server
- ISA mATX Mainboard,Compatible devices: Industrial Server,PC Desktop,Computer,VIA8601 Industrial mATX mainboard
- Chipset: VIA 8601(NB), VIA 8606(SB)
- Cpu model socket: Socket 370 Pentium 3,Celeron 2/3 CPU,max 1.3GHz ,FSB 66/100/133 MHZ,Memory:2*168pin DIMM,SD-RAM 100/133 max.up to 512MB
- Slots: 3*PCI slots,1*ISA ,1*VGA port ,1* COM
- ISA Industrial computer motherboard ,Micro ATX Board,ISA Slot Mainboard,Industrial computer PC desktop server
- Size :192 mm(W) X 244 mm (L) ,Micro ATX form factor, ISA Industrial computer motherboard Desktop Server
+
+
Overview
Specs
Reviews

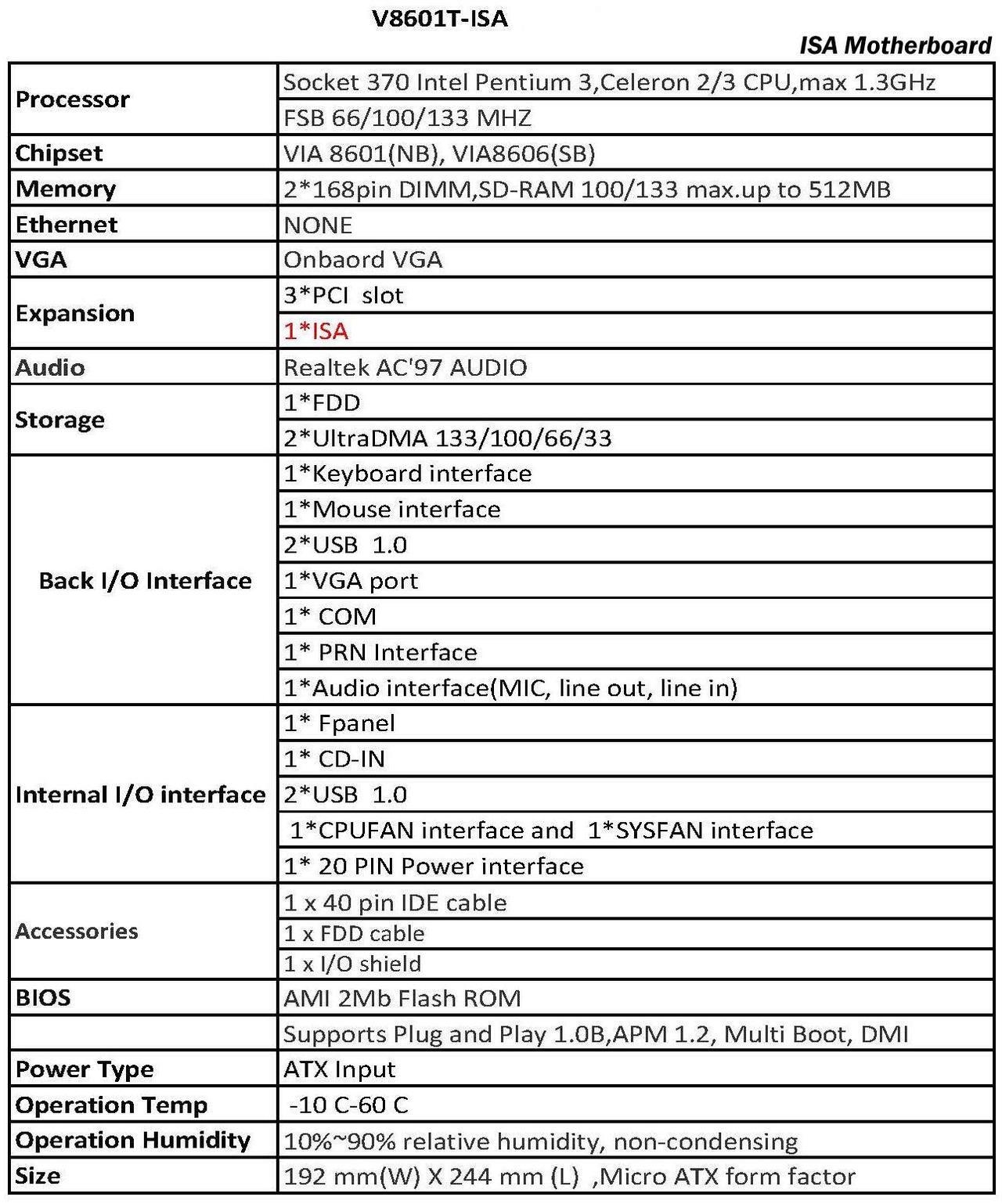

Model No.: V8601T with 1 ISA Slot
Processor: Socket 370 Pentium 3, Celeron 2/3 CPU, max 1.3GH z
FSB 66/100/133 MHZ
Chipset: VIA 8601 (NB), VIA8606 (SB)
Memory: 2*168pin DIMM, SD-RAM 100/133 max. up to 512MB
Ethernet: NONE
VGA: Onbaord VGA
Expansion:
3*PCI slots
1*ISA
Audio: Realtek AC'97 AUDIO
Storage: 1*FDD
2*UltraDMA 133/100/66/33

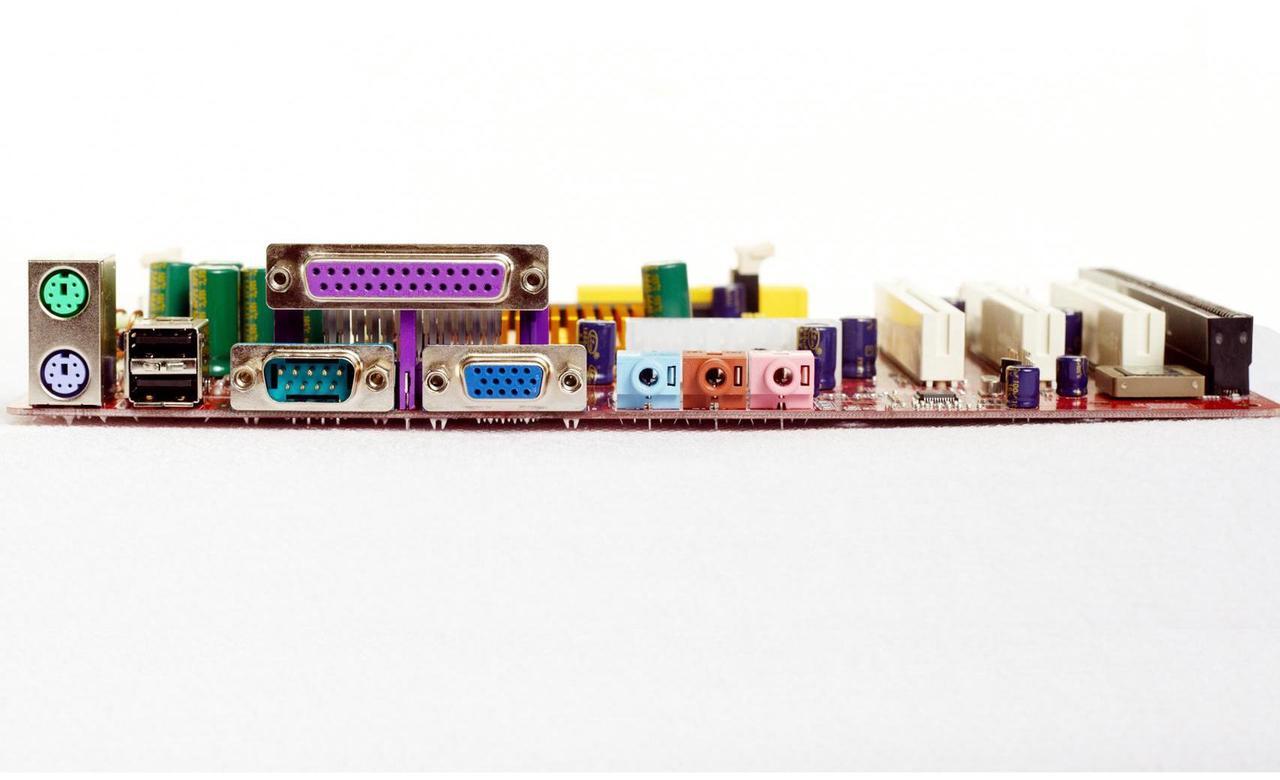

Back I/O Interface: 1*Keyboard interface
1*Mouse interface
2*USB 1.0
1*VGA port
1* COM
1* PRN Interface
1*Audio interface(MIC, line out, line in)
Internal I/O interface:

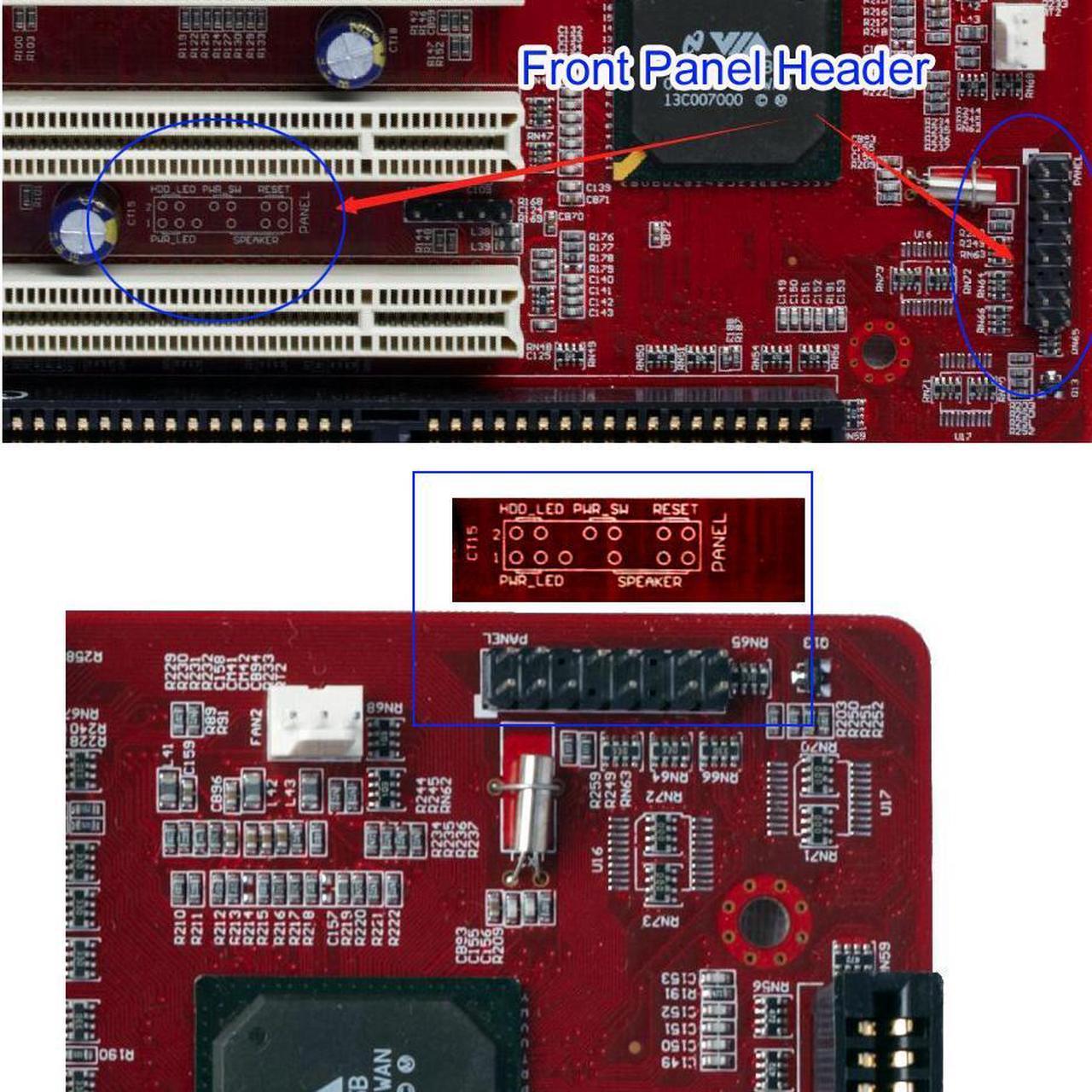

1* Fpanel
1* CD-IN
2*USB 1.0
1*CPUFAN interface and 1*SYSFAN interface
1* 20 PIN Power interface
Accessories: 1 x 40 pin IDE cable
1 x FDD cable
1 x I/O shield
BIOS: AMI 2Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Power Type: ATX Input
Operation Temp: -10 C-60 C
Operation Humidity 10%~90% relative humidity, non-condensing
Size: 192 mm (W) X 244 mm (L), Micro ATX form factor
============
Processor: Socket 370 Pentium 3, Celeron 2/3 CPU, max 1.3GH z
FSB 66/100/133 MHZ
Chipset: VIA 8601 (NB), VIA8606 (SB)
Memory: 2*168pin DIMM, SD-RAM 100/133 max. up to 512MB
Ethernet: NONE
VGA: Onbaord VGA
Expansion:
3*PCI slots
1*ISA
Audio: Realtek AC'97 AUDIO
Storage: 1*FDD
2*UltraDMA 133/100/66/33
Back I/O Interface: 1*Keyboard interface
1*Mouse interface
2*USB 1.0
1*VGA port
1* COM
1* PRN Interface
1*Audio interface(MIC, line out, line in)
Internal I/O interface:
1* Fpanel
1* CD-IN
2*USB 1.0
1*CPUFAN interface and 1*SYSFAN interface
1* 20 PIN Power interface
Accessories: 1 x 40 pin IDE cable
1 x FDD cable
1 x I/O shield
BIOS: AMI 2Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Power Type: ATX Input
Operation Temp: -10 C-60 C
Operation Humidity 10%~90% relative humidity, non-condensing
Size: 192 mm (W) X 244 mm (L), Micro ATX form factor
============
