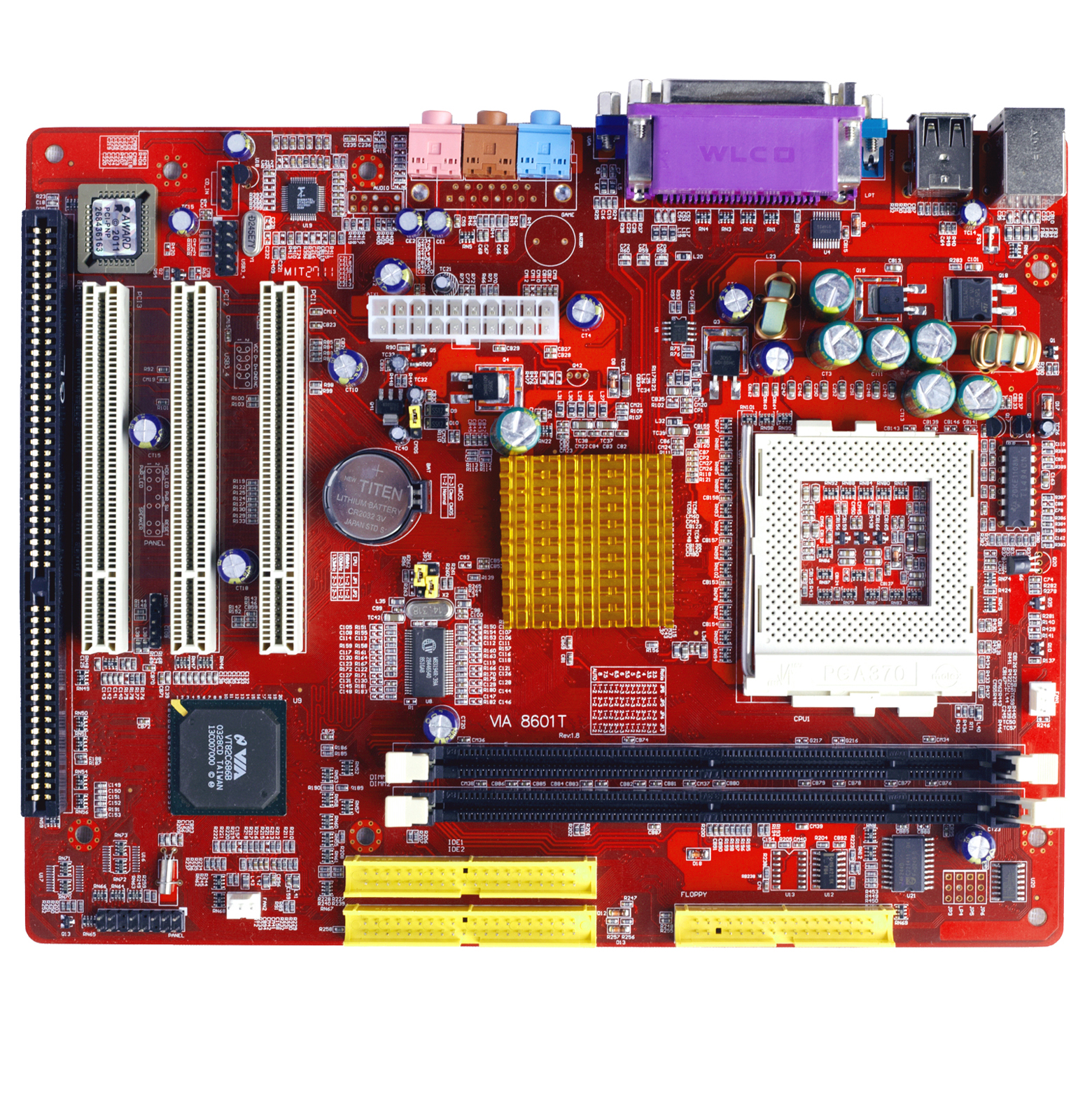

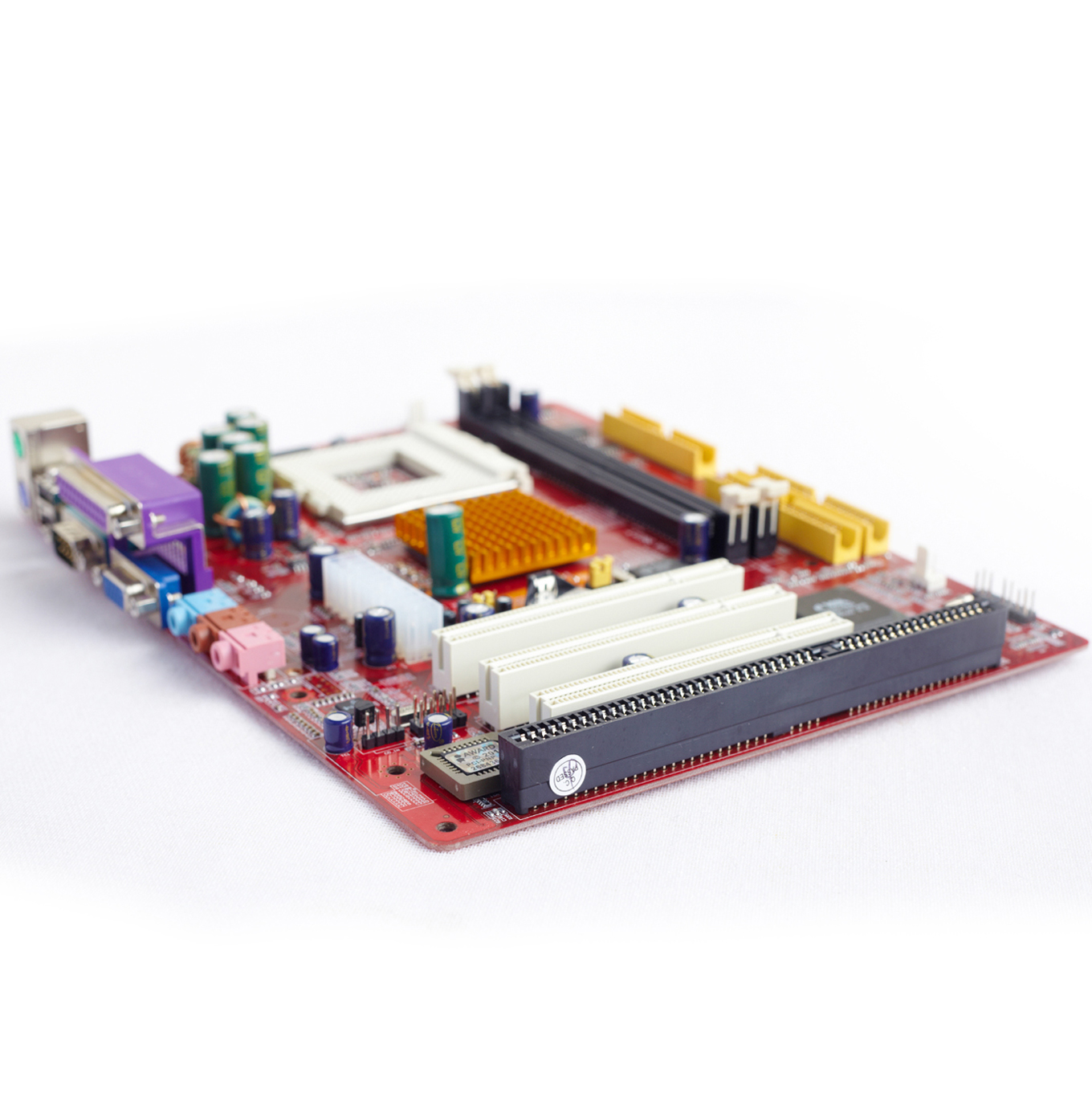

PCI Motherboard Mainboard with PCI Slots
V8601T Features
- CHIPSET: Features the VIA 8601T chipset, providing reliable performance for desktop PC builds and upgrades.
- DISTINCTIVE DESIGN: Bold red PCB makes this mainboard visually striking and easy to identify during installation.
- EXPANSION SLOTS: Equipped with 1 ISA Slot and 3 PCI slots to support a variety of add-on cards for enhanced functionality.
- CONNECTIVITY: Includes onboard I/O ports such as VGA, USB, parallel, and audio ports for versatile peripheral connections.
- DESKTOP COMPATIBILITY: Designed as a desktop mainboard replacement or upgrade, suitable for standard PC tower cases.
- 8601 ISA mATX Mainboard,Compatible devices: Industrial Computer Server,PC Desktop, PCI Motherboard
PCI Motherboard

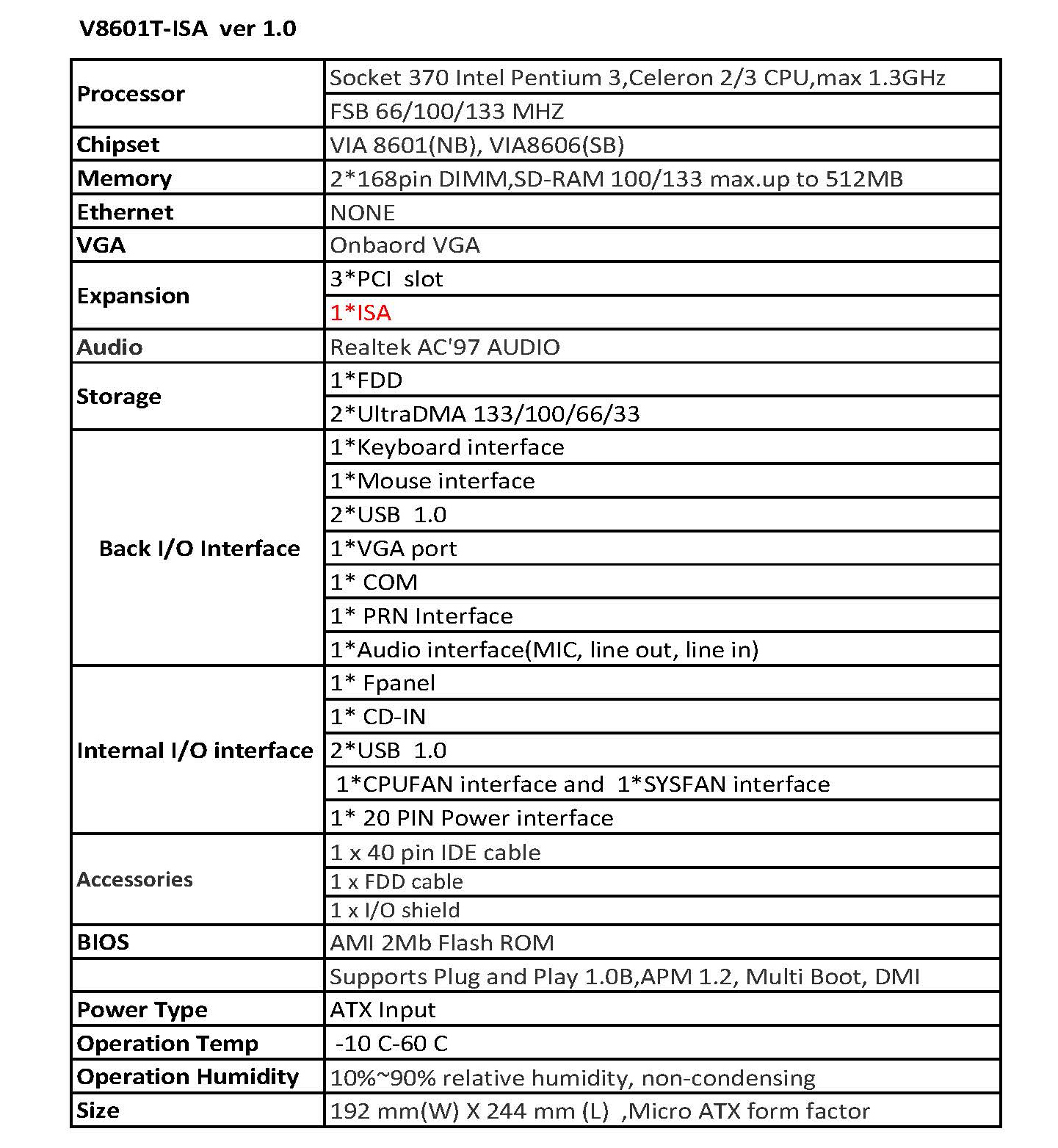

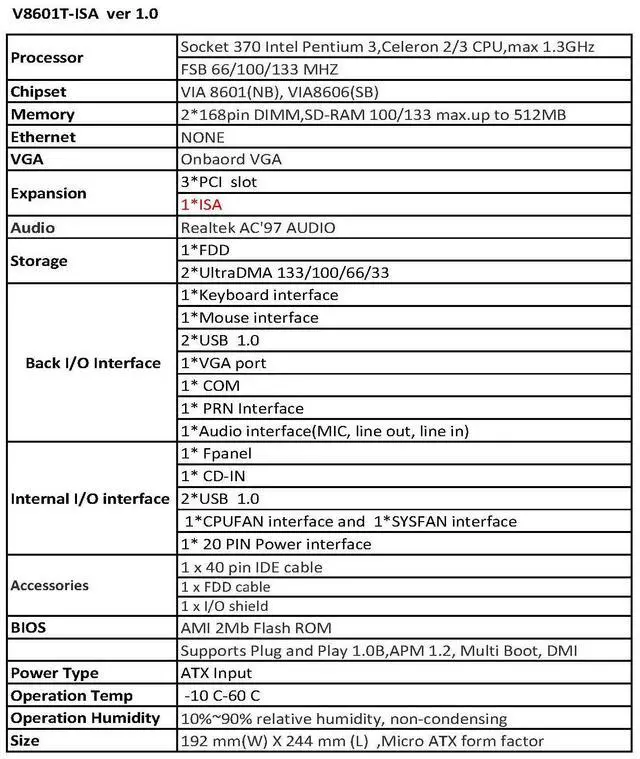

V8601T - Specification
- Processor: Socket 370 Pentium 3, Celeron 2/3 CPU, max 1.3GH z
- FSB 66/100/133 MHZ
- Chipset: VIA 8601 (NB), VIA8606 (SB)
- Memory: 2*168pin DIMM, SD-RAM 100/133 max. up to 512MB
- Micro ATX form factor
- Ethernet: NONE
- VGA: Onbaord VGA

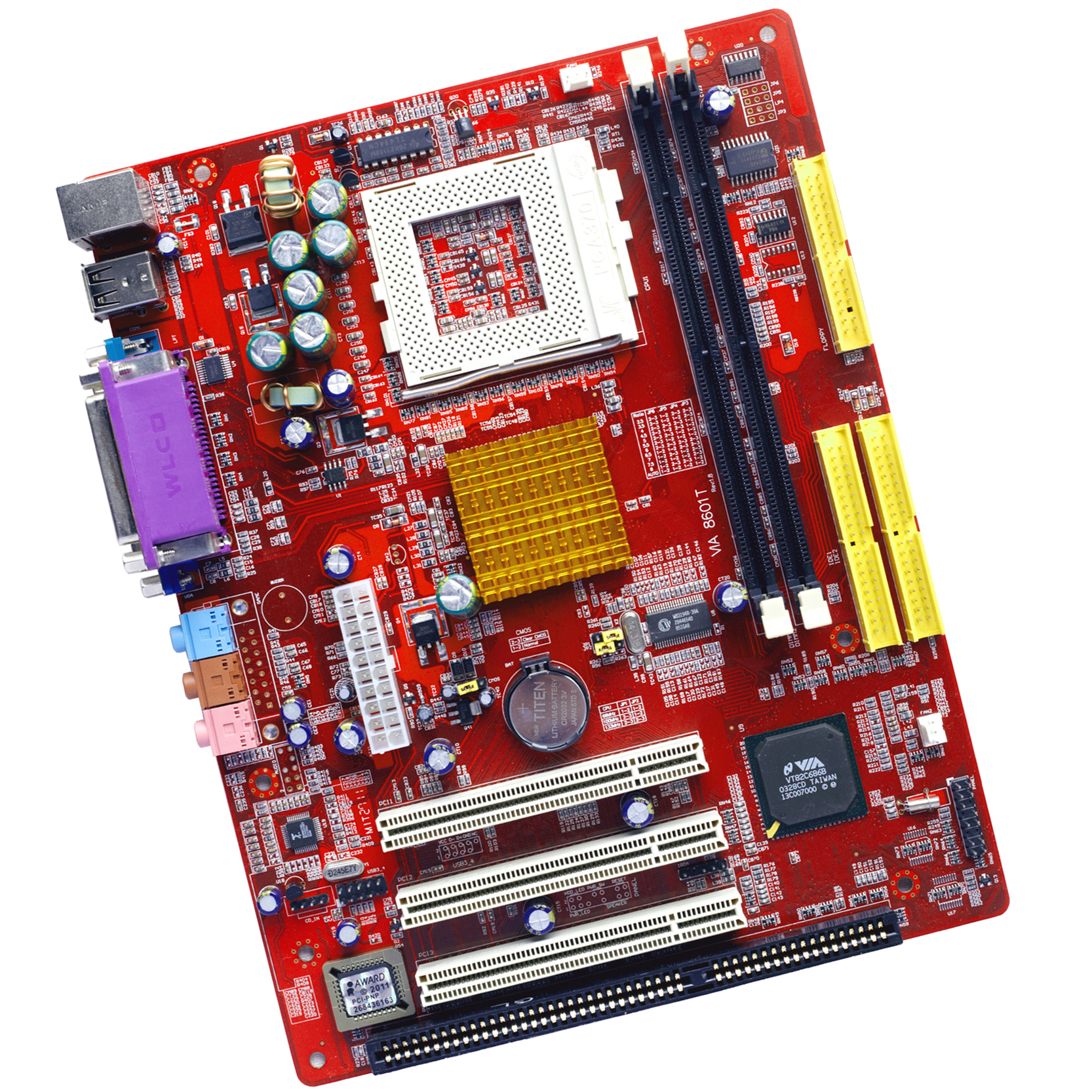

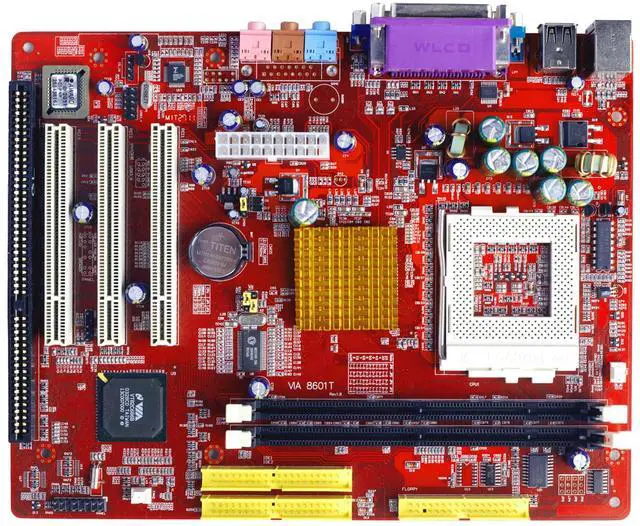

Motherboard with 3 PCI Slots
Motherboard Interface
Expansion:
3*PCI slots
1*ISA Slot
Audio:
Realtek AC'97 AUDIO
Storage:
1*FDD
2*UltraDMA 133/100/66/33

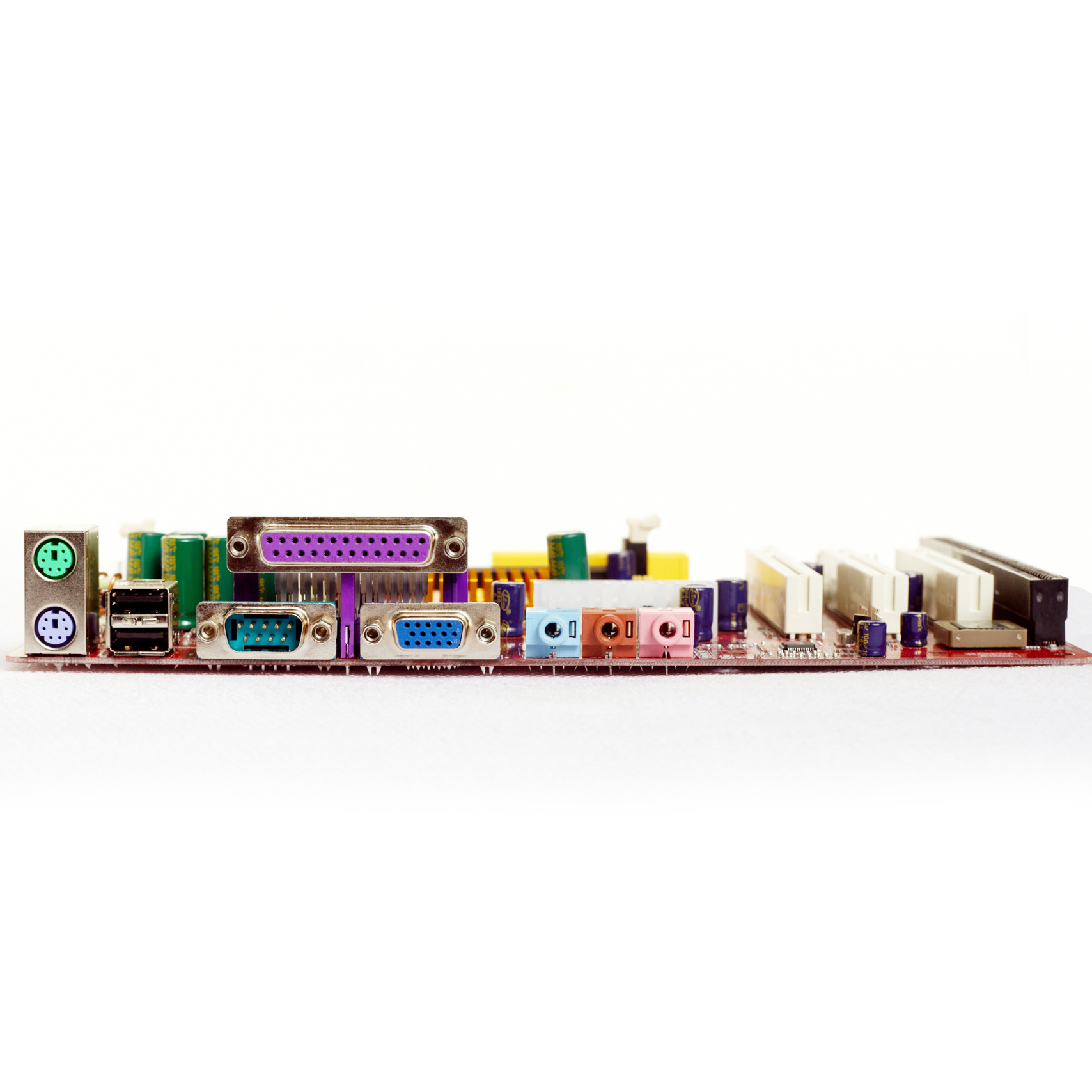

Back I/O Interface:
1*Keyboard interface
1*Mouse interface
2*USB 1.0
1*VGA Connector
1* COM Connector
1* PRN Interface
1*Audio interface(MIC, line out, line in)
Internal I/O interface:

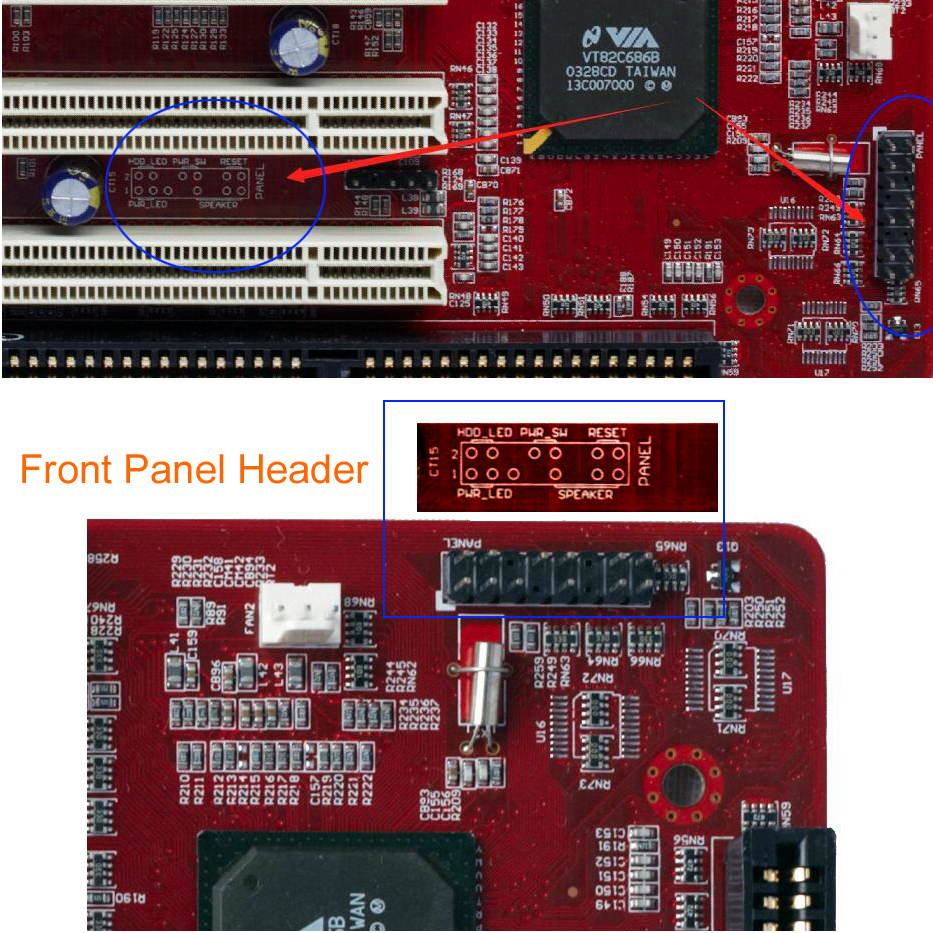

1* Fpanel
1* CD-IN
2*USB 1.0
1*CPUFAN interface and 1*SYSFAN interface
1* 20 PIN Power interface
Accessories:
1 x 40 pin IDE cable
BIOS:
AMI 2Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Size:
192 mm (W) X 244 mm (L),
Micro ATX form factor

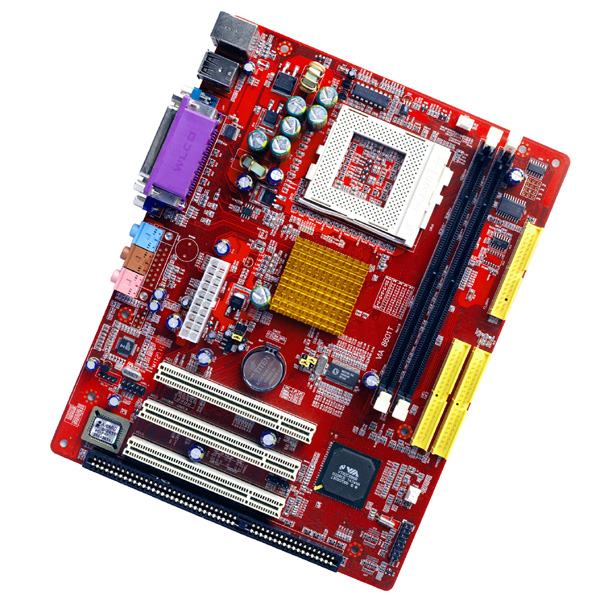

PCI Motherboard
PCI Mainboard Description
- The PCI Motherboard is a reliable desktop PC motherboard built around the 8601T chipset, making it a solid foundation for your next build or system upgrade. Featuring a striking red PCB, this board is as visually distinctive as it is functional.
- The VIA 8601T chipset delivers stable performance for everyday computing tasks, ensuring smooth and consistent operation.
- The board includes multiple expansion slots, memory slots , and a range of I/O ports including USB, parallel, VGA, and audio connectors, giving you the connectivity you need for a complete computer setup.
- Whether you are building a budget-friendly workstation or refreshing an existing system, this motherboard offers a dependable platform to get the job done.
- Its compact yet feature-rich layout makes installation straightforward for both experienced builders and newcomers alike.
