Specification

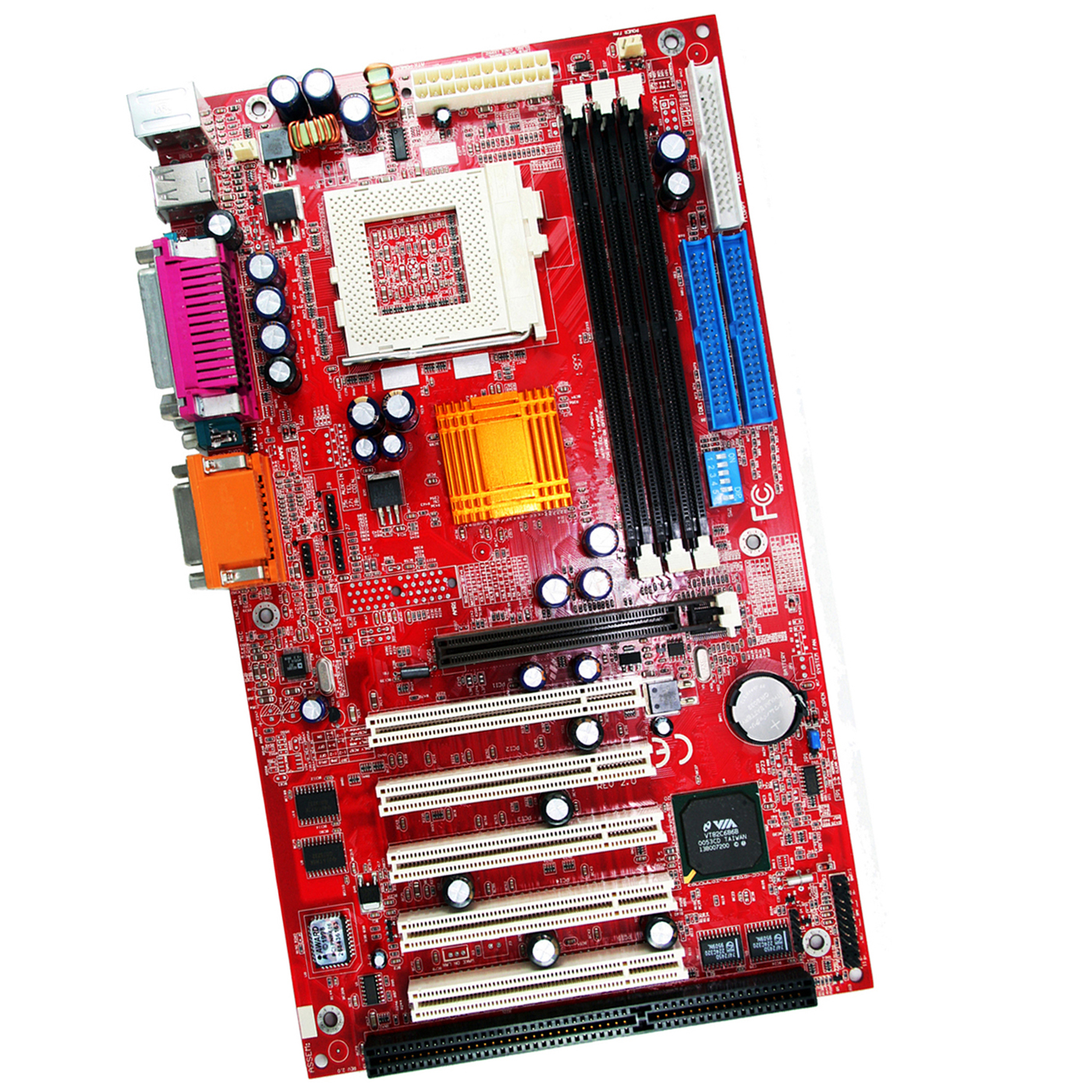

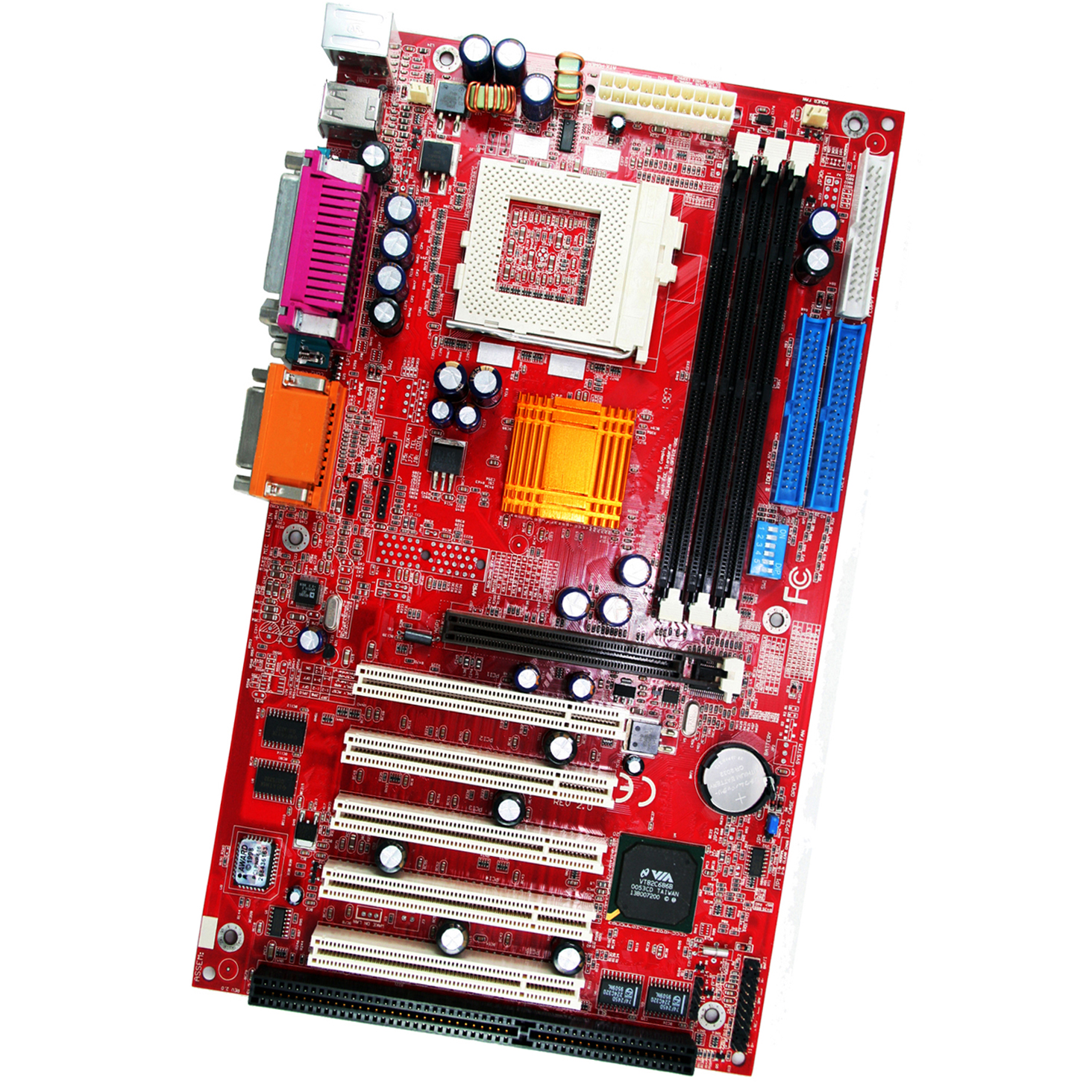

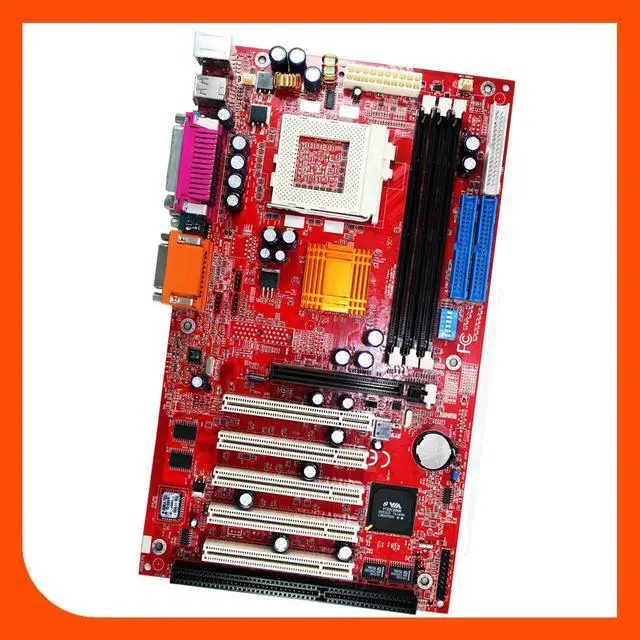

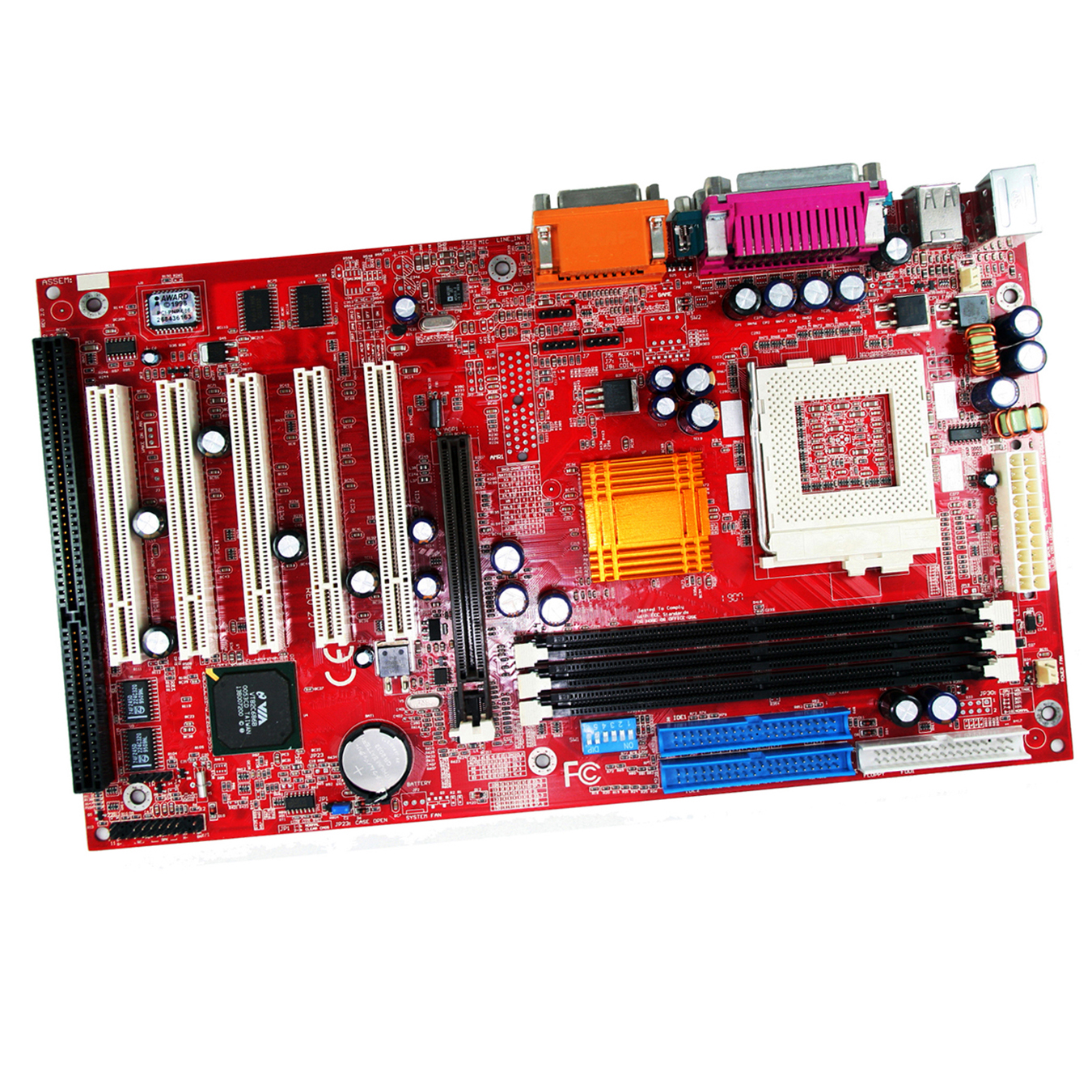

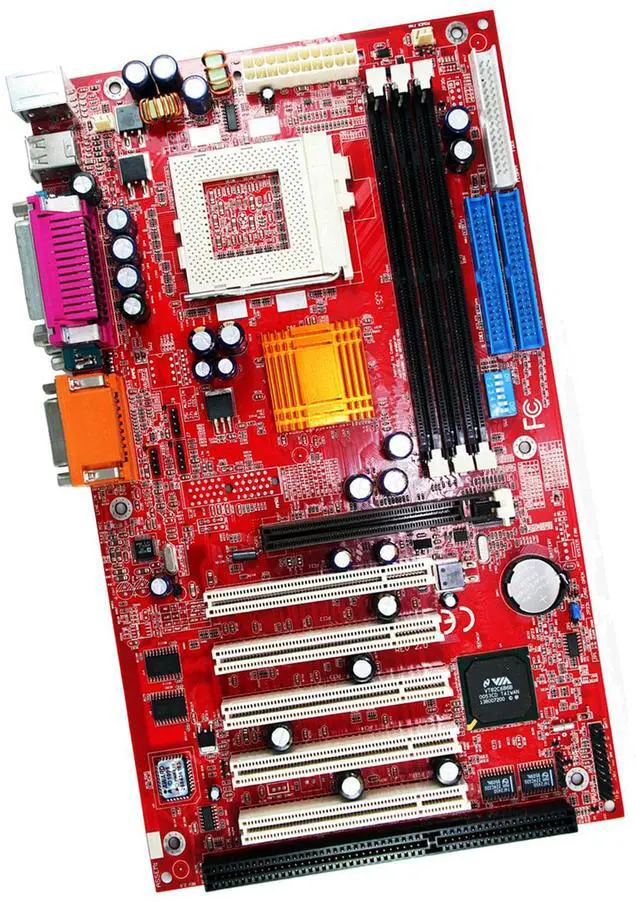

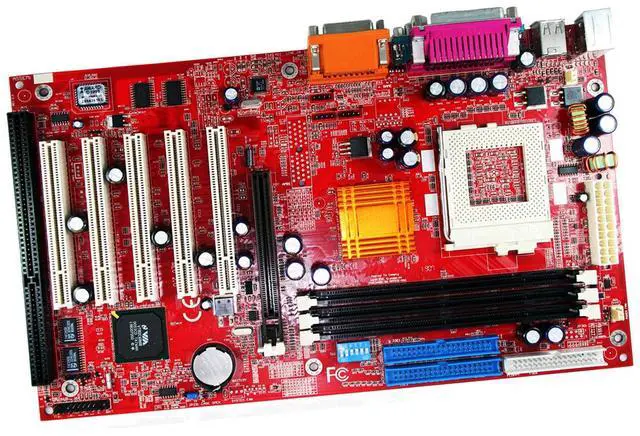

ATX PCI ISA Motherboard
- PCI Motherboard with ISA PCI slots for Industrial Computer
- CHIPSET: Socket 370 Pentium 3,Celeron 2/3 CPU,max 1.3GHz
FSB 66/100/133 MHZ.
- EXPANSION SLOTS: Equipped with 1 ISA and 5 PCI slots, offering versatile legacy and modern expansion options.
- CONNECTIVITY: Offers a range of rear I/O ports including USB ,COM, Keyboard,Mouse port for broad peripheral support.
- FORM FACTOR: ATX form factor design ensures compatibility with standard ATX cases for easy installation.
- MEMORY SUPPORT: Includes 3*168pin DIMM,SD-RAM 100/133 max.up to 512MB for reliable system performance.

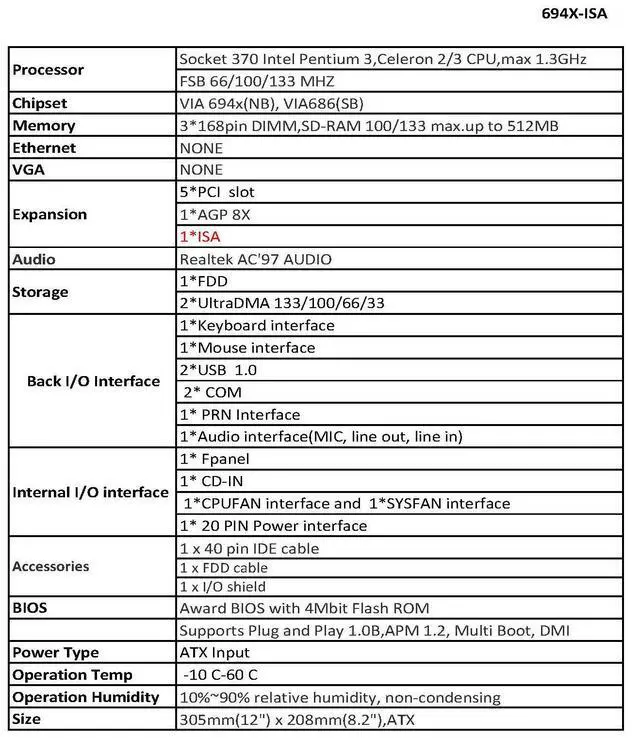

694x
ISA PCI Motherboard
Processor : Socket 370 Pentium 3,Celeron 2/3 CPU,max 1.3GHz
FSB 66/100/133 MHZ
Chipset : VIA 694x(NB), VIA686(SB)
Memory : 3*168pin DIMM,SD-RAM 100/133 max.up to 512MB
Ethernet : NONE
VGA : NONE
Interface

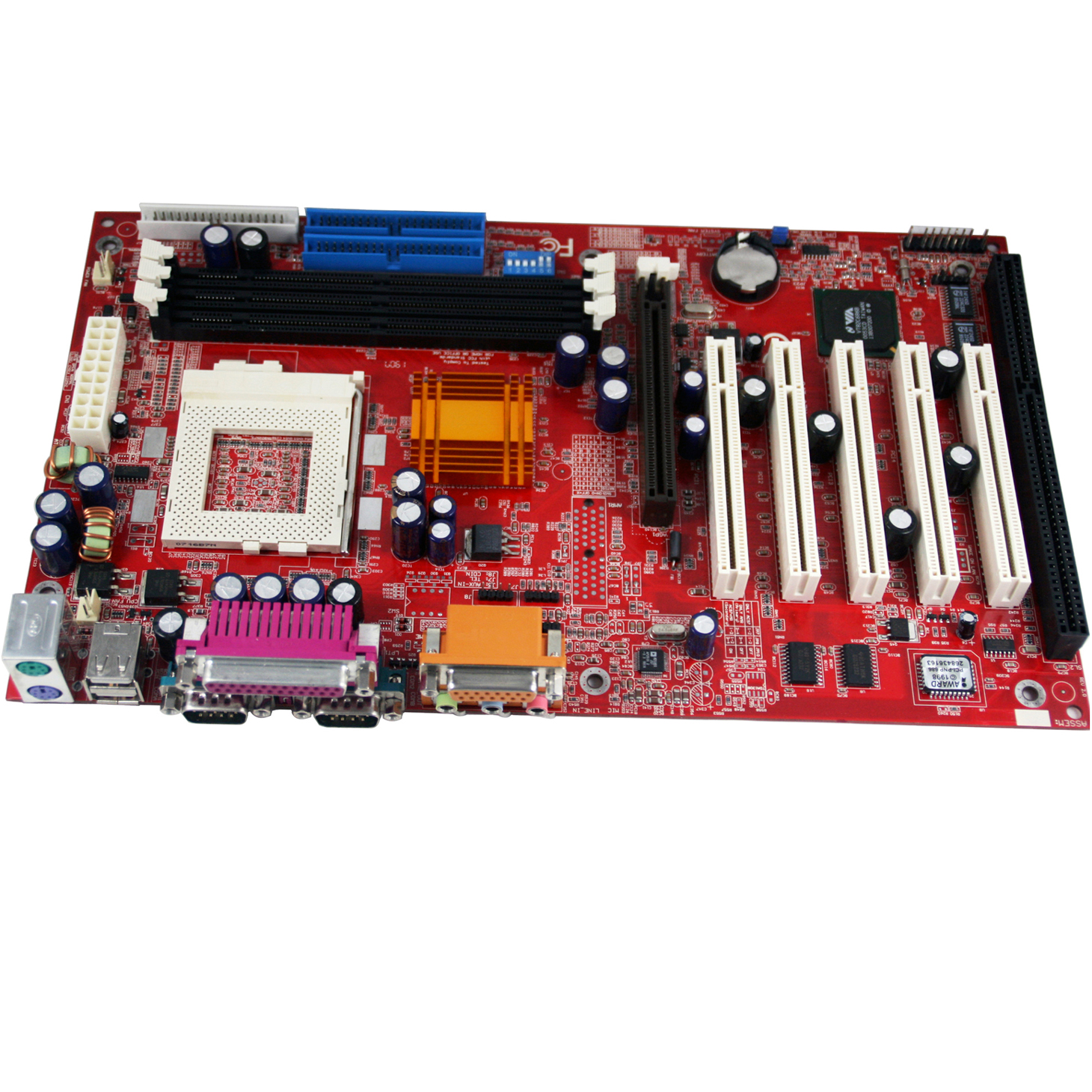

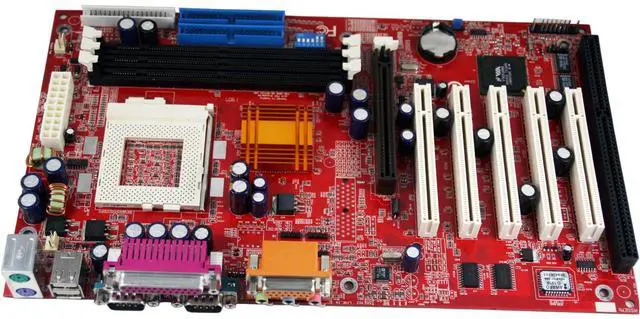

ATX Motherboard with 5 PCI 1 ISA Slots
- Expansion :
- 5*PCI slot
- 1*AGP 8X
- 1*ISA
- Audio : Realtek AC'97 AUDIO
- Storage : 1*FDD
- 2*UltraDMA 133/100/66/33

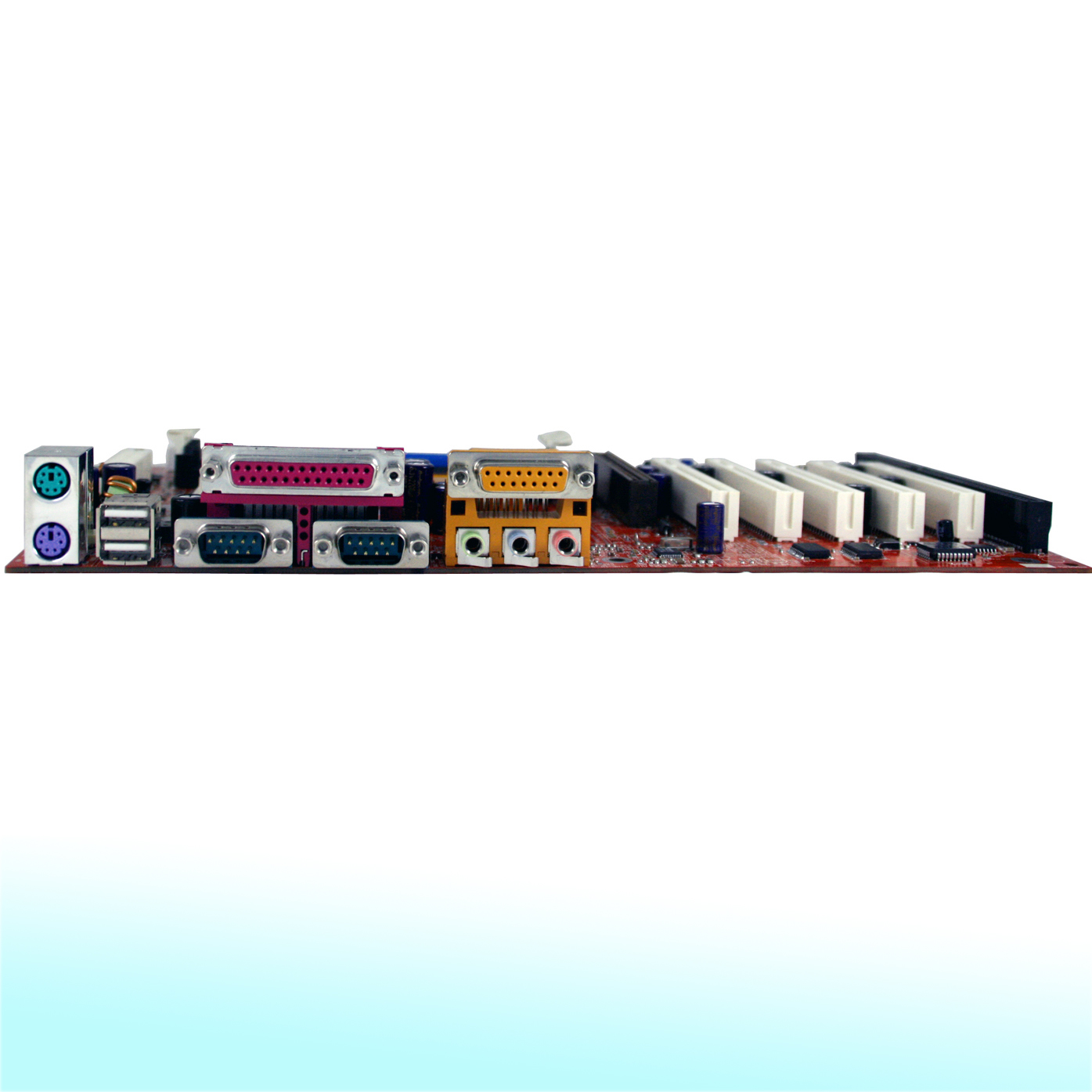

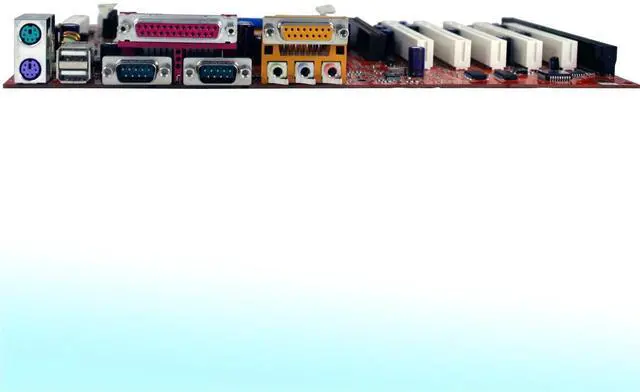

- - Back I/O Interface :
- 1*Keyboard interface
- 1*Mouse interface
- 2*USB 1.0
- 2* COM
- 1* PRN Interface
- 1*Audio interface(MIC, line out, line in)
- Internal I/O interface :
- 1* Fpanel
- 1* CD-IN
- 1*CPUFAN interface and 1*SYSFAN interface
- 1* 20 PIN Power interface
- Accessories :
- 1 x 40 pin IDE cable
- 1 x FDD cable
- 1 x I/O shield
- BIOS : Award BIOS with 4Mbit Flash ROM
- Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
- Power Type : ATX Input
- Operation Temp : -10 C-60 C
- Operation Humidity10%~90% relative humidity, non-condensing
- Size : 305mm(12") x 208mm(8.2"), ATX
