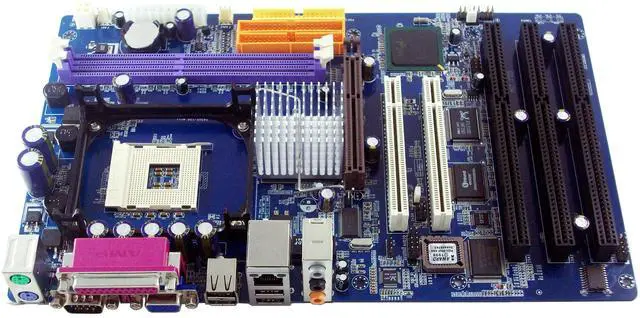

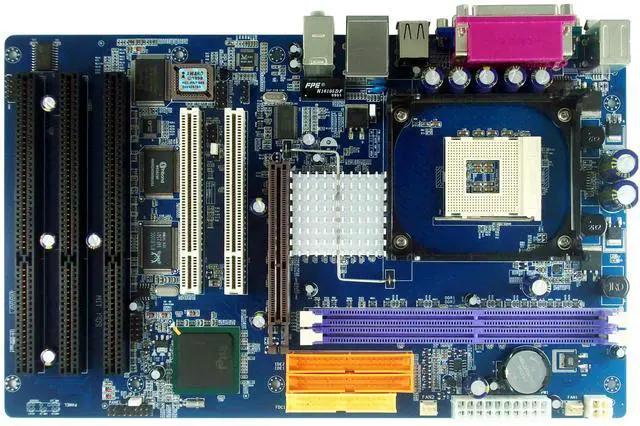

845GV ISA Mainboard with 3 ISA Slots,2 PCI,2 COM Ports ISA Motherboard Socket 478,for Industrial Computer Server 845
- 845GV ISA Industrial computer motherboard ,ATX Board
- Socket 478 FSB 533mhz motherboard,ATX industrial motherboard mainboard for ISA computer desktop server
- Chipset: 845GV+ ICH*4,Support Celeron 4 /Pentium 4 CPU
- with 3*ISA ports,2*PCI,2*COM (2 x RS-232),Onboard VGA,SOUND,LAN
- Support DDR 266/333 DIMM max up to 2GB
- SIZE:ATX,293mm * 180mm
- ISA Slot Mainboard for industrial computer desktop server personal computer PC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

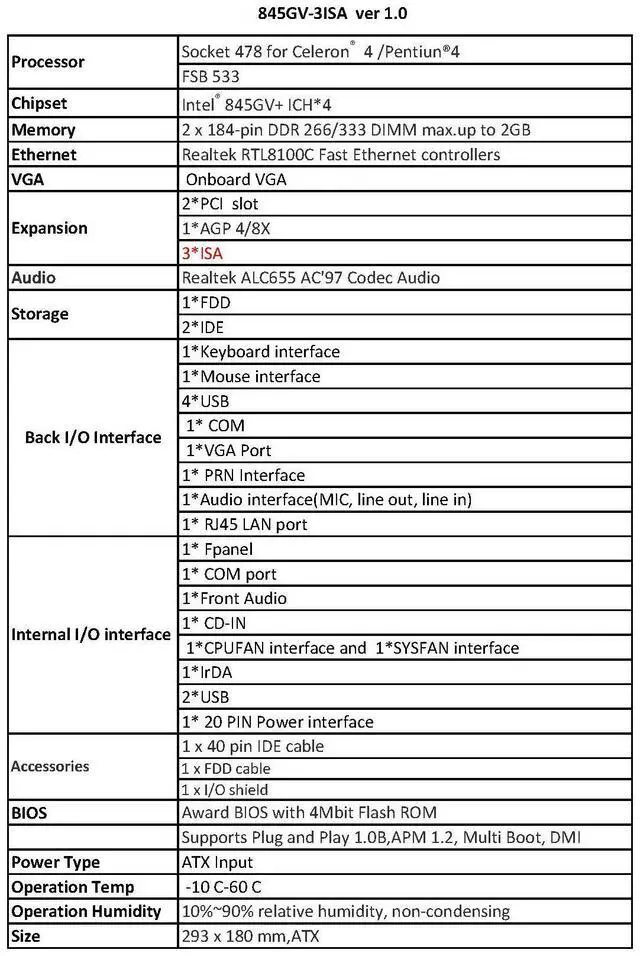

ISA Mainboard Model No.: 845GV-3ISA
CPU: Socket 478 for Celeron 4 /Pentiun4 ,
FSB 533
Memory: 2 x 184-pin DDR 266/333 DIMM max.up to 2GB
Chipset: 845GV+ ICH*4
BIOS: Award BIOS with 4Mbit Flash ROM
"Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI"
Expansion Interface: "2*PCI expansion slots,1*AGP 4/8X, 1*ISA "
MIO: "2 x ATA-100 IDE, 1 x FDD, 1 x PS/2 K/B, 1 x PS/2 MS, 1 x COM (1 x RS-232), 1 x LPT, 1 x RJ-45"
Ethernet: Realtek RTL8100C Fast Ethernet controllers
Audio: Realtek ALC655 AC'97 Codec Audio
USB: 6 x USB 2.0 ports (2 ports form 1 header)
Memory Size: Max.up to 64MB frame buffer sharing system memory
Output Interface: VGA port
Size: ATX
255 x 180 mm
CPU: Socket 478 for Celeron 4 /Pentiun4 ,
FSB 533
Memory: 2 x 184-pin DDR 266/333 DIMM max.up to 2GB
Chipset: 845GV+ ICH*4
BIOS: Award BIOS with 4Mbit Flash ROM
"Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI"
Expansion Interface: "2*PCI expansion slots,1*AGP 4/8X, 1*ISA "
MIO: "2 x ATA-100 IDE, 1 x FDD, 1 x PS/2 K/B, 1 x PS/2 MS, 1 x COM (1 x RS-232), 1 x LPT, 1 x RJ-45"
Ethernet: Realtek RTL8100C Fast Ethernet controllers
Audio: Realtek ALC655 AC'97 Codec Audio
USB: 6 x USB 2.0 ports (2 ports form 1 header)
Memory Size: Max.up to 64MB frame buffer sharing system memory
Output Interface: VGA port
Size: ATX
255 x 180 mm
