Will this work on pci express x1?

no it is a X4 slot compatible although it can use pci-e 2.0 slot like most motherboards have one X16 pci-e 3.0 and one X16 pci-e 2.0 use that slot if you have it free

I would just like to add that my system - MSI X370, Ryzen1700X (OC 4.1 GHz), 32gb GSkill DDR4 @2800, Radeon RX 480, and OS - WIN 10 PRO X64) - is completely UASP compliant. While the price of this card is very inexpensive and its true there is no direct mention of it being UASP compliant on its own site or anywhere else I looked, I definitely got the feeling it was implied or meant to be "understood" in more than a few different descriptions that I read about this card. Finally, the speeds I am getting from it firmly leads me to believe that it is, in fact, UASP compliant and therefore a truly excellent bargain for the price.

Does this card have to plug into a header connection on motherboard, or is that only for the faster 20G-bps & 40-Gbps Type-C Thunderbolt port addIn cards?

It needed a power connection but does not need to plug into a header. Other than the C port being so close to the edge (being elevated a few millimeters would help immensely), it was a snap to put in and use. Being close to the edge makes plugging into the port so close to the case slot edge challenging. Didn't even have to install any drivers.

Does this card support Display Port alternate mode for sending video through a USB C cable? This configuration is used for connecting a Cintiq Pro pen display. Thanks

Just tried tonight, it does not.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 13 wish lists)

Sold by Newegg

Shipped by Newegg

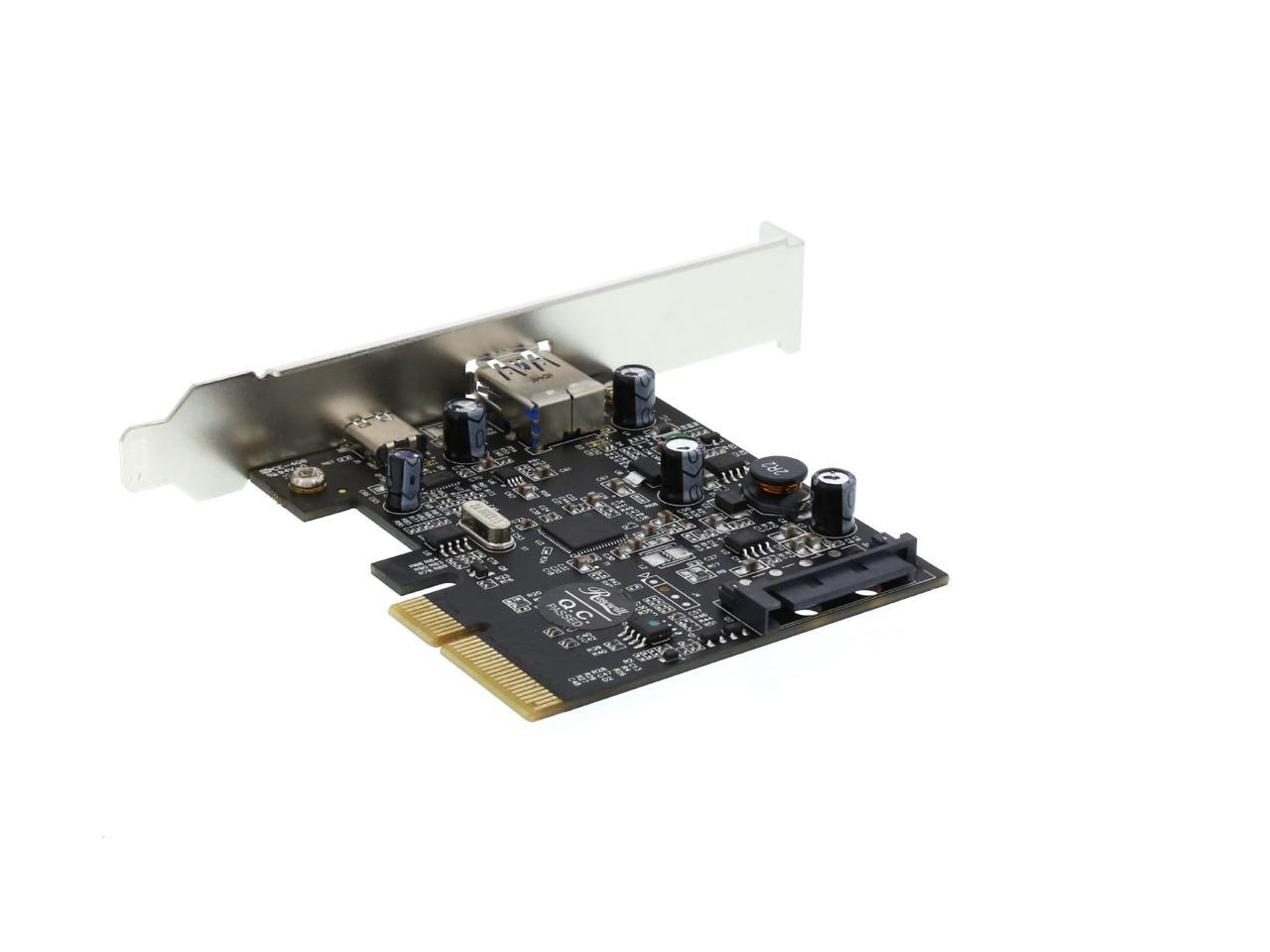

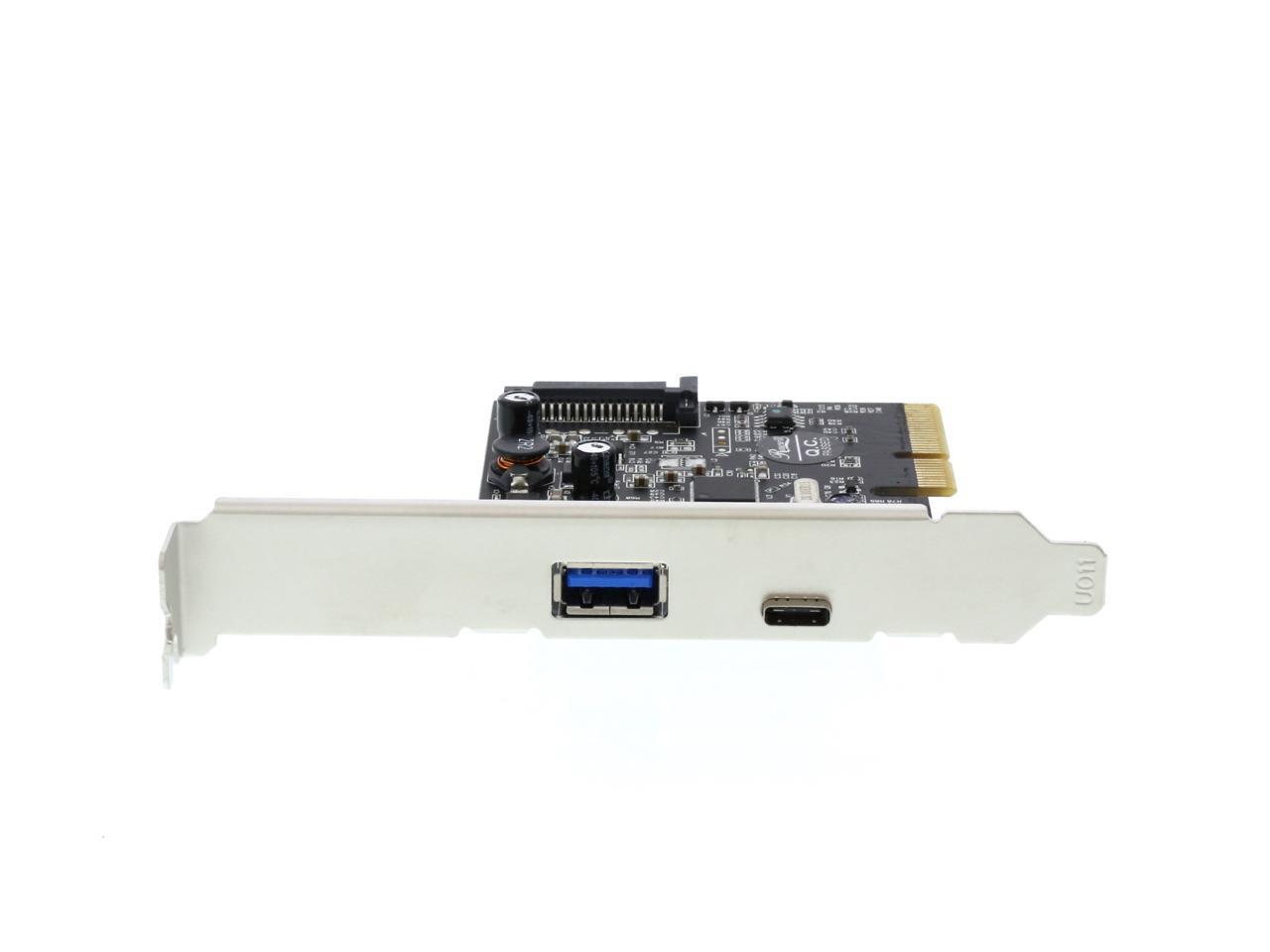

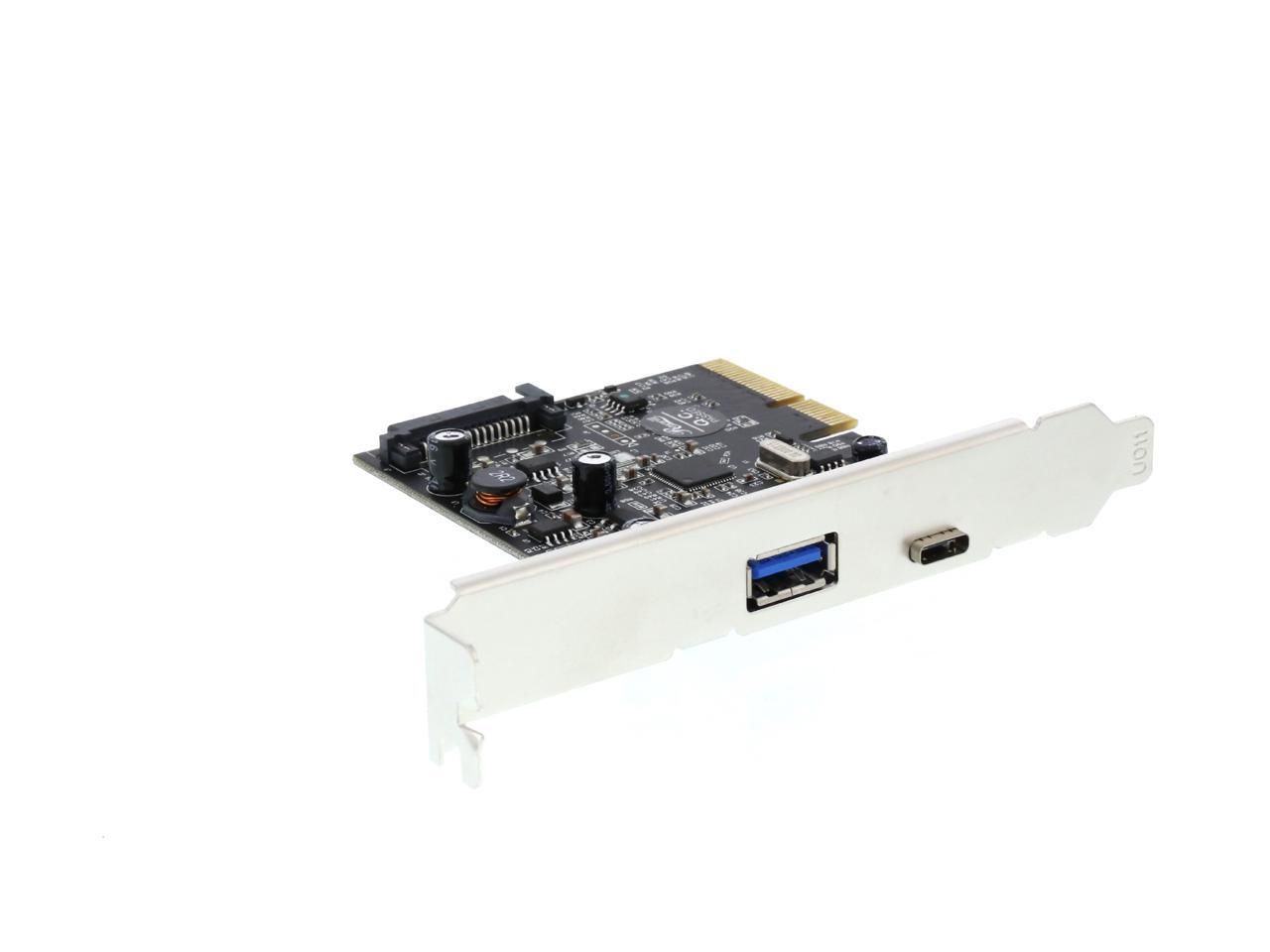

Main image of Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

100%

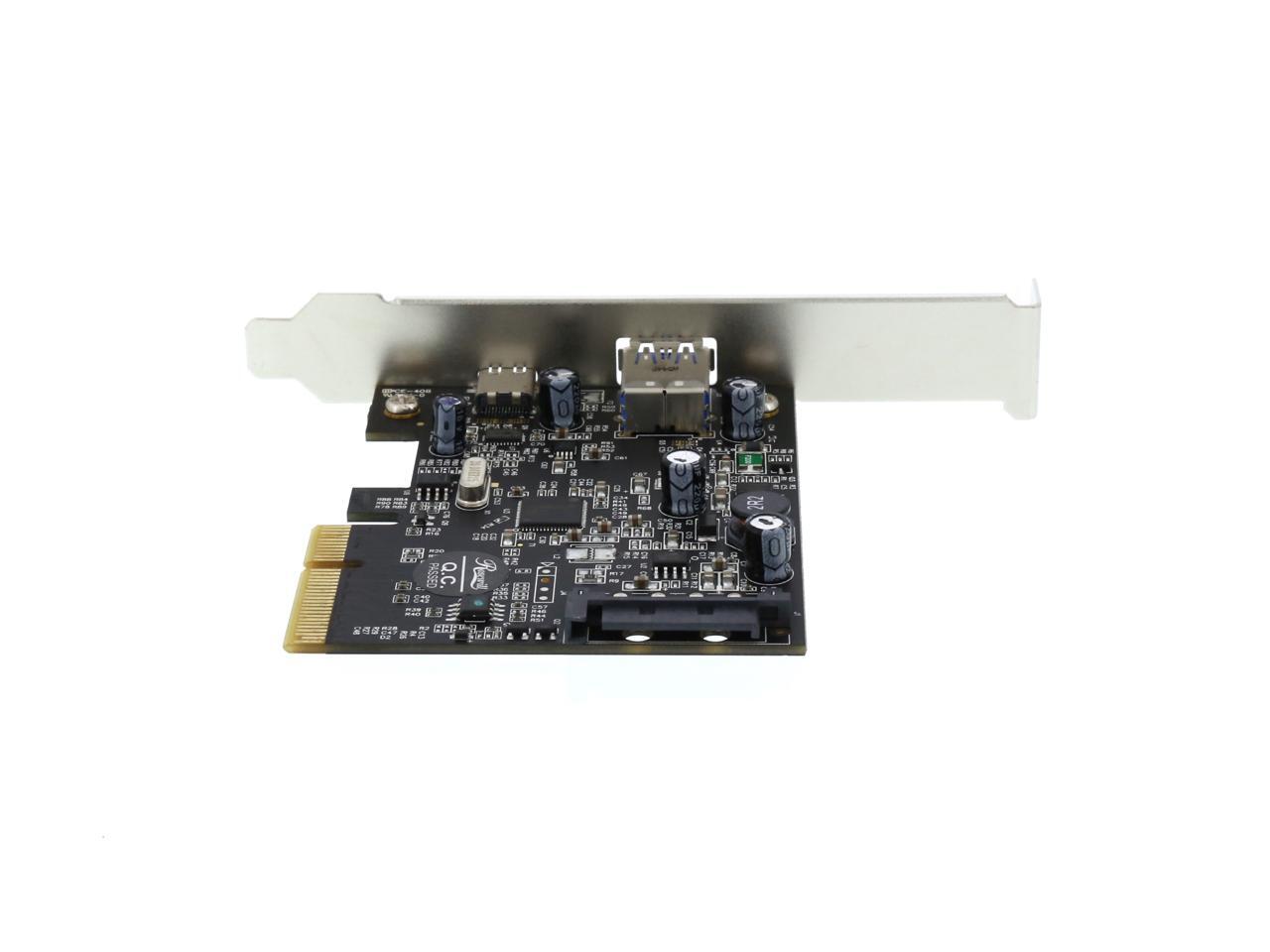

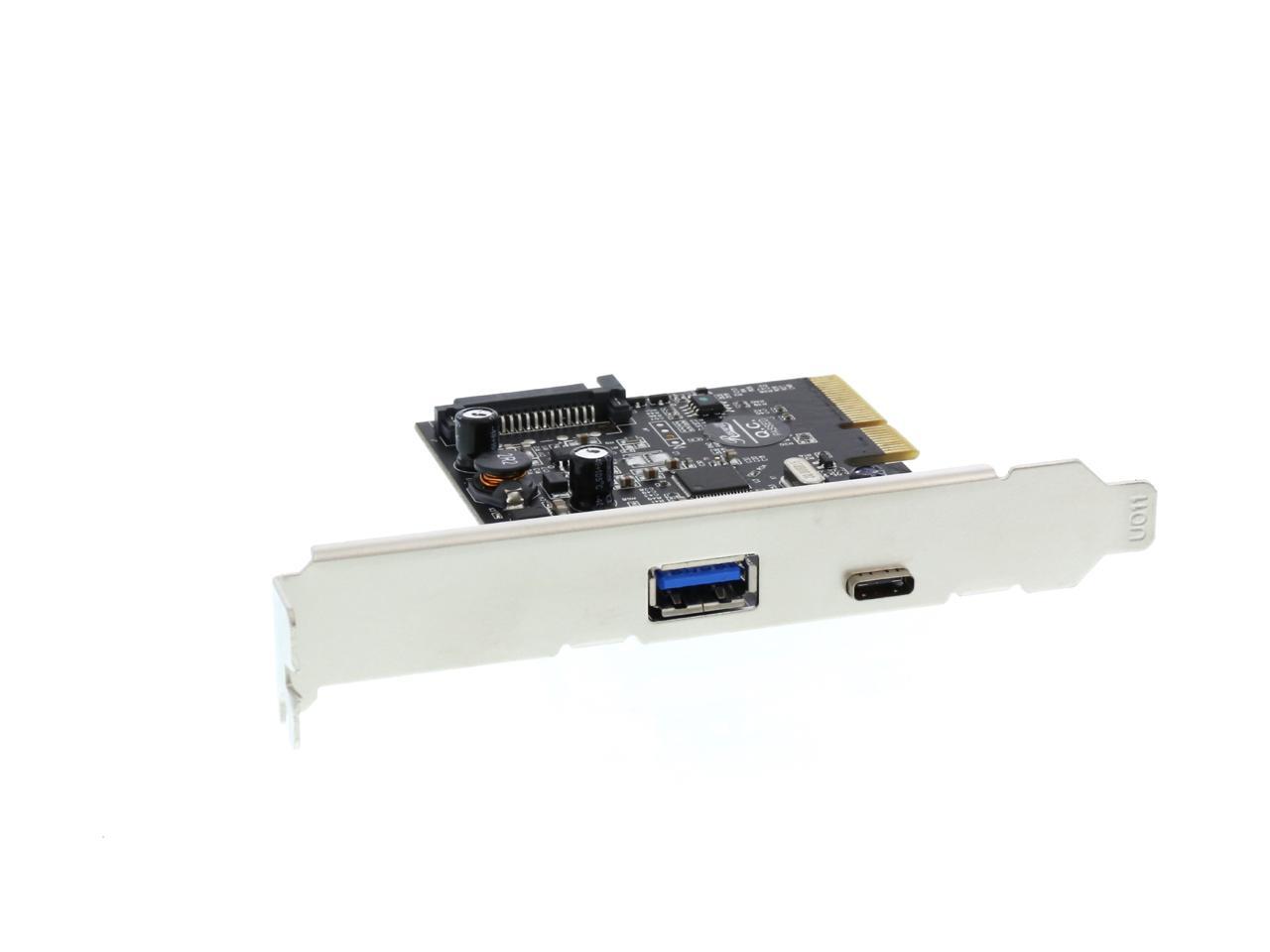

Alt view image 2 of 5 - Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

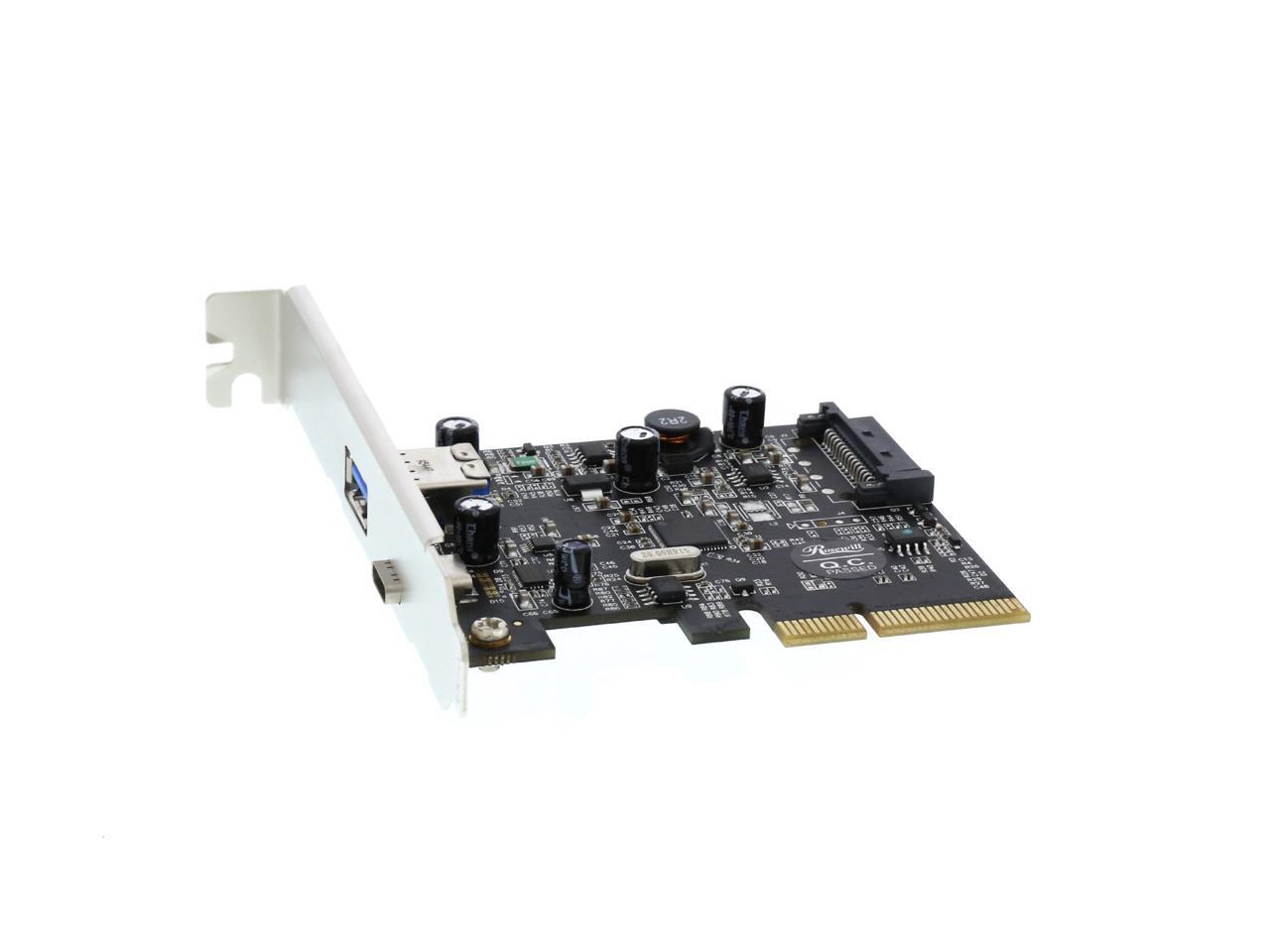

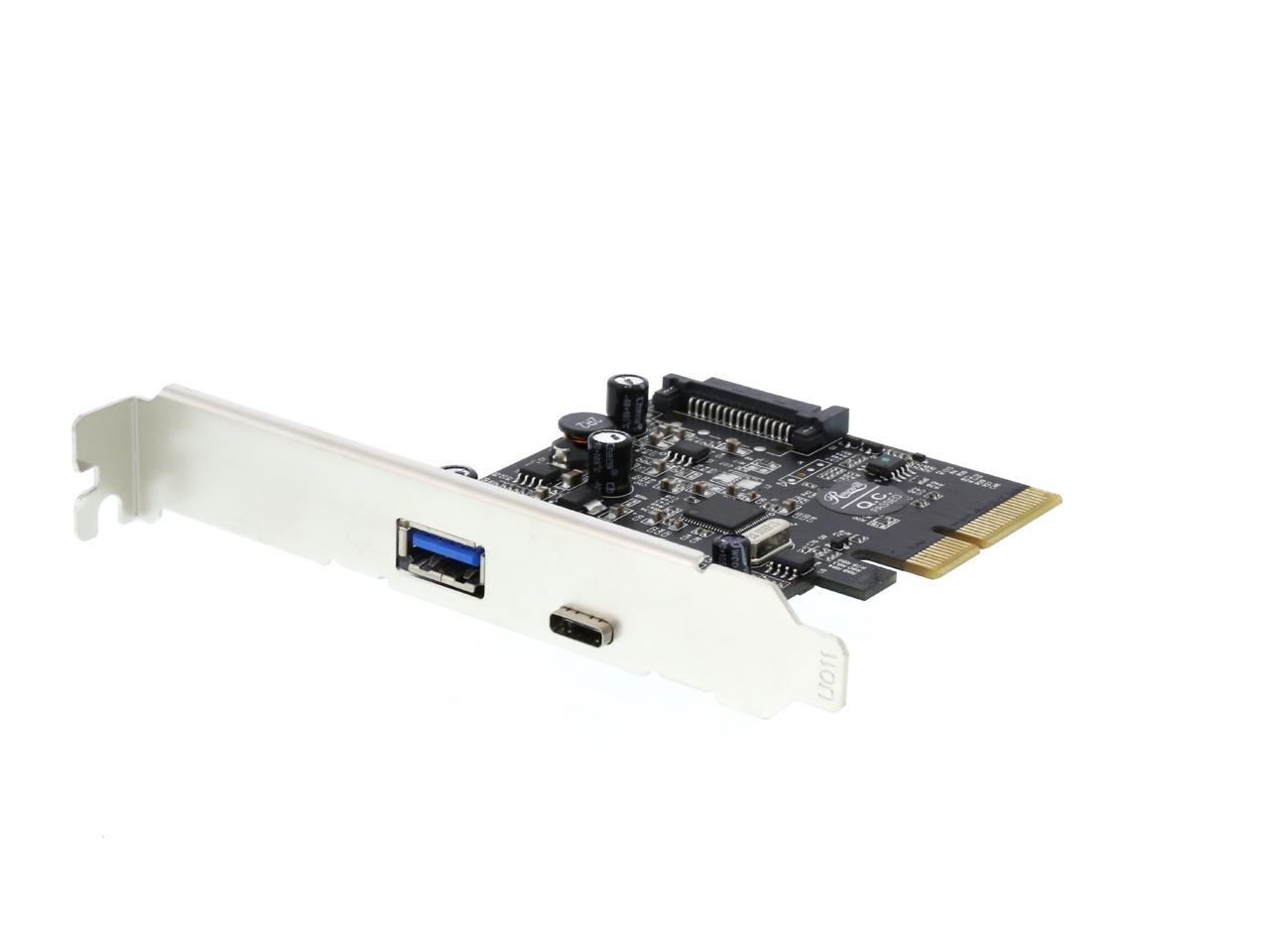

Alt view image 3 of 5 - Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

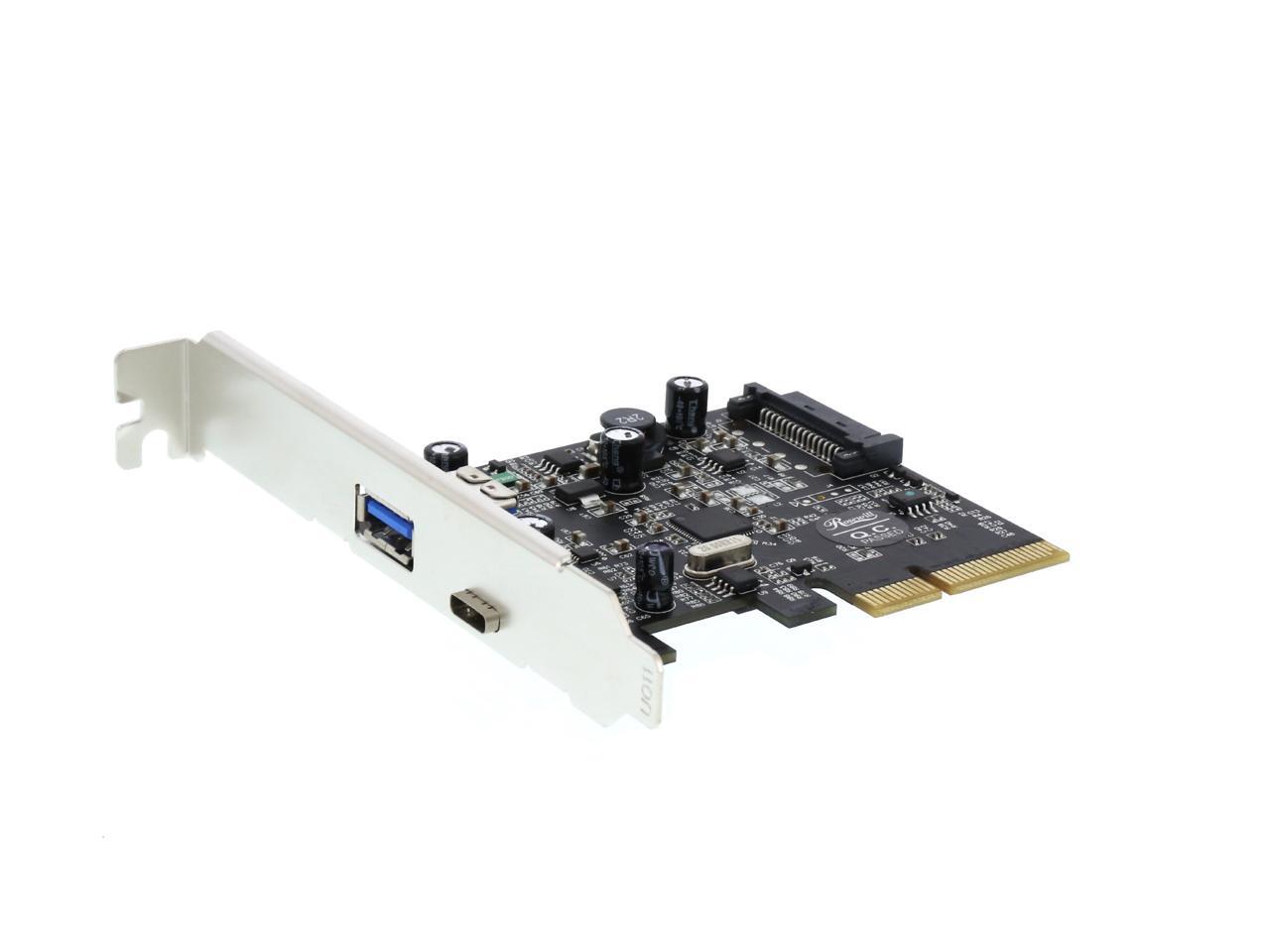

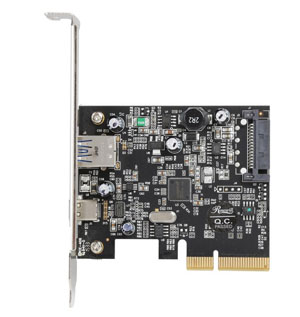

Alt view image 4 of 5 - Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

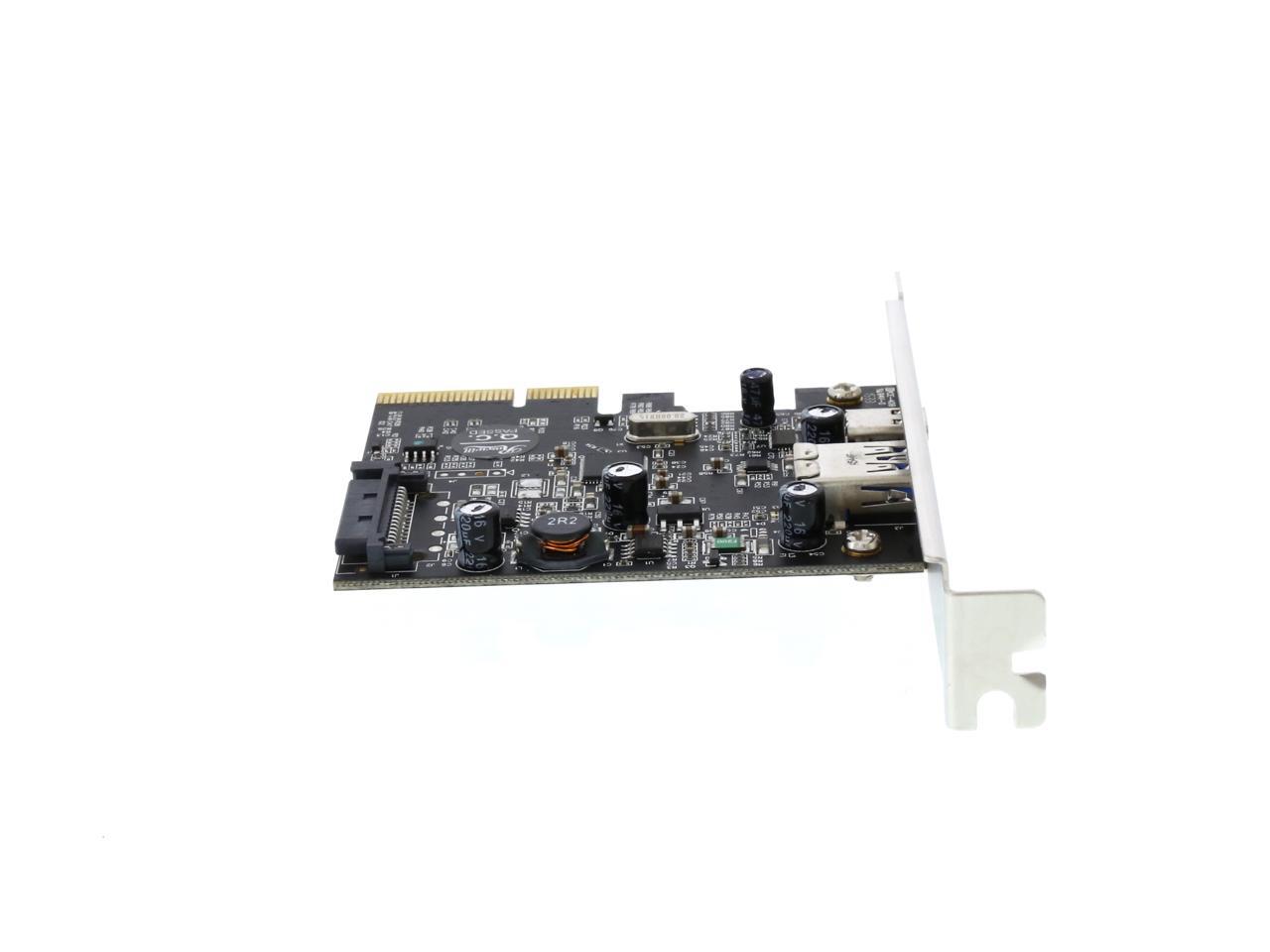

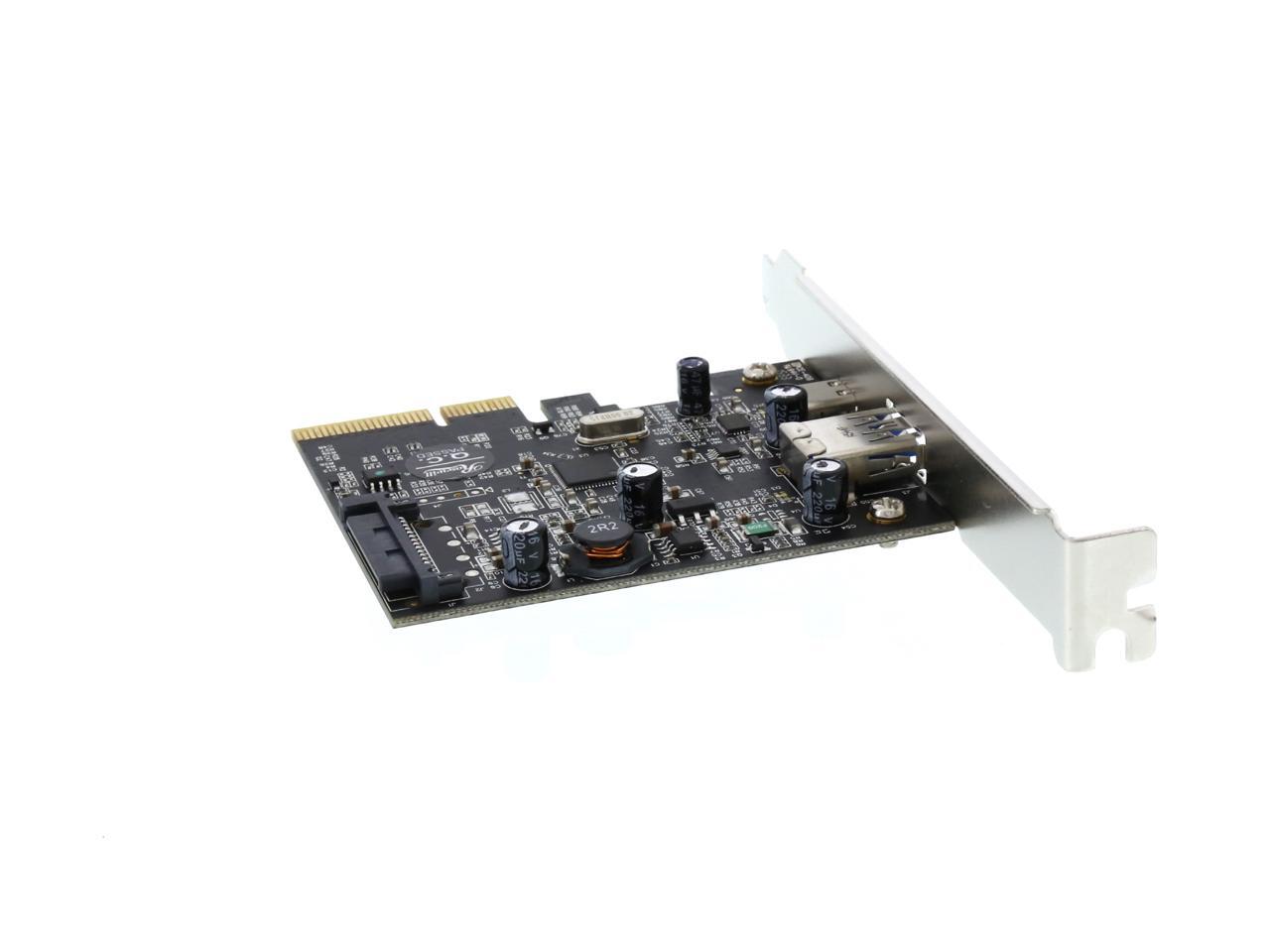

Alt view image 5 of 5 - Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

360^°

Shop All Rosewill Products

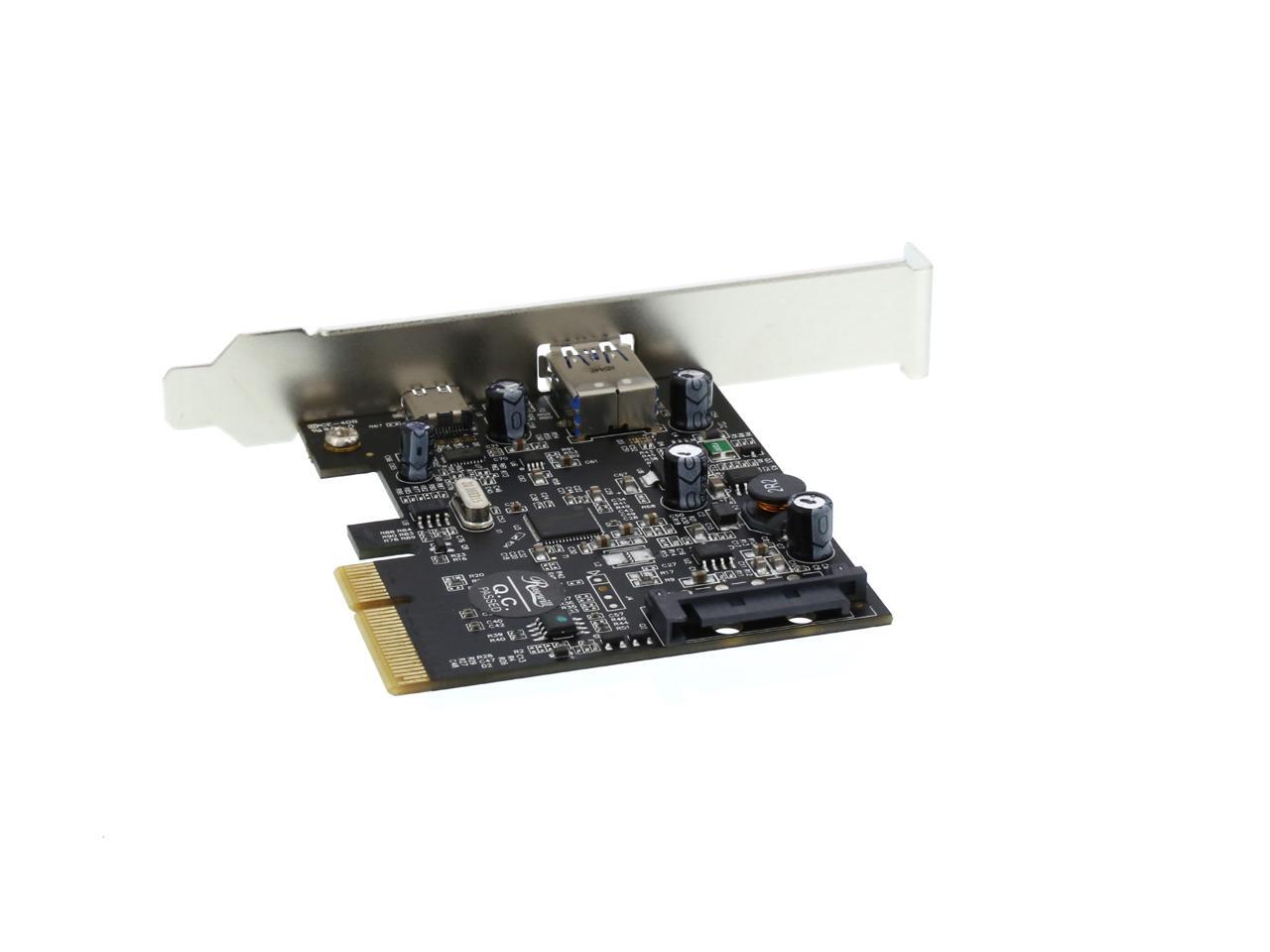

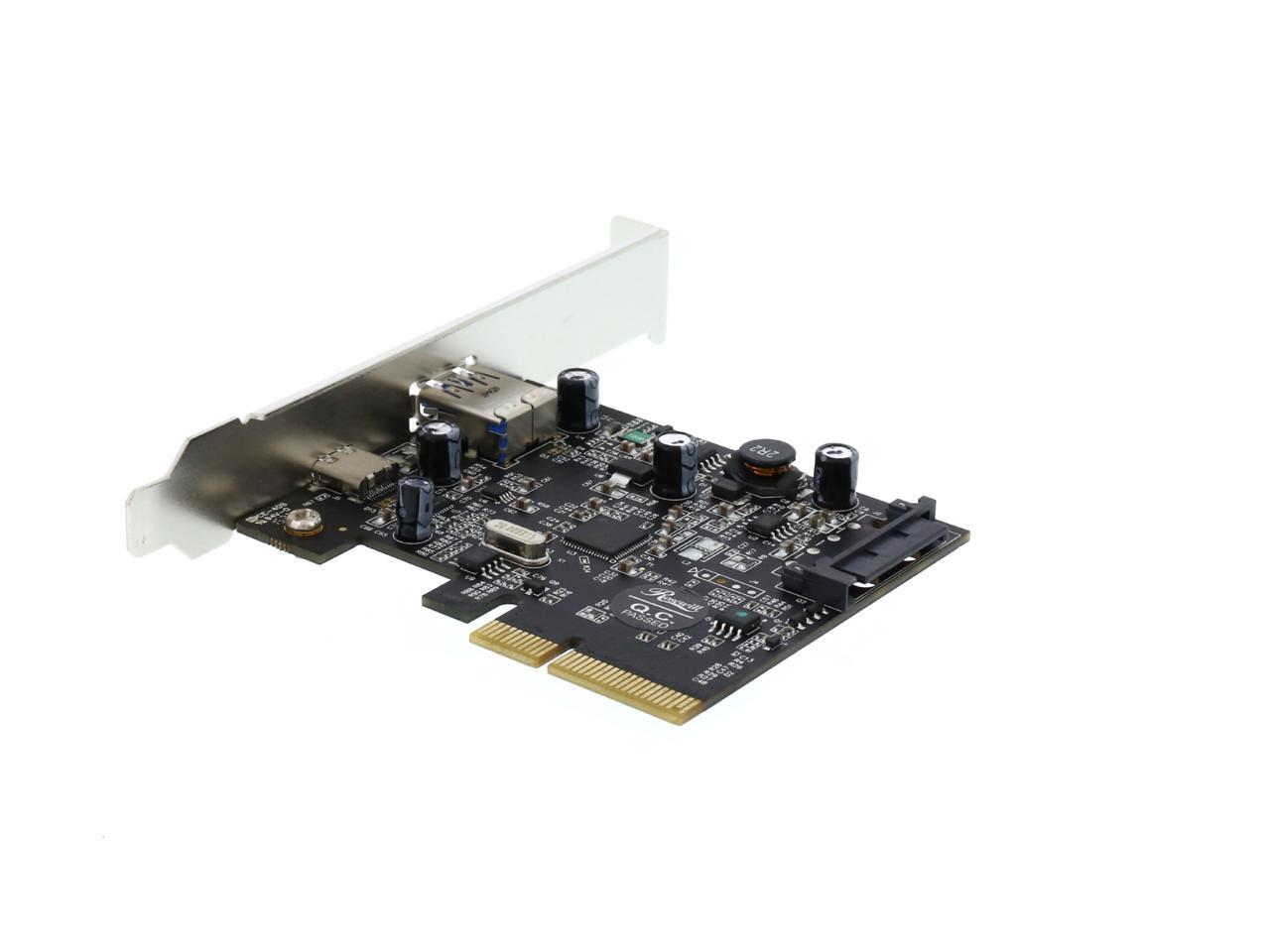

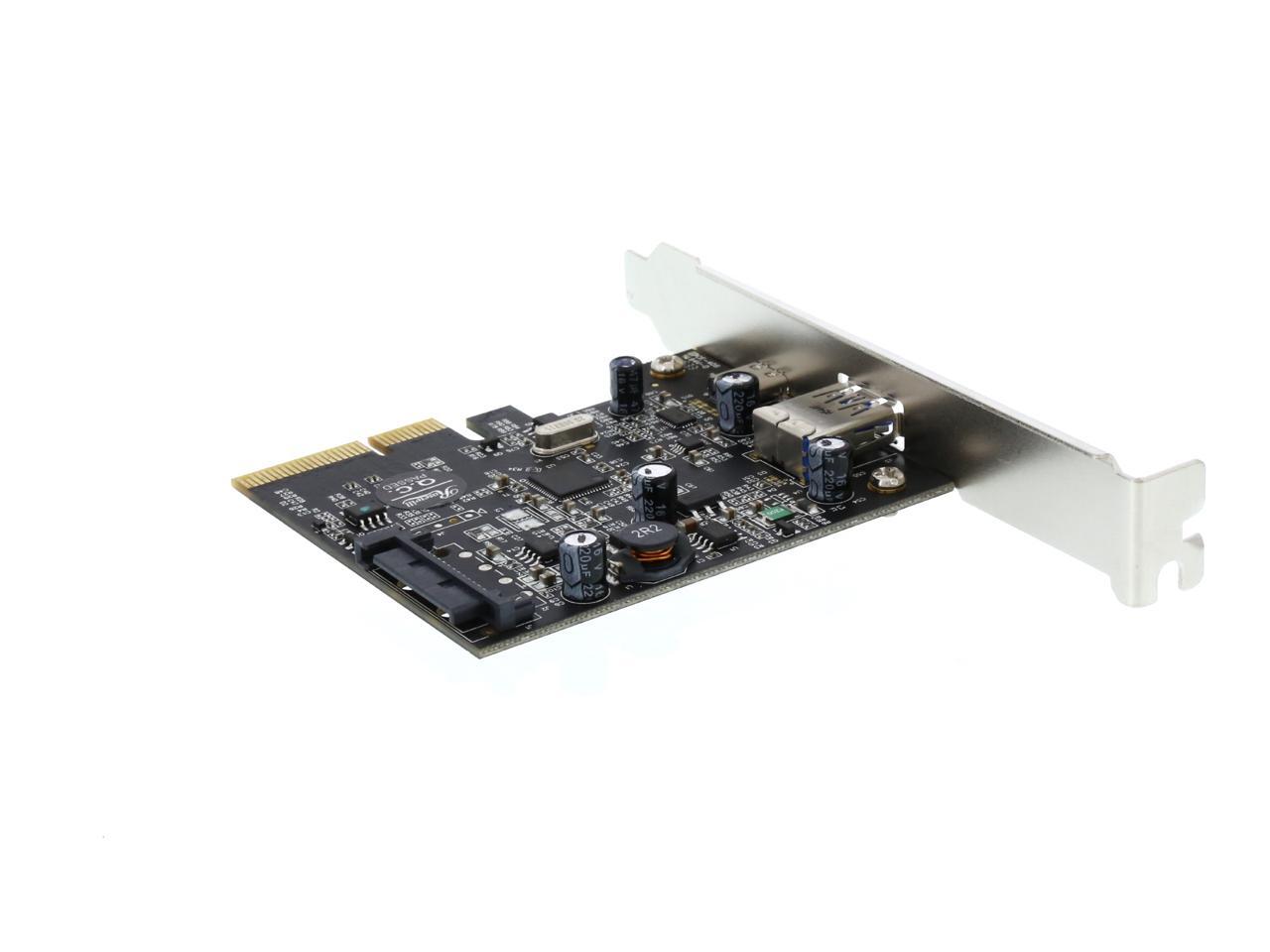

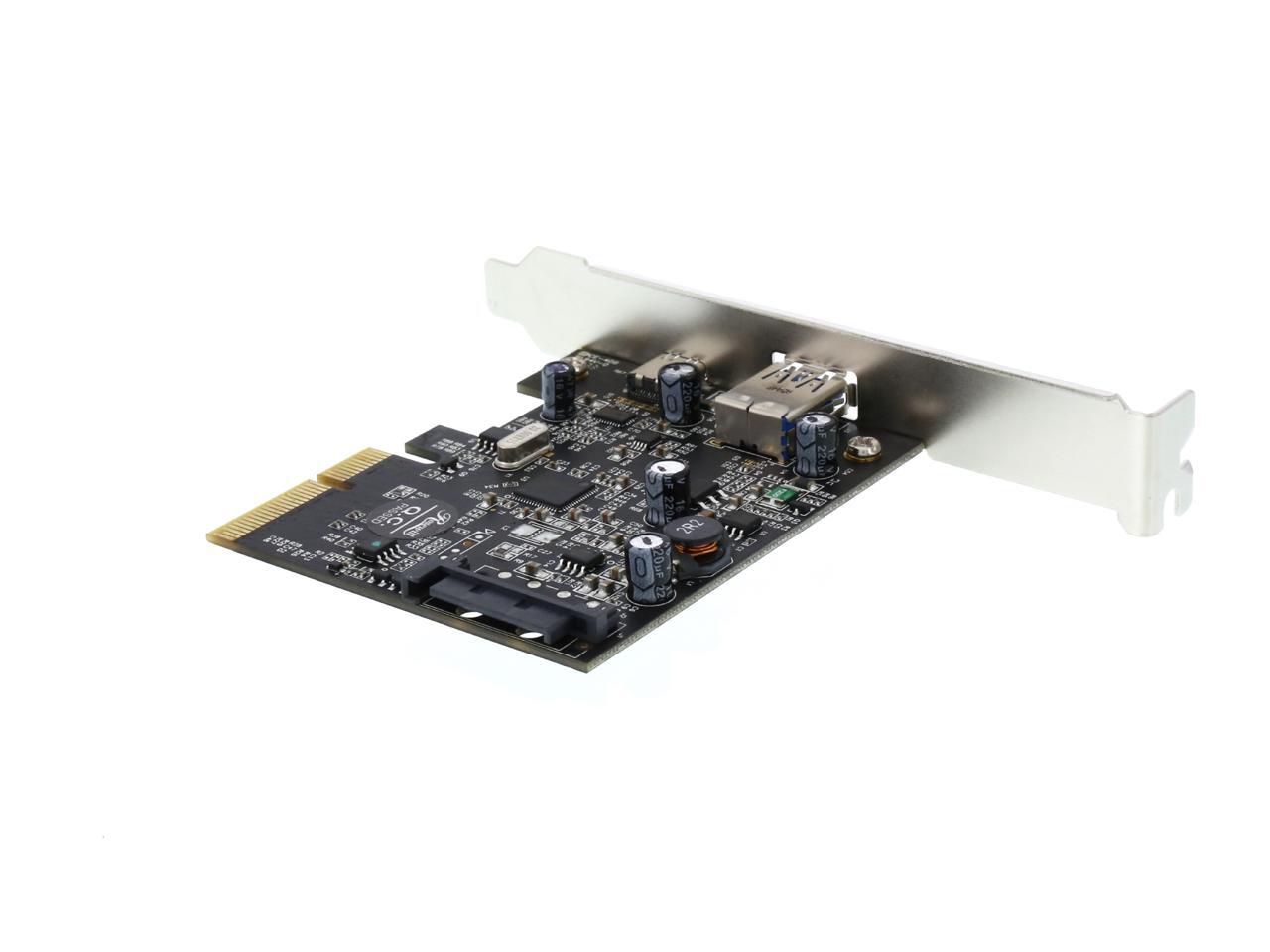

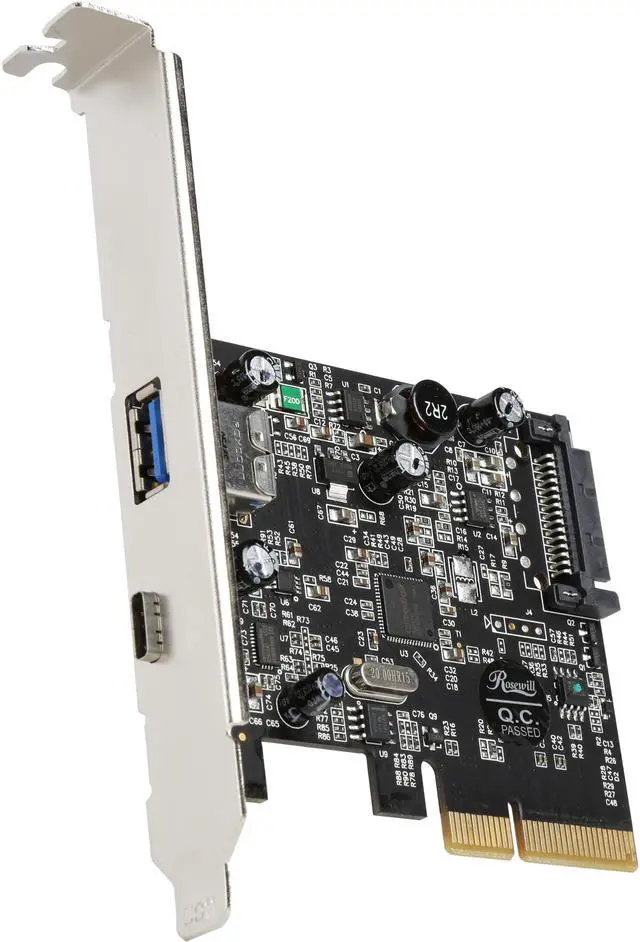

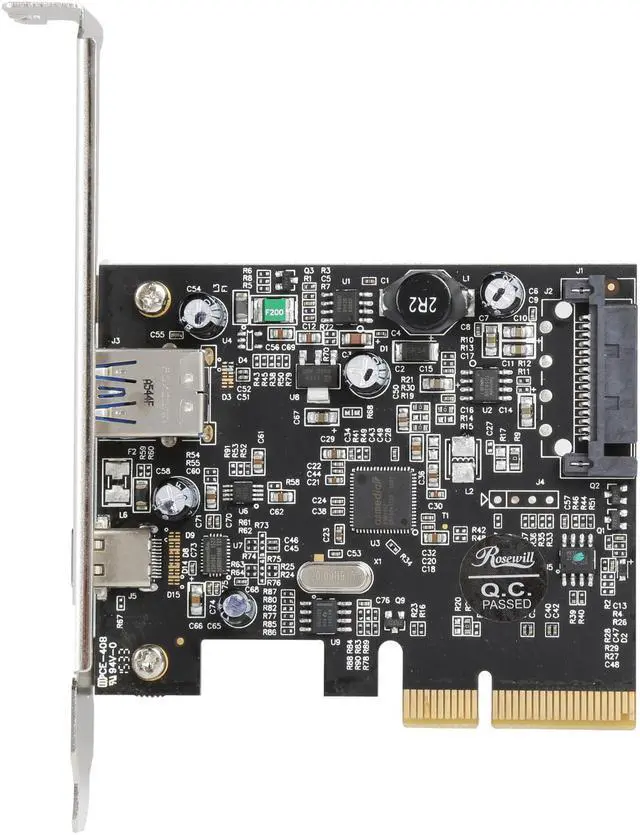

Rosewill RC-509 PCI-E (PCI Express) to USB 3.1 (Type A +Type C) Expansion Card USB 3.1 Gen II SuperSpeed 10Gbps Internal 15-Pin Power Connector USB-C Port 3A Charging Power With Asmedia Chipset

(21) Write a Review

PCI-E (PCI Express 2.0 x4 form factor) to 2-Port USB 3.1 (Type-C and Type-A)
USB 3.1 Gen II (2nd Generation) SuperSpeed up to 10 Gbps Data Transfer
USB 3.1 Expansion Card Supports Windows 7/ 8/ 8.1/ 10 Operating System
Low-profile Ready with Low-Profile Bracket Included in the Packaging
Built with Asmedia ASM1142 Chipset, it is the #1 Choice for USB 3.1 Controller Chipset
This PCIE to USB 3.1 Expansion Card has 3 Ports: 1 USB 3.1 Type A Port; 1 USB 3.1 Type C Port, 1 Internal 15-pin Power Connector

Overview

Specs

Reviews (21)

Any questions? Our AI beta will help you find out quickly.

Try me now

Try out the new SuperSpeed USB 10 Gbps on your desktop.

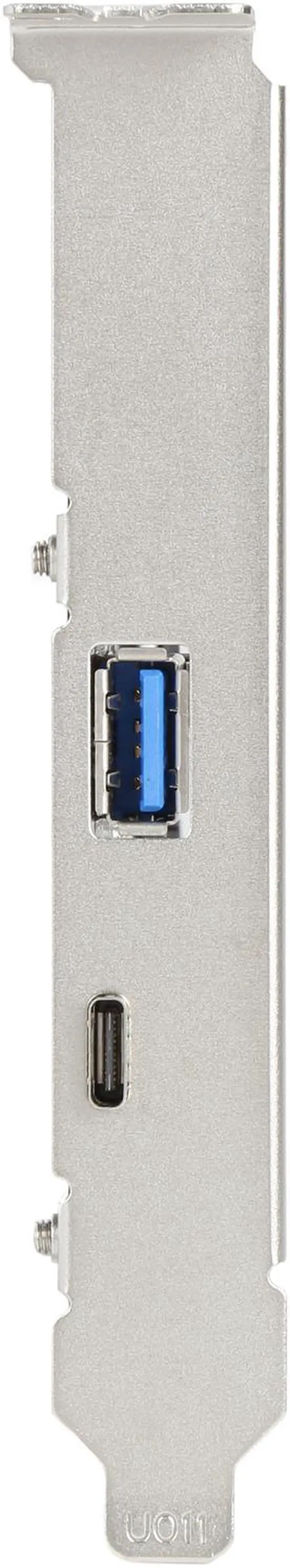

The Rosewill RC-509 Add-On Card is designed to fit a PCIe 2.0 x4 slot, and gives your desktop an external USB 3.1 Type-A and an external reversible USB 3.1 Type-C connector. Both ports deliver 10Gbps bandwidth performance with low latency, and enable charging of your USB-powered portal devices. Just plug and play to enjoy high data transfer speed and convenient charging of your daily gadgets.

Impressive Speed

The two USB 3.1 ports, one is Type C and the other Type B, deliver a data transfer speed of whopping 10 Gbps, which is two times faster than USB 3.0 and four times faster than USB 2.0. Latency is reduced to a minimum.

Reversible Type C

The USB Type C port features reversible plug operation. Enjoy instant correct connection between your PC and your peripherals.

Charge Your Portable Devices

The two USB 3.1 ports go beyond data transfer. They can also charge your USB-powered portable devices. The USB 3.1 Type-C port delivers up to 5V/3A output, while the USB 3.1 Type-A port offers 5V/900mA output.

Over Current Protection

No more accidents. Both ports feature over current protection.

Built-in 4-pin Power Connector

A 4-pin power connector is integrated onboard. It helps the add-on card to receive extra power supply from your system.

Easy Operations

Hot-swapping feature allows you to connect/disconnect devices without powering down the system. The add-on card supports two downstream ports for all speeds, and allows simultaneous operation of multiple USB 3.1, USB 3.0 and USB 2.0 devices.

Compliance with Various Standards for Wide Applications

The Rosewill RC-509 Add-On Card is compatible with various PC platforms. It is compliant with Universal Serial Bus 3.1 Specification Revision 1.0, Universal Serial Bus Specification Revision 2.0, and Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.1. It also support Windows 7/8/8.1 (32/64 bit).

Model
Brand	Rosewill
Model	RC-509

Details
Type	PCI Express to USB Card
External USB Ports	1 x USB 3.1 Type-A Ports 1 x USB 3.1 Type-C Ports
Internal Ports	1 x PCIe 2.0 x4
Standard	USB 3.1
Data Transfer Rate	Up to 10.0 Gbps
Operating Systems Supported	Windows 7/8/8.1/10 (32/64 bit)
Specifications	Asmedia ASM1142 chipset PCIe 2.0 x4 form factor 1 external USB 3.1 Type-A + 1 external USB 3.1 Type-C connector Support up to 10 Gbps bandwidth performance with low latency Compliant with Universal Serial Bus 3.1 Specification Revision 1.0 Compliant with Universal Serial Bus Specification Revision 2.0 Complaint with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.1 Supports simultaneous operation of multiple USB 3.1, USB 3.0 and USB 2.0 devices Max. 5V/3A output for Type-C port; Max, 5V/900mA for Type-A port Over current protection for each port Supports 2 downstream ports for all speeds Built-in 4-pin power connector for receiving extra power supply from system Hot-swapping feature allows you to connect / disconnect devices without powering down the system Support Windows 7/8/8.1 (32/64 bit)

Packaging

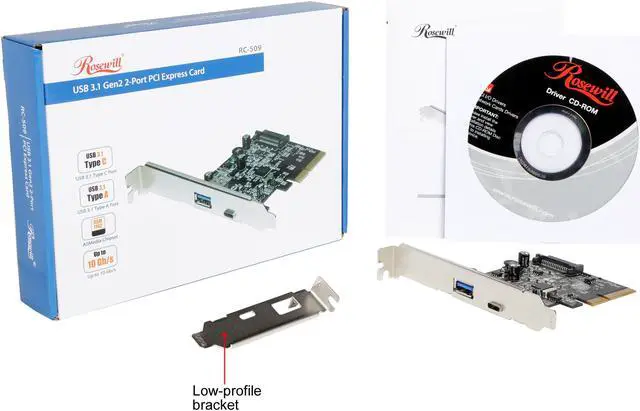

Package Contents	One 2-Port USB 3.1 PCI Express card One Driver CD One User Manual

Additional Information
First Listed on Newegg	November 30, 2016
