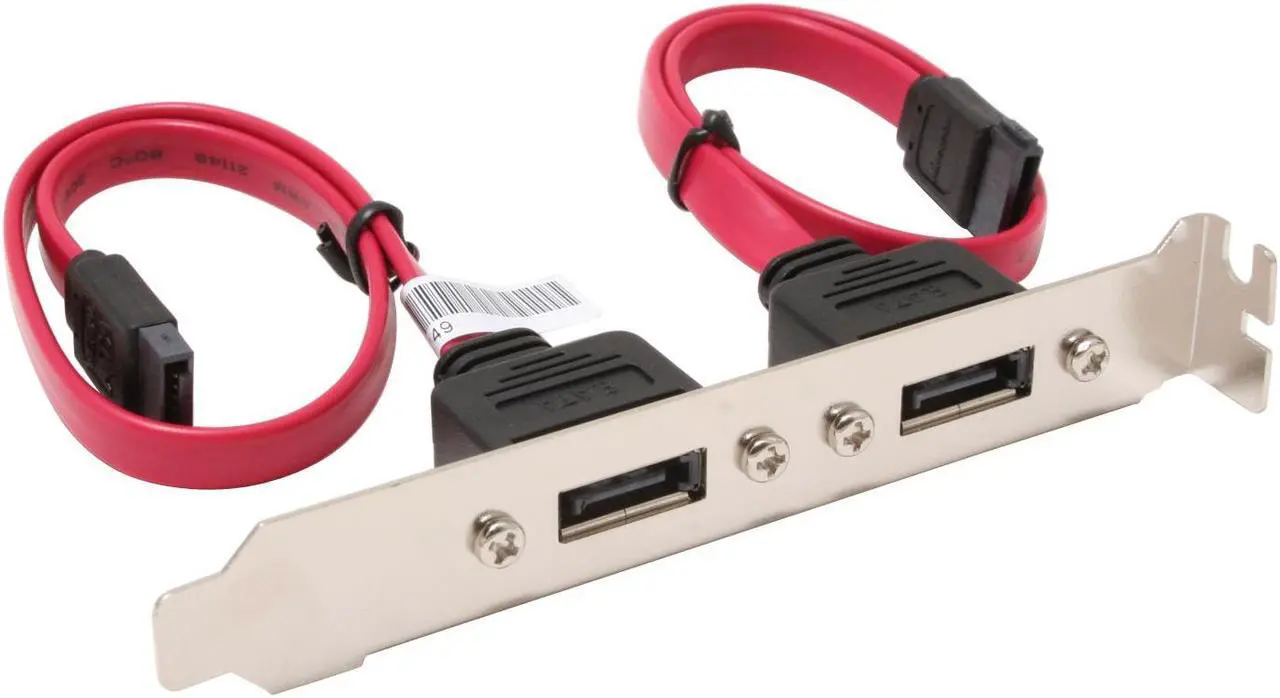

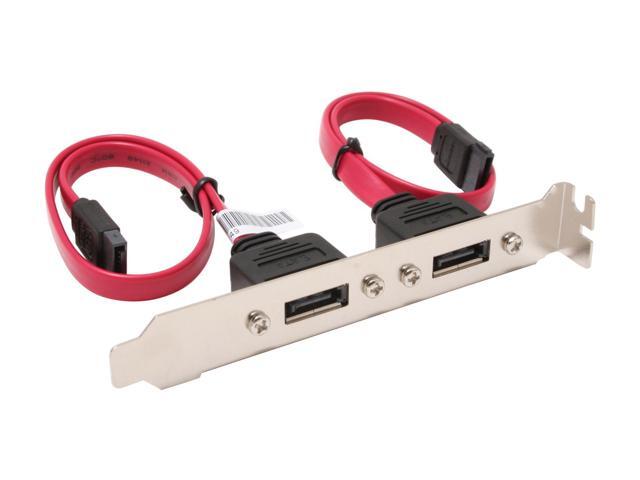

Rosewill RC-206 SATA to SATA 2 Port Bracket Cable 30cm (All SATA port)

OUT OF STOCK.

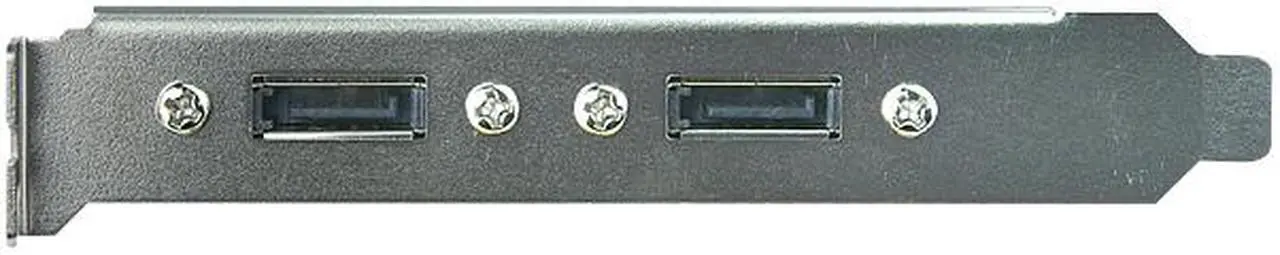

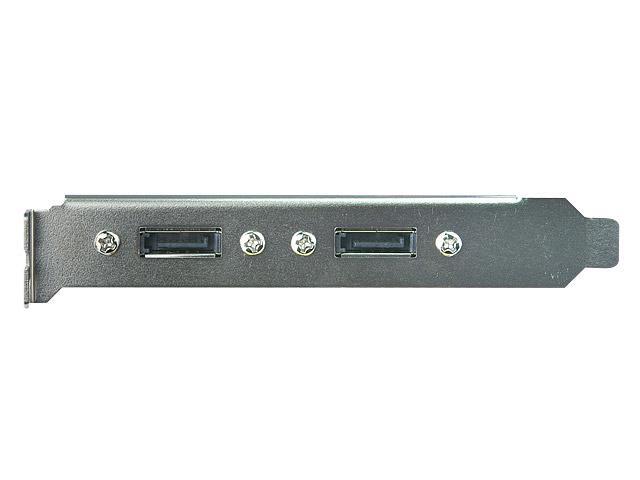

  • Internal SATA to external SATA bracket
  • 2 SATA ports included
  • 30 cm SATA cable
Specs
Reviews

Learn more about the Rosewill RC-206

Model
Brand Rosewill
Model RC-206
Details
Changer Type Internal SATA to External PCI bracket
Specifications Cable: (26AWG/1P+A)*2+4D, AWM style 2725 80 degree 30V VW-1
Conductor: 26AWG solid tinned copper
Isolator: FOAM PE or FOAM PP
Wrapping: Hot melt aluminum mylar spirally wrapped
Drain Wire: 28AWG solid tinned Copper
Jacket: 80C PVC OD 2.2mm*7.80mm+/-0.2

Connector:
Housing: Temperature polyster & Glass fiber, UL 94V-0
Terminal: Copper alloy
Cover: ABS, UL 94V-0
Plating: 15 u” gold plated over 50u” nickel

High Frequency Character:
Impedance: 100+/-15 ohms (Mated connector)
Attenuation: 6 dB Max from 10MHz ~ 4500MHz
Crosstalk (NEXT): -26dB Max from 10MHz ~ 4500MHz
Intra pair skew: 10 pcs Max
Rise Time: 85 ps Max
Features
Features Convert Internal SATA 2port to External connection at PCI bracket. Let your internal SATA port connect external SATA device
Additional Information
Date First Available August 16, 2006
