I have one fan header on MB. With that in mind, can I run two fans off of this panel?

Hello Victor, Yes, you can. This controller does not use motherboard fan headers at all. The fan power comes from a single PSU power connector which plugs into this panel. There are two 3-pin fan connections on this panel which your fans plug into, so your motherboard fan header will remain unused. The included cables also have splitters that allow up to two fans to be connected on each cable, for speed control of up to four fans in all.

How long are the cables? (USB 2, USB3, and fan)

I think they are at least 18 inches long. They were certainly long enough to reach from the connections on my motherboard to the front of my case with no problem, and the unit is working well for me.

DO I need a card with this to create a usb 3.0 or is this enough?

jules r...unless you have a usb3 header on your motherboard, yes you will need an add on card

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

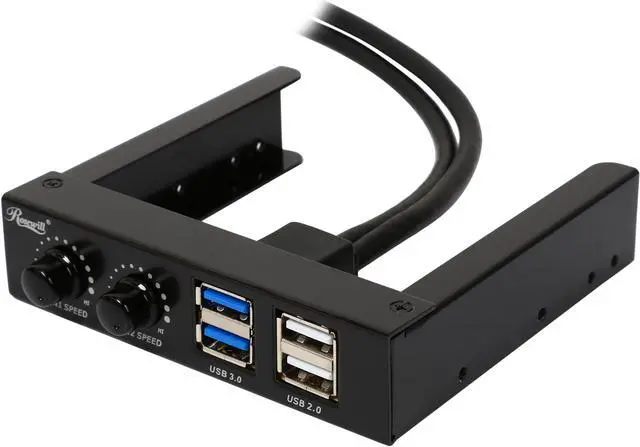

Main image of Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

100%

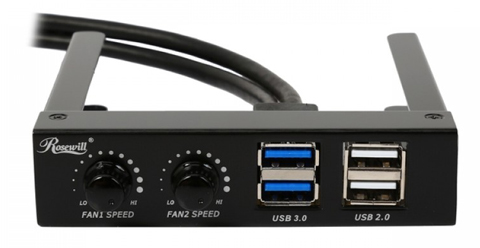

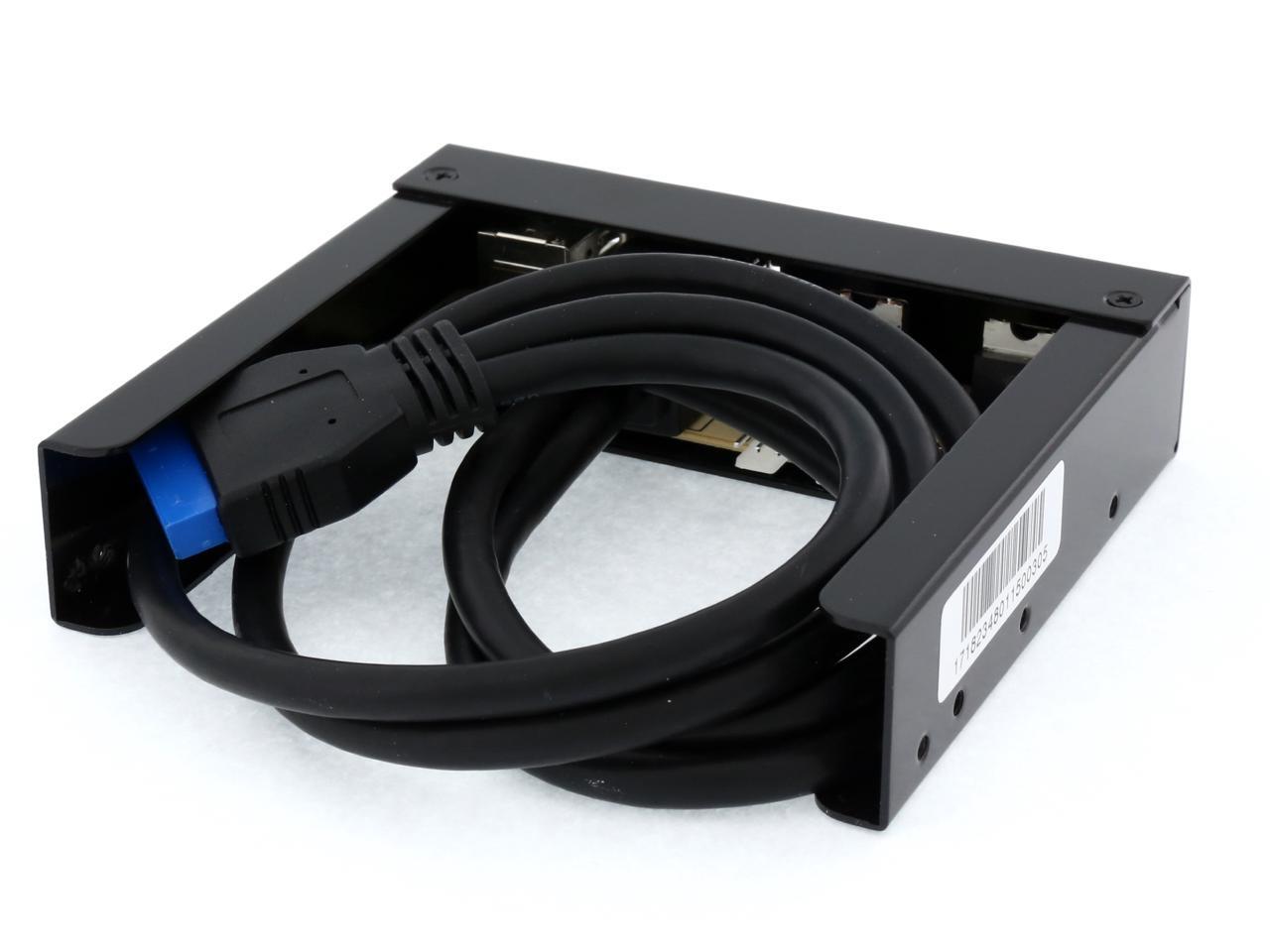

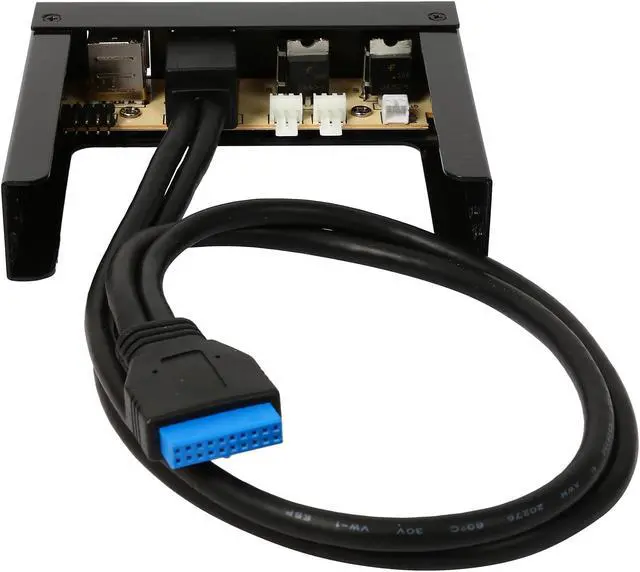

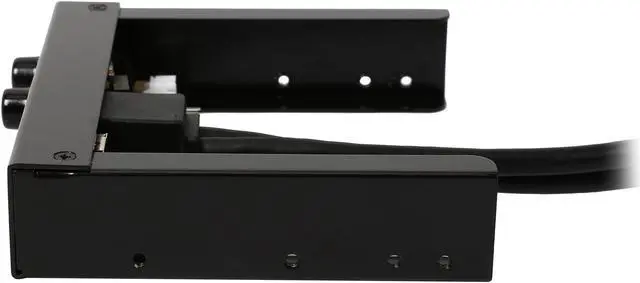

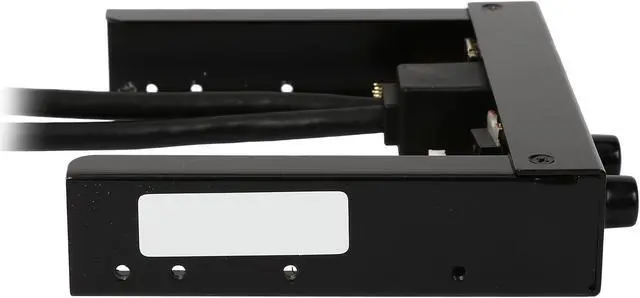

Alt view image 2 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

Alt view image 3 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

Alt view image 4 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

Alt view image 5 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

Alt view image 6 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

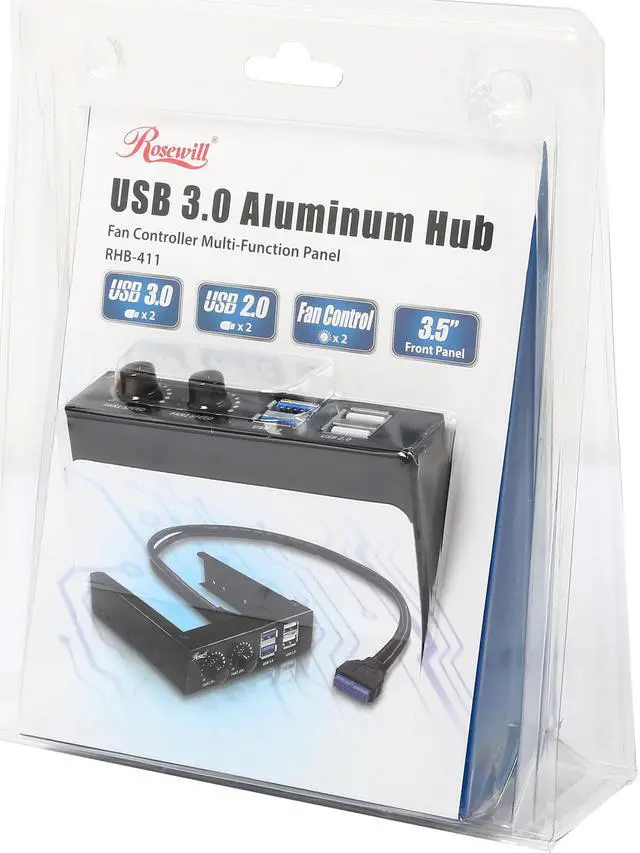

Alt view image 7 of 7 - Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

360^°

Shop All Rosewill Products

Rosewill RHB-411 3.5" Drive Bay & 2 port USB 3.0 2 port USB 2.0 Multi-function Aluminum Front Panel with 2 Fan Adjustable Controller

(13) Write a Review

3.5" Front Panel
2 x USB 3.0 & 2 x USB 2.0
Aluminum Design
2 Fan Control Knobs

Overview

Specs

Reviews (13)

Any questions? Our AI beta will help you find out quickly.

Try me now

General information

Add more flair to your powerhouse with the Rosewill RHB-411 multi-function I/O panel. Designed to fit into a 3.5" front panel bay, this gadget provides two extra USB 3.0 ports, two USB 2.0 ports, and two fan speed control dials for your case fan and CPU fan. Now you can manually adjust the fan speed for maximum cooling performance or quiet operation, and each channel supports up to 10 watts output. The aluminum construction is durable, comfortable to the touch, and easy on the eyes, making it a seamless addition to your high-end gaming chassis.

Please Note:

In order to let the USB 3.0 ports and 2.0 ports function, available USB 3.0 header and USB 2.0 header are required on the motherboard.

Features

USB 3.0 (x2) and USB 2.0 (x2)
Fan Knobs that operate independently (x2)
Lightweight Aluminum Design
Designed for 3.5" Bay Slot
Output DC 6~12V±10% (max output 10W per channel)

Installation Instructions

Remove the case side panel and front panel cover.
Insert the multi-function panel into the a 3.5" front bay slot
Fasten the multi-function panel down with screws

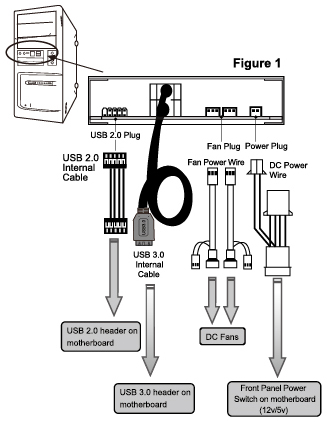

Connect the cables as indicated in the diagram below.

General information

Model
Brand	Rosewill
Model	RHB-411

Details
Type	USB
Standards	USB 3.0/2.0
Ports	2 x USB 3.0, 2 x USB 2.0
Transfer Rate	2 x USB 3.0, transfer rate up to 5 Gbps 2 x USB 2.0, transfer rate up to 480 Mbps
Power Input	Power Input: DC 12V (4 Pin Power Connectors) Power Output: DC 4 ~ 12 V ± 10%
Dimensions	4.00" x 3.70" x 1.00"
Weight	1.21 lbs.

Features
Features	Aluminum Design Body Suitable for 3.5" Bay 2 Fan Adjustable Controllers can minimize the noise Extra 2 USB 2.0 Connectors Extra 2 USB 3.0 Connectors Supports Plug-play and Hot-plug Max Output 10 Watts Each Channel

Packaging

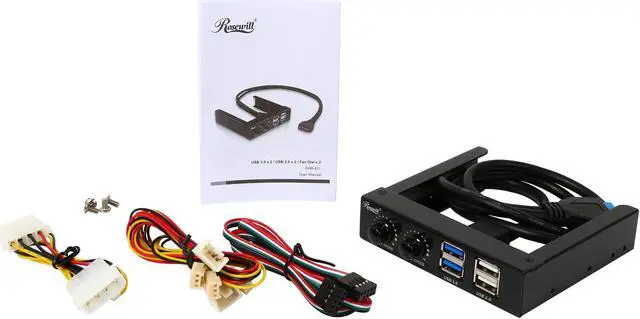

Package Contents	one Panel one Power Wire one Accessory Kit one Fan Power Wire one USB 2.0 Cable one USB 3.0 Cable one User's Manual

Additional Information
First Listed on Newegg	March 13, 2015
