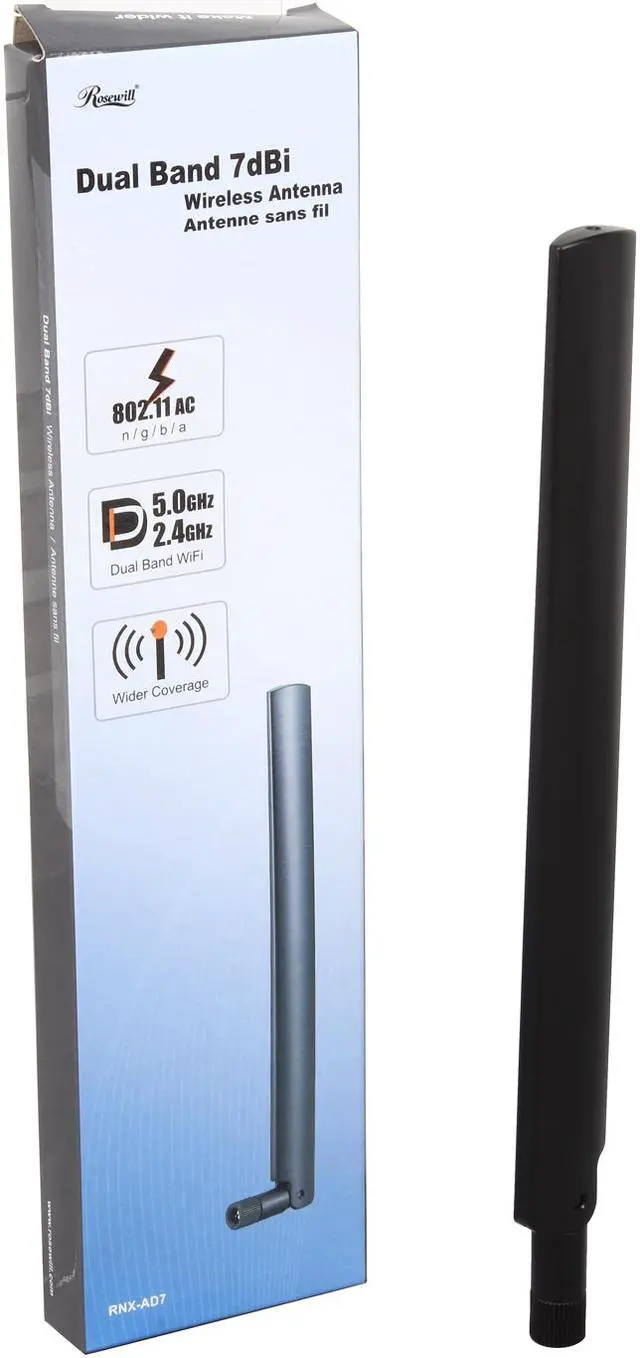

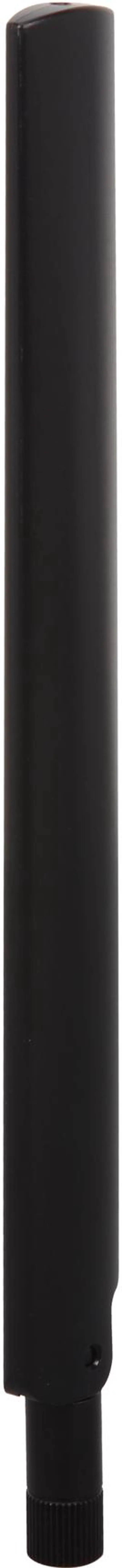

Rosewill RNX-AD7 - High Power / Gain True 7dBi Dual Band Network Omni Directional Antenna, Range Extender for Your Routers
- Frequency Range: 2.4 GHz, 5 GHz
- Gain: 7 dBi
- VSWR: 2.0:1 Max.
Overview
Specs
Reviews (8)
See all Q & A
Any questions? Our AI mode will help you find out quickly.
Try me now
Rosewill RNX-AD7 7dBi High Gain Dual Band Network Directional Antenna
Your Best Choice of Dual Band Antenna
Complaints about the poor signal of your Wi-Fi from a 802.11AC router? Why not try the Real High Gain Dual Band Network Antenna Stand of Rosewill. According to the research, the Wi-Fi range of 802.11AC is only half of 802.11n. It means when you upgrade your wireless router to 802.11AC, the distance of your indoor Wi-Fi coverage is no longer the same as you were used to before.
To help customers use the Wi-Fi conveniently, Rosewill launches a series of Real Dual Band Network Antenna products. Unlike the low cost and counterfeit dual band antennas, we test our network antennas rigorously to create ubiquitous indoor Wi-Fi environments for users. Still feeling annoyed with your Wi-Fi range? Give the network antennas from Rosewill a try.
Applied Routers Included, but not Limited to:
- ASUS:RT-AC68U, RT-N66U RT-AC66U
- NETGEAR:R7000,
- D-Link:DIR-655 DIR-665
- TP-LINK:TL-WDR4300, TL-WDR3600, TL-WDR3500, TL-WR1043ND, TL-WR2543ND, TL-WDR4300
- Buffalo:WZR-HP-G450H
- Rosewill:RNX-AC750RT, RNX-AC1200RT, RNX-AC1750RT
- And all wireless routers, wireless adapters and repeaters with detachable antennas
Features
Real Dual Band 7dBi
Real dual band and 7dBi compared to existing antennas
Compatible with 802.11 ac/n/g/b
Compatibility with 11ac routers to extend the short range of Wi-Fi
Dual Band (2.4 / 5.0GHz)
Compatibility with 11ac routers to extend the short range of Wi-Fi
Wider Coverage
Make your Wi-Fi range wider by amplifying the signal
Plug and Play
PNP makes your setup easily
Why Should You Choose the 11AC Standard?
Wrong Method
Interference between closed antennas makes signal decay
Replaced with Real Dual Band Antenna
Should keep 3-4 inches (8-10cm) between your antennas
Equipped with Directional Antenna
Use directional antennas to signal where your devices are.
Equipped with ULA100 Cable Stands
Antenna stands are the best method for maximum wireless signal coverage.
| More Suggestions | ||||||
| Model# | RNX-AD7D | RNX-AD5 | RNX-AD7 | RNX-AD10D | RNX-AS14001 | |
| Photo |  |
 |
 |
 |
 |
|
| Features | High Gain 7dBi | Real 5dBi | Wider 7dBi | High Gain 10dBi | 3dBi retained by ULA100 | |
| Wireless Standard | 802.11 ac/n/g/b/a | 802.11 ac/n/g/b/a | 802.11 ac/n/g/b/a | 802.11 ac/n/g/b/a | 802.11 ac/n/g/b/a | |
| dBi | 5 / 7 | 3 / 5 | 5 / 7 | 7.5 / 10 | ULA100 Cable
2 - 3dBi Reserved Intervention Avoidance |
|
| Frequency (MHz) | 240 - 2500
5100 - 5870 |
240 - 2500
5100 - 5870 |
240 - 2500
5100 - 5870 |
240 - 2500
5100 - 5870 |
||
| Directional |  |
|
||||
| High Gain | |
|
||||
| Plug and Play | |
|
|
|
|
|
| Applied to Dual Band Devices | |
|
|
|
|
|
| RP - SMA Male connector | |
|
|
|
|
|
| Specifications | ||
| Frequency (MHz) | 2400 - 2500 | 5150 - 5875 |
| Peak Gain (dBi) | 3 | 6 |
| Average Gain (dBi) | 2.5 | 4.5 |
| VSWR | 2.0:1 Max. | |
| Polarization | Linear, vertical | |
| Impedance | 50Ω | |
| Connector | RP SMA PLUG | |
| Environmental & Mechanical Characteristics | |
| Temperature | 14 - 131°F (-10 - 55°C) |
| Humidity | 95% @ 77°F (25°C) |
