Rosewill RNX-N2X IEEE 802.11b/g/n USB2.0 Wireless-N 2.0 Dongle (2T2R) Up to 300Mbps Data Rates WPA/WPA2 (AES, 64,128-WEP with shared-key authentication).Cisco CCS V1.0, V2.0 and V3.0 compliant, Vista/ MAC 1.3/10.4/10.5/10.6 Ready

  • 802.11N 2T2R design
  • Special design for NB carry
  • Two high gain antenna
Specs
Reviews (166)

Learn more about the Rosewill RNX-N2X

Model
Brand Rosewill
Model RNX-N2X
Details
Standards IEEE 802.3/3u, IEEE 802.11b/g, IEEE802.11n Draft 2
Wireless Data Rates Up to 300Mbps
Security WPA/WPA2 (AES, 64,128-WEP with shared-key authentication)
Cisco CCS V1.0, V2.0 and V3.0 compliant
Interface USB 2.0
Channels 11 for North America, 14 for Japan, 13 for Europe
Modulation IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
IEEE 802.11b: DSSS (DBPSK, DQPSK, CCK)

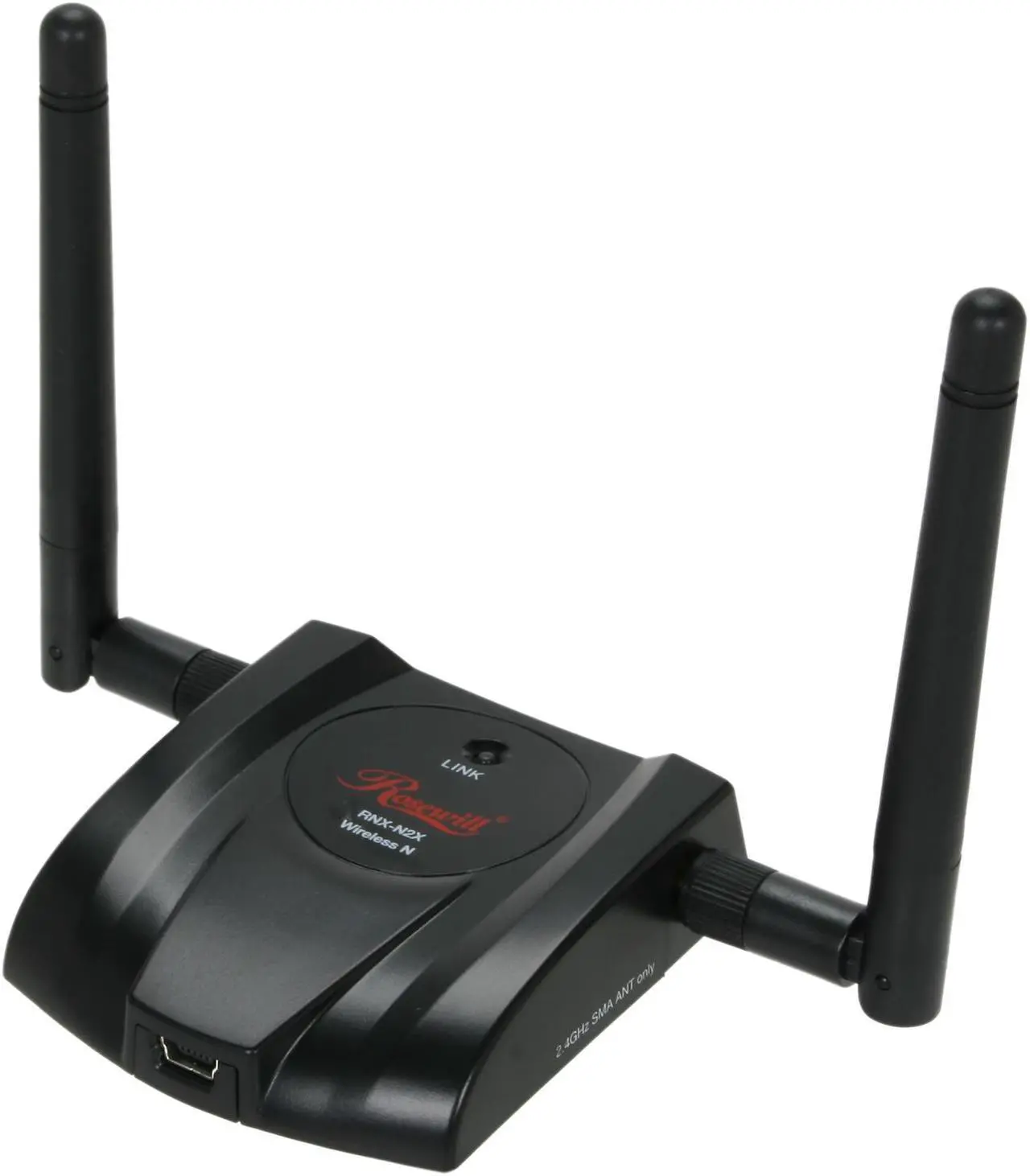

LEDs Link
Transmitted Power 2.412~2.472G(IEEE802.11b): 18dBm @1~11Mbps
2.412~2.472G(IEEE802.11g): 15 dBm @6Mbps; 14 dBm @54Mbps
2.412~2.472G(IEEE802.11N): 15dBm

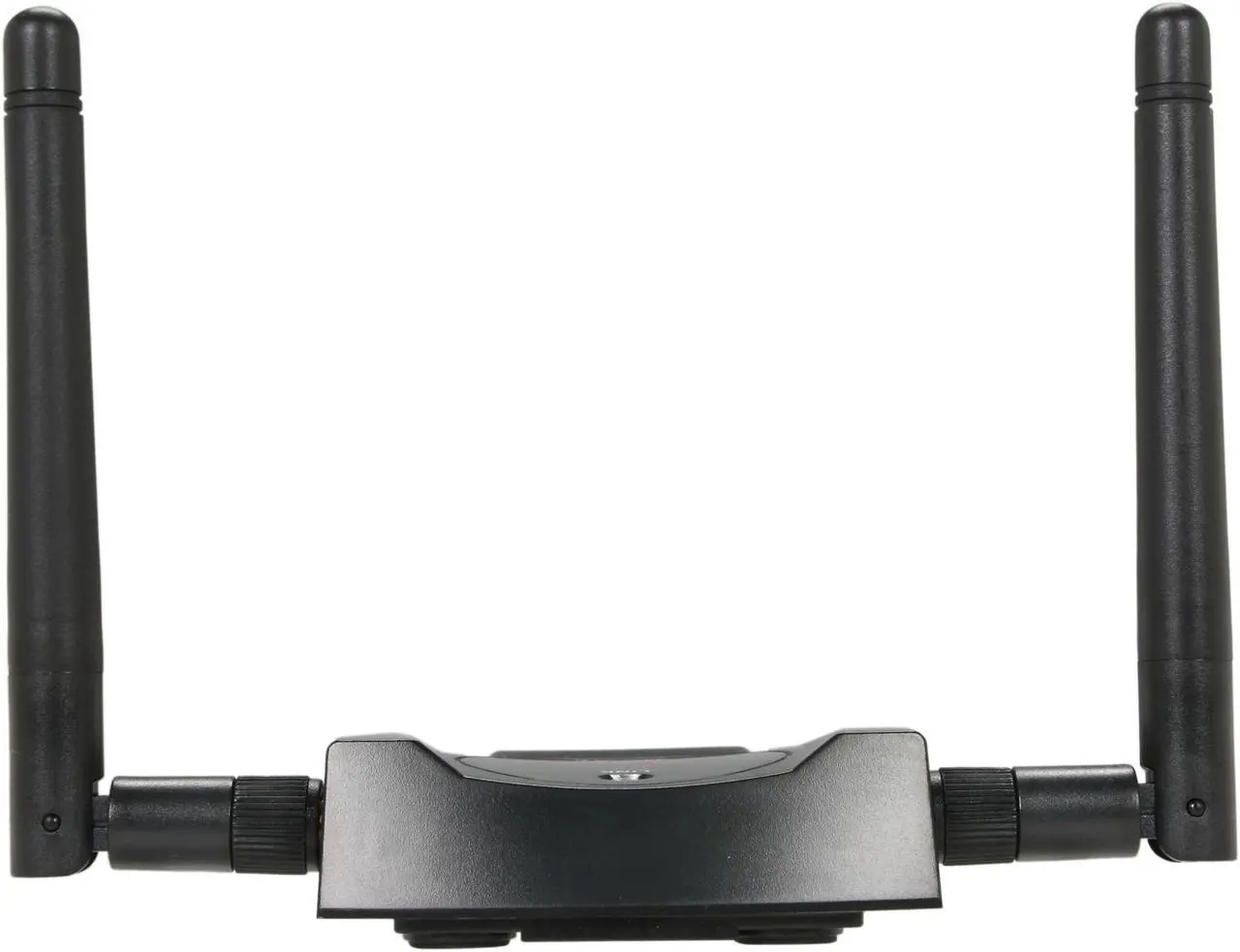

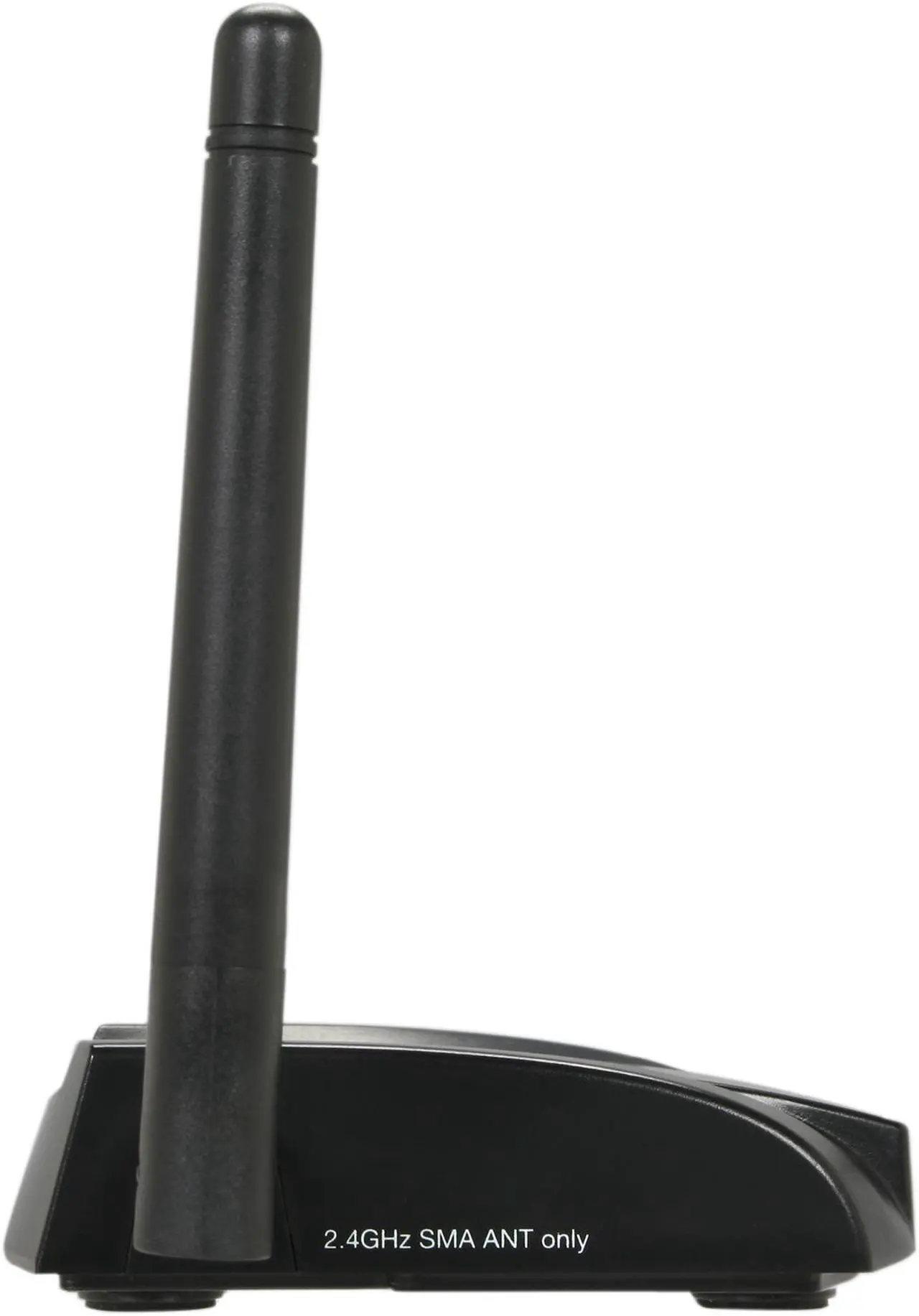

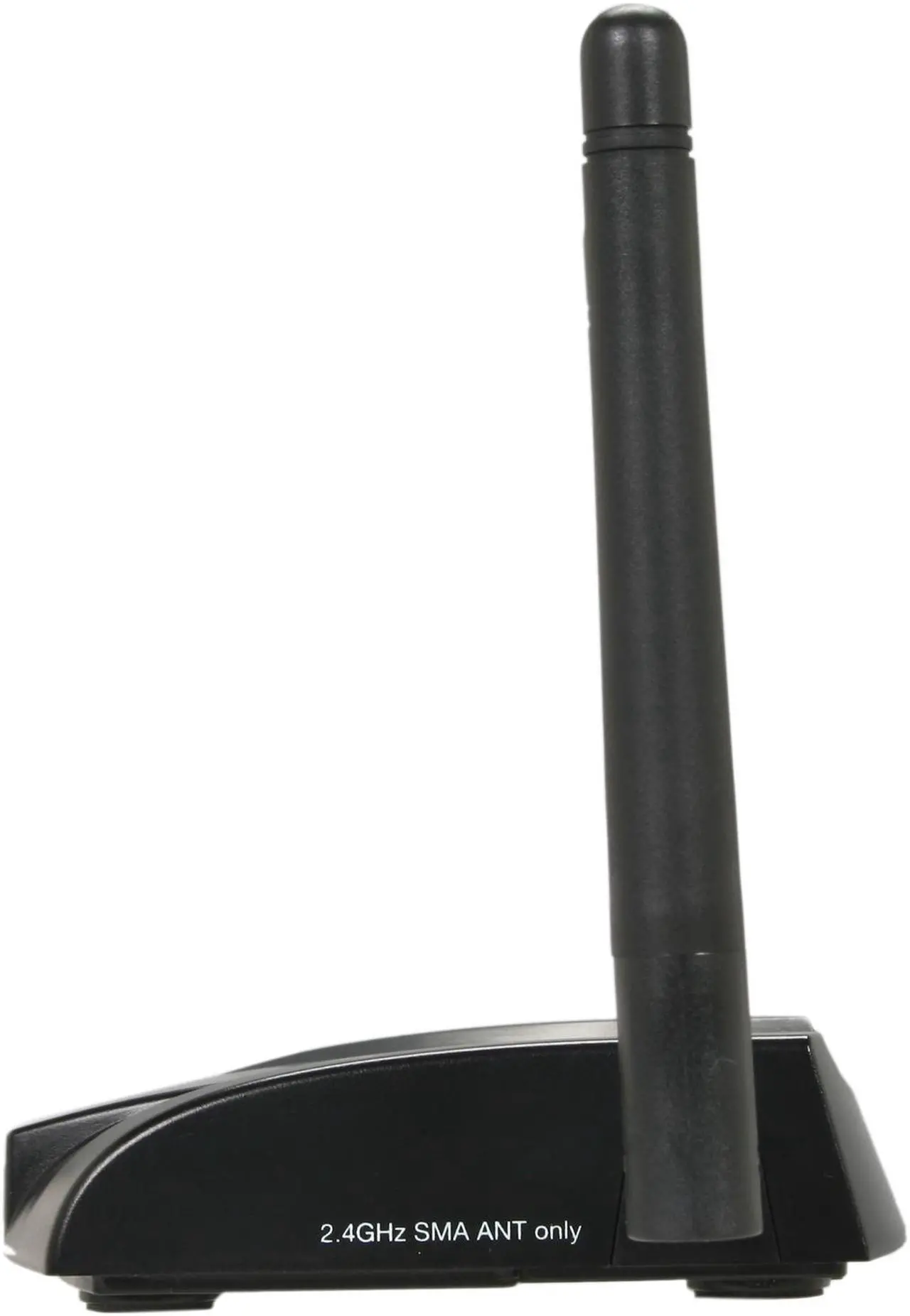

Antenna 2 x external 2 dBi SMA Antennas
System Requirements Windows 2000, XP, Vista 32 and 64 bit/ MAC 10.3/ 10.4/ 10.5.
Feature
Features Chipset: Ralink 2870+ Ralink 2820

Antenna Configuration: 2T2R Mode (detachable 2.4GHz antenna/2.0dBi gain.

Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)

Receive Sensitivity (Typical):
2.412~2.472G(IEEE802.11b) -91dBm @ 1Mbps ;-90dBm @ 11Mbps
2.412~2.472G(IEEE802.11g) -90dBm @ 6Mbps ;-74dBm @ 54Mbps
2.412~2.472G(IEEE802.11N) -90 dBm @ MCS 8 ;-65 dBm @ MCS 15

Topology: Ad-Hoc, Infrastructure

Throughput: 22Mbps@54Mbps ; 5.5Mbps@11Mbps

Operating Voltage: 5 V ± 0.25V

Approval: FCC Part 15, ETSI 300/328/CE.
Dimensions & Weight
Dimensions 2.8" x 2.3" x 0.6"
Weight 2.0 oz.
Environmental
Temperature 0°C - 50°C (32°F - 122°F)
Humidity 5% - 95%, Non-Condensing
Packaging

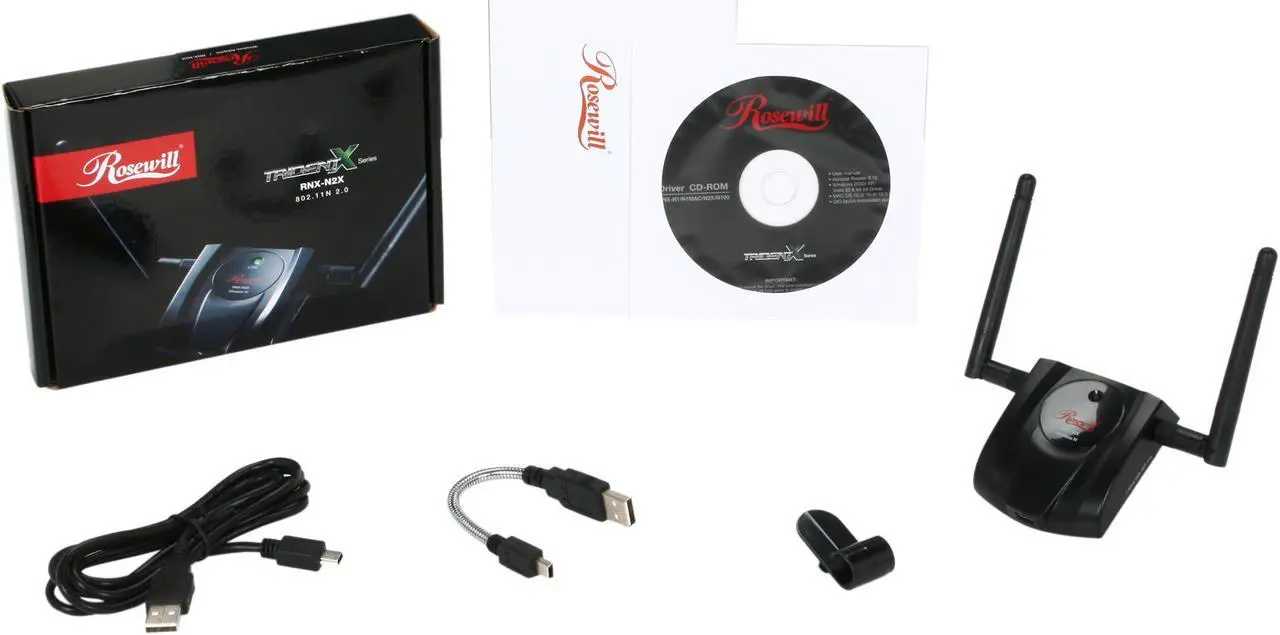

Package Contents RNX-N2X x1
Quick Installation Guide x1
CD-ROM with User's Manual and Drivers x1
USB cable (1.0M) x1
2 SMA antennas x2

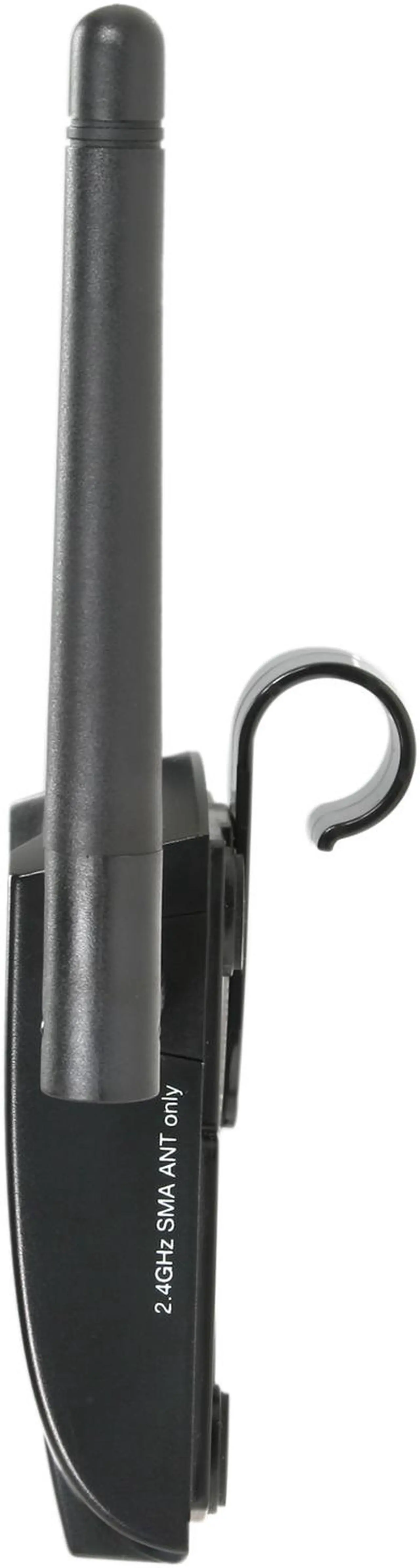

Laptop Clip x1
Additional Information
Date First Available October 10, 2008
