Brand | Rosewill |
---|---|
Model | RNX-N4 |
Standards | IEEE 802.11b/g, IEEE 802.11n Draft |
---|---|
Device Management | Configuration: Web-based configuration (HTTP) Firmware Upgrade: Upgrade firmware via web-browser Administrator Setting: Administrator password change; Idle time out Reset Setting: Reboot; Reset to Factory Default System monitoring: Status and Statistics, Time Zone & NTP Client, Event Log, Email Alarm |
Security | 64/128 bit WEP Encryption WPA Personal (WPA-PSK using TKIP or AES) WPA Enterprise (WPA-EAP using TKIP) 802.1x Authenticator |
WPA | WPA2 |
WAN Ports | 1 x 10/100/1000M |
LAN Ports | 4 x 10/100/1000M |
LEDs | Power/ Status WAN (Internet connection) LAN1~LAN4 (10/100/1000Mbps) WLAN (Wireless Connection) |
Buttons | (1 second for Reboot, 5 second for Reset to Factory Default ) |
Wireless Data Rates | Up to 300Mbps |
Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK |
Frequency Band | 2.4 GHz - 2.484 GHz |
Antenna | 3 external 2 dBi SMA Antennas |
Channels | 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan) |
Transmitted Power | IEEE 802.11n: 14~18dBm IEEE 802.11g: 18dBm@6Mbps; 14dBm@54Mbps IEEE 802.11b: 18dBm@1, 11Mbps |
Receiver Sensitivity | IEEE 802.11n: -65dBm~-90dBm IEEE 802.11g: 6Mbps@ -90dBm; 54Mbps@ -74dBm IEEE 802.11b: 1Mbps@ -91dBm; 11Mbps@ -90dBm |
Interface | Ethernet Port |
VPN support | IPSec, L2TP, and PPTP VPN pass-through |
Power Adapter | Power Supply: 90 to 240 VDC ± 10% (depends on different countries) Device: 12 V/ 1.25A |
Wireless Adapter included | No |
Dimensions | 6.6" x 4.3' x 1.0" |
Weight | 0.65 lbs. |
Temperature | 0°C - 50°C (32°F - 122°F) |
Humidity | 15% - 95%, Non-Condensing |
Features | Stream Engine Inside. Automatically detects media applications and gives them priority on the network. Stream Engine uses hardware and software to improve the quality of media for your network without any configuration. x4 built-in high performance Vitesse chipset 10/100/1000Mbps Gigabit Switch Ports (Auto-Crossover) x3 high gain Omni directional 2 dBi antenna connecting for the best wireless signal. Cool blue LED indicator shows the status of your network. Quick hardware button for WPS setup to enhance the security. Easy setup with Wi-Fi Protected Setup (WPS). 802.11b/g/n 2.0 provide further coverage, less dead spot and higher throughput. MIMO technology throughput up to 300 Mbps for Ralink 2T3R solution. Supports MIMO technology with 3 external 2 dBi SMA Antennas Support Cisco CCS V1.0, V2.0 and V3.0 compliant WPS. Wireless Multimedia Enhancements Quality of Service support (QoS) / enhanced power saving for Dynamic Networking RNX-N4 is also fully compatible with all other IEEE 802.11b/g devices. Supports DNS/ DDNS/ NAT/ hide SSID/ WDS/ Filter Scheduling/ Real time alert/ QoS/WMM Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI. Support 802.1x authenticator, 802.11i (WPA/WPA2, AES), VPN pass-thru mechanisms. Universal Plug and Play (UPnP) Web configuration compatible with both IE and Firefox. ** Important notice: 1. You must reboot both the router and your house modem (from your ISP) after the first time you setup the router. After that, your modem can detect the new setting and works correctly. 2. Older PC/NB may have problems connecting (slow or fail to open the network) with RNX-N4/N4PS. This is due to a driver issue of your wireless client trying to connect to new N router. Please update the wireless driver of your PC/NB to solve this issue. RNX-N4 is a gaming router which is not design for a used of wireless bridge. It can only establish a bridge by wired instead of wireless. |
---|

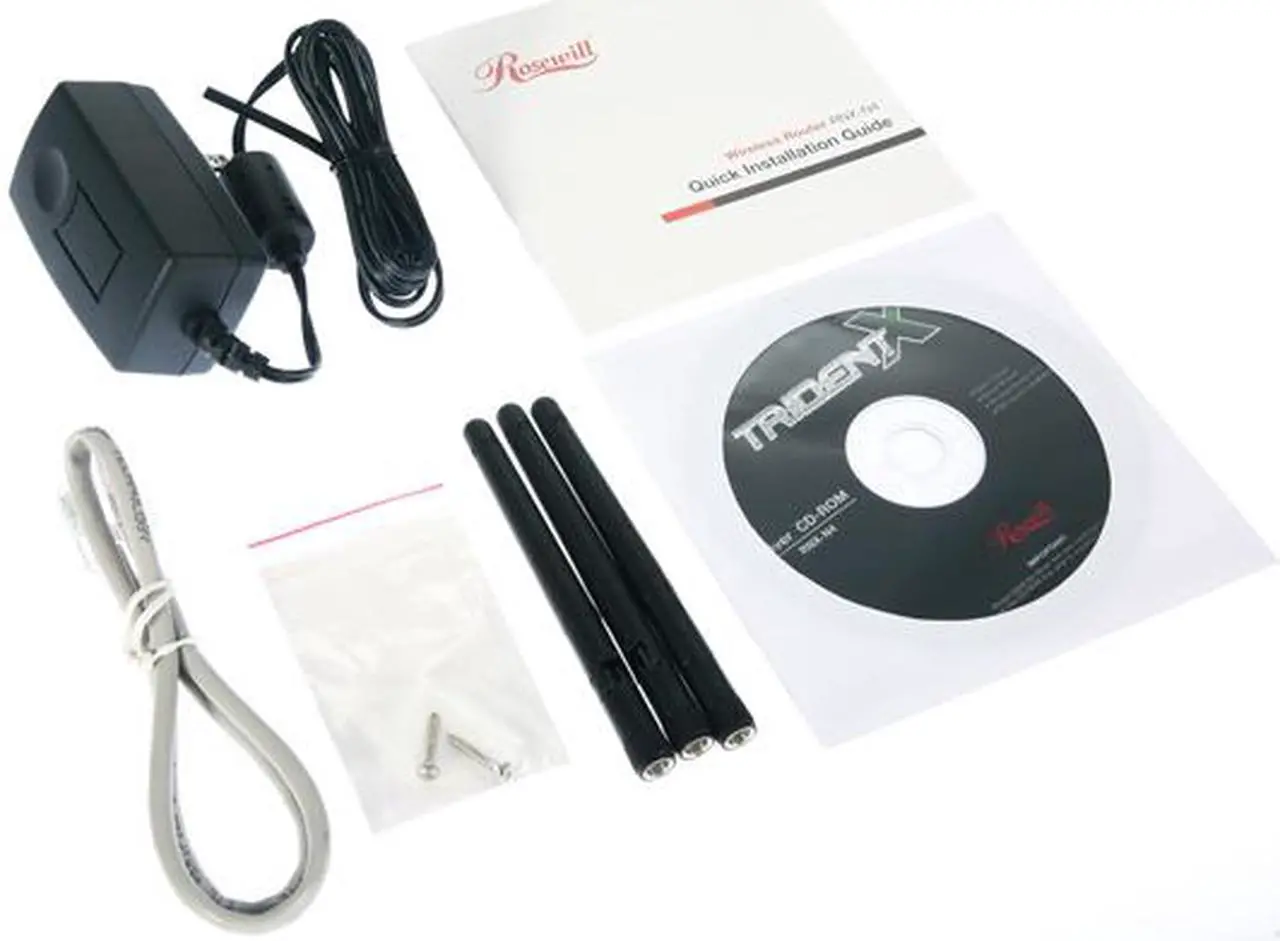

Package Contents | 1 802.11n SOHO Router 1 12V/1.25A 90V~240V Power Adapter 3 2dBi 2.4GHz Dipole Antennas 1 QIG 1 CD (User's Manual) |
---|
Date First Available | October 10, 2008 |
---|
